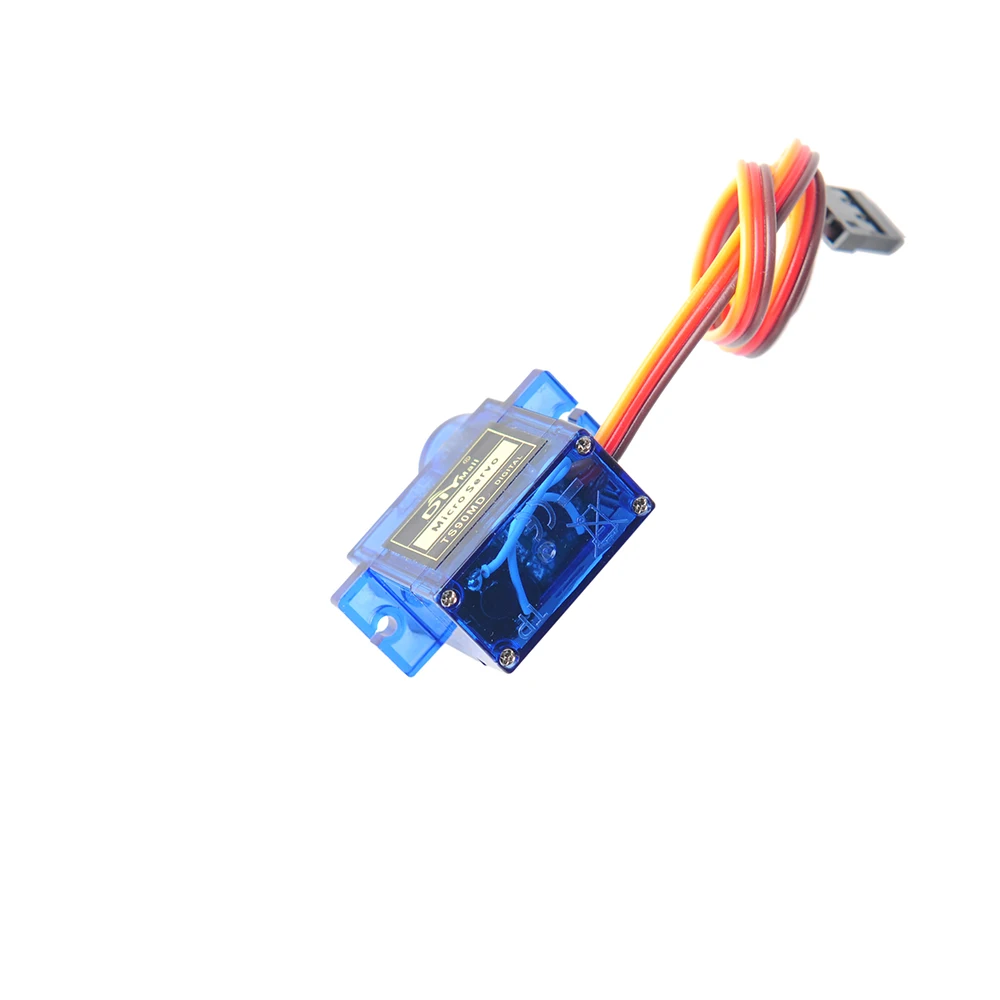

🔩 Introducing the RCmall TS90MD Micro 9g Digital Servo: This cutting-edge servo is designed for precision and versatility, making it an essential component for robotics projects, remote-controlled vehicles, and other applications requiring dependable motion control. With robust full metal gears, the TS90MD ensures durability and performance, perfect for both hobbyists and professionals alike.
🛠️ Versatile Angle Settings: This servo can be configured for multiple rotational degrees, including 90°, 180°, and 270°. Each setting allows for precise stopping at any desired angle, providing you with exceptional control for complex movements. In contrast, the 360° continuous rotation mode enables seamless motion, although angle and speed adjustments are not available in this mode, making it ideal for applications that require uninterrupted turning.

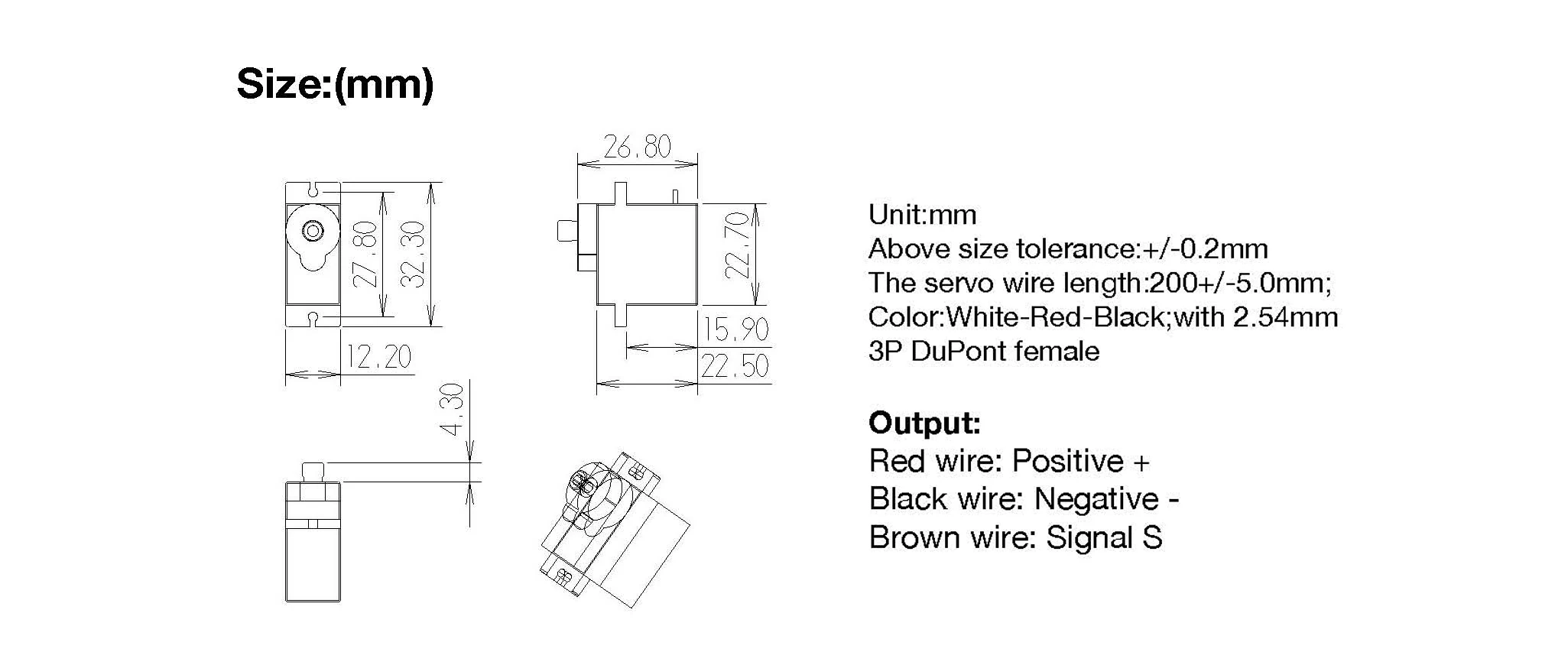

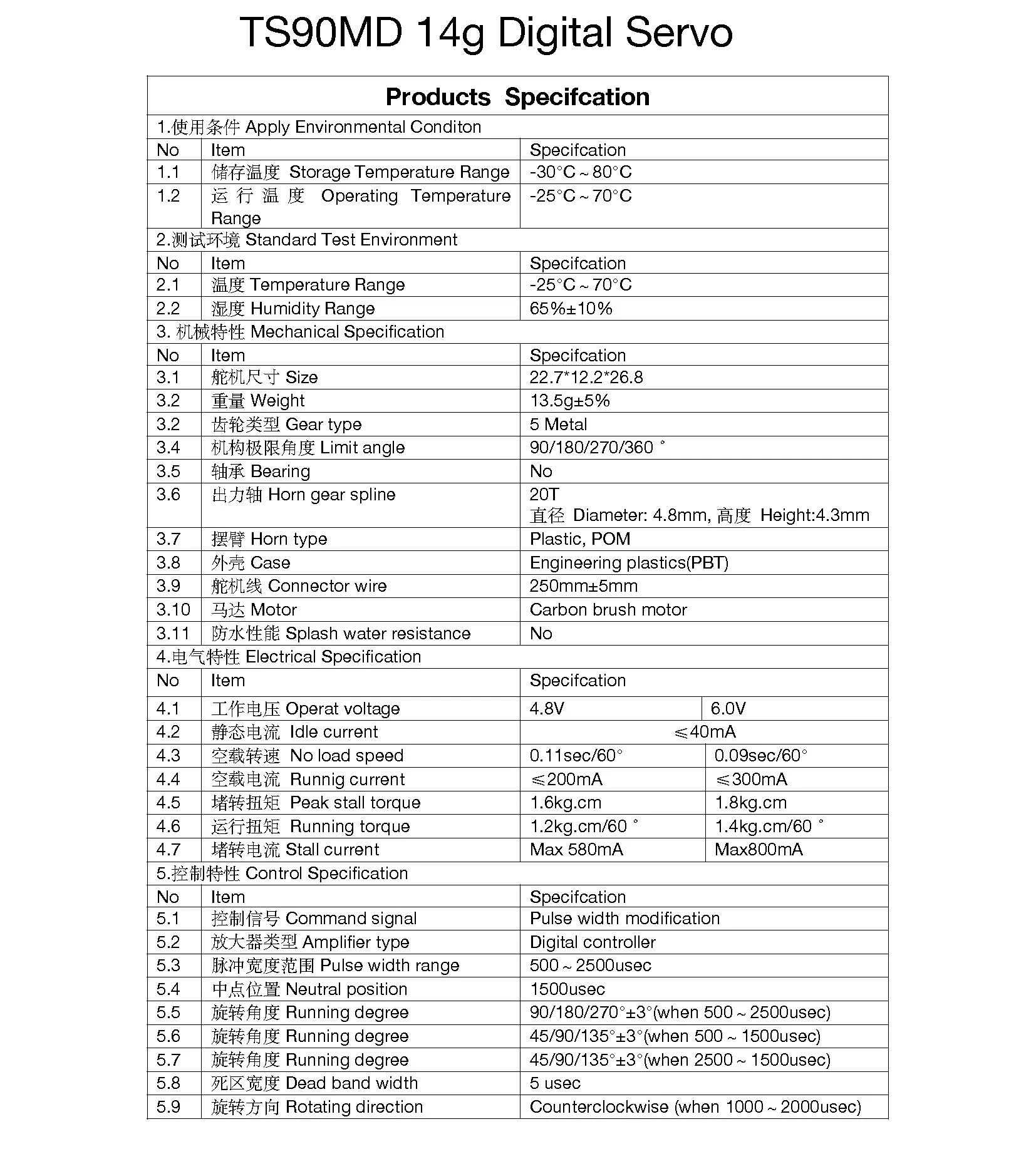

🔩 Mechanical Specifications: Compact and lightweight, the TS90MD measures just 22.4 x 12.5 x 22.8 mm. Its mechanism can achieve a limit angle of 200° ± 15°, with a 20T output shaft diameter of 4.9 mm. The full metal gear construction enhances its performance while ensuring reliability under various conditions.
🪶 Electrical Characteristics: Operate the TS90MD within a working voltage range of 4.8V to 6V to achieve optimal performance. This servo features an impressive no-load speed of 0.11 sec/60° and can maintain a locked rotor torque of 2.2 kg-cm at 6V. With a no-load current of 220mA and a locked rotor current of approximately 800mA ± 10%, the servo is efficient and capable of delivering high performance. Additionally, the static current remains low at 5mA-6mA, ensuring energy efficiency during operation.

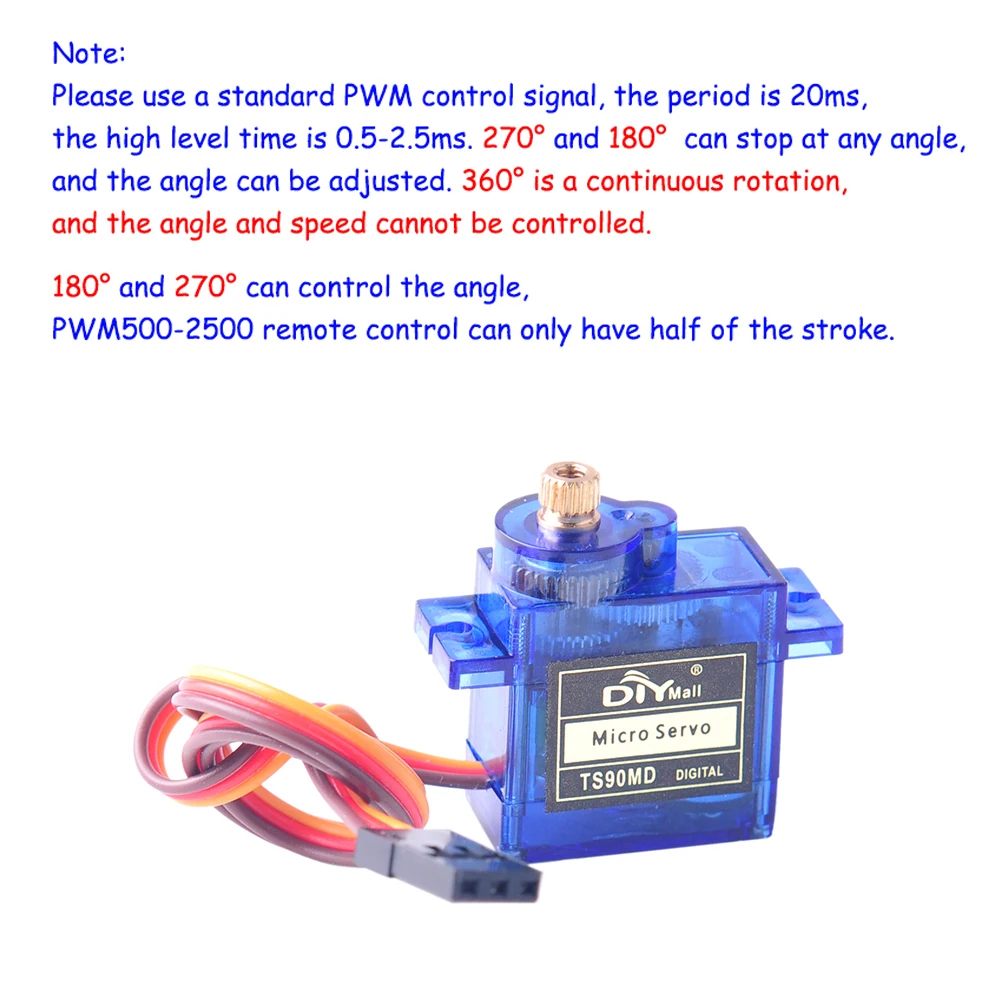

🛠️ Control Characteristics: The TS90MD utilizes pulse width modulation (PWM) for control. With a pulse width range of 500 to 2500 microseconds and a control system type of analog, this servo is engineered for precise motion. The mid-point position is set at 1500 microseconds, allowing for straightforward control of the servo's movements. Keep in mind that for 180° and 270° modes, the stroke can only achieve half of its total range with PWM control signals.
📦 Included in the Package: Each purchase comes with one servo and all necessary accessories to get you started on your projects right away. Unlock new possibilities in your robotic designs and remote-controlled creations with the reliable RCmall TS90MD Micro 9g Digital Servo.
