High - Power Wireless Remote Control Switch with Relay Receiver (1Receiver 2Remote)

📶 Introducing the RF Wireless Remote Control Switch – a sophisticated solution for seamlessly controlling your electric appliances with ease. Designed to operate at both AC 110V and 220V, this high-current relay receiver is ideal for managing door motors, LED lighting, and other electrical devices.

Technical Specifications:

• Working Voltage: DC 12V - 72V
• Quiescent Condition: Consumes less than 8mA
• Operating Temperature Range: From -40°C to +80°C, ensuring reliable performance in diverse environments
• Receiver Sensitivity: More than -105 dBm, ensuring robust communication
• Working Frequency: Operates at 433 MHz for efficient transmission
• Output Voltage: Input equals output, allowing for versatile application

💍 Versatile Operating Modes:

• Momentary: When pressed and held, the relay activates; releasing returns it to the off state.
• Toggle: A single press activates the relay; pressing the same button again deactivates it.
• Latched: Press one button to activate, then press another to deactivate.
• Delay Function: The relay remains active for a predetermined time after activation.

🔍 Custom Learning and Clearing Methods:

Program your remote easily with the following learning methods:

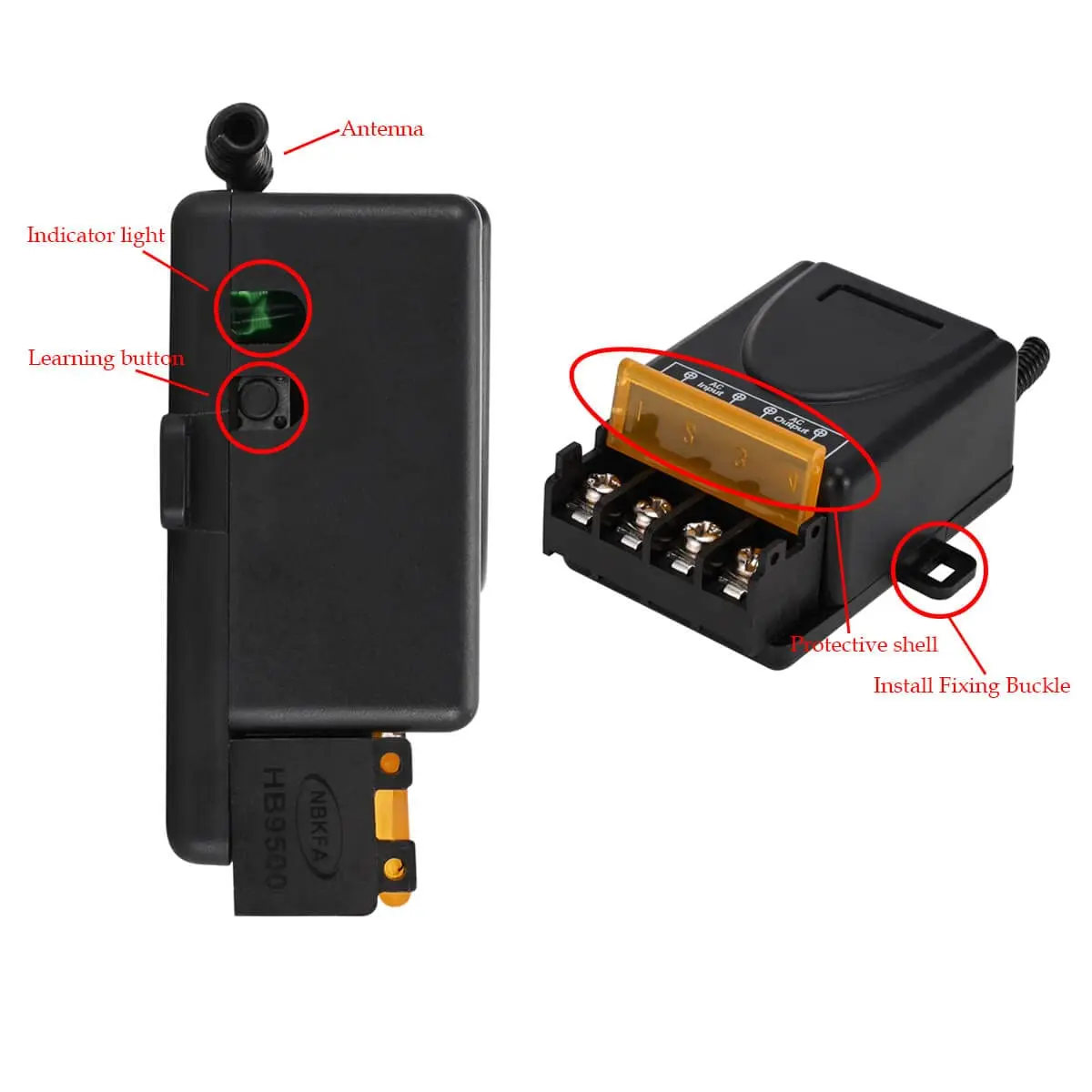

• Momentary Mode: Press the learning button once; LED indicator will flash once. Press the transmitter button to complete learning (LED flashes three times).
• Toggle Mode: Press the learning button twice; LED flashes twice. Follow with the transmitter button for successful learning.
• Latched Mode: Press the learning button three times; LED flashes three times, then press the transmitter.
• Delay Time Settings: Activate a delay of 5, 10, or 15 seconds by pressing the learning button accordingly (four, five, or six times). Each will confirm success with a three-time LED flash.
• Clearing Codes: Hold down the learning button for 8 seconds until the LED flashes three times and turns off, indicating that the code has been cleared.
