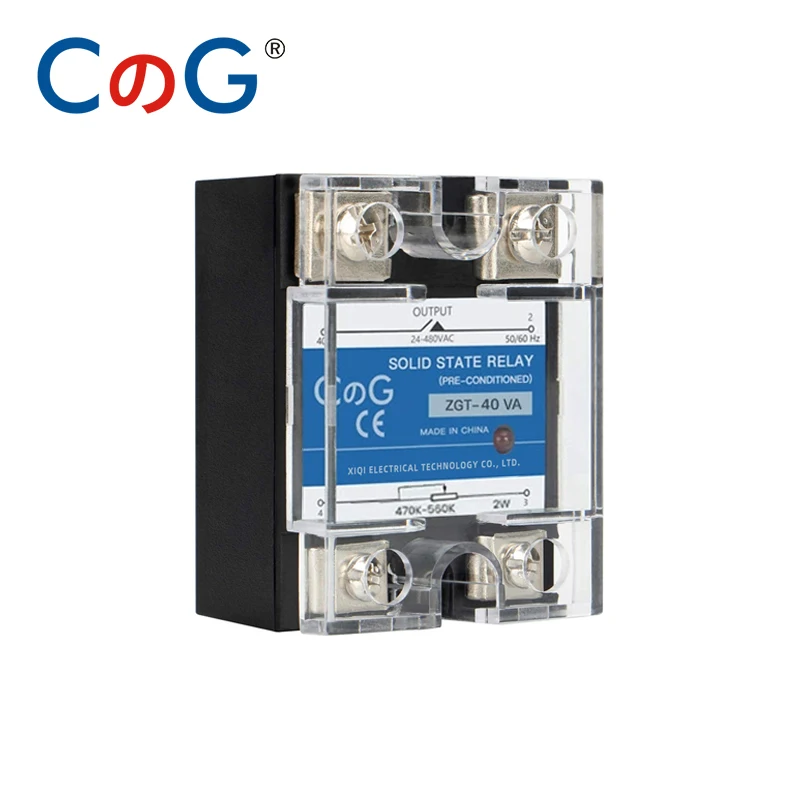

High - Capacity Single Phase Voltage Regulator with Heat Sink & Solid State Relay - 40VA

💍 CG SSR Series Solid State Relay (SSR) Voltage Regulators offer exceptional performance in controlling electrical loads, available in models of 10VA, 25VA, and 40VA, designed to suit various applications. These relays utilize advanced semiconductor technology, ensuring efficient and reliable operation without the mechanical wear that accompanies traditional relays.

🏆 When selecting your SSR, follow these essential steps to ensure optimal performance:

Step 1: Choose the Correct Control Mode
- AA - AC Control AC
- DA - DC Control AC
- DD - DC Control DC
- VA - Control and Adjust

🧩 Different modes provide flexibility for diverse applications, allowing you to match the SSR’s functionality to your specific control requirements.

🌿 Step 2: Determine the Correct Type of SSR
To ensure the appropriate operation of your equipment, establish the current of your device and calculate the suitable ratio for the SSR. The recommended ratios depend on the type of load you are managing:

• Resistive Load: Use a ratio of 70%
• Inductive Load: Use a ratio of 20%
• Capacitive Load: Use a ratio of 10%

This step is crucial as it guarantees that the relay will perform efficiently without being overloaded.

😎 Step 3: Select an Appropriate Heat Sink
Solid State Relays generate considerable heat during operation. To enhance the longevity and reliability of your SSR, it is imperative to install a suitable heat sink. If the current exceeds 60A, we recommend incorporating a cooling fan to manage the thermal output effectively.

📦 Note: Our heat sink package includes two screws, facilitating a straightforward installation process.

⚡ Important Notice:
The internal structure of solid-state relays consists of semiconductor materials. Unlike traditional switches, these relays do not use physical contacts. Therefore, testing them with a multimeter for diode or resistor functionality may yield a high-impedance reading (indicated by the multimeter light showing red). To properly assess the operational state of an SSR, a load must be connected. Using an incandescent lamp as a dummy load is an effective method to test for continuity and ascertain functionality.

By following this guide, you can ensure that your CG SSR Voltage Regulator Relay will operate effectively and meet the demands of your electrical applications.
