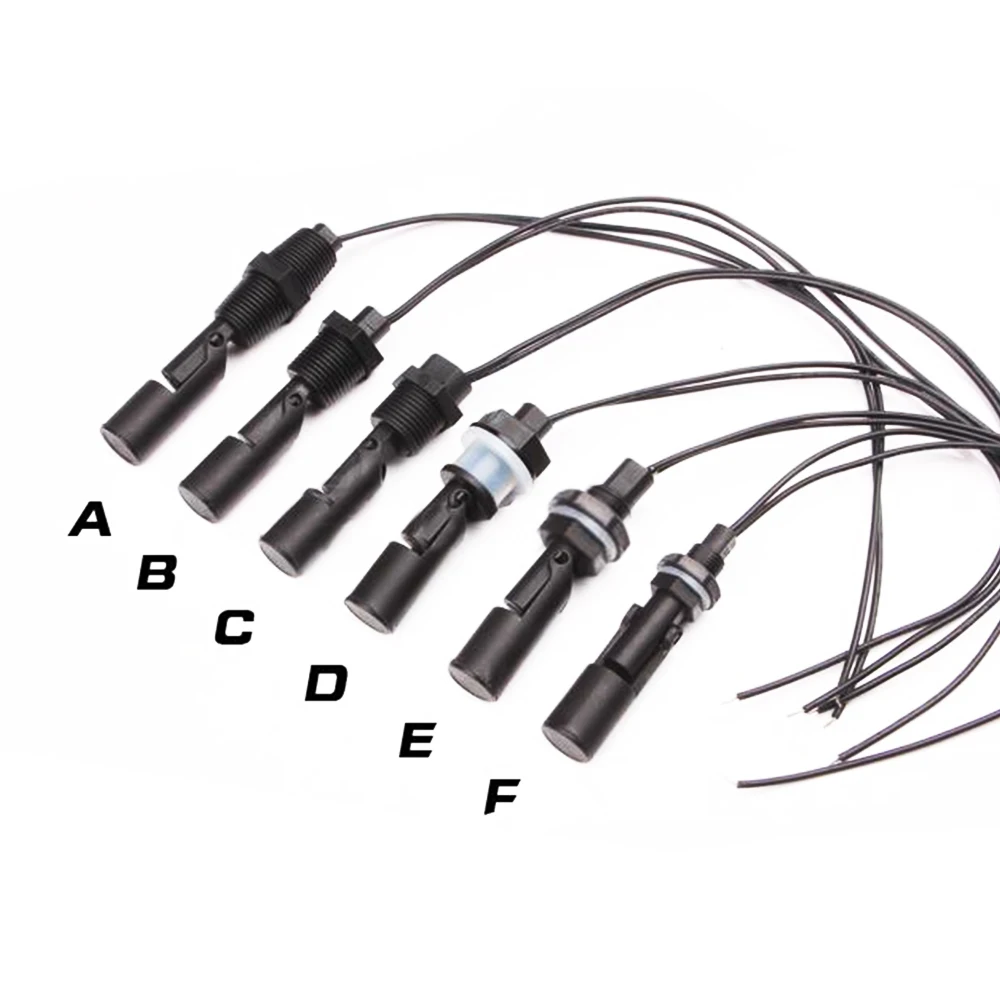

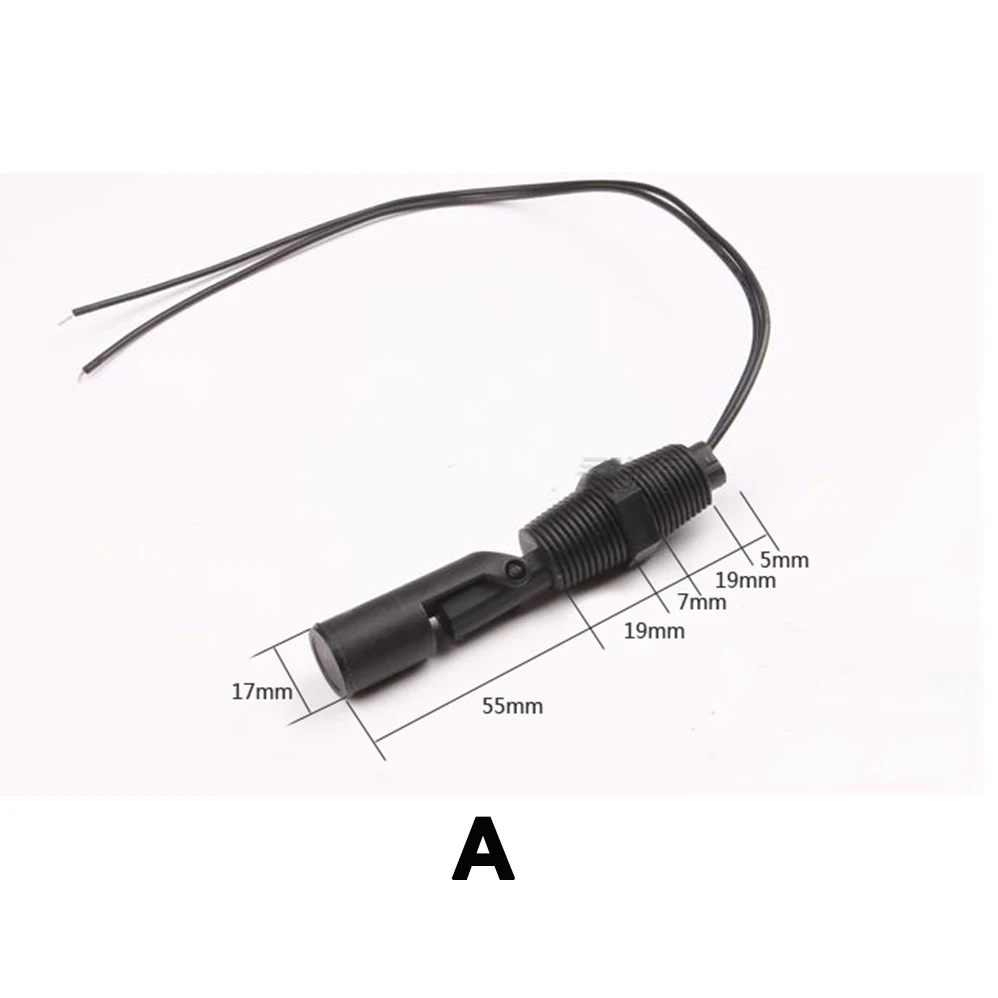

Dual Voltage Liquid Water Level Sensor Horizontal Float Switch (A)

Product Description:

📦 The 110V 220V Liquid Water Level Sensor Horizontal Float Switch is an essential tool designed for precise liquid level management across a variety of applications. With its straightforward structure and user-friendly operation, this float switch eliminates the need for an external power supply and complex circuitry. It stands out for its compact design and enhanced durability, making it a superior alternative to traditional mechanical switches. Built to withstand diverse environments, this sensor is perfectly suited for industries such as shipbuilding, generator equipment, petrochemicals, food processing, water treatment, dyeing and finishing, and hydraulic machinery, among others.

Working Principle:

🪶 This innovative liquid level sensor operates through a simple yet effective mechanism that integrates a reed switch with a magnetic floating ball. The float, equipped with magnetic material, glides within a closed non-magnetic tube that houses one or more reed switches. As the liquid level fluctuates, the floating ball ascends or descends, activating the reed switch and enabling precise control or indication of the liquid level. The contact point near the magnetic spring's end dictates the switch's operation: when the float is adjacent to the reed switch, it completes the circuit; conversely, when it moves away, the switch opens, facilitating seamless level management.

🔧 Key Features:

• 100% Brand New and Reliable Material: Constructed from durable PP.
• Contract Rating: Capable of handling a maximum load of 10W.
• Voltage and Current Specifications: Operates effectively at a maximum switching voltage of 110VDC and a maximum switching current of 0.5A. Breakdown voltage can reach up to 220VDC, with a carry current of 1A.
• Low Resistance: Maintains a contact resistance of a maximum of 100 OHM, ensuring efficient operation.
• Temperature Range: Reliable performance within a temperature range of -10 to +60 degrees Celsius.
• Versatile Uses: Ideal for various applications, including hydroponics, aquariums (both freshwater and saltwater), gardening, and filtration systems. It can control power heads, alarms, indicators, and other devices effectively.
• Environmentally Friendly: Contains no harmful mercury, promoting safe usage in varying settings.

💥 Note: Variations in monitor settings may affect color representation; the actual item may differ slightly from images. We appreciate your understanding!

📦 Package Includes:

1 x 110V 220V Liquid Water Level Sensor Horizontal Float Switch for Aquariums, Fish Tanks, and Pools
