Product Description:
🧩 The Liquid Water Level Sensor Controller is a highly efficient horizontal float sensor switch designed for seamless integration into various applications such as tanks, pools, and aquariums. With an automatic water pump control capability, this side-mounted device is essential for maintaining optimal liquid levels in your systems.
Specifications:
- Maximum Switch Power: 10W
- Maximum Switching Voltage: DC 100V
- Maximum Switching Current: 0.5A
- Maximum Breakdown Voltage: DC 220V
- Maximum Carry Current: 1.0A
- Maximum Contact Resistance: 100mΩ
- Temperature Rating: -30°C to +125°C
🔧 Key Features:
💥 Types:

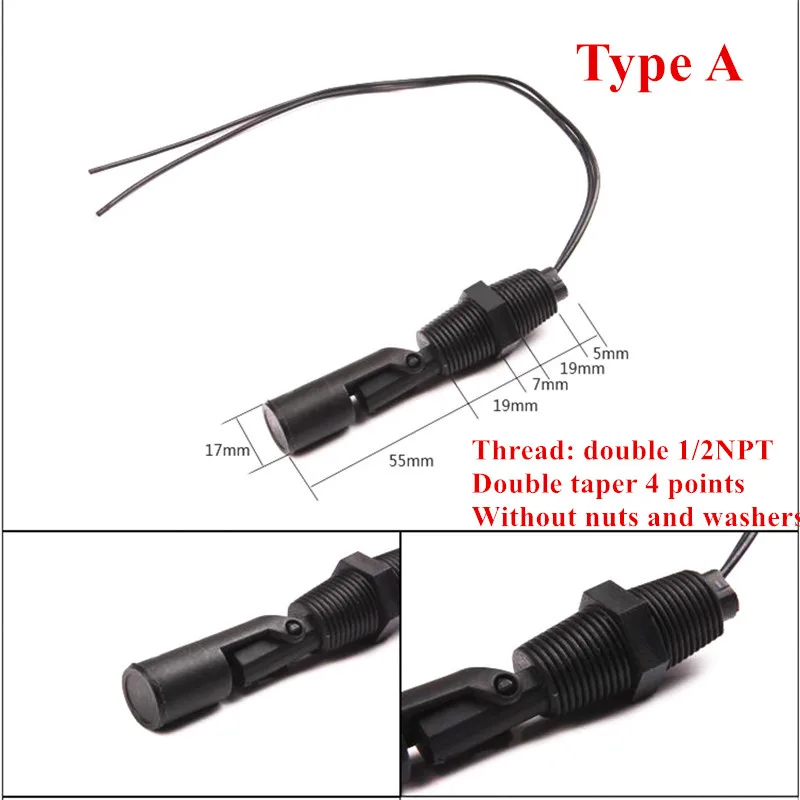

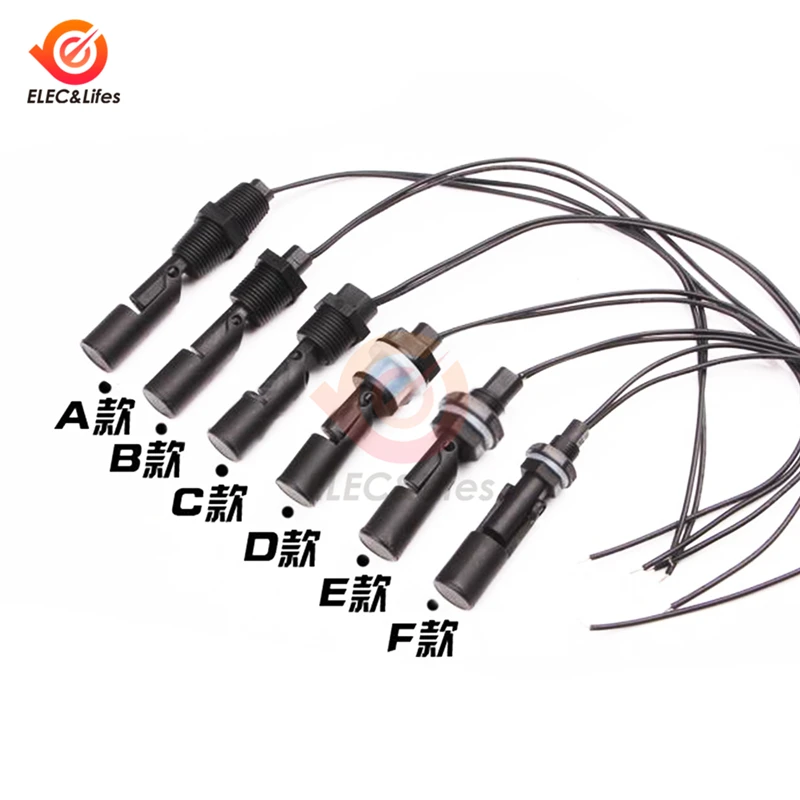

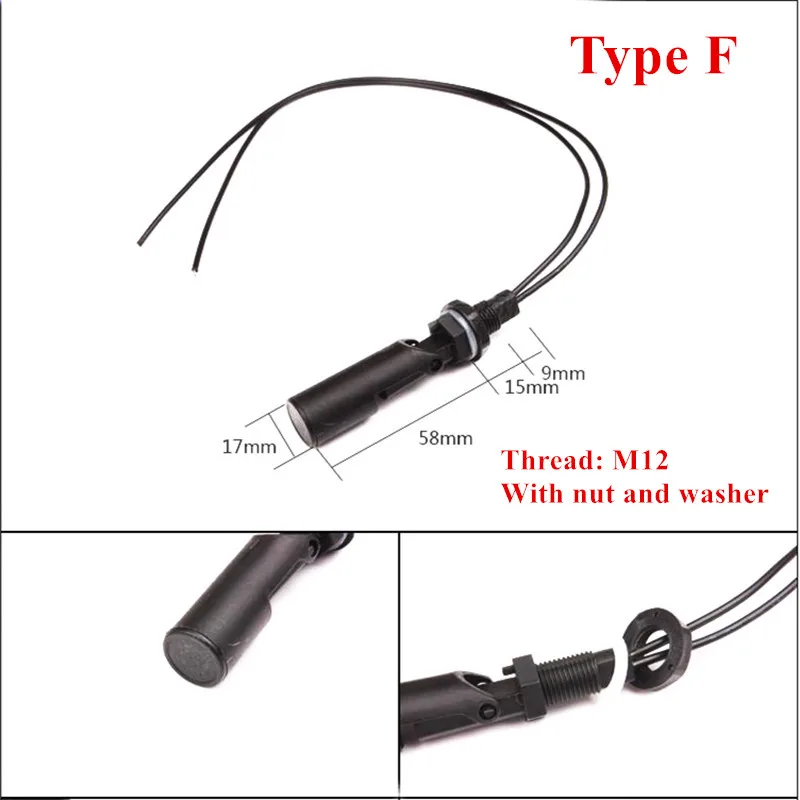

💍 This sensor is available in several types—Type A, Type B, Type C, Type D, Type E, and Type F—catering to different needs and specifications.
Working Principle:

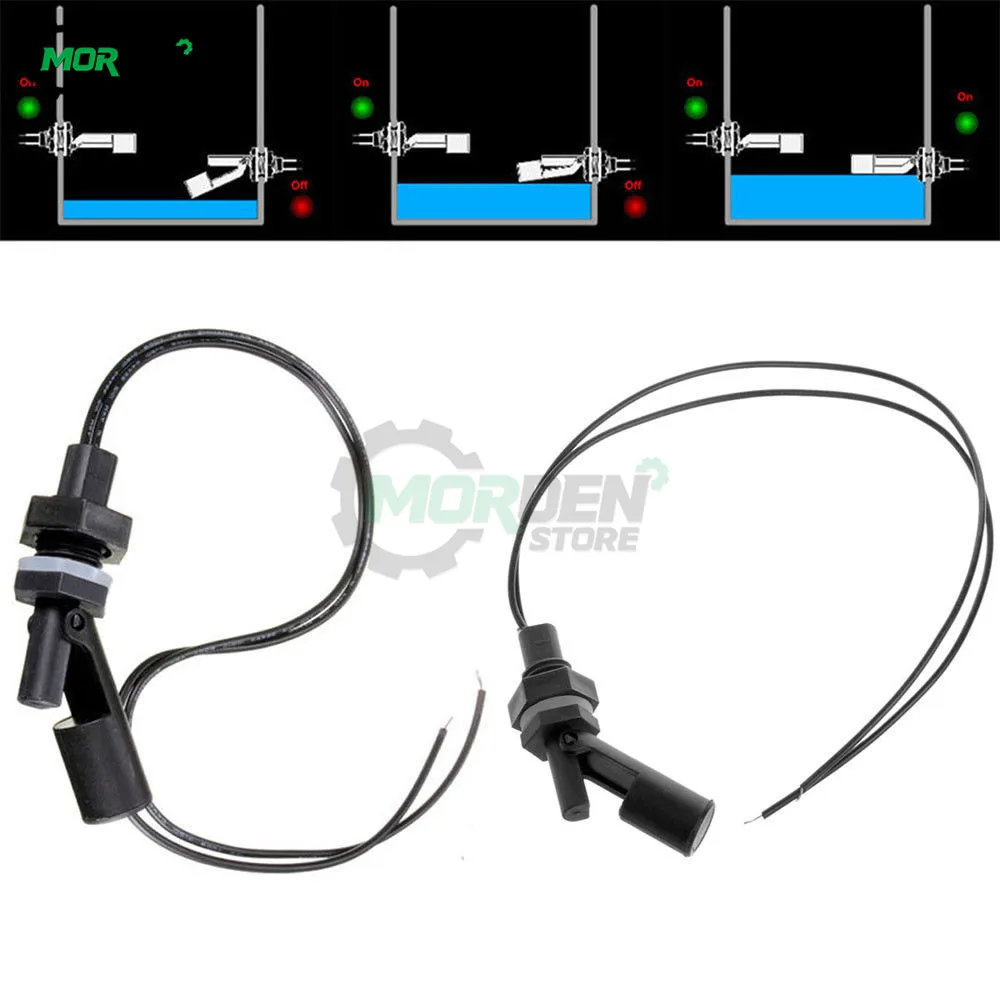

🔩 The operation of this liquid level sensor is based on the interplay between a magnetic reed switch and a floating ball, which contains magnetic materials. Encased within a closed, non-magnetic tube (either metal or plastic), the magnetic reed switch is activated as the floating ball moves with the liquid levels. The dual-ring system stabilizes the floating ball's position, allowing for reliable opening and closing of the switch based on the liquid level. This design makes it ideal for liquid level control or indication; the switch engages when the float approaches the reed switch and disengages as it moves away.
Wide Applications:
📦 The float level switch is not only compact and efficient but also boasts an impressive lifespan, surpassing that of conventional mechanical switches. Its adaptable design allows it to function effectively across industries, including shipbuilding, petrochemicals, food production, water treatment, hydraulic machinery, and many more.
🛠️ Optimize your liquid management systems with this reliable and versatile Liquid Water Level Sensor Controller, ensuring precise control and monitoring for varied applications.
