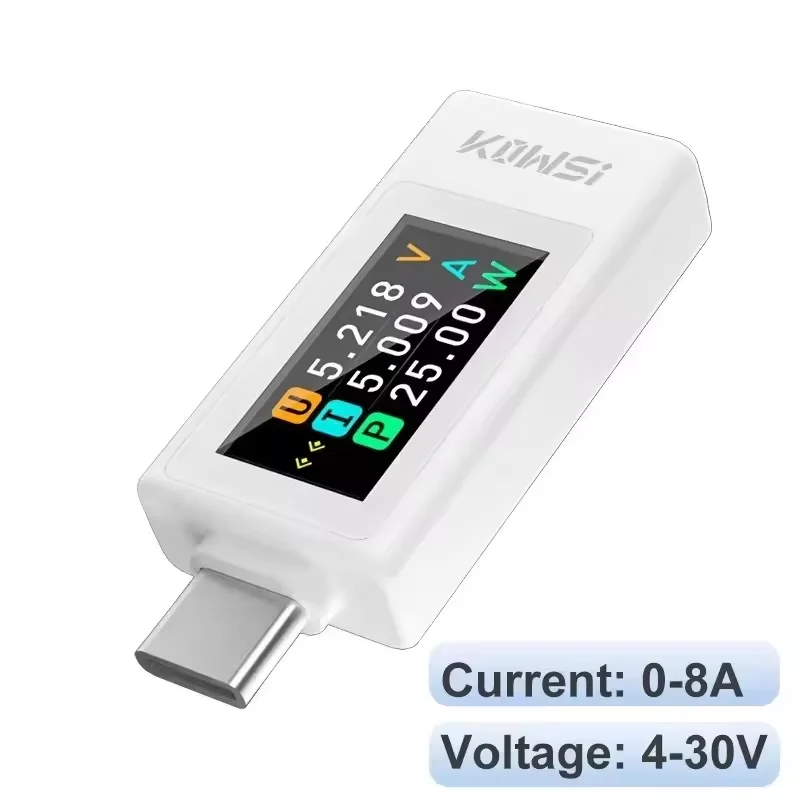

KWS-2302C USB Tester - A Comprehensive Power Measurement Tool
🛠️ The KWS-2302C USB Tester is an advanced voltmeter and ammeter designed for precise monitoring of various electrical parameters. This power meter serves as a vital tool for anyone seeking to optimize charging systems and enhance device efficiency. With its extensive feature set and user-friendly design, it provides real-time insights into the performance of your electronic devices.
🔧 Key Features:
- Dynamic Parameter Monitoring: The KWS-2302C allows for the simultaneous display of multiple parameters, including voltage, current, power, capacity, electrical energy, timing, and even CPU temperature. This wealth of information helps users to comprehensively assess their device's performance.
- High-Definition Display: Featuring a vibrant 0.96-inch TFT display, the tester ensures clear visibility of data, making it easier to interpret results quickly and efficiently.
- Innovative Navigation: The user-friendly interface allows for easy navigation between different display pages with a simple button click. Additionally, a double-click function enables screen rotation, allowing for optimal viewing in various environments.
- Intelligent Data Logging: The tester intelligently records peak values—maximum power, voltage, and current from individual tests—giving users the ability to track performance trends over time.
- Bidirectional Current Testing: This device supports bidirectional current testing, providing a comprehensive evaluation of both input and output currents, and including capabilities for fast charging assessments.
- Power Down Data Saving: In the event of a power cut, critical data is preserved, ensuring that you won't lose valuable information during your testing sessions.
🔍 Technical Specifications:
- Voltage Range: DC 4-30V
- Current Range: 0-12A
- Timing Function: Up to 99 hours
- Power Measurement: 0-360W
- Capacity Monitoring: 0-99999mAh
- Electrical Energy Measurement: 0-99999Wh
- Product Dimensions: 50.6 x 18 x 9mm
🛠️ With its robust design and extensive features, the KWS-2302C USB Tester is ideal for technicians, hobbyists, and anyone interested in monitoring electrical performance. Whether for personal use or professional applications, this tool delivers precision and reliability, ensuring users have the insights needed to make informed decisions about their electronic devices.
