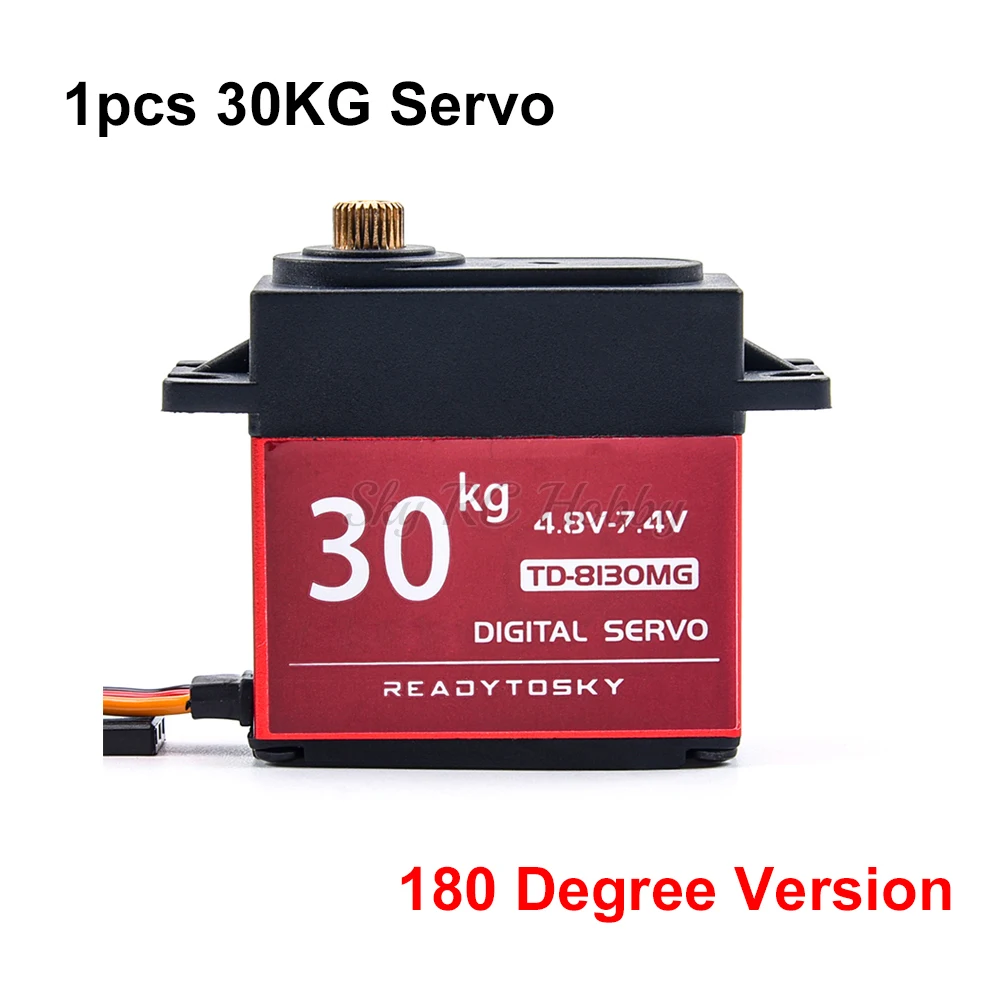

Heavy - Duty Waterproof Digital Servo with Metal Gears and 25T Arm (1x30kg 180 Degree)

🏆 Overview of High-Performance Digital Servos for RC Applications

💧 Discover an impressive range of waterproof servos with various torque ratings designed to elevate your remote-controlled car, airplane, or helicopter experience. These servos come in multiple configurations, including 20KG, 25KG, 30KG, 35KG, and 60KG, each engineered with precision and built to handle demanding applications with ease.

🔧 20KG Servo Features:

• High-Precision Construction: Equipped with high-precision metal gears featuring hard anodizing for added durability.
• Robust Design: The CNC machined aluminum middle shell ensures reliability under various conditions.
• Control System: Operates via PWM control, with a central point at 1500 µs.
• Operating Specifications: Functional at a voltage range of 4.8V to 6V, making it versatile for various setups.
• Torque Capabilities: Delivers a torque of 17.2 kg.cm at 4.8V, and 20.3 kg.cm at 6.0V.
• Speed and Angular Range: Achieves an idle speed of 0.15 sec per 60 degrees at 4.8V and 0.13 sec at 6.0V with a steering angle of 180° or 270°.
• Durability: Designed for longevity with a lifetime exceeding 15,000 cycles under no load.

🔩 25KG and 30KG Servos:

📦 Characteristics for these servos include a compact design with a robust case made from engineering plastics and aluminum alloy. They feature a peak stall torque ranging from 23.5 kg.cm to 32 kg.cm depending on the model, along with high-speed performance for effective control in dynamic situations.

• Size and Weight: Both servos maintain a compact size of 40.0*20.5*40.5mm, weighing approximately 56g.
• Key Specifications: Strong 5-metal gear type with limits up to 360°, supported by dual ball bearings for smooth operation.
• Responsive Control: A digital controller manages pulse width modulation for precise signaling accuracy.

🔩 35KG Servo:

🪨 This heavy-duty servo offers a peak stall torque of 32.7 kg.cm to 35.2 kg.cm, ensuring it can handle the toughest tasks in an RC environment. The design retains the compact dimensions and lightweight nature of its predecessors, making it a preferred choice for demanding applications.

🔧 60KG Servo Features:

• Advanced Torque Capacity: With peak stall torque reaching up to 70 kg.cm, it provides exceptional strength.
• Superior Build Quality: Incorporates a splash-proof design, enhancing its durability in various environmental conditions.
• Powerful Motor: Features a carbon brush motor, ensuring efficient performance and longevity.
• Control Specifications: Operates effectively within a working voltage range of 4.8V to 8.4V.

♻️ Applications:

🏔️ These advanced servos are ideal for a wide variety of remote-controlled vehicles, including cars, airplanes, and helicopters, providing users with confidence in their performance and reliability during competitive or recreational use. Whether you're racing on rugged terrain or performing aerial stunts, these servos are built to meet challenging demands.

🏆 Enhance your RC experiences with these powerful and dependable servos, specifically engineered to deliver exceptional performance and reliability in any environment.
