Enhanced Multifunction LCR Meter and Transistor Tester (LCR - P1)

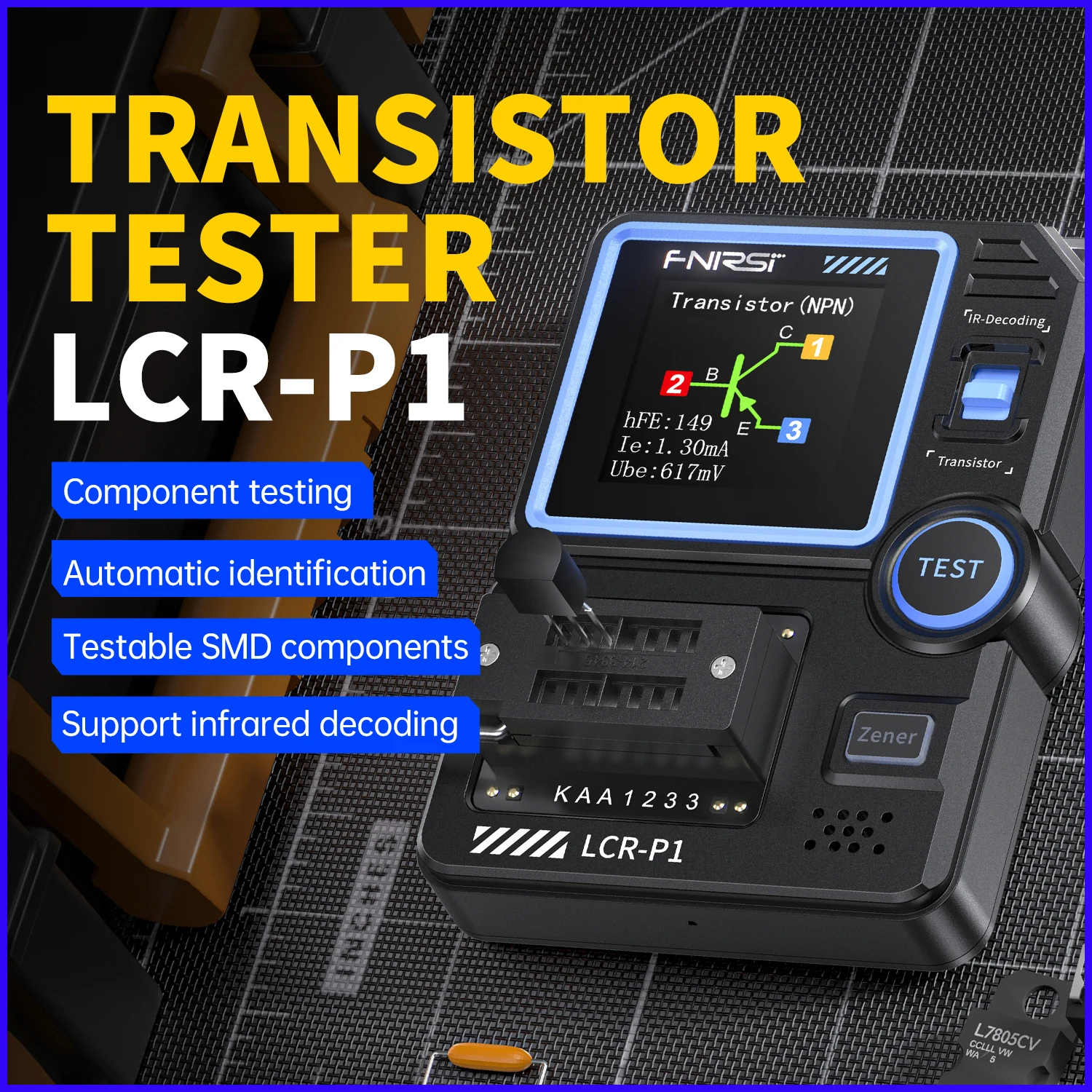

🧩 The FNIRSI LCR-P1 Transistor Tester is an advanced and versatile electronic testing instrument tailored for electronic engineers, technicians, and hobbyists. This multifunctional device is designed to accurately detect and evaluate the characteristics of a wide range of semiconductor components, including transistors, diodes, triodes, and field-effect transistors (FETs).

⚙️ With its vibrant color display, the LCR-P1 facilitates multi-parameter measurements of various components. It automatically identifies the type and pin configuration of the tested component, simplifying the operation and significantly enhancing testing efficiency.

🔧 Key Features:

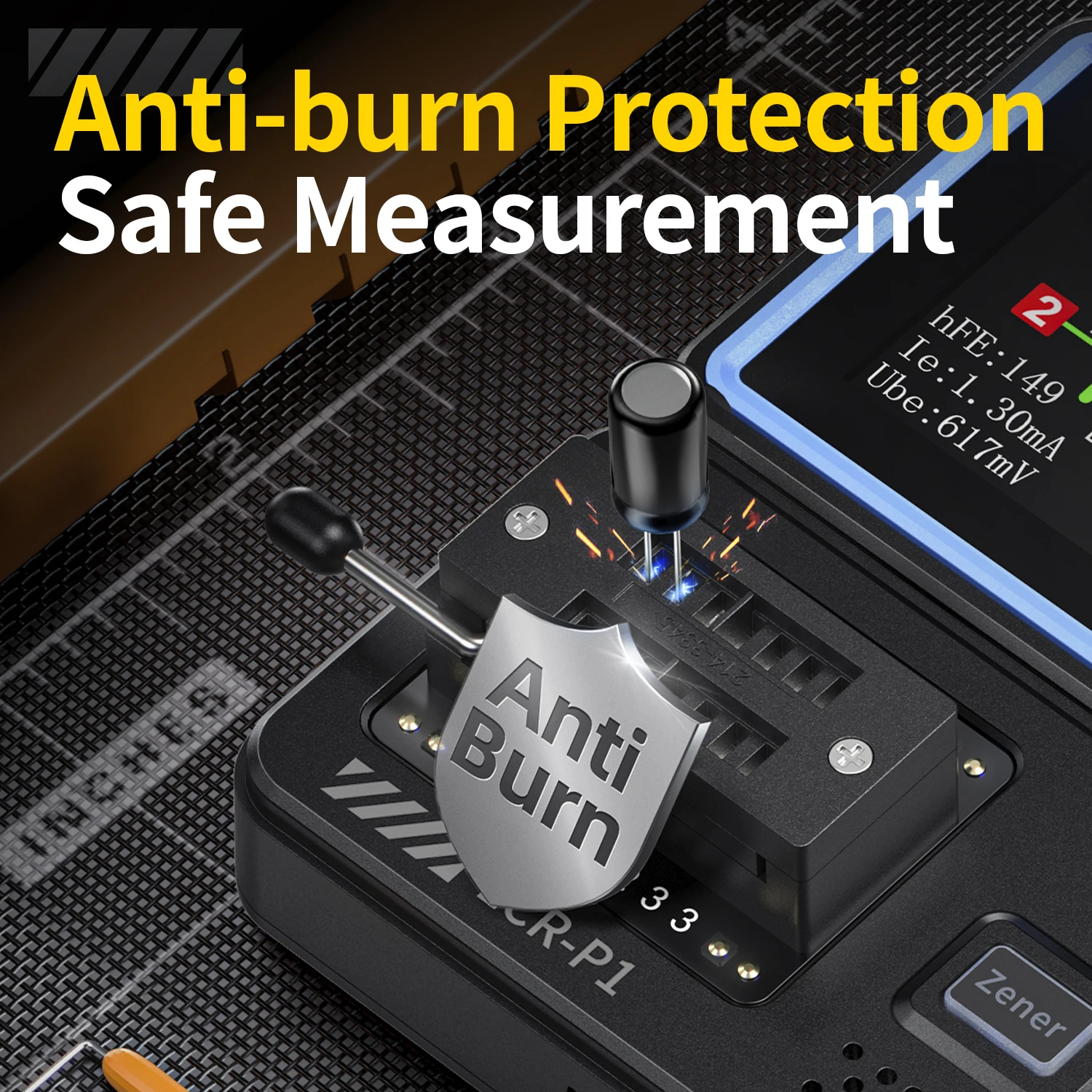

• Intelligent Anti-burning Design: The device ensures the safety of uncharged capacitors by automatically discharging them upon insertion, featuring a robust protection mechanism to prevent potential damage during testing.
• Data Export Capabilities: The LCR-P1 supports connections to computers for seamless data exporting, making it easy to transfer collected measurement data for comprehensive and in-depth analysis.

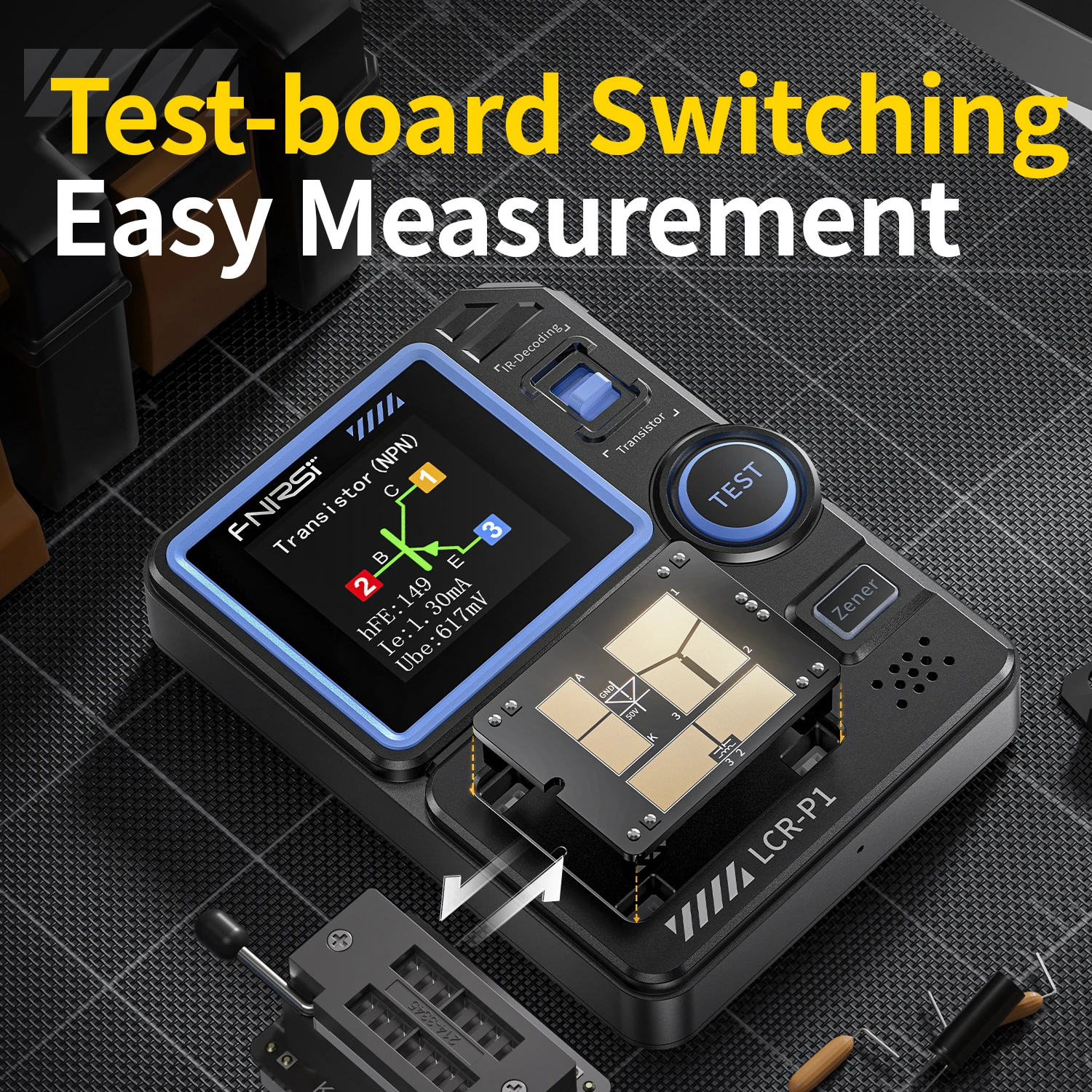

• Alternate Measuring Modes: This tester includes replaceable test boards, allowing users to address a variety of testing needs quickly and efficiently with optimal convenience.

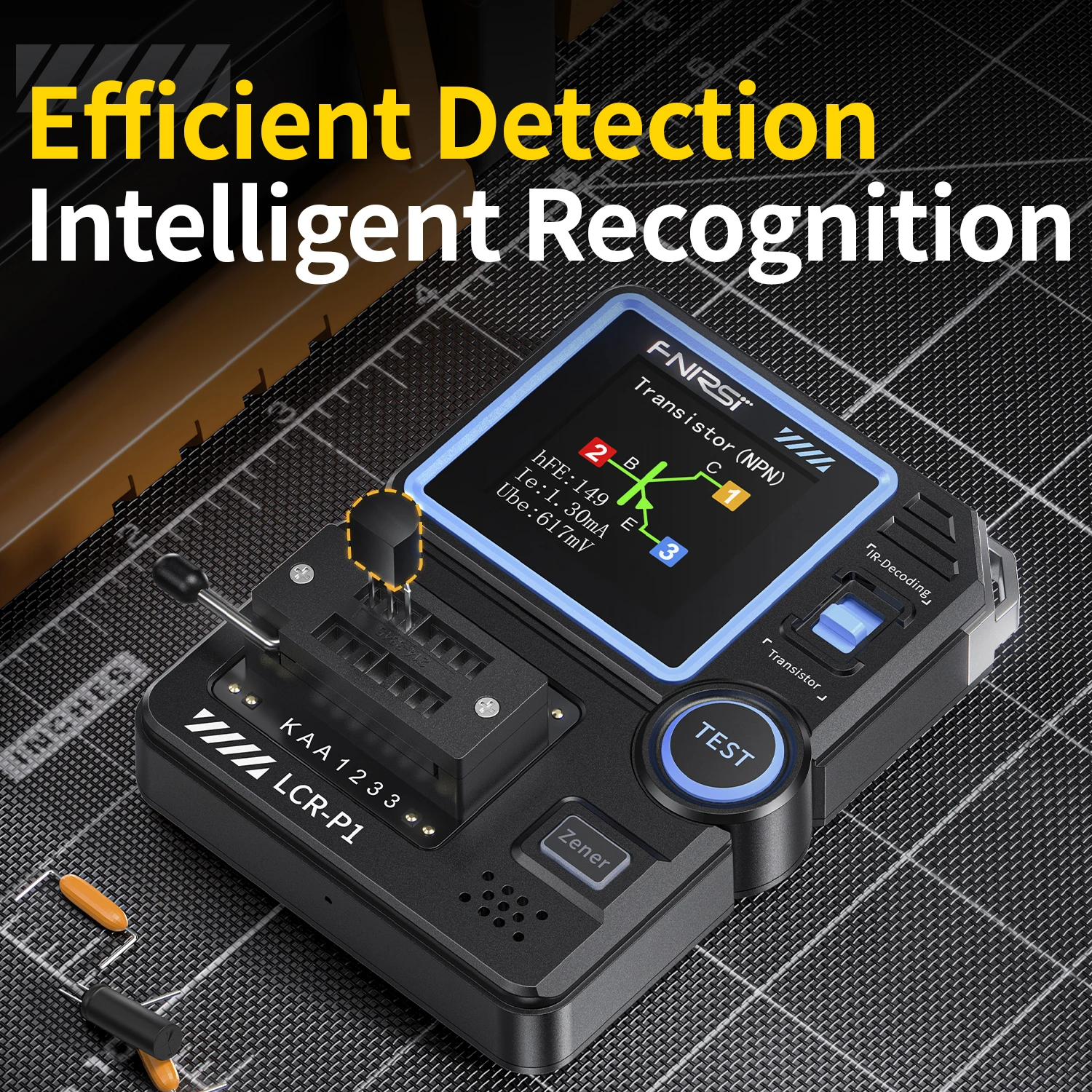

• Intelligent Component Recognition: Users can enjoy the simplicity of just plugging in a component and with a single button, experience rapid identification of component parameters, thereby saving both time and effort.
• Zener Diode Independent Measurement: The LCR-P1 features a dedicated channel for measuring Zener diodes, providing voltage measurements ranging from 0.01V to 32V with a built-in pre-measurement power supply for enhanced accuracy.

🧩 Specifications:

• Model: LCR-P1

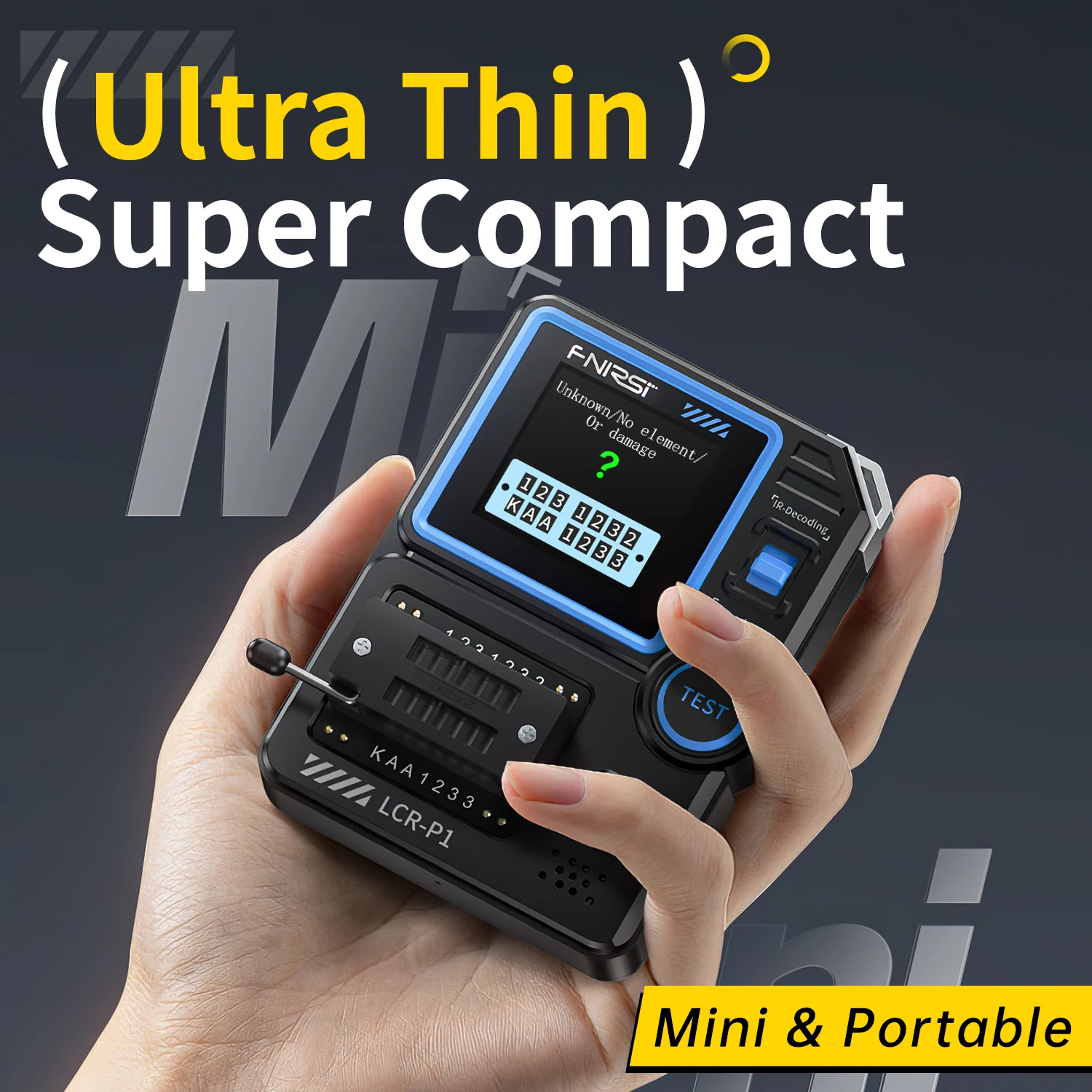

• Display: 1.44 Inch Color Screen
• Charging: USB Type-C, 5V/1A
• Power Supply: 300mAh lithium battery
• Operating Temperature: 0~40℃
• Resistance Range: 0.01Ω - 50MΩ
• Capacitance Range: 25pF - 100mF
• Inductance Range: 10uH - 1000uH
• Transistor Gain Range: 10 < β < 600
• Diode Forward Voltage Drop: < 4.5V
• Voltage Regulator Diode: 0.01 - 4.5V, 0.01 - 32V
• Field-Effect Transistor: JFET, IGBT, MOSFET compatible
• Thyristor: Turn-on voltage < 5V, gate trigger current < 6mA
• Battery Testing: 0.1 - 4.5V

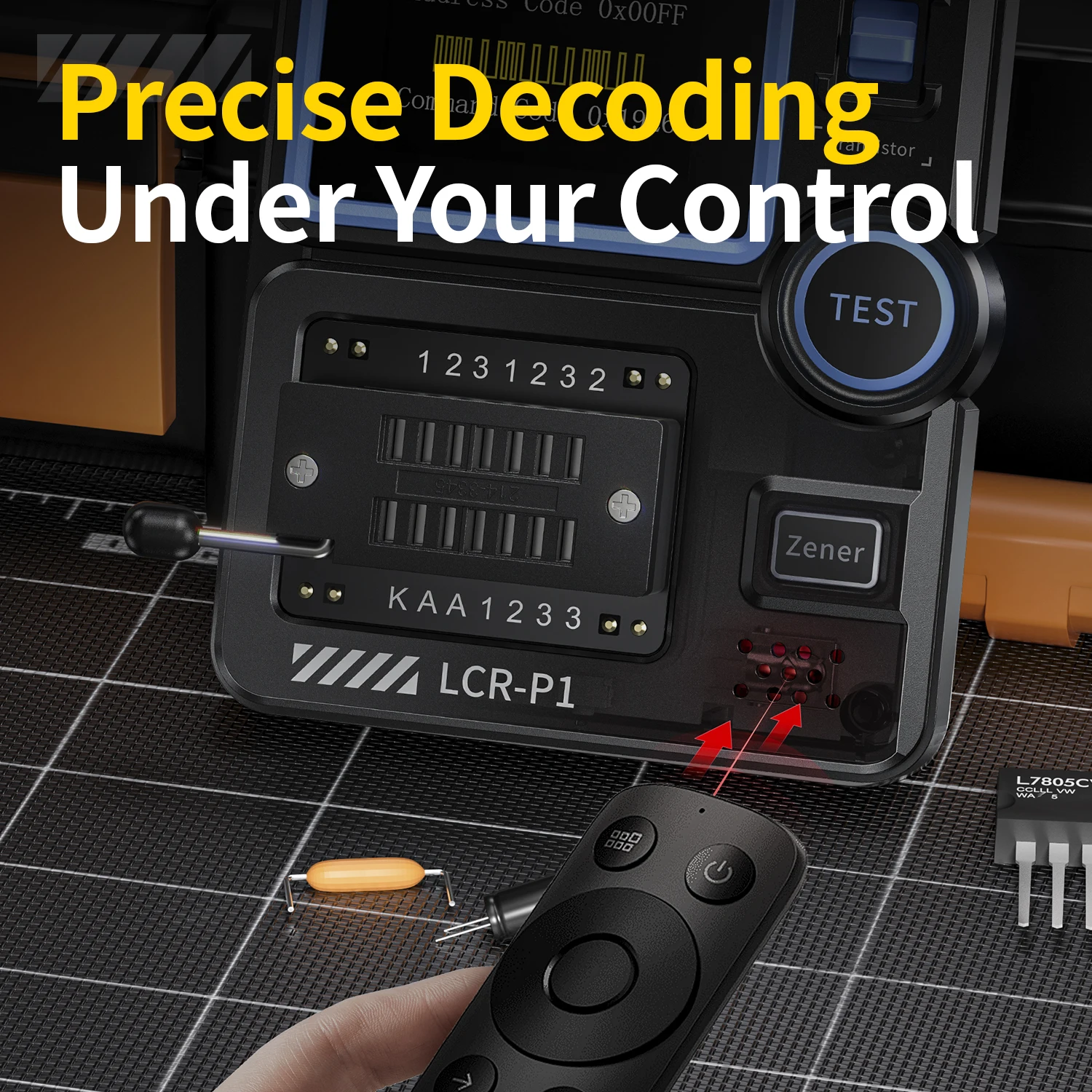

• IR Remote Decoding: NEC protocol infrared code compatibility
• Anti-burn Protection: Yes
• Firmware Upgrading: Supported

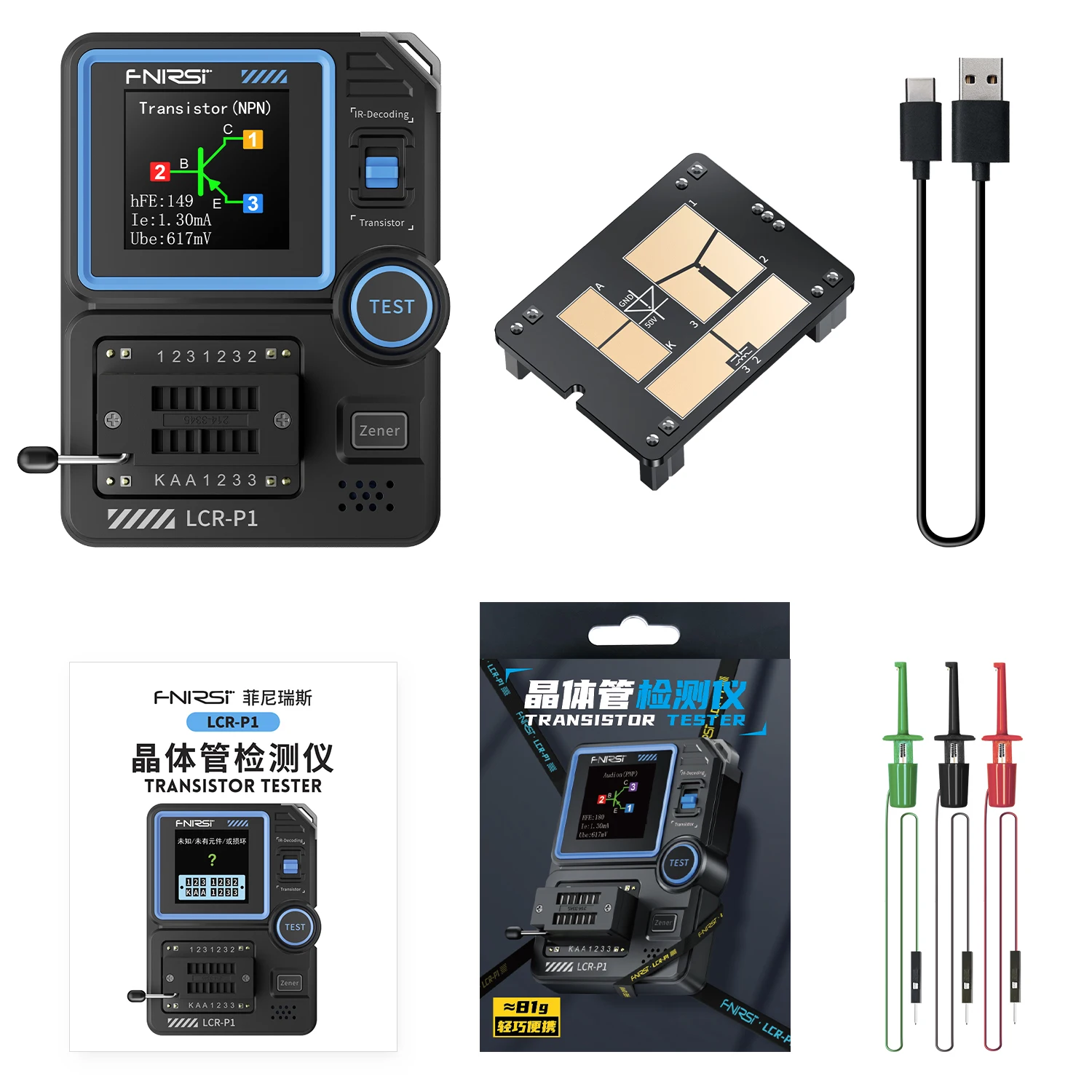

💥 Package Includes:

1. LCR-P1 host
2. Replaceable test board
3. USB data cable
4. User manual
5. Packing box
6. Test hooks (x3)

💍 The FNIRSI LCR-P1 Transistor Tester is not only a vital tool for professionals but also an excellent companion for electronic enthusiasts, offering unmatched versatility, accuracy, and ease of use for all electronic testing requirements.
