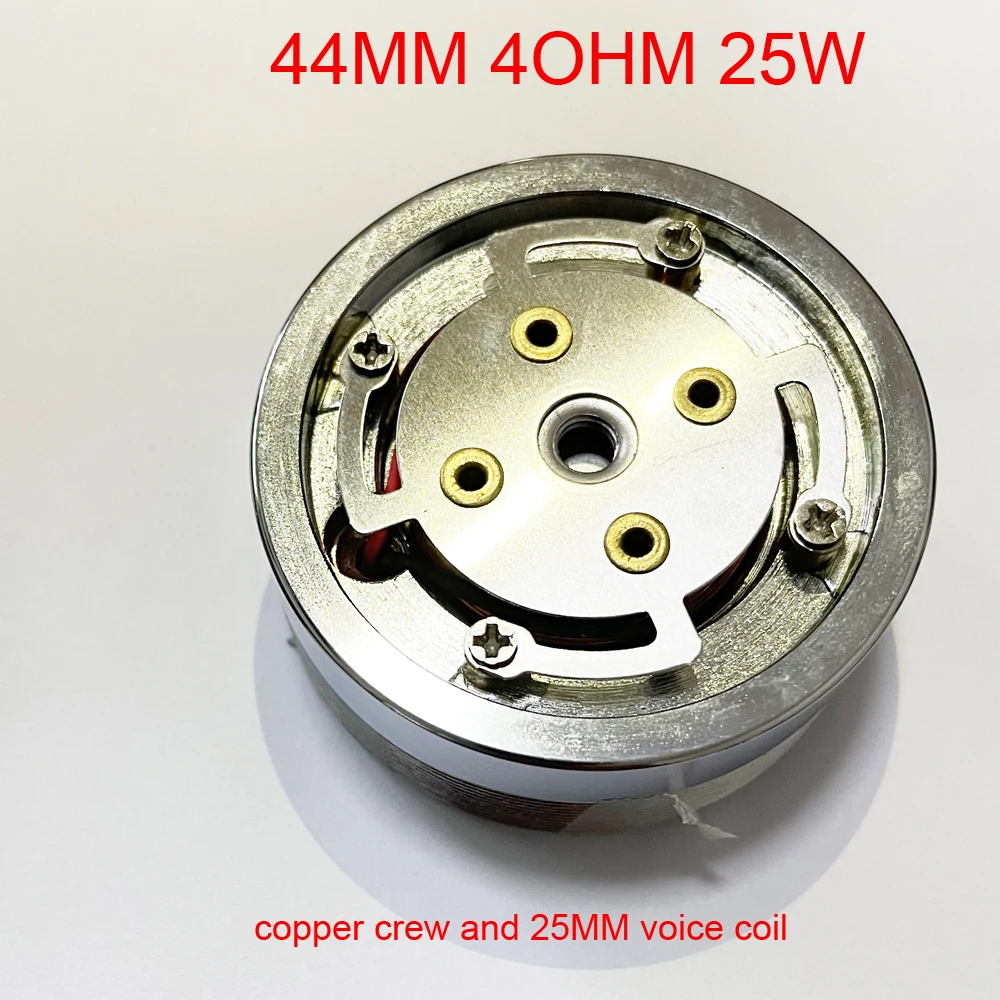

High - Power Resonance Vibration Replacement Speaker (44MM 4OHM 25W Plus)

🔊 Introducing the Sounderlink High-Power Resonance Vibration Speaker: An exceptional choice for DIY audio enthusiasts looking to enhance their sound system with high-quality bass performance. This full-range driver combines innovation and craftsmanship, designed meticulously to provide an immersive audio experience.

Specifications:

• Available Sizes: 50MM and 44MM, allowing you to choose the perfect fit for your project.
• Dimensions: 44MM Diameter and 30MM Height, compact enough for versatile installation.
• Impedance Options: Available in both 4Ω and 8Ω configurations, providing flexibility to suit your audio setup.
• Rated Power: Delivers up to 25W at 4Ω, and 20W at 8Ω, ensuring robust output for dynamic sound experiences.
• Maximum Power: Capable of reaching a peak of 25W, allowing for powerful sound reproduction.
• Resonance Frequency: A low resonance frequency of 60Hz at 1.0V enables deep bass reproduction, transforming any surface into a resonant sound platform.
• Output Sound Pressure Level (SPL): Achieves a high SPL of 86dB ± 3dB for loud and clear audio performance.
• Total Harmonic Distortion: Maintains distortion levels below 5% at 1kHz, ensuring a clean and accurate sound output.
• Frequency Response: Covers an impressive range from 40Hz to 20kHz, allowing you to enjoy crisp highs and deep lows in your audio playback.
• Net Weight: Each speaker weighs just 198g, making it lightweight and easy to incorporate into various DIY projects.

🔍 Installation Instructions:

🪵 Setting up your Sounderlink speaker is a straightforward process. Simply connect the speaker wires to an amplified audio signal source. For optimal bass performance, ensure that you place the flat aluminum panel on a stable surface, such as a wooden table, to allow the resonance to enhance the sound quality. Position the panel face down for the best results.

🔊 When powering on your amplifier, start at a low volume and gradually increase it until you achieve a pleasing sound quality with minimal distortion. This will help protect your amplifier and ensure a pleasant listening experience without straining the system. Elevate your DIY projects with the exceptional performance of the Sounderlink Vibration Speaker.

🧩 Explore the possibilities with sizes 50MM and 44MM to customize your audio system according to your needs and preferences.
