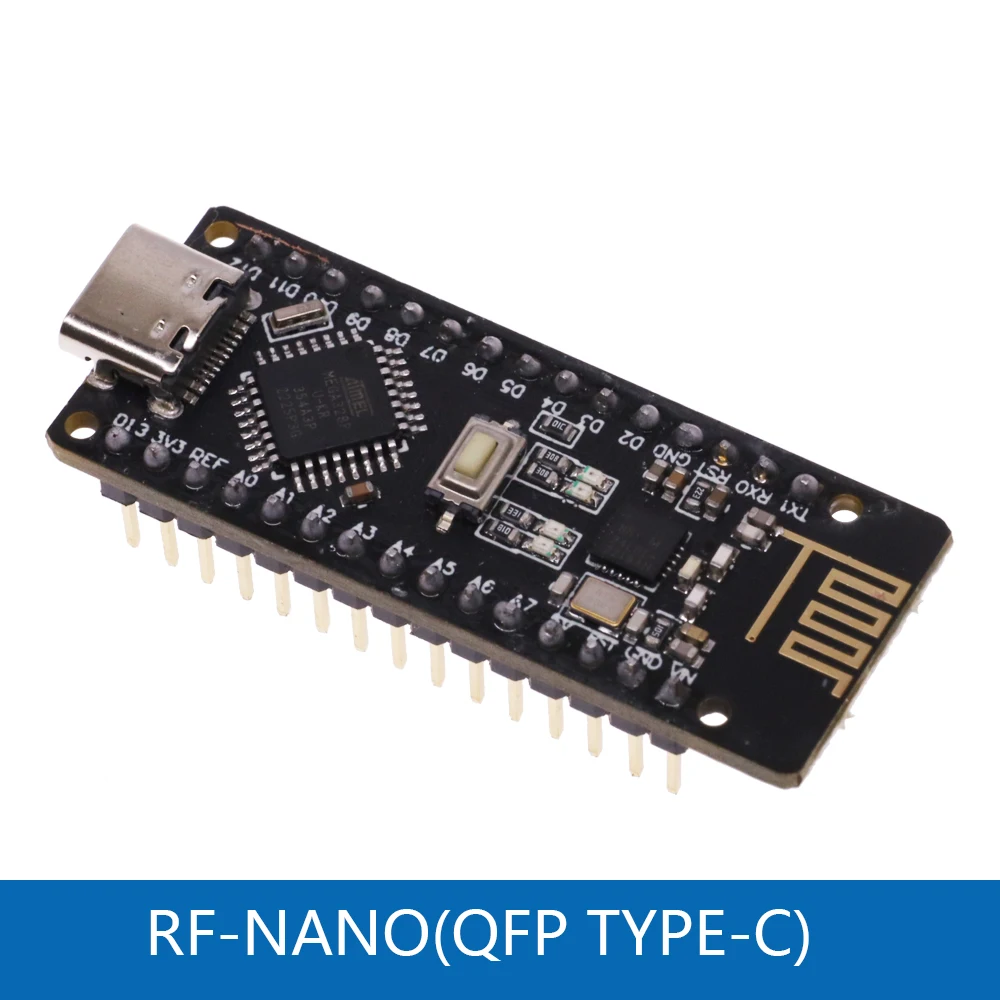

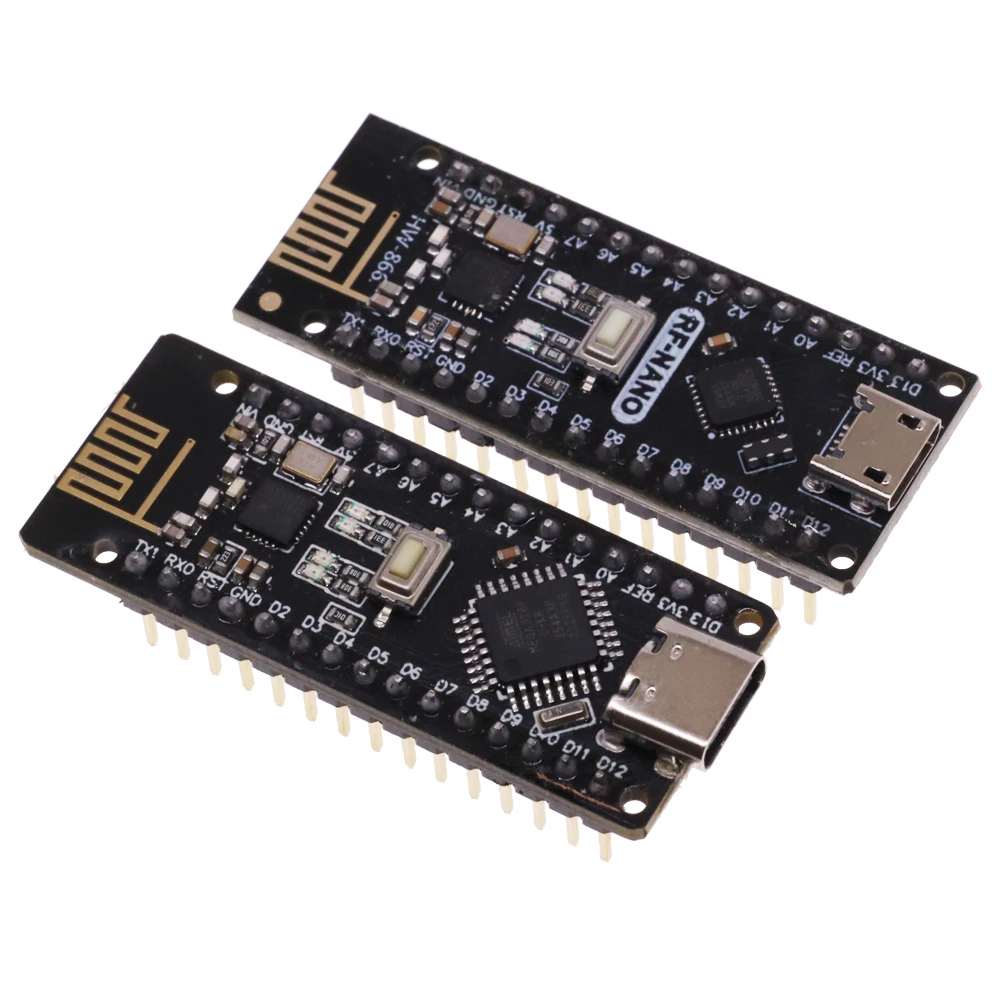

📦 Product Overview: The RF-Nano for Arduino Nano V3.0 is a versatile and compact microcontroller board that seamlessly integrates the powerful NRF24L01+ 2.4G wireless module with the widely-used Arduino Nano platform. This innovative design combines the functionalities of a standard Nano board and a wireless transceiver, allowing for enhanced communication capabilities in a single, small form factor.
💍 Microprocessor Details: At the core of the RF-Nano lies the ATmega328P microprocessor, renowned for its robustness and reliability in embedded applications. Operating at a standard voltage of 5V, it features 14 digital input/output pins and 6 analog inputs, providing a comprehensive interface for various projects. The board is clocked at a speed of 16MHz, ensuring efficient processing and fast execution of tasks.

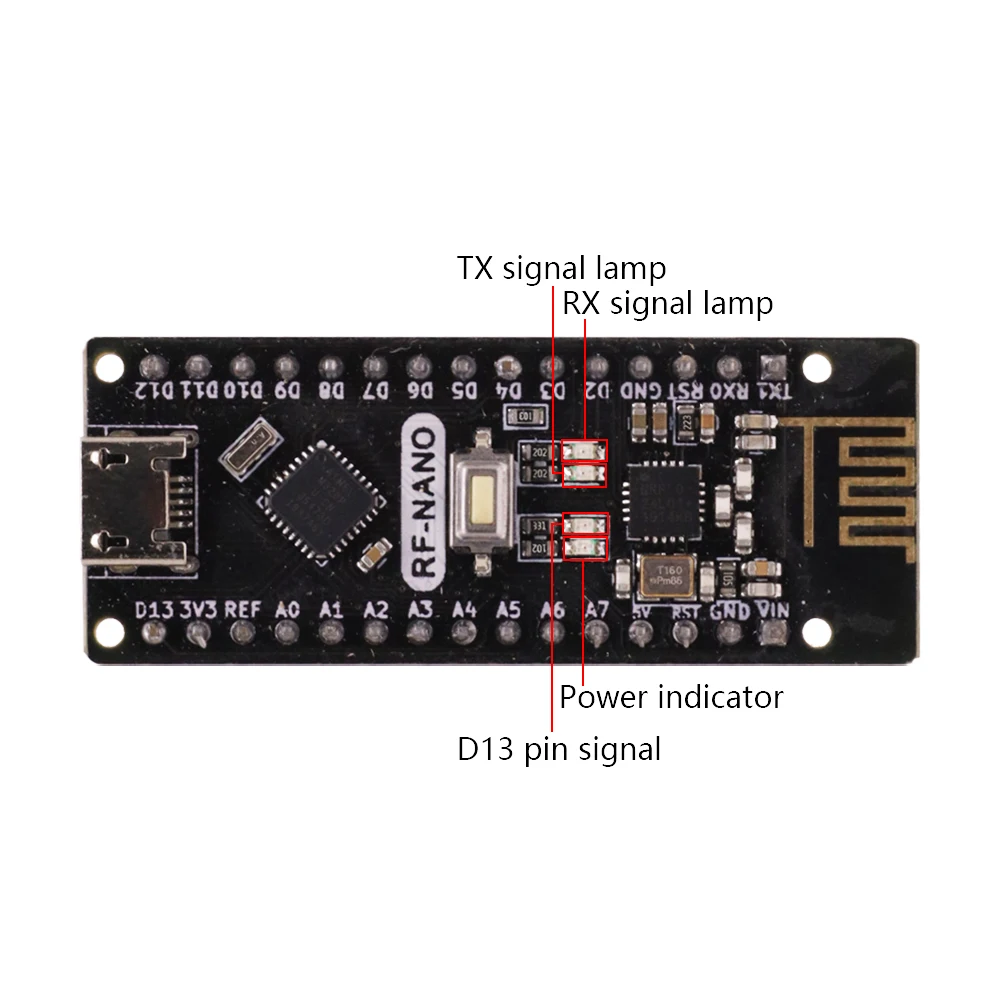

👌 Pin Configuration: The RF-Nano maintains the same pin layout as a standard Arduino Nano, facilitating easy migration of projects. It comprises 14 digital IO pins (D0 to D13), of which 6 can deliver PWM outputs. The board is equipped with internal pull-up resistors on each channel, enhancing ease of use in a variety of applications. Specific pins are designated for serial communication (RX/TX), external interrupts, pulse width modulation (PWM), and SPI, making it ideal for complex interactions with sensors and peripherals.
🌀 Memory Specifications: With an onboard 32KB Flash memory—of which 2KB is allocated to the bootloader—the RF-Nano provides ample storage for your programs. Additionally, it is furnished with 2KB of SRAM and 1KB of EEPROM, allowing for flexible data handling and storage solutions for your projects.
⚡ Input and Output Capabilities: The RF-Nano's digital input and output ports provide a maximum current rating of 40mA per channel, ensuring reliable operation for external devices. Its 6 analog inputs can process signals with an impressive resolution of 10 bits, enabling fine-grained measurement capabilities. Moreover, the board supports TWI (I2C) interface for complex sensor networking and multiple device communication.
⚡ Power Supply Options: The RF-Nano can be powered via its Micro USB port or an external DC power supply connected through the VIN pin. It is recommended to use a supply voltage between 7 to 12V for optimal performance, with a range permitted from 6 to 20V.
📦 Conclusion: The RF-Nano for Arduino Nano V3.0 is an exceptional choice for developers and hobbyists seeking a robust microcontroller with integrated wireless capabilities. Its familiar Arduino design, extensive I/O options, and compact size make it a preferred solution for IoT projects, remote sensor networks, and many other applications that require reliable wireless communication.
