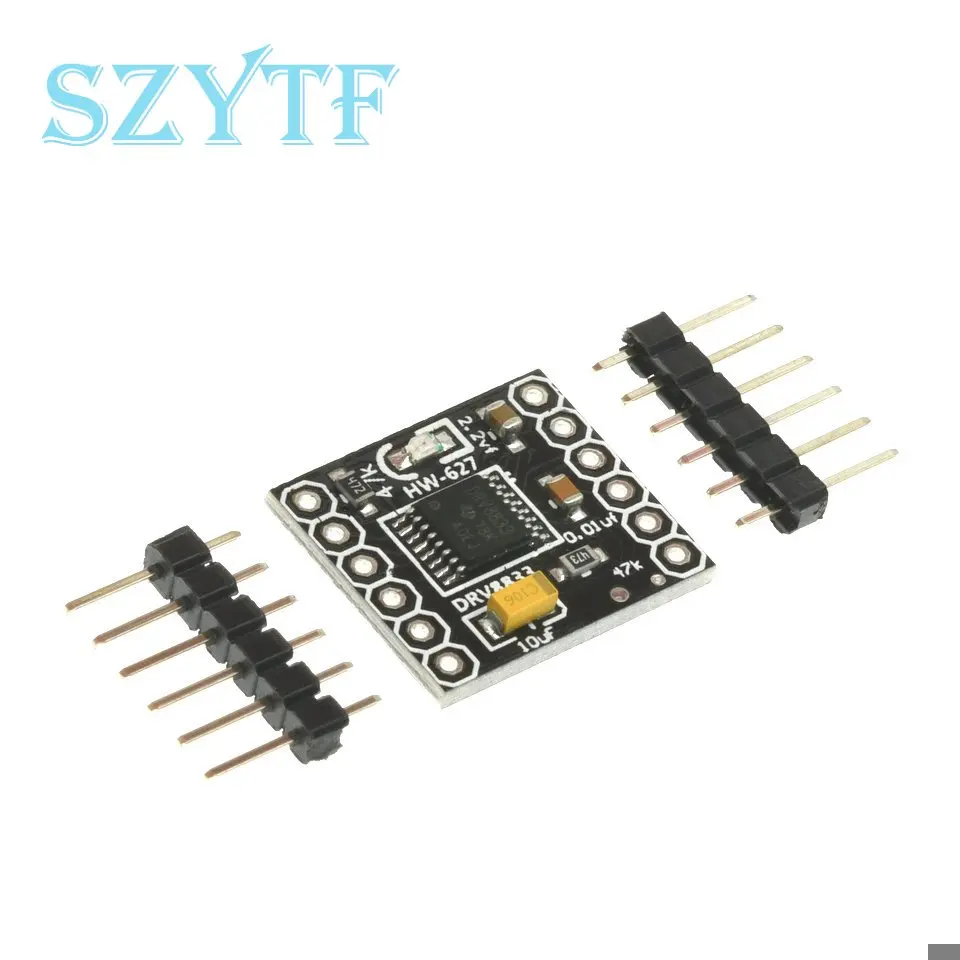

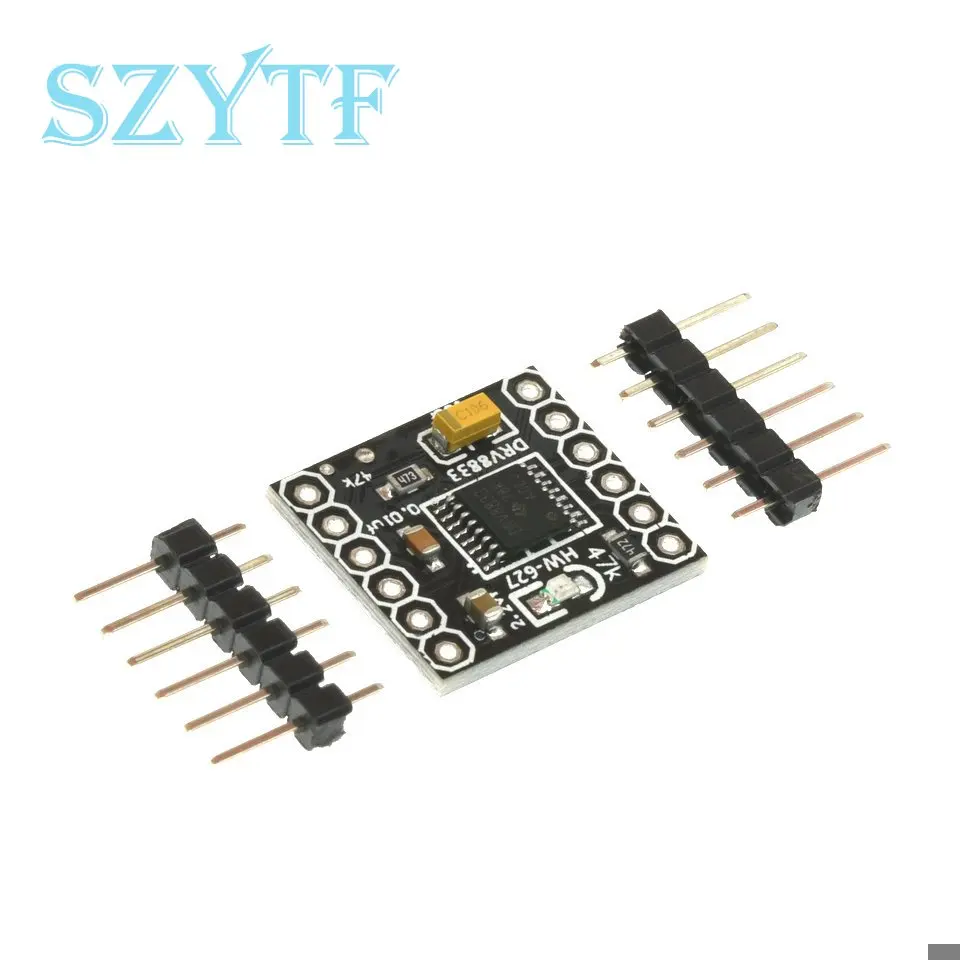

Enhanced Dual Motor Driver TB6612 DRV8833 - Upgraded Performance and Efficiency (DRV8833 Black)

🏆 TB6612 DRV8833 Dual Motor Driver is a highly efficient motor control solution specifically designed for use with Arduino microcontrollers. This driver offers improved performance over the traditional L298N, making it optimal for various robotics and automation applications.

Key Specifications:

• Dimensions: 18.5mm x 16mm
• Input Voltage Range: 3V to 10V
• Single H-Bridge Output Current: Capable of delivering up to 1.5A, allowing the control of two DC motors simultaneously
• Protection Features:
  • Overcurrent Protection
  • Short Circuit Protection
  • Undervoltage Lockout
  • Overheating Protection
• Low-Power Sleep Mode: Includes a mode for reducing power consumption when the driver is not in active use

💍 Operational Features:

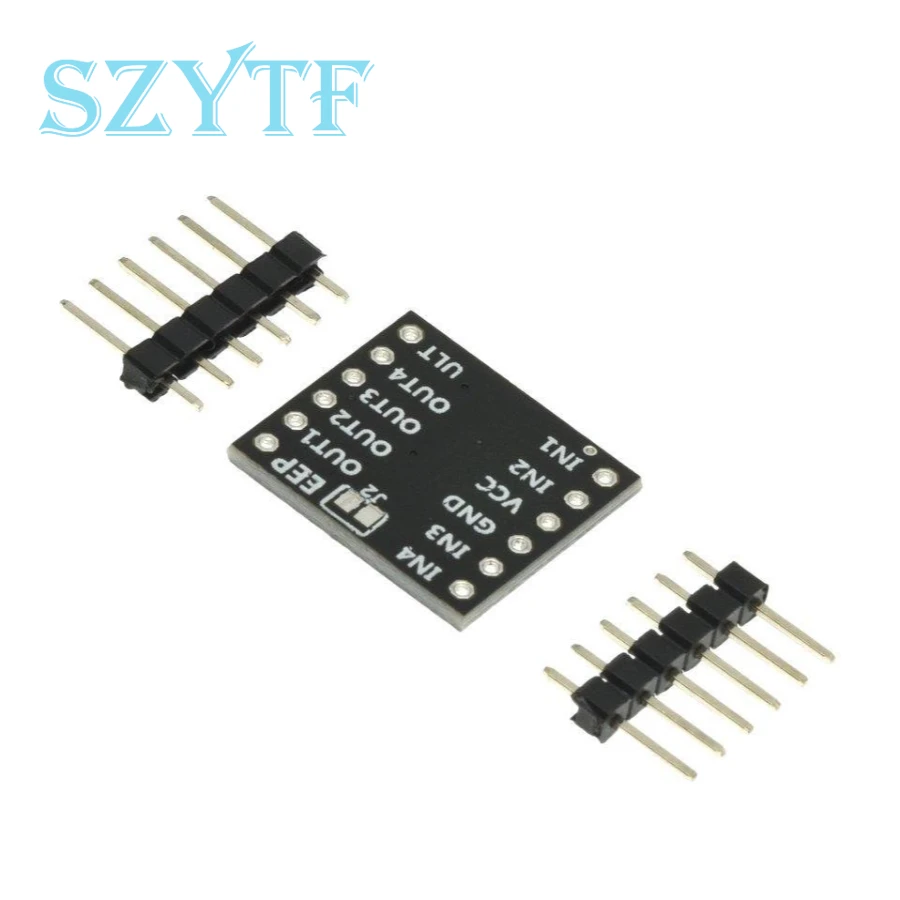

• ULT Pin: Configurable mode setting; low level activates sleep mode
• Output Configuration:
  • OUT1, OUT2: Controlled by inputs IN1/IN2 for the first channel H-bridge
  • OUT3, OUT4: Controlled by inputs IN3/IN4 for the second channel H-bridge
• EEP Pin: Output protection feature, typically does not require external connection
• Power Supply Pins:
  • VCC: Accepts voltage between 3V to 10V
  • GND: Ground connection

🛡️ Applications: Designed to effectively drive DC motors with a maximum current of 1.5A and compatible with four-wire stepper motors, making it ideal for various robotic projects, automation systems, and other DIY electronics initiatives.

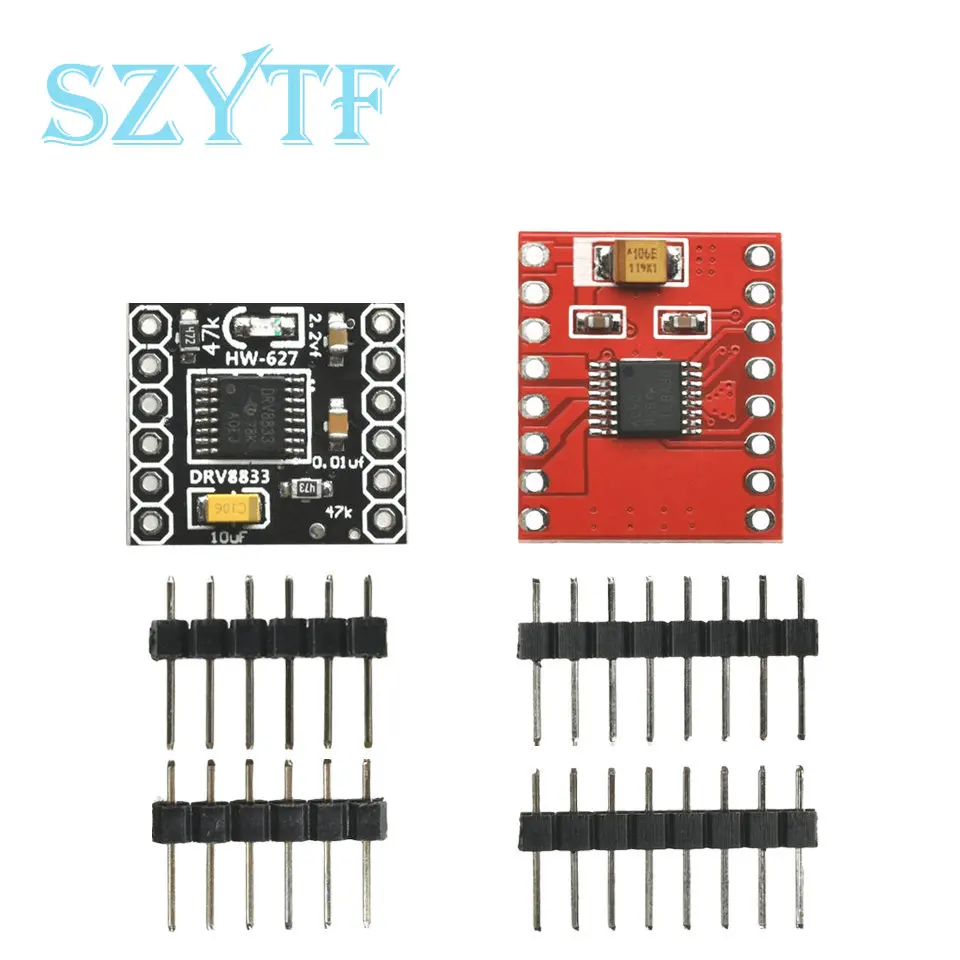

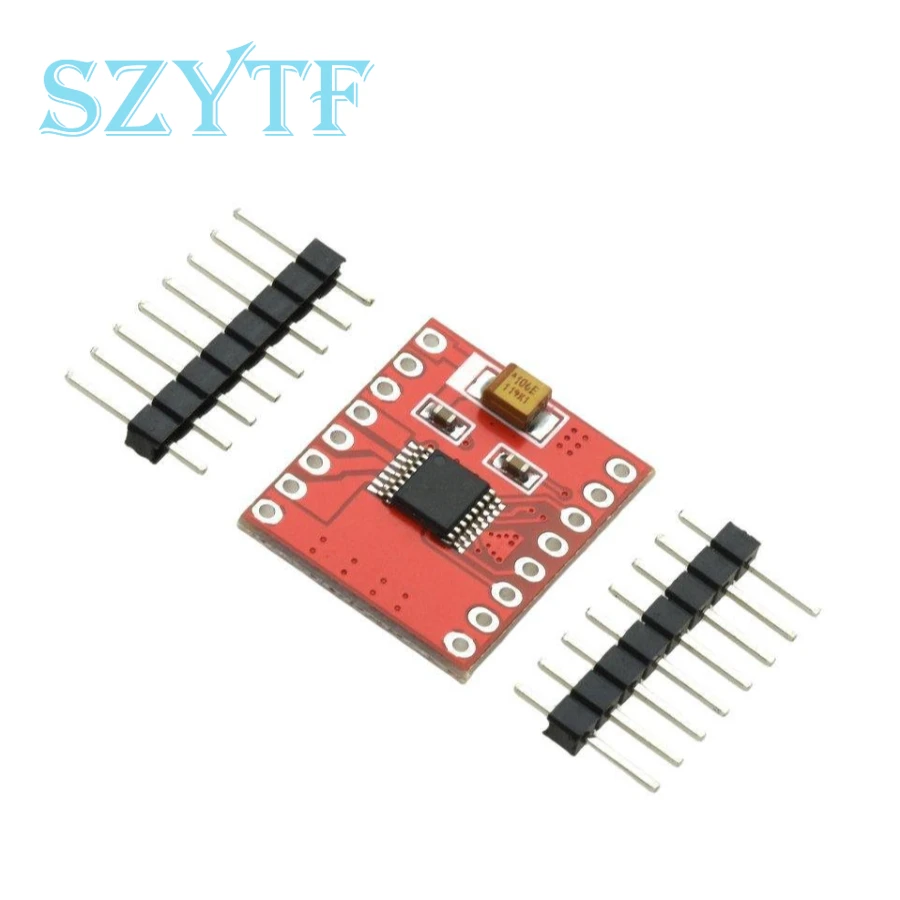

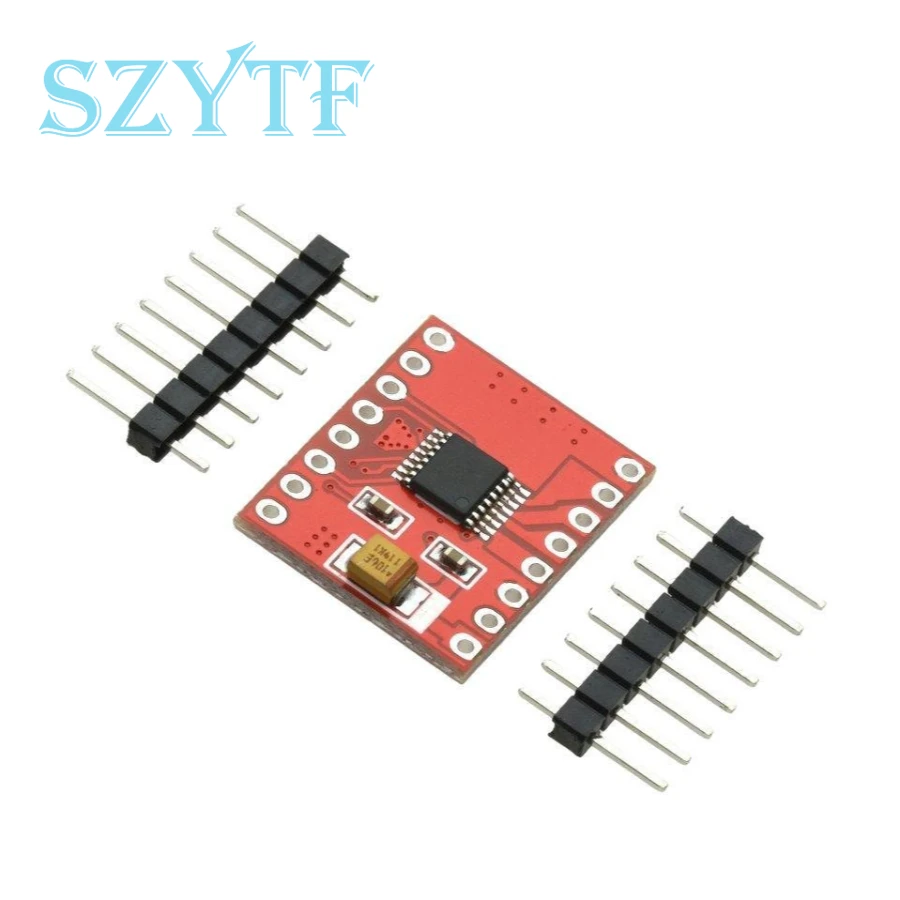

🧩 DRV8833 RED Variant: Features similar specifications with slightly greater dimensions of 18mm x 21mm and an extended input voltage range of 2.7V to 10.8V. It also includes all the essential protections and is perfect for project customization.

🔧 Enhance your electronics projects with the TB6612 DRV8833 Dual Motor Driver, providing reliability and advanced features for superior motor control.
