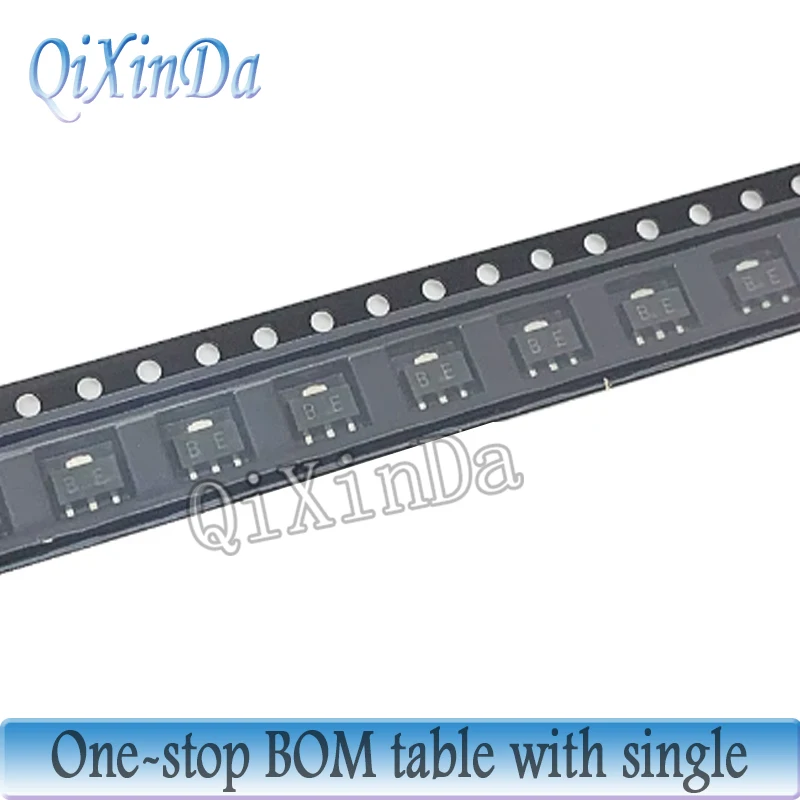

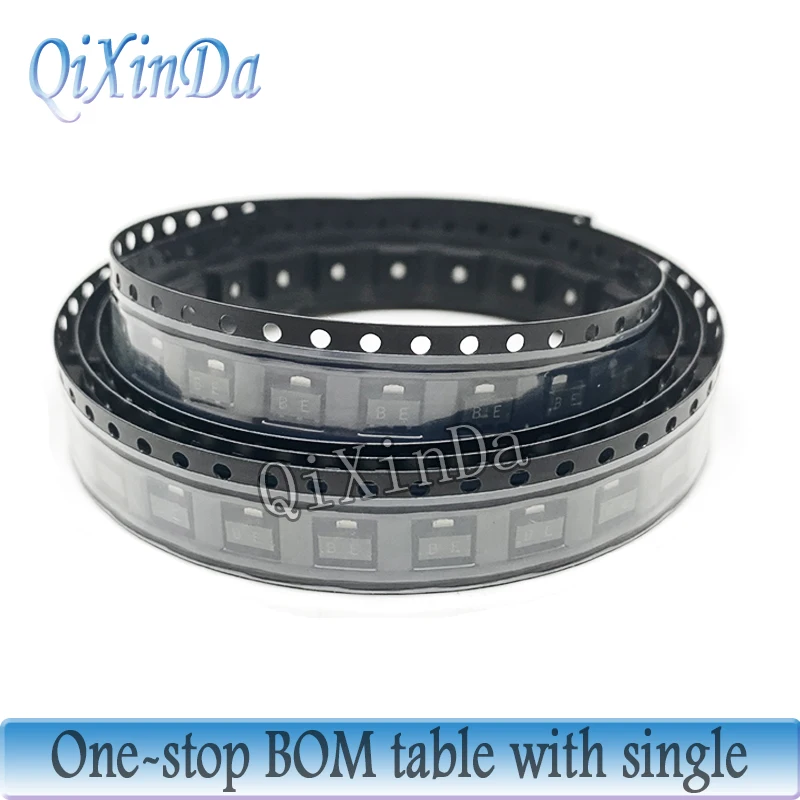

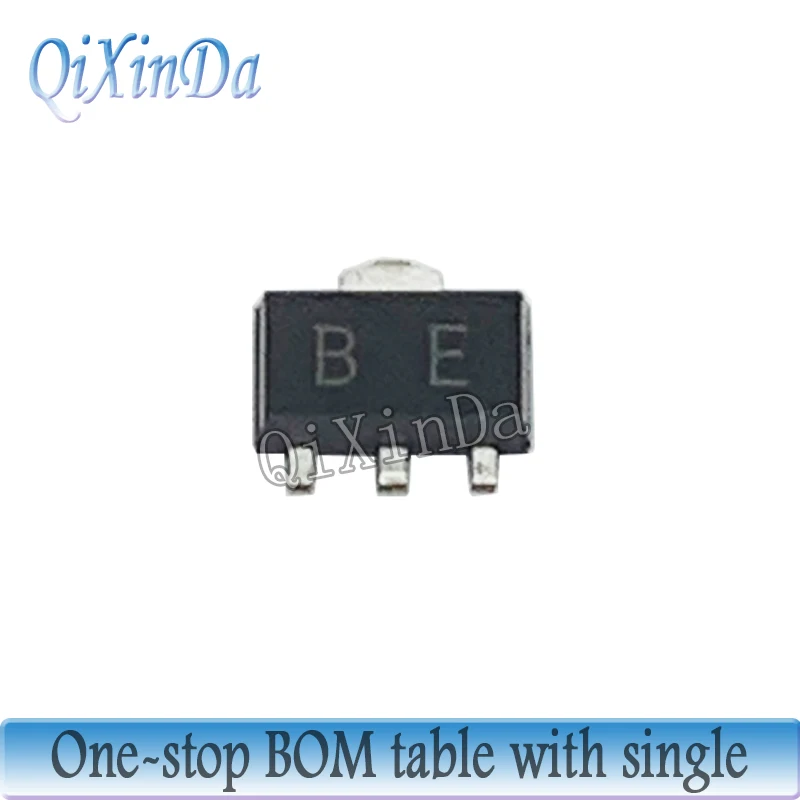

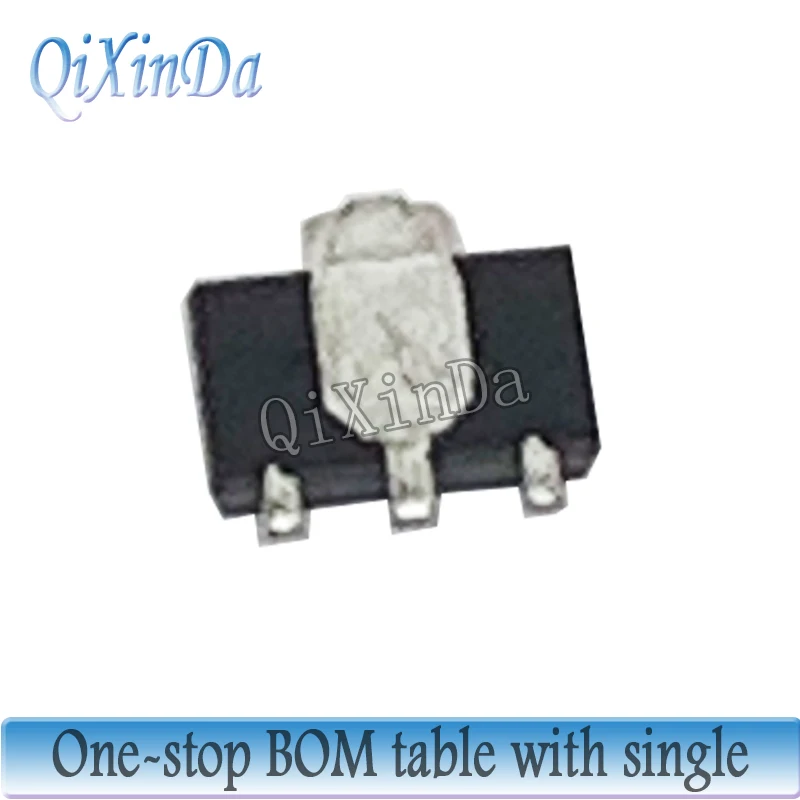

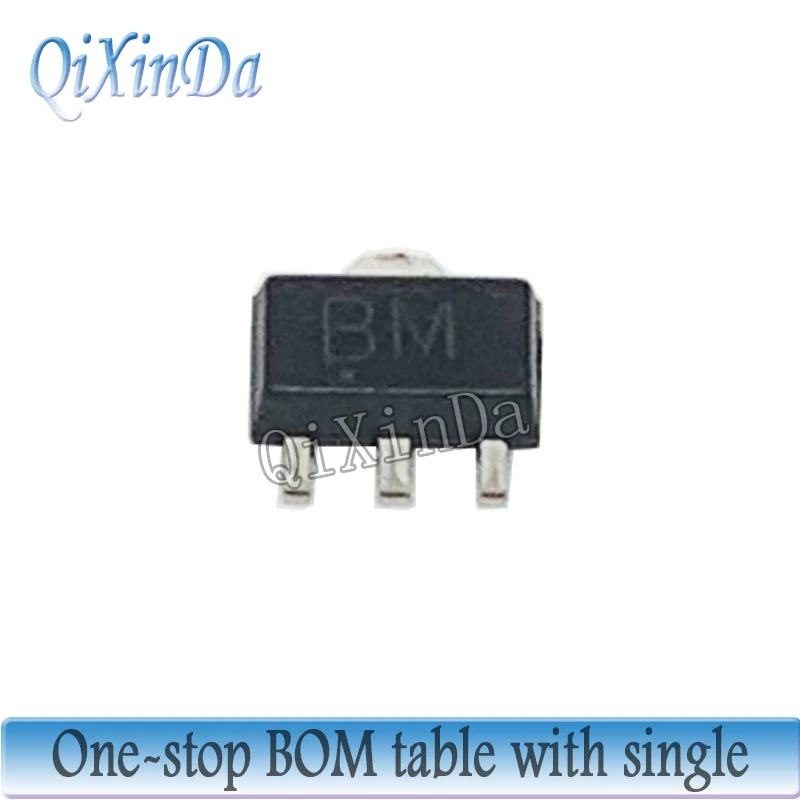

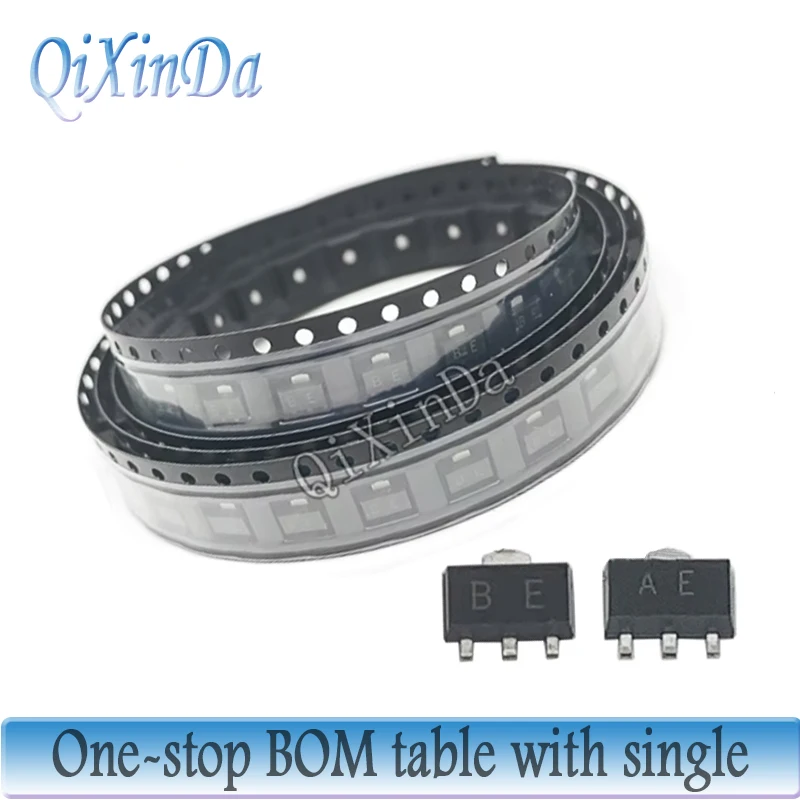

20PCS Premium SOT - 89 Chip Transistors (BCX51)

🏆 Introducing the 20PCS BCX Transistor Set: This comprehensive collection features a range of high-performance SOT-89 chip transistors, including various models designed for both PNP and NPN applications. Ideal for electronics enthusiasts, hobbyists, and professionals alike, this assortment provides versatility and reliability for your circuit needs.

Model Specifications:

BCX51: A PNP transistor with a maximum emitter breakdown voltage (Vceo) of 45V, collector current (Ic) of 1A, and a power dissipation (Pd) rating of 1W. It offers a direct current gain (hFE) of 25 at an Ic of 5mA and Vce of 2V, making it suitable for various amplification tasks.

💍 BCX52: Another PNP variant, the BCX52 can handle an emitter breakdown voltage of 60V, with the same collector current of 1A and power dissipation of 1W. Its hFE is similarly rated at 25 @ 5mA and 2V, ensuring dependable performance in your circuits.

BCX53: This PNP transistor excels with a breakdown voltage of 80V and maintains the standard collector current of 1A and power rating of 1W. Like its counterparts, it has a current gain (hFE) of 25 @ 5mA and 2V, making it a robust choice for many applications.

💍 BCX54: Transitioning to the NPN family, the BCX54 boasts an emitter breakdown voltage of 45V, with a collector current of 1A. Its power handling capability is increased to 1.3W, while maintaining a dc current gain (hFE) of 25 @ 5mA and 2V, catering to various circuit requirements.

⚙️ BCX55: This NPN transistor achieves a collector current of 1A and a similar breakdown voltage of 45V. With an enhanced power rating of 1.3W, it features a higher current gain of 63 @ 150mA and Vce of 2V, making it ideal for high-efficiency applications.

🔴 BCX55-10: This version offers a robust NPN configuration with an emitter breakdown voltage of 60V and a collector current of 1A, tailored for dynamic circuits. It operates with a power dissipation of 500mW and a current gain ranging from 63 to 160 @ 150mA and Vce of 2V.

🏆 BCX55-16: This potent NPN transistor delivers a breakdown voltage of 45V and a collector current of 1A, maintaining a power rating of 1.3W. Notably, it features an impressive dc current gain of 100 @ 150mA and Vce of 2V, suitable for high-performance applications.

🏆 Each transistor in this set is crafted for durability and performance, making them an essential addition to any electronics toolkit. With their varying specifications, this collection serves diverse circuit applications, from basic amplification to more complex designs.
