🧩 Overview: The 411 Terminal Block Distribution Box is a meticulously designed electrical distribution solution that serves as an essential component in electrical engineering applications. Built on a robust Din Rail installation framework, this 4-Level single-phase terminal distribution box combines functionality with safety and efficiency.
Key Features:

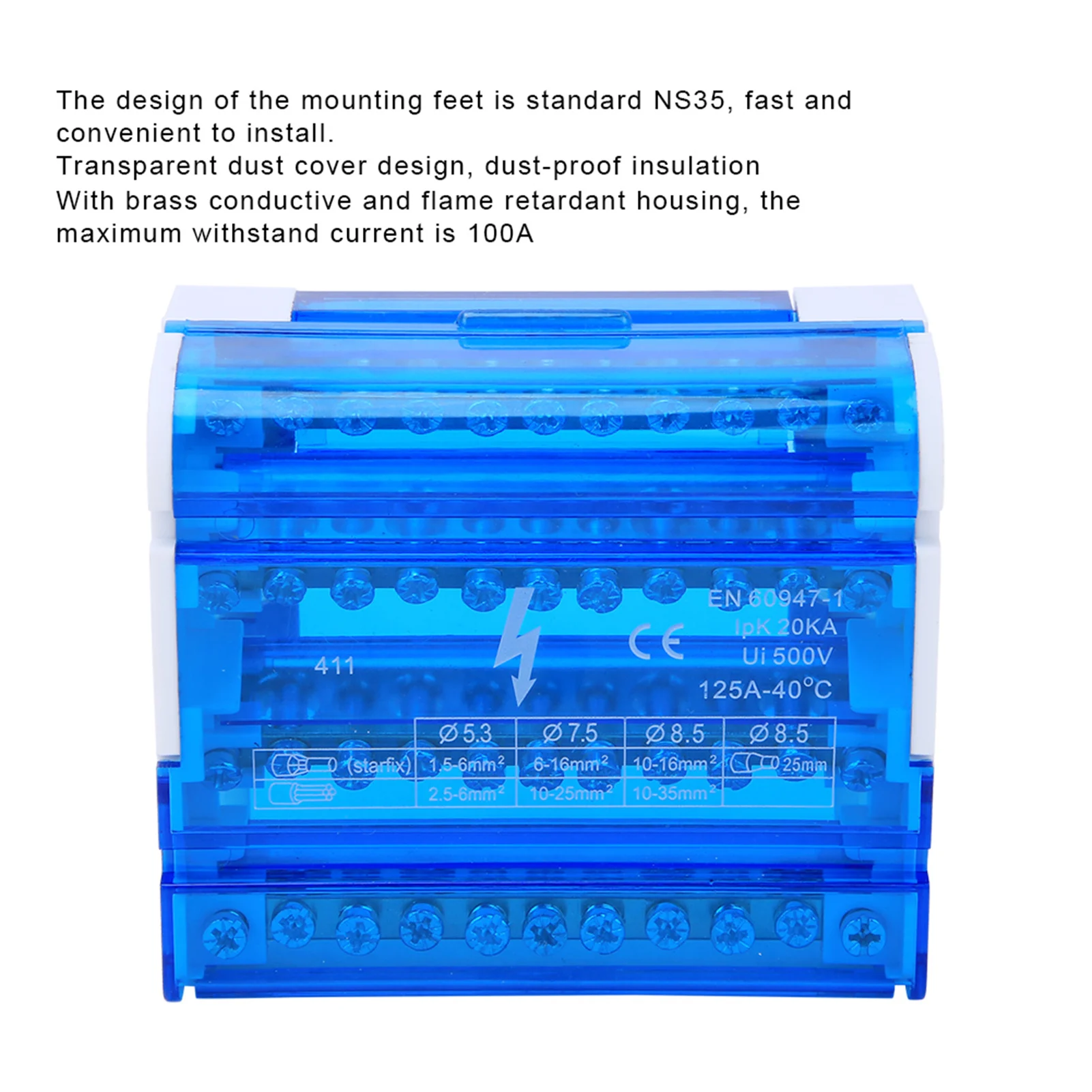

- The distribution box utilizes high-quality brass conductive materials and features a flame-retardant housing, ensuring both durability and safety with a maximum withstand current of 100A.
- To enhance safety further, an isolation barrier is integrated between terminal blocks, effectively preventing accidental contact that could lead to short circuits.
- Designed with a compact body and multiple splitting heads, this box optimally saves wiring space, making it ideal for installations where space is at a premium.
- The Din Rail installation method streamlines the setup process, allowing for quick and convenient mounting, tailored specifically for electrical engineering environments.
- A unique transparent dust cover is included, providing a dust-proof insulation layer while allowing for easy visual inspection of the internal wiring state without the need to remove the cover.
🔎 Specifications:
- Item Type: Terminal Distribution Box
- Model: 4-Level junction box 411
- Rated Current: 125A
- Rated Voltage: 500V
- Type: Terminal block / Wiring block (strip)
- Product Outlet: 4 input 40 output
- Number of Holes: 4x11
- Brass Rod Size: 6.5 x 12mm
- Metal Material: Brass, primary color
- Shell Material: High quality PA nylon material
- Application: Cabinet
- Application Area: Electrical Engineering
- Fire Rating: 94V-2 flame retardant, solvent resistance, good impact resistance
- Working Temperature: -30℃ ~ 110℃
- Applicable Power Range: 250-450V

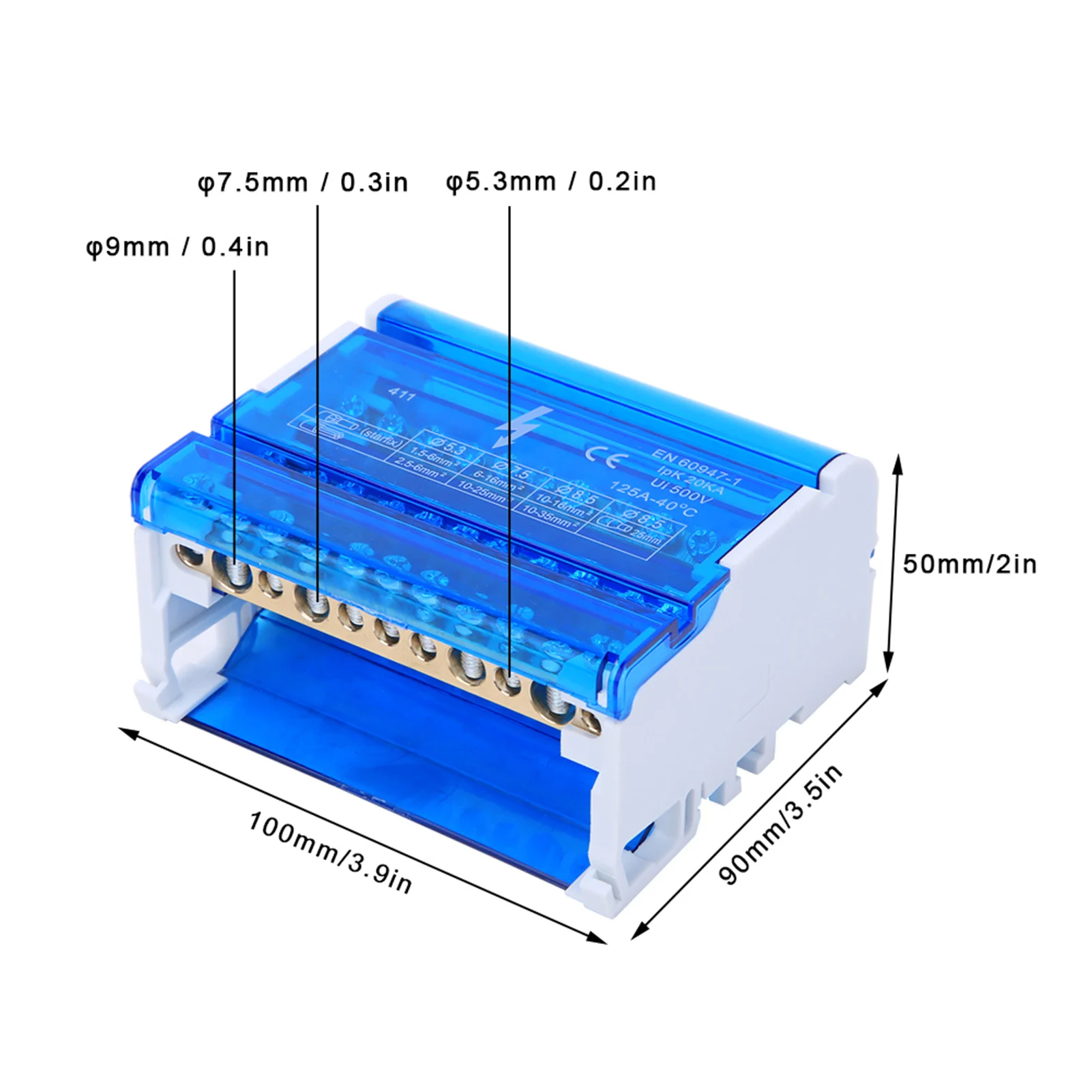

- Size: Approx. 100 x 90 x 50mm / 3.9 x 3.5 x 2in
🔩 Package Includes:
- 1 x Terminal Distribution Box
