🧩 Product Overview:
Elevate your DIY electronics and IoT projects with our robust DIN Rail Mounting Solution for ESP32 development boards. Designed for versatility, this base plate accommodates both 30PIN and 38PIN ESP32 boards, ensuring seamless integration in various applications. The innovative design features a user-friendly terminal block system for efficient wiring, making it perfect for industrial control applications and advanced prototyping.
🔧 Key Features:

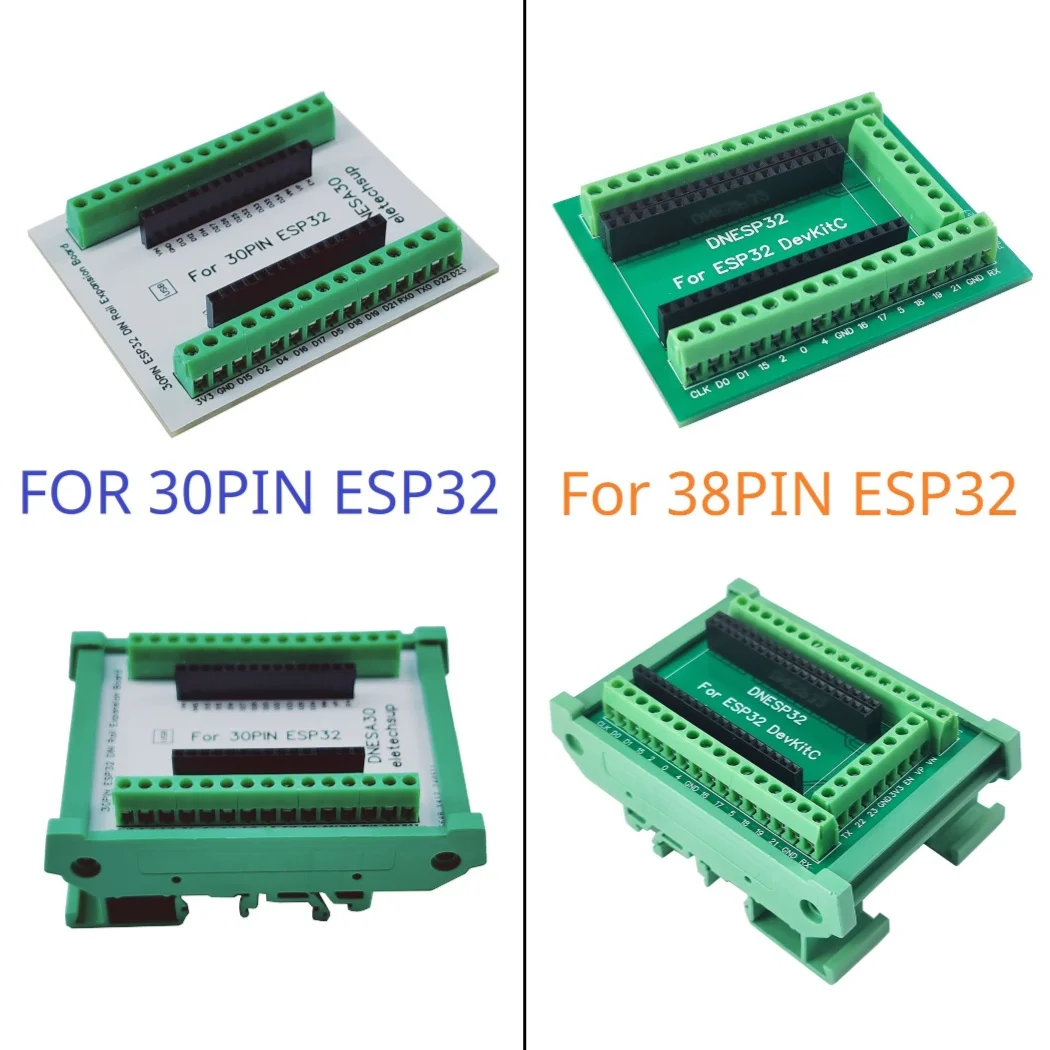

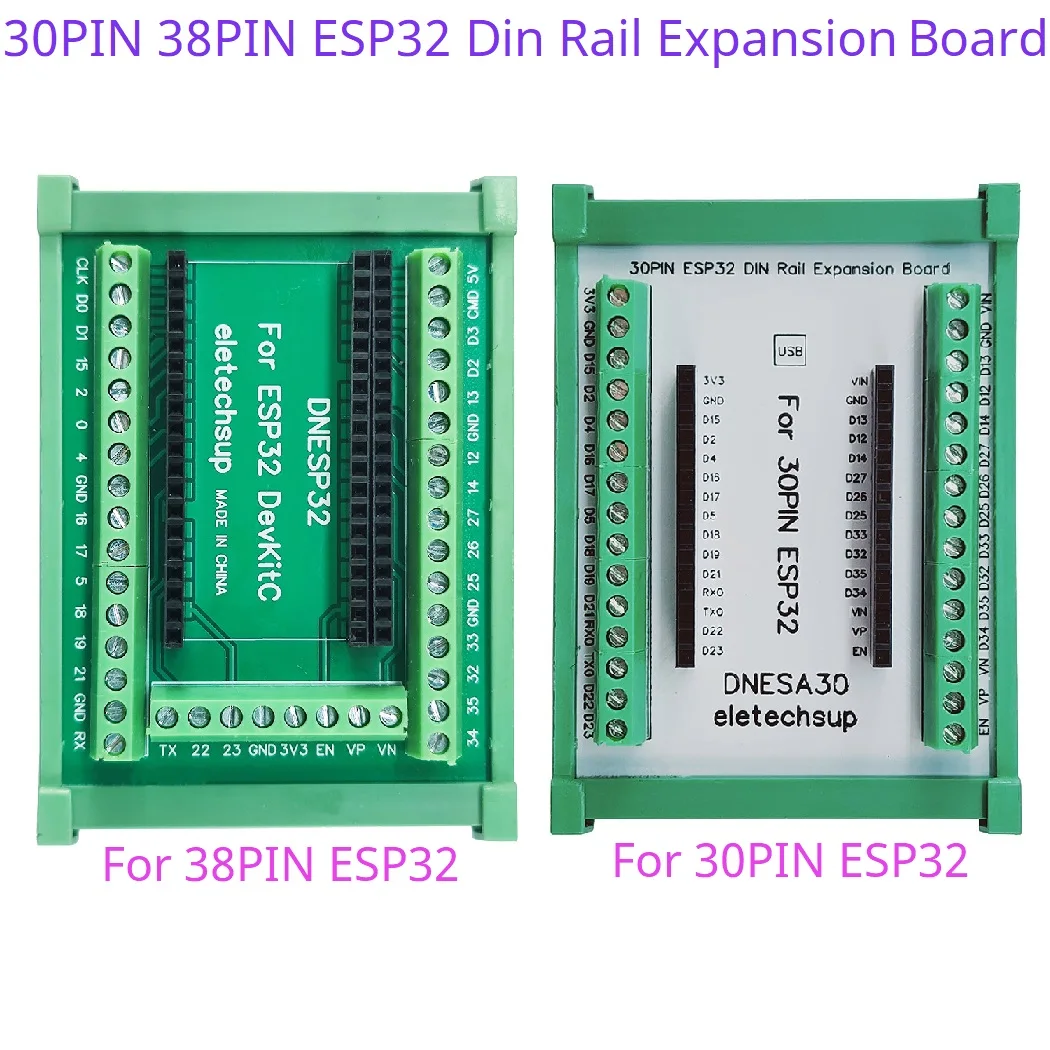

- ESP32 Compatibility: This DIN Rail expansion board is tailored for both 30PIN and 38PIN ESP32 development boards, providing full access to all I/O ports for versatile project applications.
- Terminal Block Specifications: The module utilizes 3.96mm terminal spacing, allowing easy connection and disconnection of wires. It supports wire gauge ranging from 26 to 16 AWG, with a stripping length of precisely 3.96mm to facilitate reliable electrical connections.
- Durable Design: Constructed from high-quality materials, the module is compact yet sturdy, measuring 72mm x 58mm x 9mm for the board alone, or 86mm x 60mm x 35mm including the rail box. This design ensures both portability and durability in a variety of environments.
- Lightweight Construction: With a net weight of only 30g for the board and 80g with the rail box, this module is designed for ease of installation and handling without compromising on quality.
🛡️ Application:
Our DIN Rail Mount Screw Terminal Adapter Module is specifically engineered to enhance functionality for 30PIN and 38PIN ESP32 boards. This module simplifies the process of extending your ESP32 projects into broader industrial control applications, making it an ideal choice for electronics enthusiasts and professionals alike.
Installation Instructions:

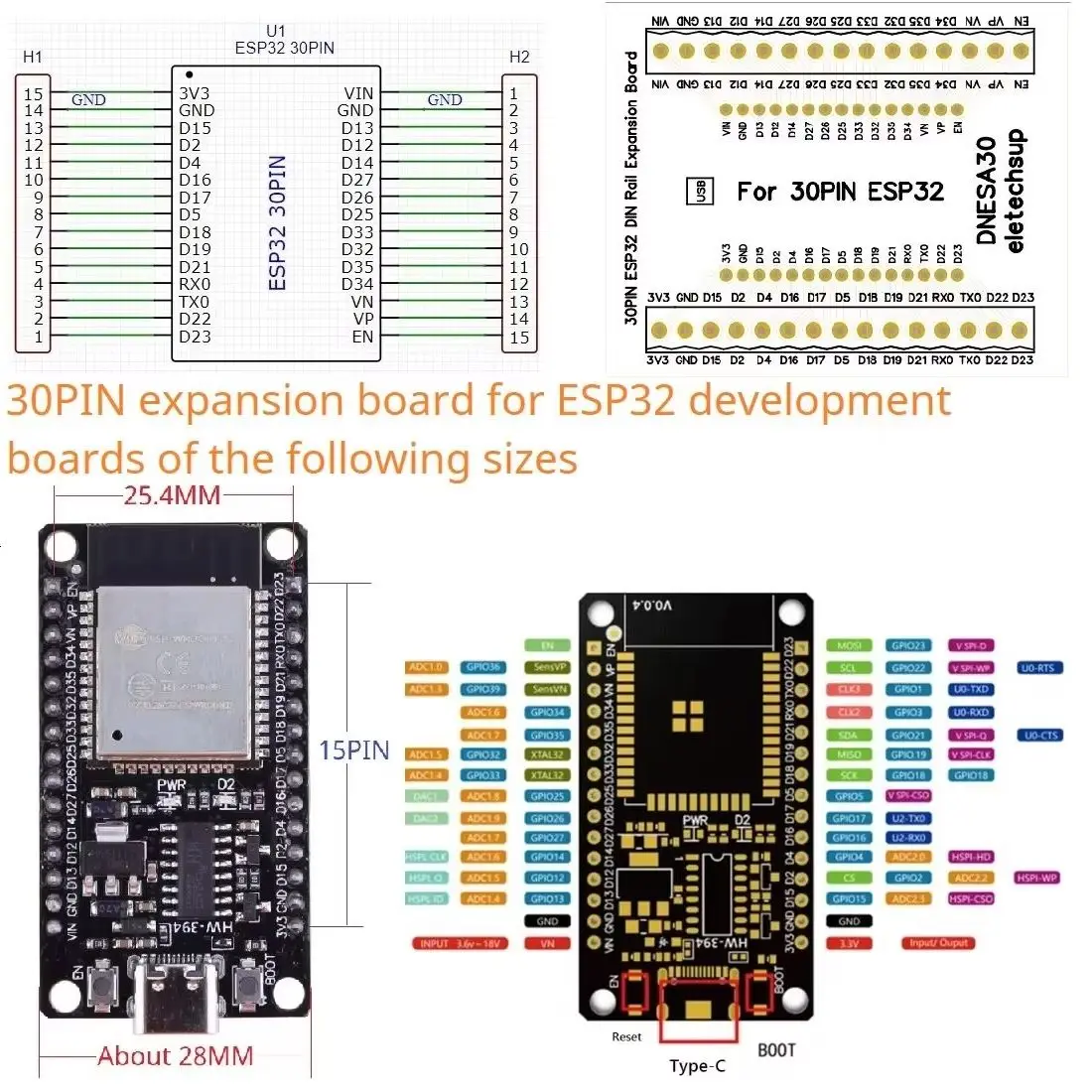

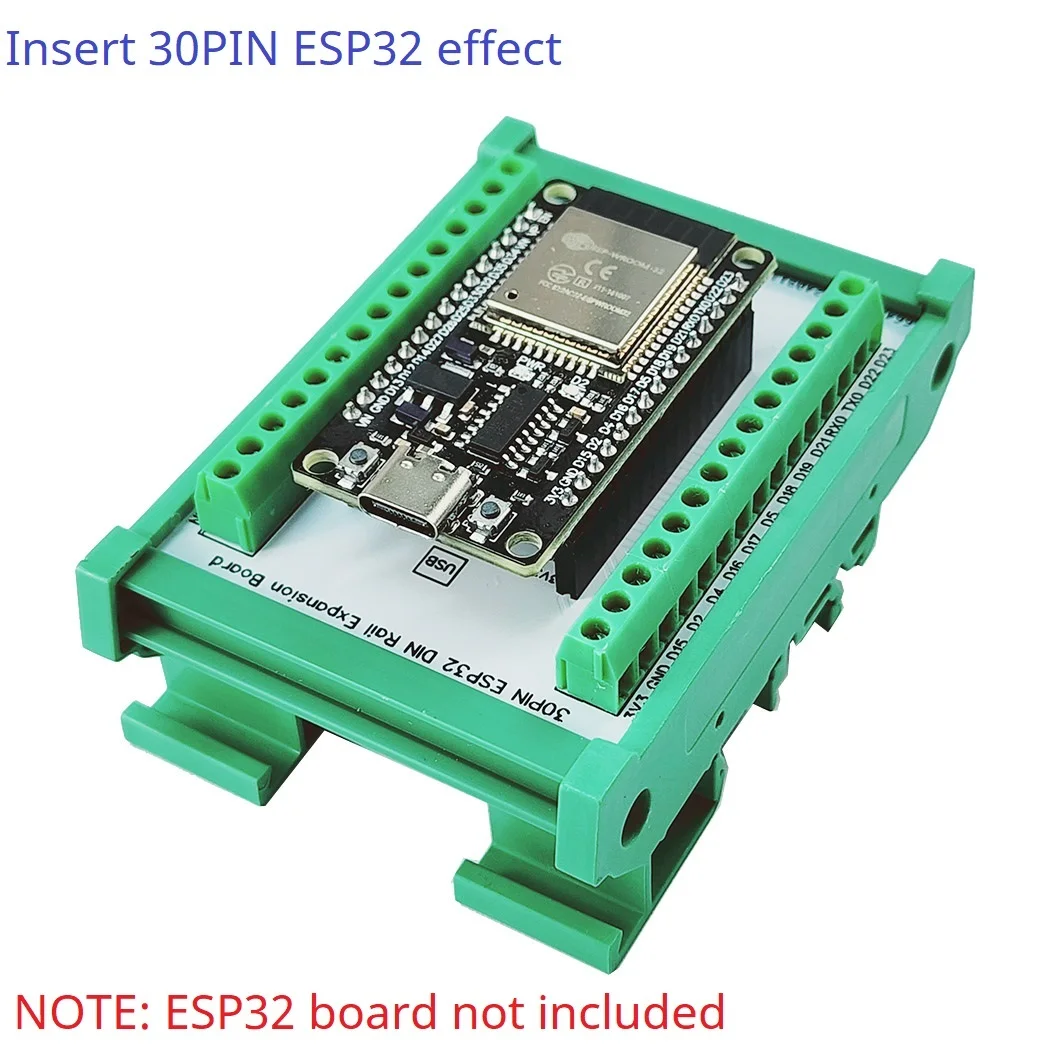

- 30PIN Version: Ensure compatibility with 30PIN ESP32 boards featuring a pin width of 25.4MM (approximately 28MM board width).

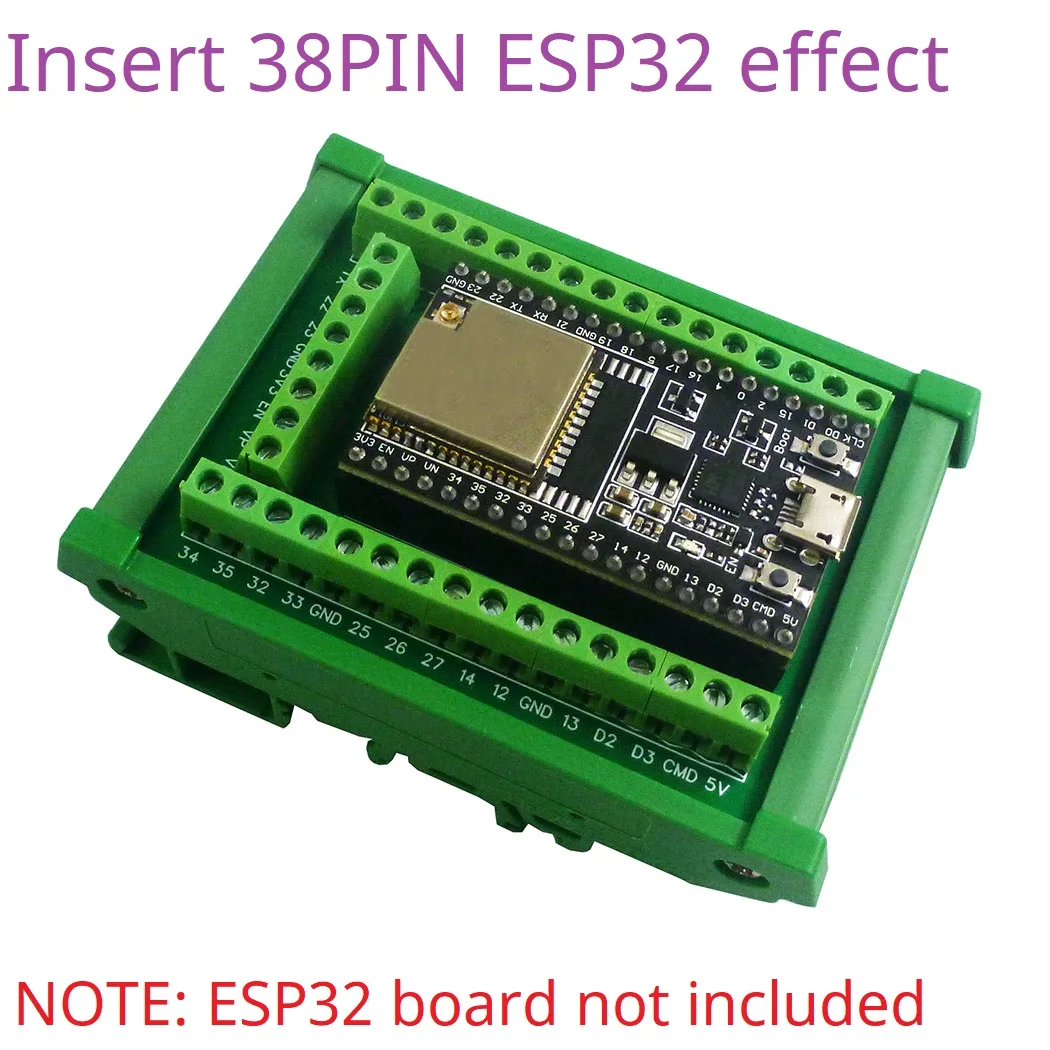

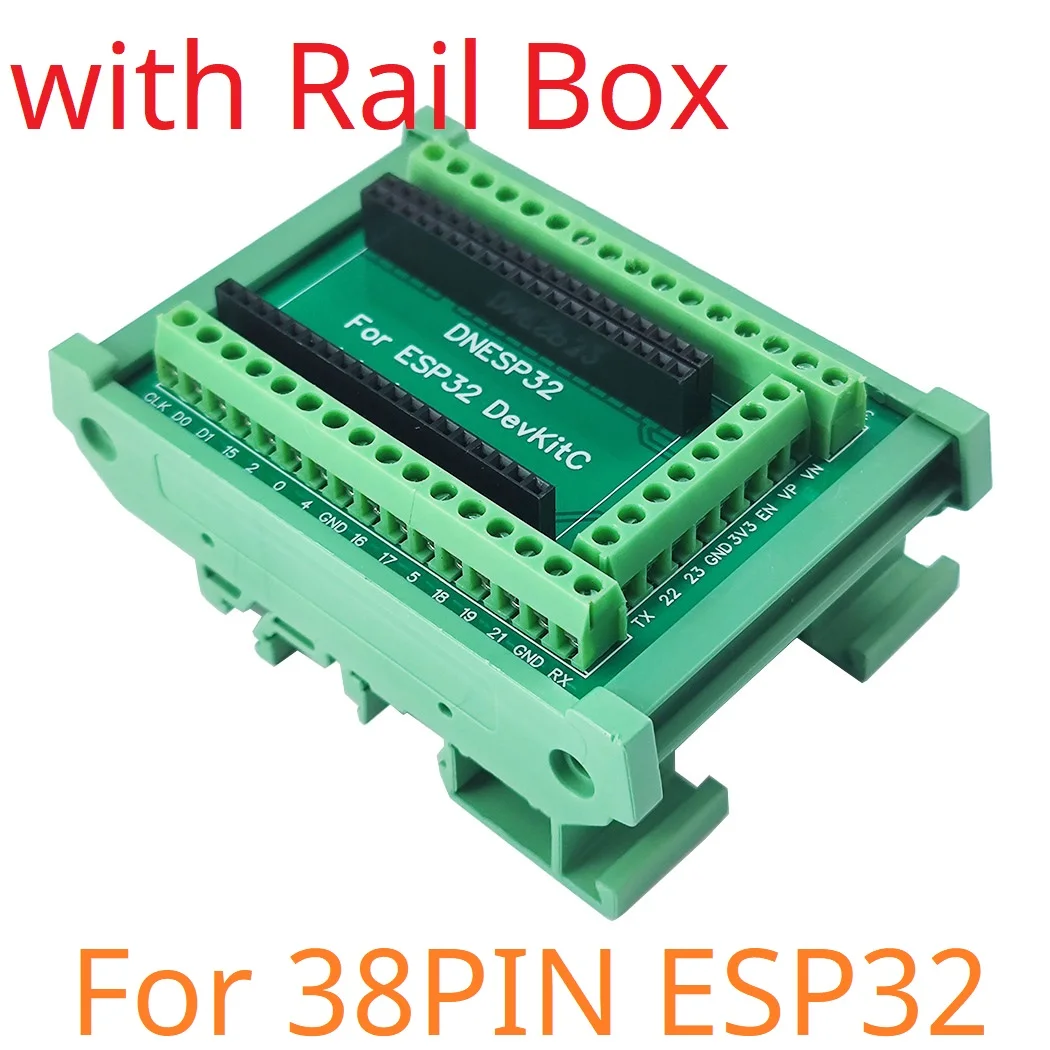

- 38PIN Version: Use with 38PIN ESP32 boards, which have a pin width of either 25.4MM or 22.86MM (board widths approximately 28MM or 25.5MM, respectively).
- DIN Rail Compatibility: The module is designed for installation on DIN35 and C45 rails, allowing for secure mounting in industrial setups.

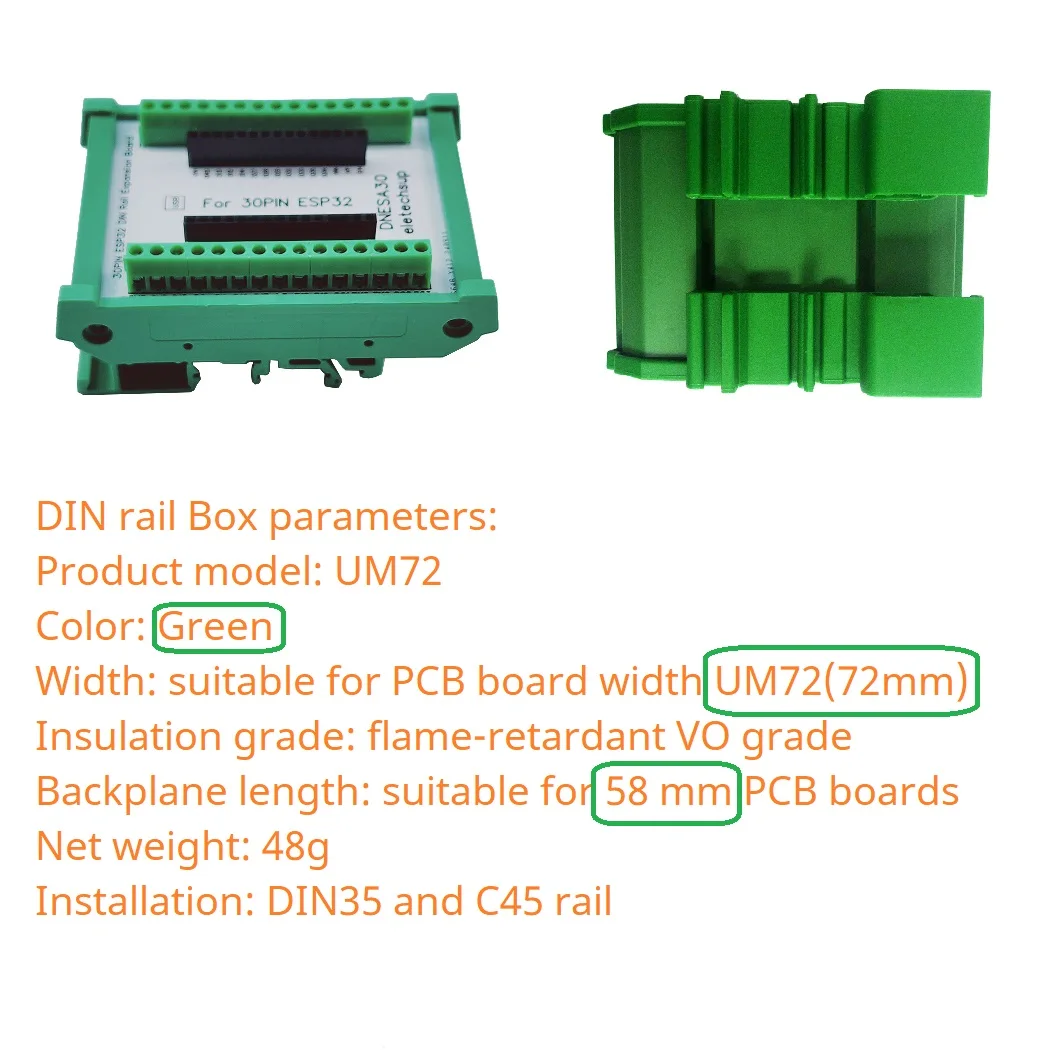

🔒 DIN Rail Box Specifications:
- Product Model: UM72
- Color: Green
- Width Compatibility: Specifically suited for PCB boards with a width of 72mm
- Insulation Grade: Complies with flame-retardant VO standards for safety
- Backplane Length: Ideal for 58mm PCB boards
- Net Weight: 48g
🧩 Invest in this comprehensive DIN Rail Mounting solution for your ESP32 development needs, and take your projects to new heights of reliability and ease of integration.
