🧩 Product Name: MEGA2560 PRO DIN Rail Expansion Board DC-DC 5V 2A Converter 3.96mm Mount Screw Terminal Block Adapter Module DNMPA25 for Arduino
📦 Package Included: 1 PCS DNMPA25 DIN PinBoard for MEGA2560 PRO (optionally available with shell; MEGA2560 PRO module not included).
Description:
- Terminal Spacing: 3.96mm, allowing for flexible connections and a compact layout.
- Terminal Blocks: Compatible with wire sizes ranging from 26 to 16 AWG. The strip length is maintained at 3.96mm, utilizing M2/M2.5 slotted screws for secure connections.
- Comprehensive Pin Access: All pins of the MEGA2560 PRO are directed to the 3.96mm terminal blocks, enabling straightforward wiring.
- Power Conversion: Integrated onboard DC-DC converter efficiently steps down voltage from a range of 7-30V to a stable 5V output with a current capacity of 2A, perfect for powering various components.

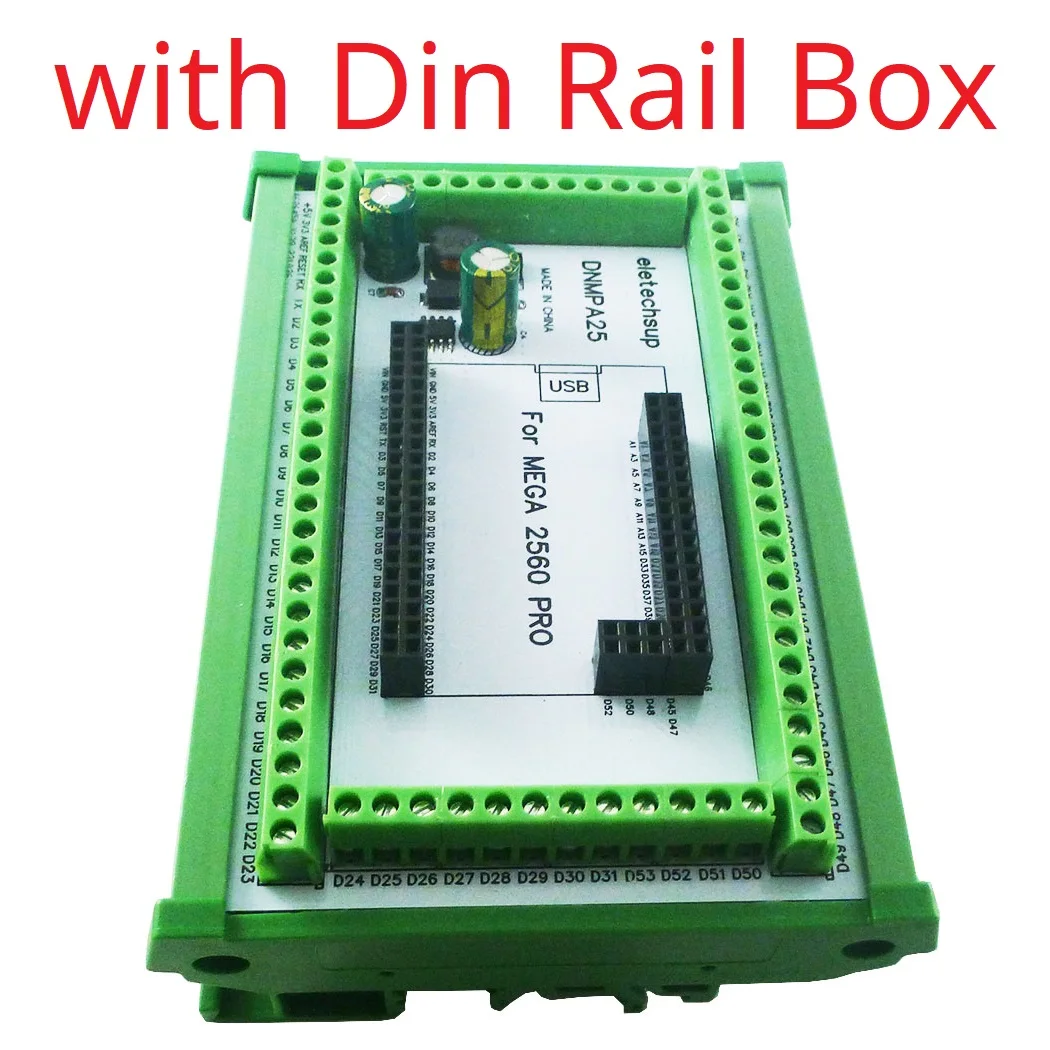

- Optional DIN Rail Housing: The expansion board can be equipped with a DIN rail housing for organized installation and enhanced protection.
- Dimensions: The expansion board measures 117*72*14mm (only board) and 121*82*38mm when enclosed in the DIN rail box.
- Weight: The board weighs 74g by itself and 162g when housed in the DIN rail box.
🔒 Usage: This DIN Rail Mount Screw Terminal Adapter Module is specifically designed for the Arduino MEGA2560 PRO Board, making it an ideal solution for integrating your Arduino projects into industrial control systems.
📎 Notice: The MEGA2560 PRO board is not included; users must provide their own.
DIN Rail Box Parameters:
- Product Model: UM72
- Color: Green
- Width: Tailored for PCB board widths of UM72 (72mm)
- Insulation Grade: Constructed from flame-retardant VO grade material for safety.
- Backplane Length: Designed to fit 117mm PCB boards.
- Net Weight: 88g
- Installation: Compatible with DIN35 and C45 rail systems for versatile mounting options.
