High - Performance Fully Discrete Pre - Amplifier DIY Kit & Finished Board (DIY KIT)

Naim - Circuit NAC52Se - Fully Discrete Pre-Amplifier - DIY Kit & Finished Board

💍 Embark on an exciting audio journey with the Naim - Circuit NAC52Se, a sophisticated fully discrete pre-amplifier that provides an exceptional platform for audio enthusiasts and DIY aficionados alike. This project demands a high level of electronics knowledge and considerable hands-on experience in soldering and testing, making it ideal for those passionate about building and optimizing their own audio equipment.

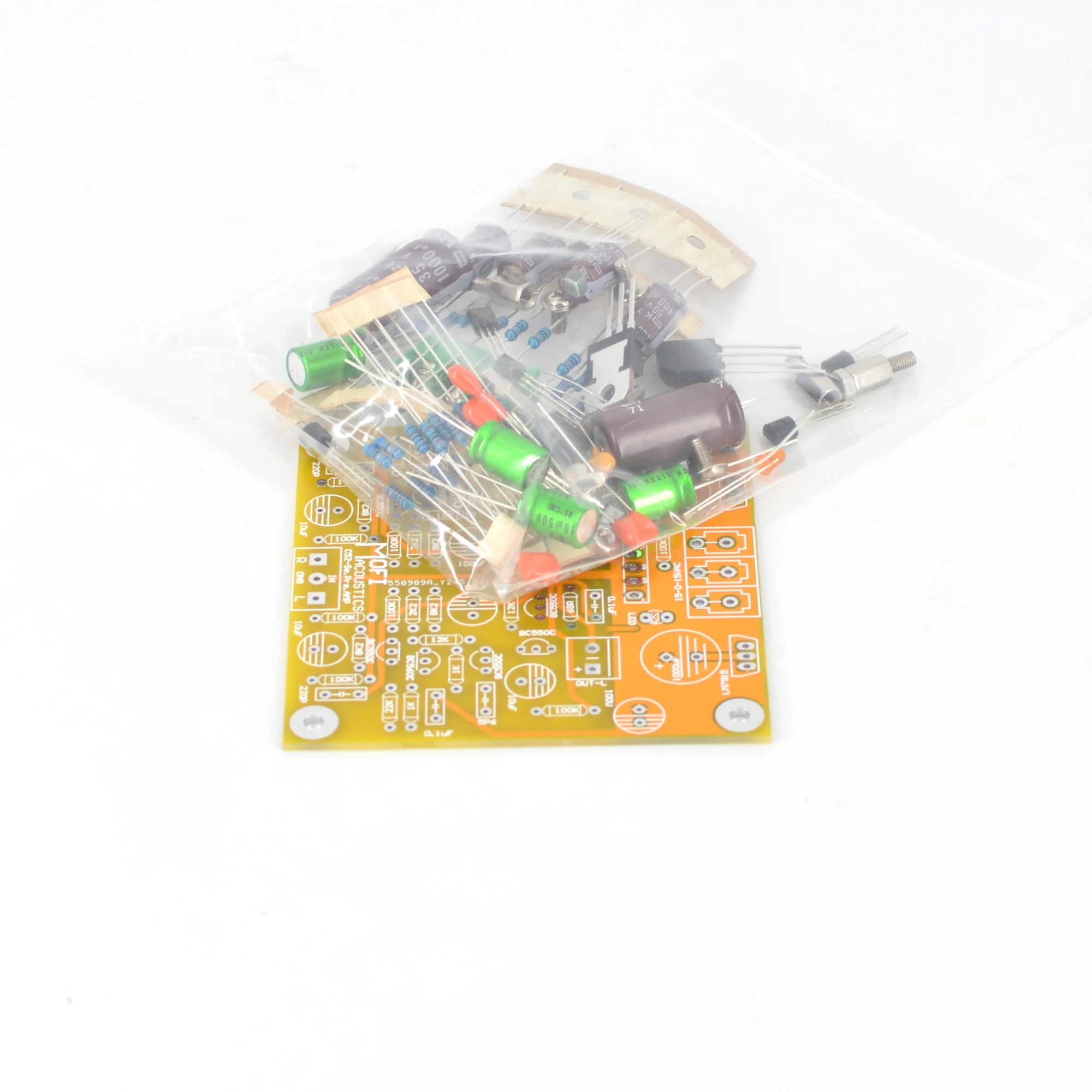

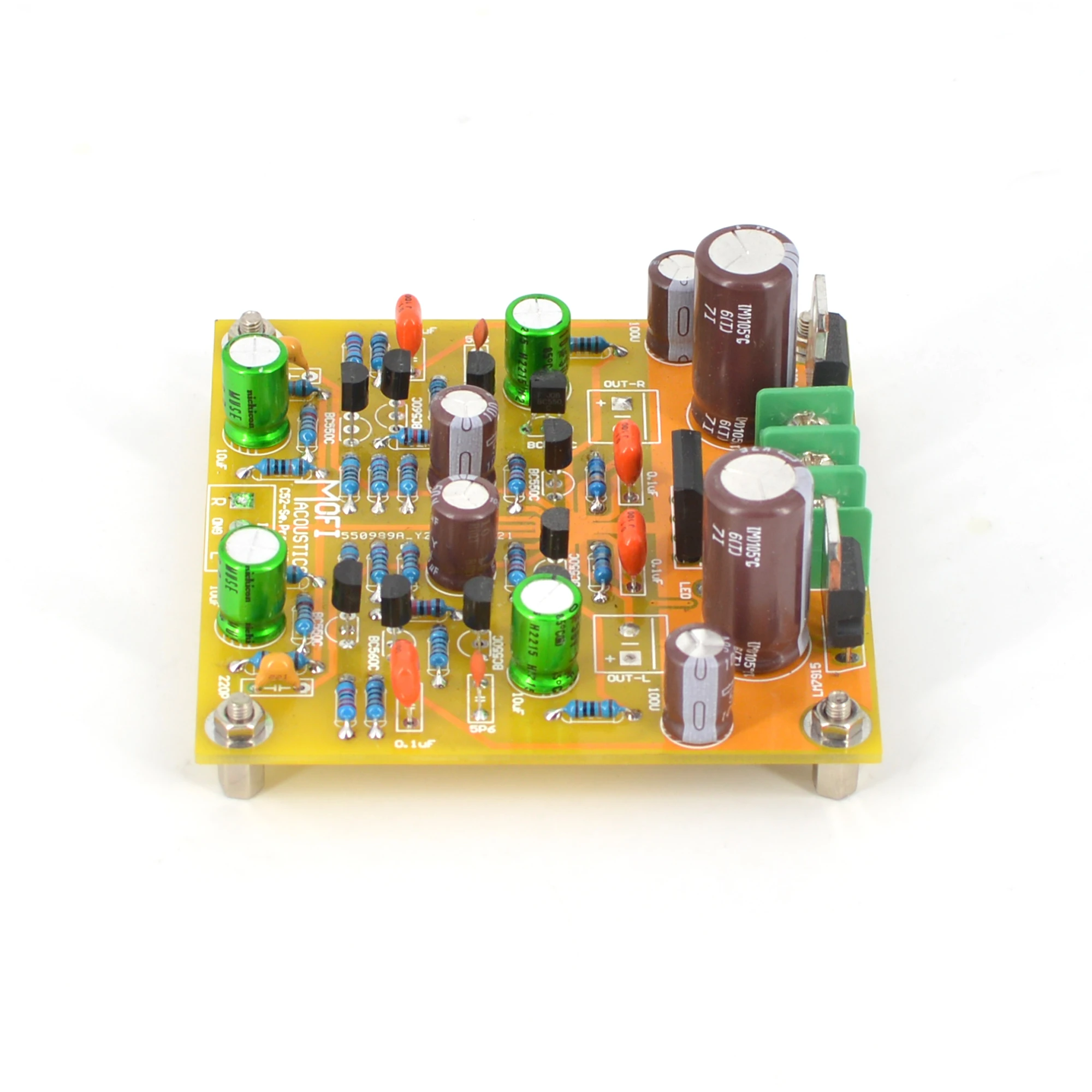

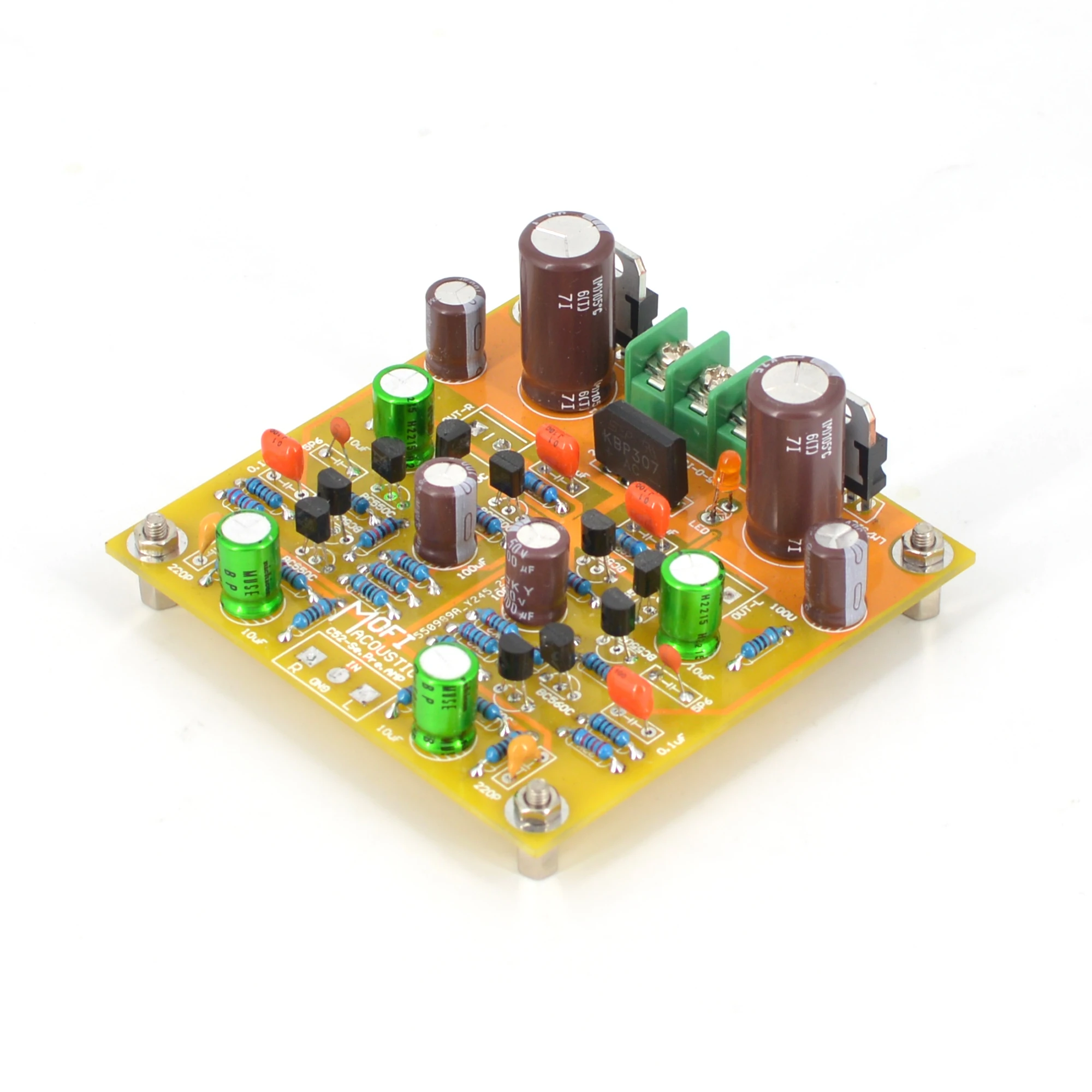

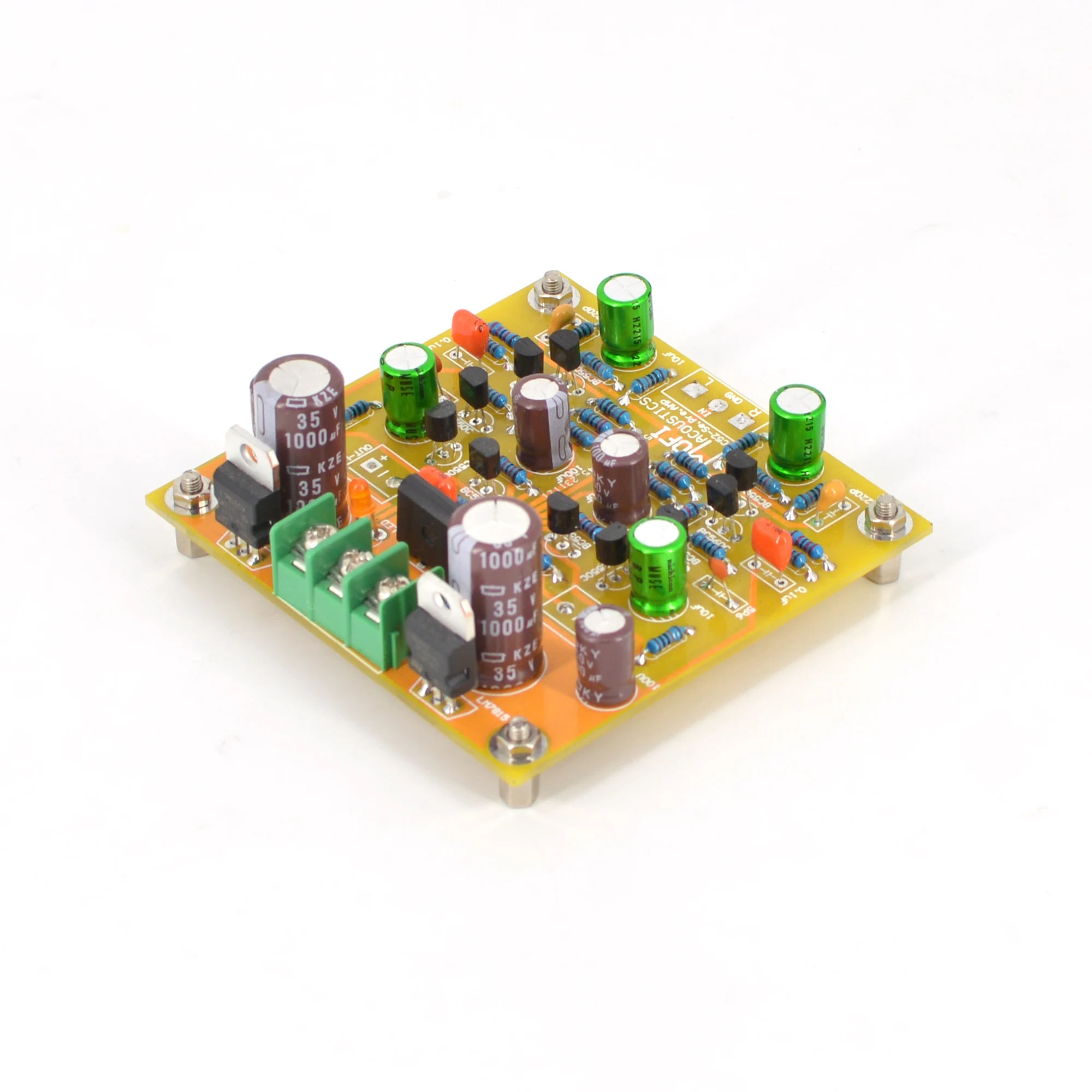

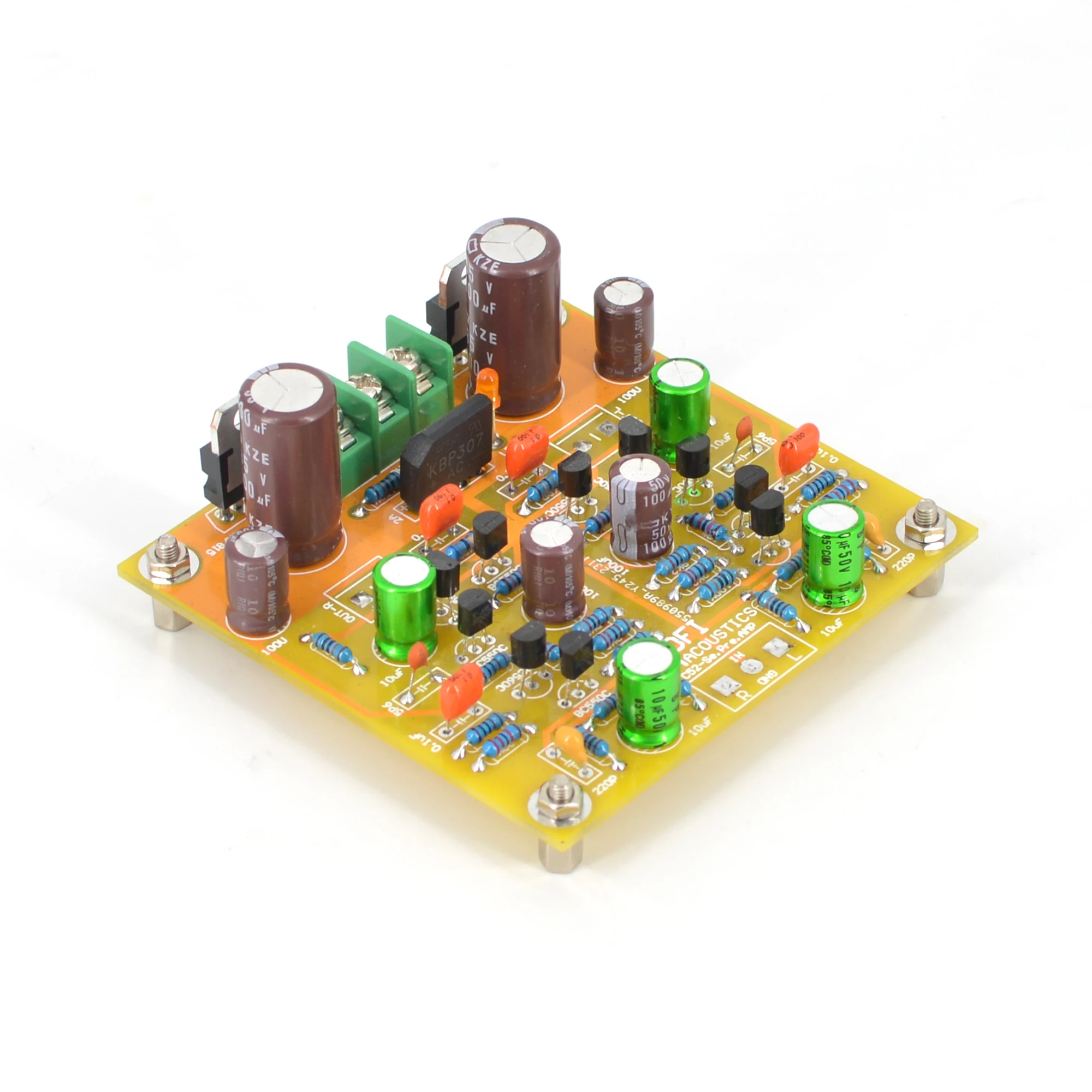

🌟 This unique offering is available in two formats: a DIY Kit, which consists of a printed circuit board (PCB) and all essential components, or a Finished Board, expertly hand-soldered and rigorously tested to ensure the highest quality performance. The DIY Kit allows for customization and personalization, providing an engaging experience in audio engineering. Conversely, the Finished Board is perfect for those who prioritize performance without the assembly effort, as it delivers a pre-validated, reliable option right out of the box.

🔧 The NAC52Se features a dual rail ±15V regulated power supply, designed specifically for amplifiers, creating an optimized audio signal environment. Its all-in-one design boasts a single-point grounding system that minimizes ground resistance, achieving an impressive near-0.02 ohm resistance value. This low-noise design significantly enhances sound quality, making it a cost-effective solution for those looking to elevate their audio setup.

📦 With a compact PCB size of 80X81X1.6mm, the NAC52Se is designed to fit effortlessly into various audio configurations, while its power requirements are straightforward: AC 15-0-15V at 10W. In the DIY Kit, you will find all necessary components tailored for seamless installation, although it should be noted that the power transformer is not included. Additionally, the PCB is equipped with key debugging information and component parameters, serving as a guide throughout the building process.

⚡ Important considerations include the schematic, which primarily covers the amplification portion of the circuit. Users are encouraged to familiarize themselves with the component values directly on the PCB for a comprehensive understanding. Monitoring voltage levels at test points during assembly is essential, with a permissible variance of ±20% to ensure optimal function.

Explore the stunning capabilities of the Naim NAC52Se Fully Discrete Pre-Amplifier and elevate your audio experience, whether you are assembling it yourself or opting for the expertly crafted finished version.
