Enhanced Radio Frequency LC Low Pass Filter (LPF 30Mhz)

🏆 Introducing the RF Low Pass Filter Series: Designed for a wide range of radio frequency applications, our low pass filters (LPFs) effectively provide harmonic rejection and ensure excellent out-of-band signal suppression. These filters are essential for enhancing the performance of transmitters and receivers, as well as for anti-aliasing in analog-to-digital converters.

🏆 Product Overview: Our RF Low Pass Filters are available in various frequency specifications, including 30MHz, 100MHz, 200MHz, 500MHz, 800MHz, 1000MHz, 1200MHz, 1500MHz, 2000MHz, and 2400MHz. Each variant is meticulously engineered to offer optimal performance, depending on your application needs. Below are the detailed specifications for each filter model:

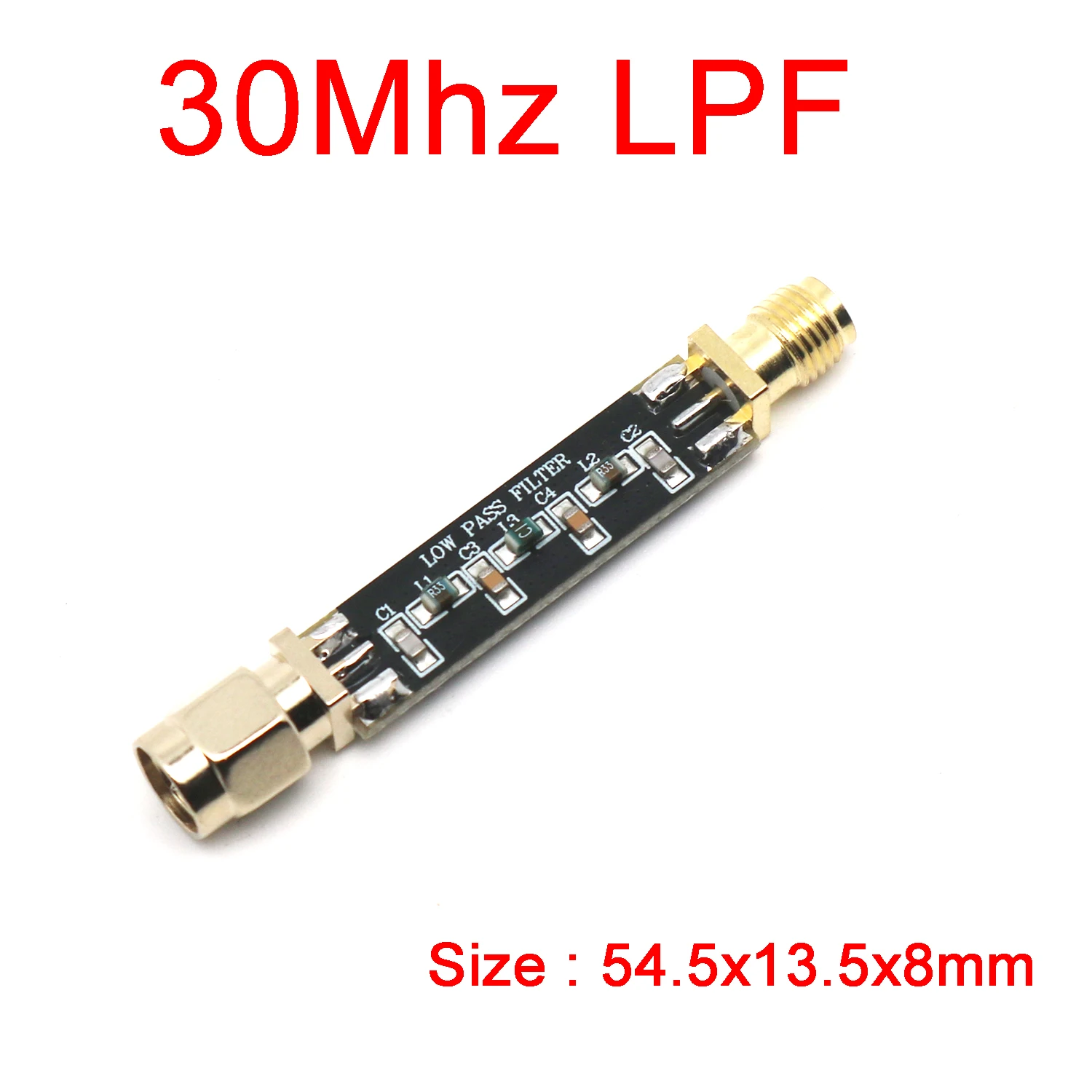

30MHz Low Pass Filter:
- Operating Frequency: DC-30MHz
- Insertion Loss: ≤2.0dB @ 30MHz
- Input/Output Standing Wave: ≤1.5
- Input/Output Impedance: 50 ohms
- Power Capacity: 2W
- Out-of-Band Suppression: Refer to test curve
- Interface: SMA-M, SMA-F
- Size: 54.5 x 13.5 x 8mm
- Note: Modules are designed without dedicated input or output connections.

100MHz Low Pass Filter:
- Operating Frequency: DC-100MHz
- Insertion Loss: ≤1.3dB @ 30MHz
- Input/Output Standing Wave: ≤1.5
- Input/Output Impedance: 50 ohms
- Power Capacity: 2W
- Out-of-Band Suppression: Refer to test curve
- Interface: SMA-M, SMA-F
- Size: 54.5 x 13.5 x 8mm
- Note: Modules are designed without dedicated input or output connections.

200MHz Low Pass Filter:
- Operating Frequency: DC-200MHz
- Insertion Loss: ≤1.0dB @ 30MHz
- Input/Output Standing Wave: ≤1.5
- Input/Output Impedance: 50 ohms
- Power Capacity: 2W
- Out-of-Band Suppression: Refer to test curve
- Interface: SMA-M, SMA-F
- Size: 54.5 x 13.5 x 8mm
- Note: Modules are designed without dedicated input or output connections.

500MHz Low Pass Filter:
- Operating Frequency: DC-500MHz
- Insertion Loss: ≤1.0dB @ 500MHz
- Input/Output Standing Wave: ≤1.2
- Input/Output Impedance: 50 ohms
- Power Capacity: 8W
- Out-of-Band Suppression: Refer to test curve
- Interface: SMA-M, SMA-F
- Size: 35 x 8.5 x 8mm
- Note: Can be used in two cascades to enhance out-of-band signal suppression.

800MHz Low Pass Filter:
- Operating Frequency: DC-800MHz
- Insertion Loss: ≤1.0dB @ 800MHz
- Input/Output Standing Wave: ≤1.2
- Input/Output Impedance: 50 ohms
- Power Capacity: 8W
- Out-of-Band Suppression: Refer to test curve
- Interface: SMA-M, SMA-F
- Size: 35 x 8.5 x 8mm
- Note: Can be used in two cascades to enhance out-of-band signal suppression.

1000MHz Low Pass Filter:
- Operating Frequency: DC-1000MHz
- Insertion Loss: ≤1.0dB @ 1000MHz
- Input/Output Standing Wave: ≤1.3
- Input/Output Impedance: 50 ohms
- Power Capacity: 10W
- Out-of-Band Suppression: Refer to test curve
- Interface: SMA-M, SMA-F
- Size: 35 x 8.5 x 8mm
- Note: Can be used in two cascades to enhance out-of-band signal suppression.

1200MHz Low Pass Filter:
- Operating Frequency: DC-1200MHz
- Insertion Loss: ≤1.0dB @ 1200MHz
- Input/Output Standing Wave: ≤1.2
- Input/Output Impedance: 50 ohms
- Power Capacity: 10W
- Out-of-Band Suppression: Refer to test curve
- Interface: SMA-M, SMA-F
- Size: 35 x 8.5 x 8mm
- Note: Can be used in two cascades to enhance out-of-band signal suppression.

1500MHz Low Pass Filter:
- Operating Frequency: DC-1500MHz
- Insertion Loss: ≤1.0dB @ 1500MHz
- Input/Output Standing Wave: ≤1.2
- Input/Output Impedance: 50 ohms
- Power Capacity: 10W
- Out-of-Band Suppression: Refer to test curve
- Interface: SMA-M, SMA-F
- Size: 35 x 8.5 x 8mm
- Note: Can be used in two cascades to enhance out-of-band signal suppression.

2000MHz Low Pass Filter:
- Operating Frequency: DC-2000MHz
- Insertion Loss: ≤1.5dB @ 2000MHz
- Input/Output Standing Wave: ≤1.3
- Input/Output Impedance: 50 ohms
- Power Capacity: 10W
- Out-of-Band Suppression: Refer to test curve
- Interface: SMA-M, SMA-F
- Size: 35 x 8.5 x 8mm
- Note: Can be used in two cascades to enhance out-of-band signal suppression.

2.4GHz Low Pass Filter:
- Operating Frequency: DC-2400MHz
- Insertion Loss: ≤1.7dB @ 2400MHz
- Input/Output Standing Wave: ≤1.3
- Input/Output Impedance: 50 ohms
- Power Capacity: 10W
- Out-of-Band Suppression: Refer to test curve
- Interface: SMA-M, SMA-F
- Size: 35 x 8.5 x 8mm
- Note: Can be used in two cascades to enhance out-of-band signal suppression.

🧠 This robust series of RF Low Pass Filters is designed to meet the demanding needs of modern electronics, facilitating reliable signal integrity and enhancing overall system performance. Choose the appropriate frequency filter to optimize your applications today!
