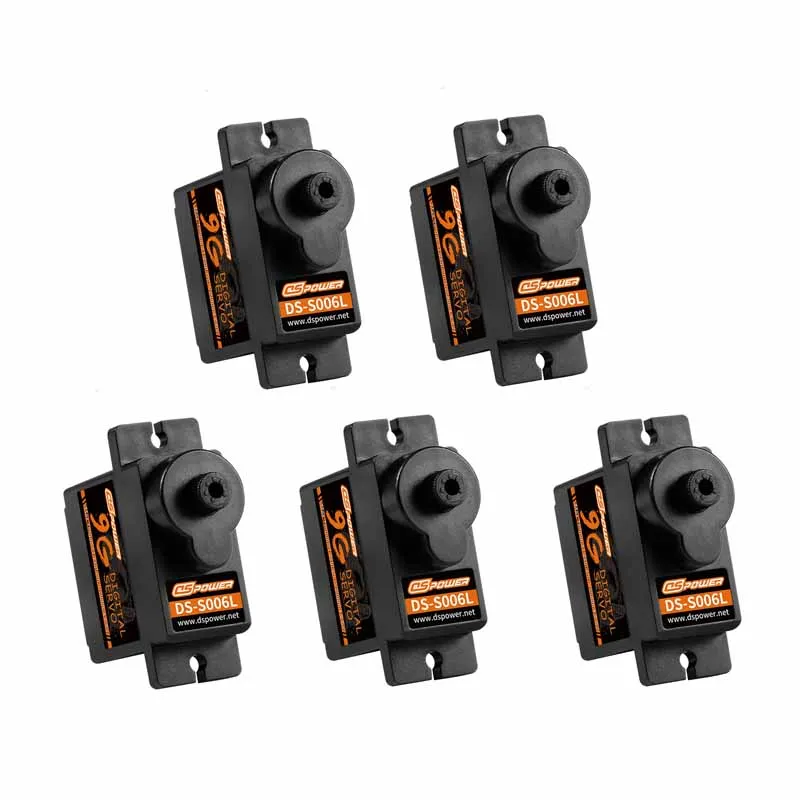

DSpower 9G Waterproof Digital Micro Servo for RC and Robotics Applications (5PCS 9G Clutch)

💧 The DSpower 9G Waterproof Digital Micro Servo is an exceptional component ideal for a variety of remote-controlled applications, including RC cars, 450 helicopters, Mini Q aircraft, robots, and boats. This versatile servo is specifically designed to meet the demands of both hobbyists and professionals alike, ensuring reliable performance in challenging conditions.

Available under two distinct models, the DSpower DS-S006 and DSpower DS-S006L, both units showcase impressive specifications:

• Operating Voltage: 4.8 ~ 6.0V DC
• Max Torque:
  • DS-S006: 4.8V ≥ 1.30 kgf·cm; 6.0V ≥ 1.50 kgf·cm
  • DS-S006L: 4.8V ≥ 1.00 kgf·cm; 6.0V ≥ 1.20 kgf·cm
• No Load Speed:
  • DS-S006: 4.8V ≤ 0.13 sec/60°; 6.0V ≤ 0.11 sec/60°
  • DS-S006L: 4.8V ≤ 0.14 sec/60°; 6.0V ≤ 0.12 sec/60°
• Stall Current:
  • DS-S006: 4.8V ≤ 700mA; 6.0V ≤ 800mA
  • DS-S006L: 4.8V ≤ 550mA; 6.0V ≤ 650mA
• Consumption Current (No Load): 4.8V ≤ 50mA; 6.0V ≤ 60mA
• Max Operating Travel Angle: 180° ± 10° (500 ~ 2500μs)
• Dead Band Width: ≤ 3μs (DS-S006), ≤ 4μs (DS-S006L)
• Mechanical Limit Angle: 360°
• Motor Type: Core motor
• Case Material: Durable ABS plastic
• Gear Set Material: Plastic gear for efficient operation
• Horn Gear Spline: 40T / Φ4.85mm
• Weight: Approximately 9 ± 0.5g
• Size: 27.3 × 12 × 23mm
• Length of Connector Cable: JR 250 ± 5mm (exposed without plug)

🛡️ Each package includes either 1 or 5 units of the specified DSpower Servo alongside servo arm accessories, allowing you to tailor your order according to your project needs.

Note: The actual product may differ slightly in color due to variations in monitor displays. Additionally, please take into account minor measurement discrepancies of up to 1-3 mm, as this is a natural result of manual measurement techniques.
