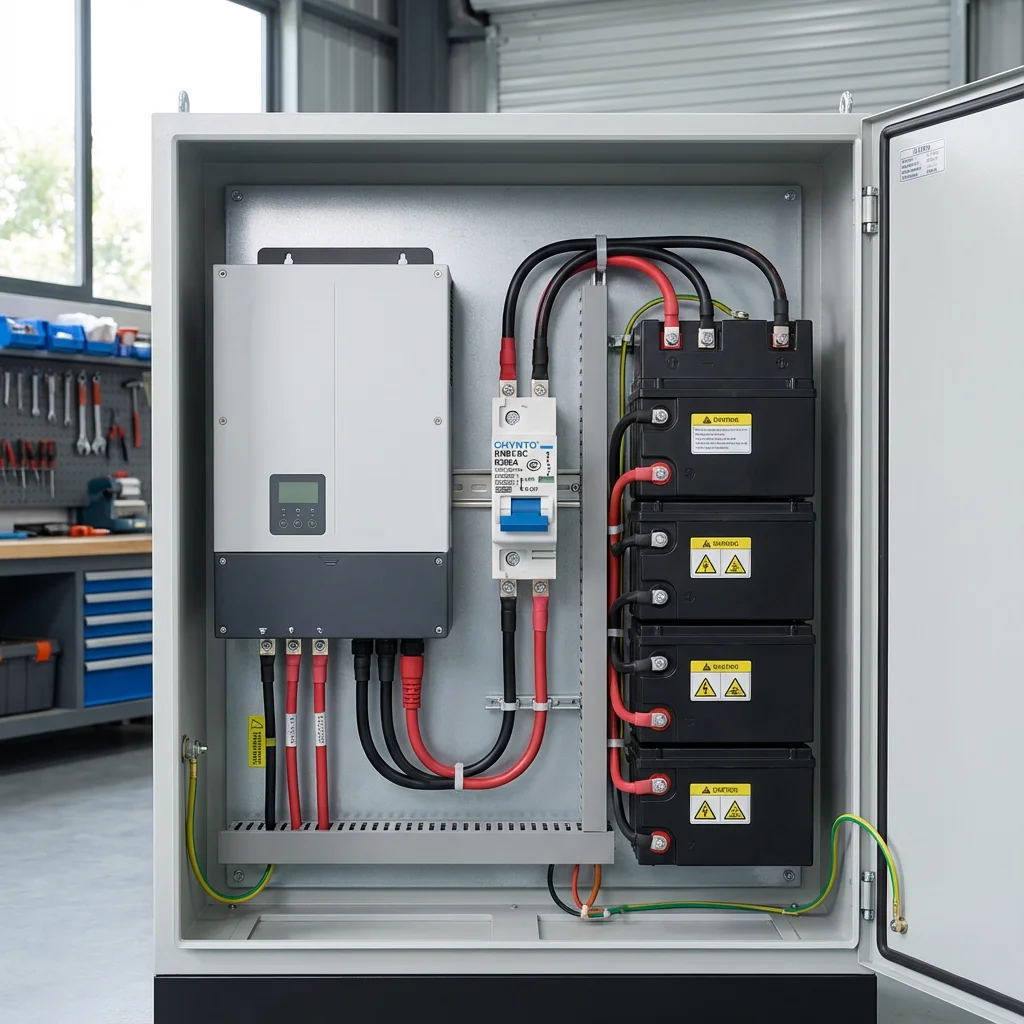

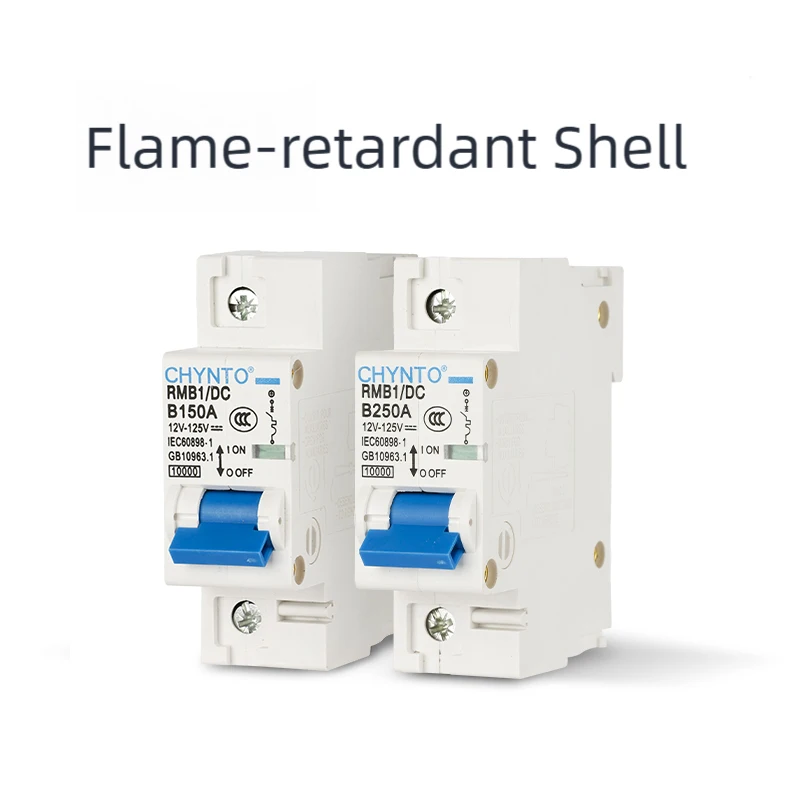

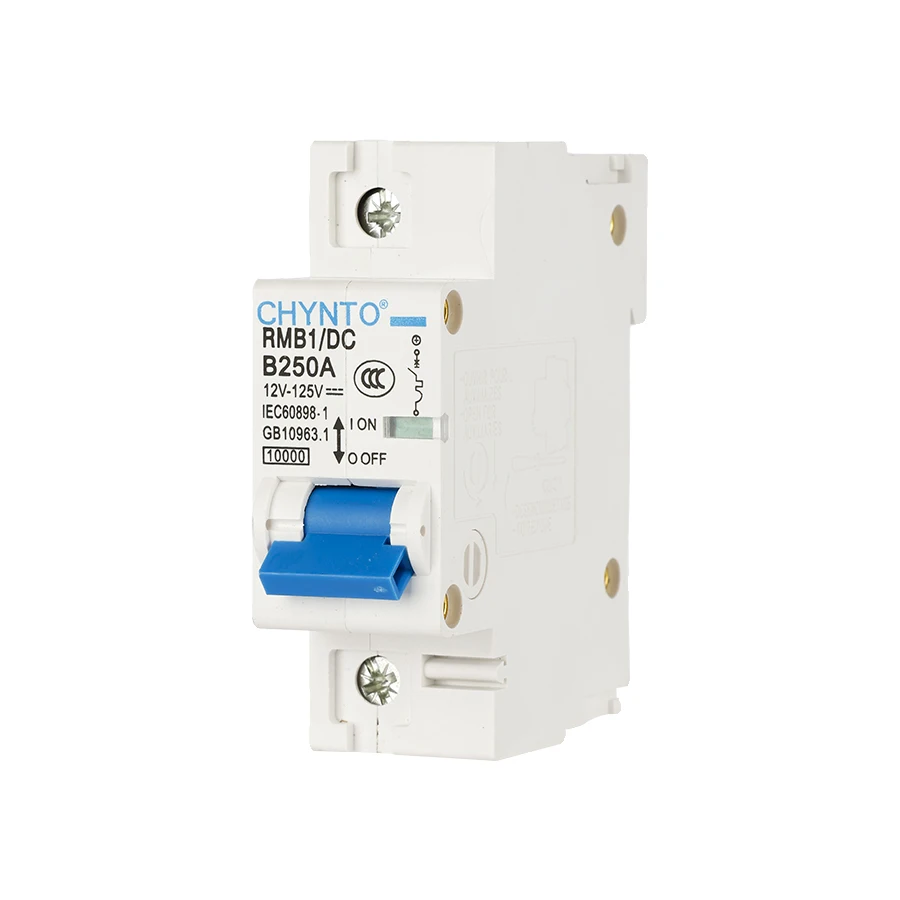

🛡️ 1P 250A DC Battery Circuit Breaker / Overload Protection Switch
🧩 The 1P 250A DC Battery Circuit Breaker is a vital component in electrical systems, designed to ensure safety and protect your circuits from overloads and short circuits. This robust device is categorized into two main types: single pole (1P) and double pole (2P), each with distinct functionalities tailored to specific applications.
1P Circuit Breaker (Single Pole)
️⃣ Definition: A single pole breaker consists of one individual switch that manages a single live wire, also known as the "hot" conductor.🧩 Functionality: It continuously monitors the current flowing through the circuit. In the event of an overload or a short circuit, the breaker will trip, effectively disconnecting the power supply and preventing potential damage to the electrical system.
🪶 Voltage Rating: Typically operates within 120-volt circuits, making it ideal for a variety of residential applications.
🪶 Neutral Connection: The neutral wire is routed to the neutral bus bar within the panel rather than passing through the breaker itself.
💍 Common Applications: This breaker is frequently used in standard lighting circuits, wall outlet receptacles, and circuits supplying small appliances, ensuring reliable operation in everyday electrical environments.
2P Circuit Breaker (Two Pole)
Definition: A two pole breaker is equipped with two switches that are mechanically linked, allowing them to operate in unison to control two live wires.
🧩 Functionality: It supervises the current on both connected circuits. If an overload is detected on either line, both switches will trip at the same time, ensuring complete disconnection of both circuits for enhanced safety, particularly in 240V systems.
Voltage Rating: Generally utilized for 240-volt circuits, achieved by utilizing two opposing 120V "hot" wires.
Neutral Connection: Depending on the specific appliance, a separate neutral wire may be necessary. For instance, devices like dryers or ovens often require a neutral, whereas a pure heating element, such as a water heater, might not.
🧩 Common Applications: This breaker is essential for large home appliances including electric ranges, clothes dryers, and water heaters. It is also suitable for air conditioning systems, heat pumps, and heavy workshop equipment such as saws or welders. Additionally, it can serve as the Main Disconnect for the entire panel, allowing for the simultaneous shutdown of both incoming hot legs to enhance safety during maintenance or emergencies.
