Product Overview

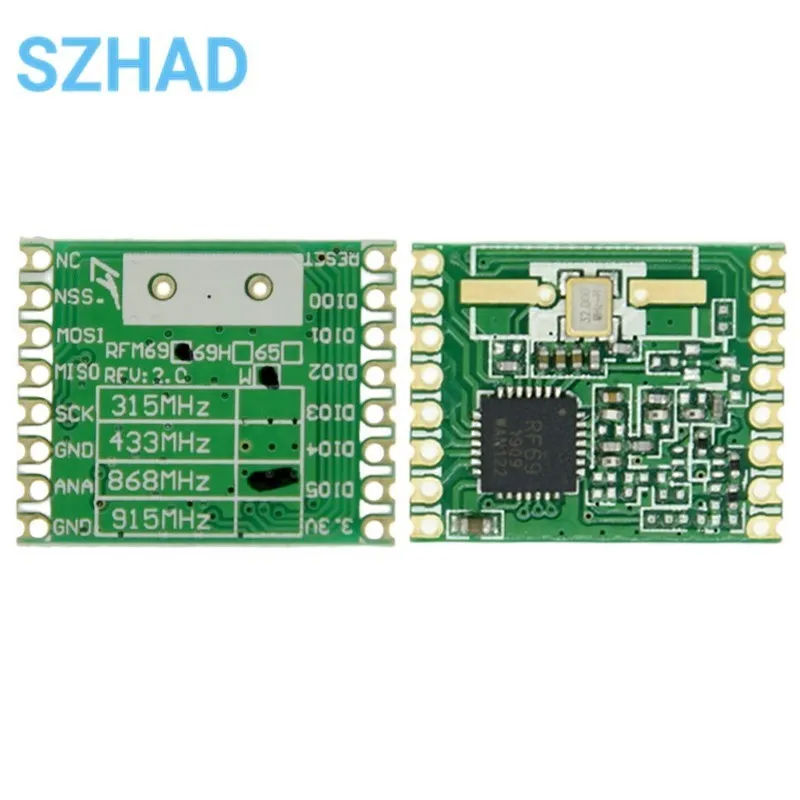

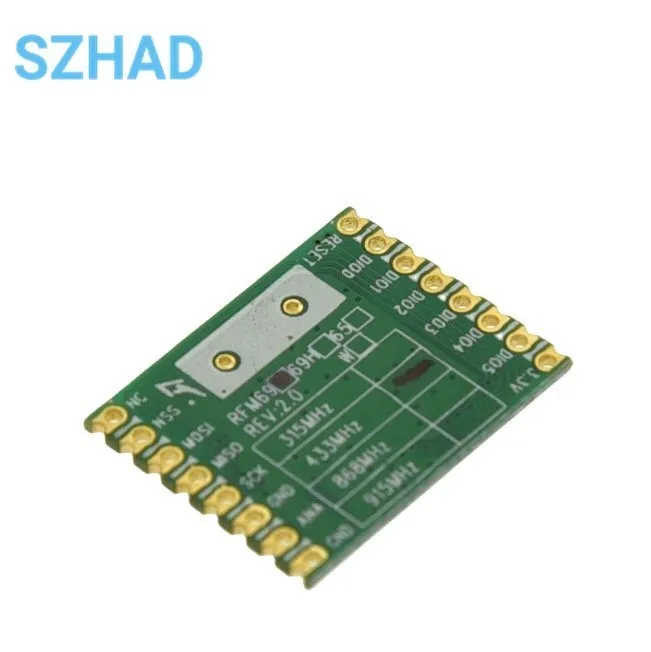

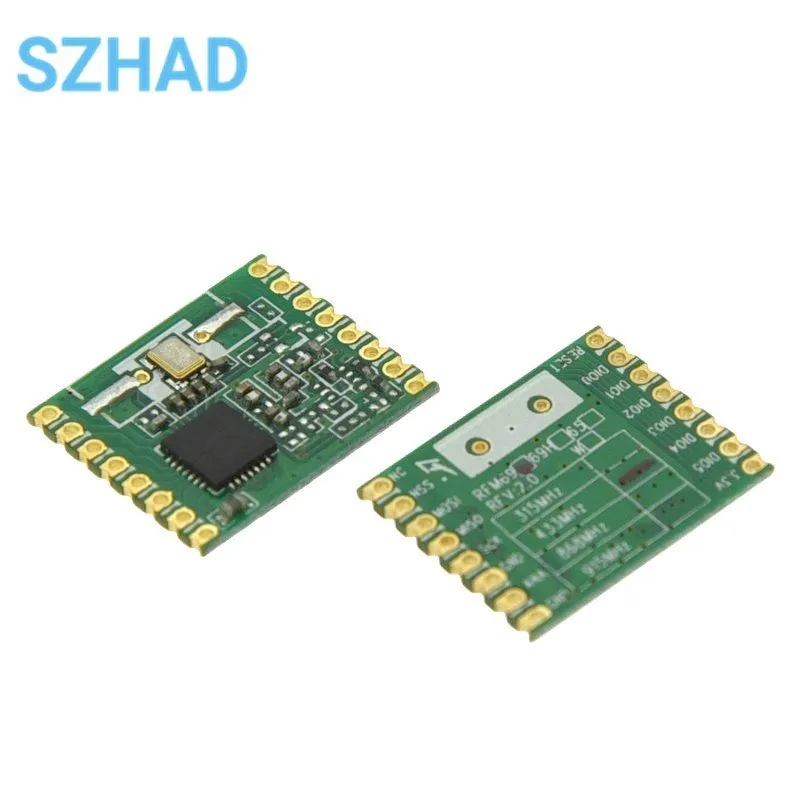

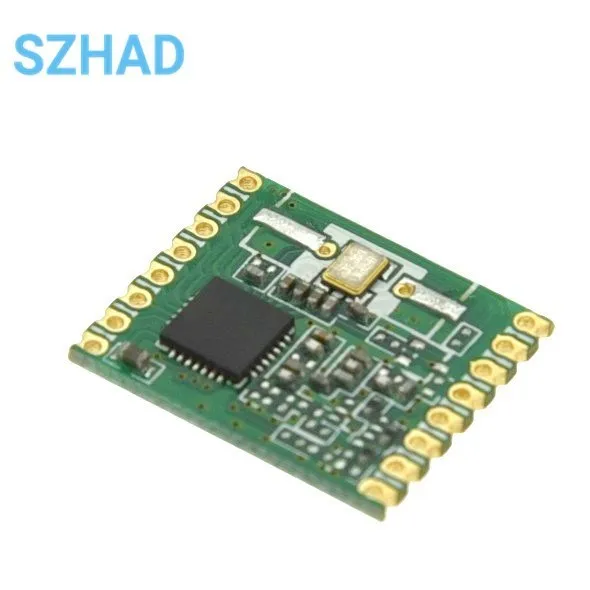

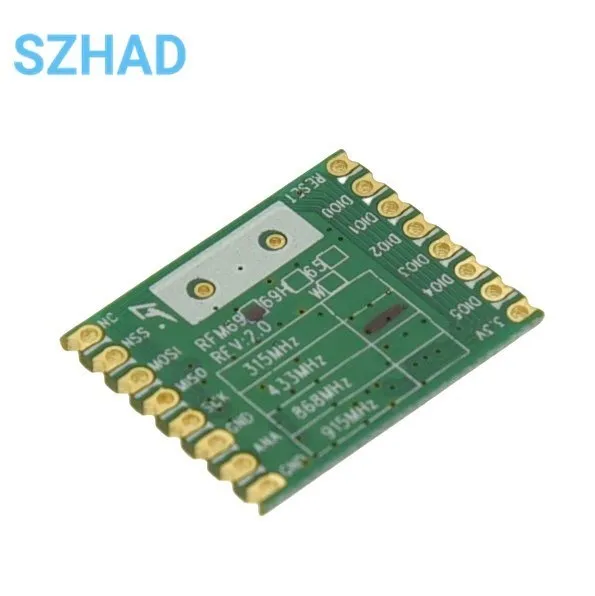

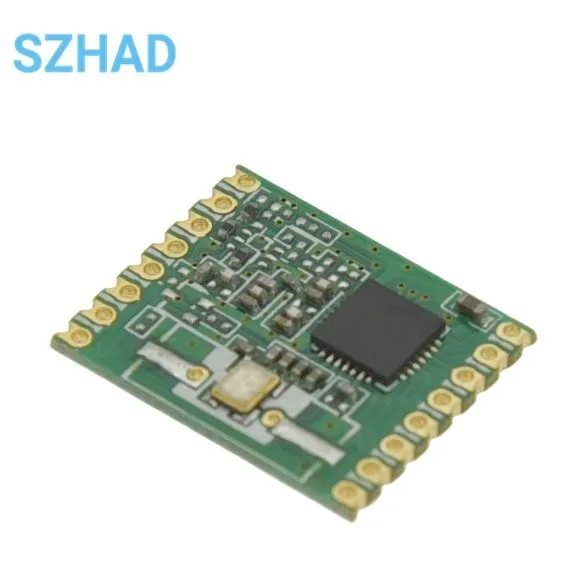

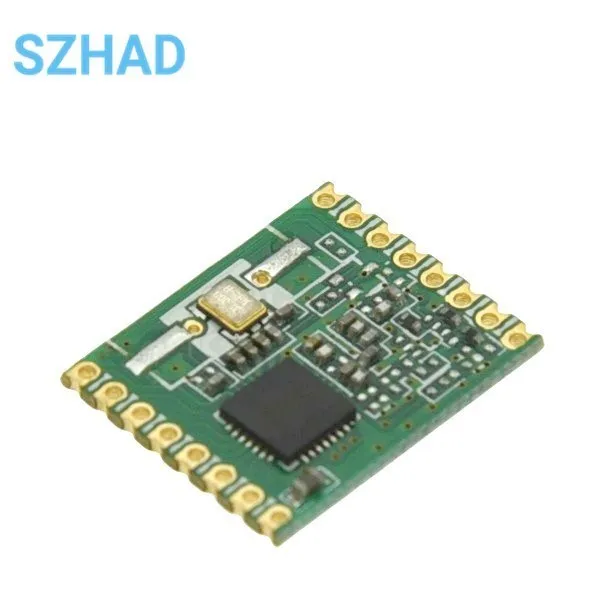

🪶 The RFM69 wireless transceiver module is a cutting-edge solution designed for low-power, high-performance applications in the 433 MHz, 868 MHz, and 915 MHz ISM bands. With its advanced RF69 chip at the core, this module delivers exceptional capabilities, making it ideal for various wireless data transmission projects in the Internet of Things (IoT) domain.
🔧 Key Features
- Compact Design: Its small form factor allows for easy integration into devices, ensuring that it can fit into a variety of applications.
- Power Efficiency: Operating with a transmit power of 13dBm, the RFM69 ensures long battery life even in demanding scenarios.
- High Sensitivity: With a receiver sensitivity of -120dBm, this module supports reliable communication even at long distances, with a maximum communication range of up to 800 meters at 1.2kbps.
- Fast Data Transmission: Capable of achieving data rates of up to 300Kbps, the RFM69 is well-suited for applications requiring rapid data exchange.
- Advanced Modulation: The module supports both FSK and OOK modulation schemes, offering flexibility to meet various communication needs.
- Versatile Applications: Ideal for wireless data transmission in sectors such as industrial control, access control, attendance systems, and surveillance, the RFM69 can cater to both everyday and specialized requirements.
📦 Technical Specifications
- Operating Frequency: 433 MHz, 868 MHz, or 915 MHz (varies by model)
- Transmission Rate: Up to 300 Kbps
- Emission Current: 45mA at 13dBm
- Receive Current: 16mA
- Standby Current: Less than 0.1 µA
- Data Interface: SPI interface for easy microcontroller integration
- Antenna Impedance: 50Ω
- Operating Temperature Range: -40°C to 85°C
- Power Supply: DC 1.8V to 3.6V
- Dimensions: 20mm x 16mm
👌 Conclusion
📶 The RFM69 series offers a robust and reliable solution for wireless communication needs across a wide array of applications. With its sophisticated design and adherence to FCC/CE standards, it meets the highest quality requirements, enabling developers to create innovative wireless products with confidence.
