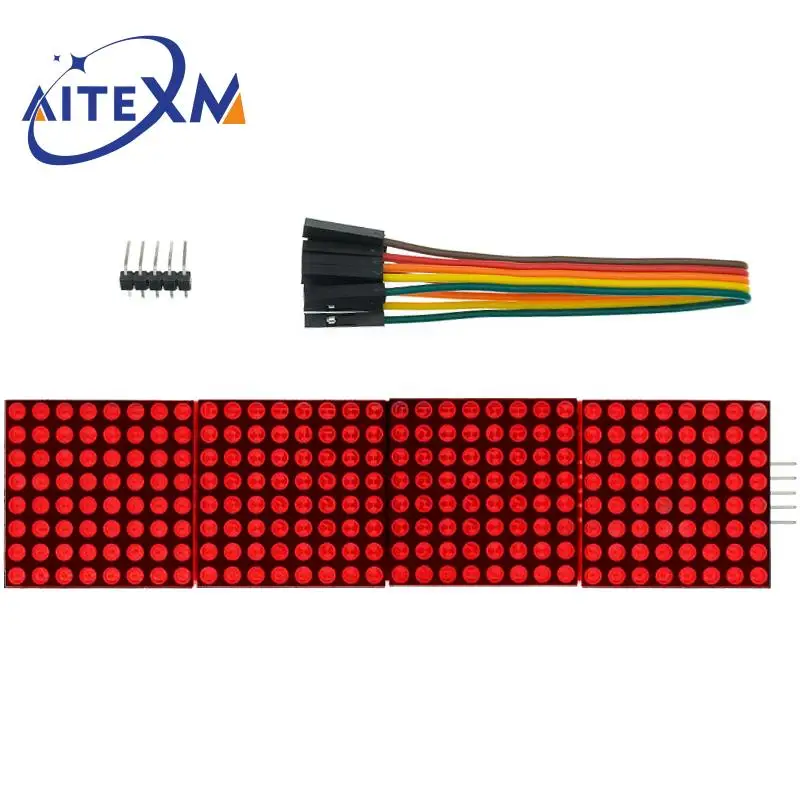

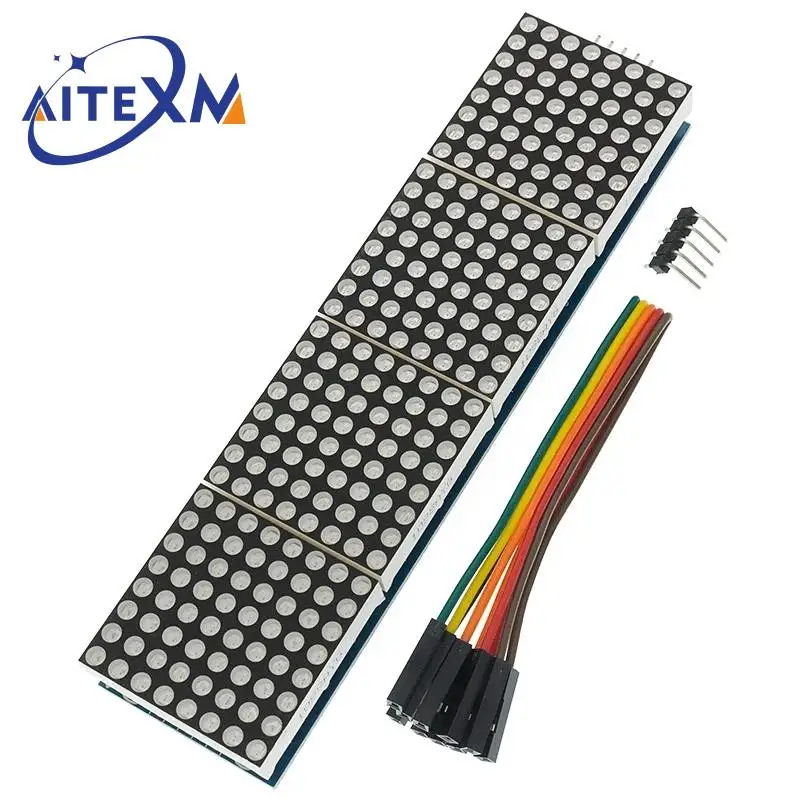

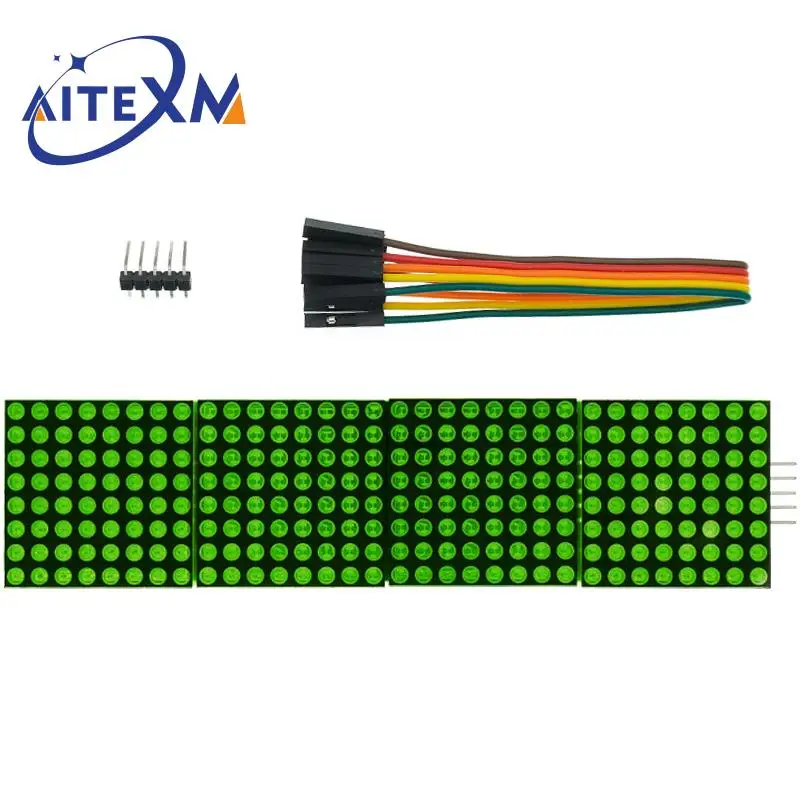

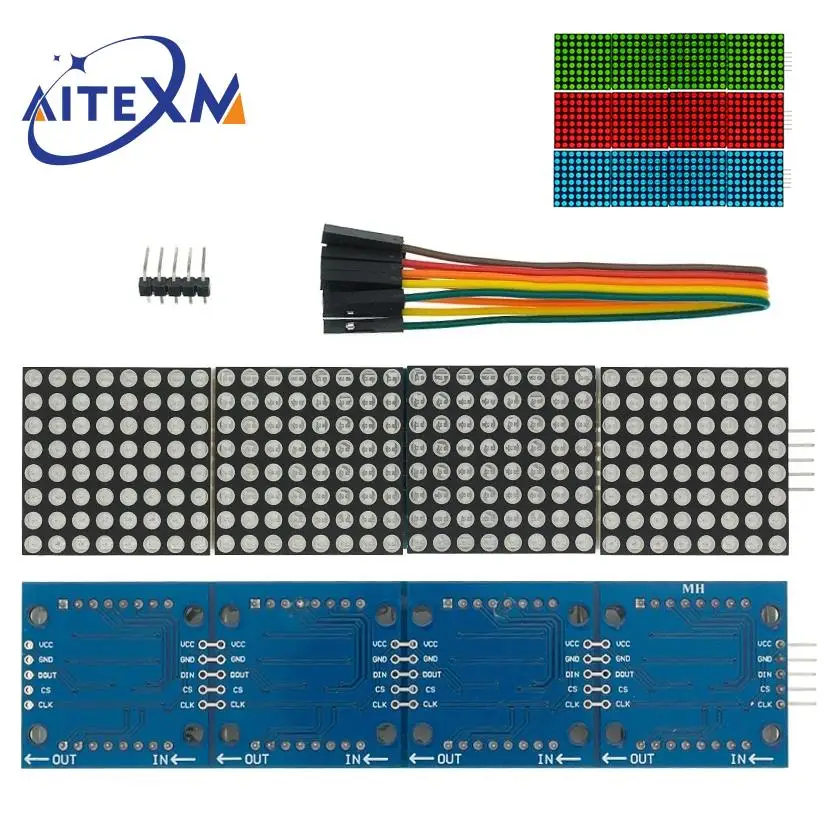

Enhanced Dot Matrix LED Display Module - 8x8 4 - in - 1 RGB (Blue)

📦 Introducing the AITEXM MAX7219 8x8 Dot Matrix Module, a highly versatile microcontroller display solution designed for enthusiasts and professionals alike. This compact yet powerful module utilizes the MAX7219 integrated circuit, a renowned serial input/output driver for common cathode displays. Its compatibility with microprocessors makes it an ideal choice for various projects that require a reliable and efficient display system.

🔧 This module features an 8x8 dot matrix configuration, allowing for dynamic visual representations with stunning clarity. In addition to dot matrix displays, it can also drive up to 64 independent LEDs or bar graph displays, providing flexibility for different applications. The on-chip BCD encoder and segment word driver ensure seamless operation, while the integrated static RAM offers efficient data storage capability for your display requirements.

👌 One of the standout features of this module is its convenient four-wire serial interface, enabling easy connections to a wide range of general-purpose microprocessors. With the capability to address each data point individually, users can update display information without the need to refresh all segments simultaneously, streamlining the process significantly.

🧩 The AITEXM MAX7219 module is equipped with a low-power shutdown mode that consumes only 150μA, making it perfect for battery-operated designs. It also incorporates both analog and digital brightness control, allowing users to customize the luminosity of their displays according to the environment. The scan limit register empowers users to display between 1 to 8 bits of data, providing even greater flexibility. Additionally, the detection mode allows all LEDs to illuminate, creating striking visual effects.

Module Specifications:

• A single module can effectively drive an 8x8 common cathode dot matrix.
• Working Voltage: 5V
• Module Dimensions: Length 13.2 cm x Width 3.2 cm x Height 1.3 cm
• 64 fixing screw holes (diameter: 3mm) for easy installation.
• Input and output interfaces support the cascading of multiple modules.

⚡ Wiring Instructions:

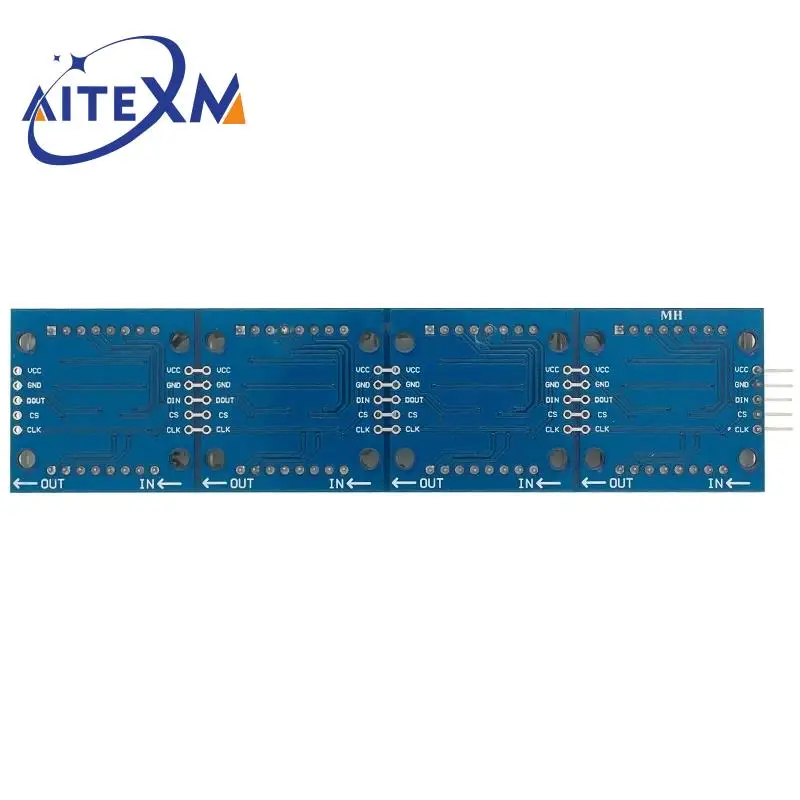

• The left side of the module serves as the input port, while the right side acts as the output port.
• For single module control, simply connect the input port to the CPU.
• When cascading multiple modules, connect the input of the first module to the CPU, link the output of the first module to the input of the second module, and continue this pattern for additional modules.

⚡ For example, when utilizing a 51 microcontroller, connection points include:

• VCC: Connect to 5V
• GND: Connect to GND
• DIN: Connect to P2.2
• CS: Connect to P2.1
• CLK: Connect to P2.0

Experience the remarkable capabilities of the AITEXM MAX7219 8x8 Dot Matrix Module to elevate your projects, whether you are designing simple indicators or complex visual displays. Perfect for hobbyists and professionals alike!
