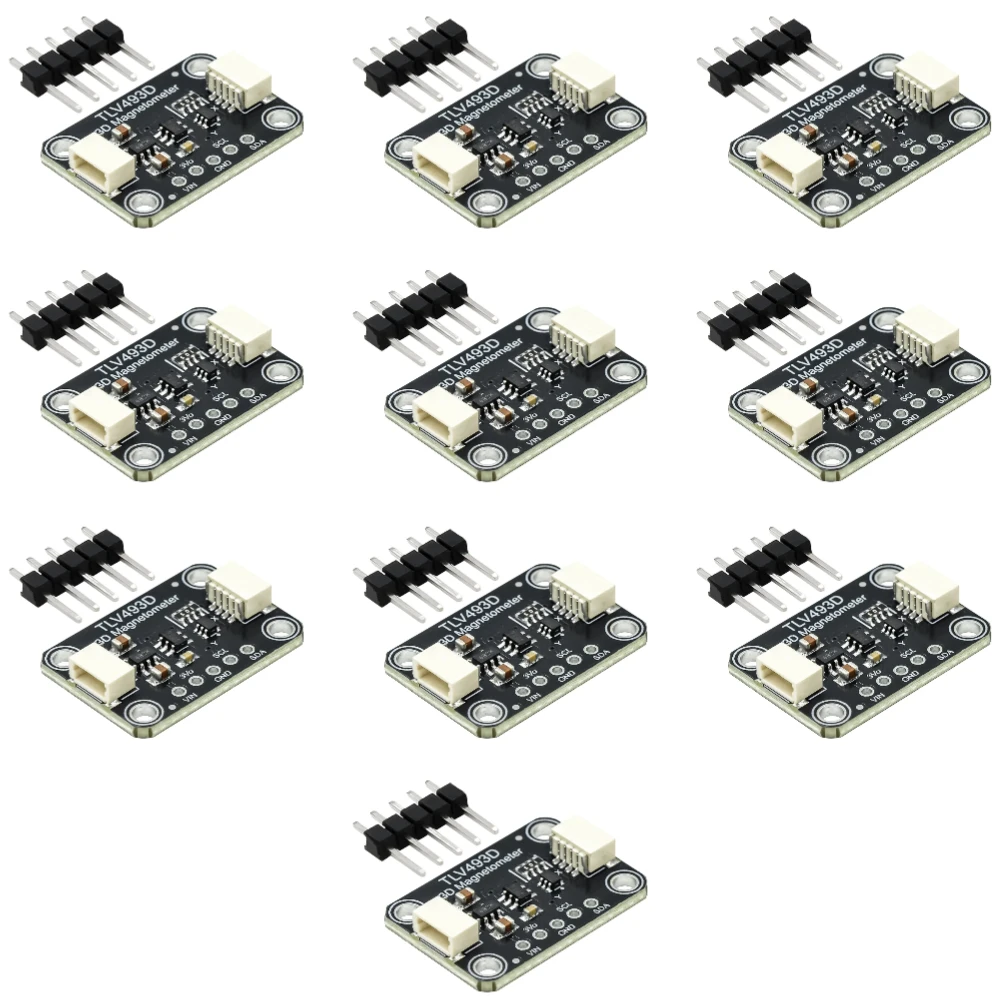

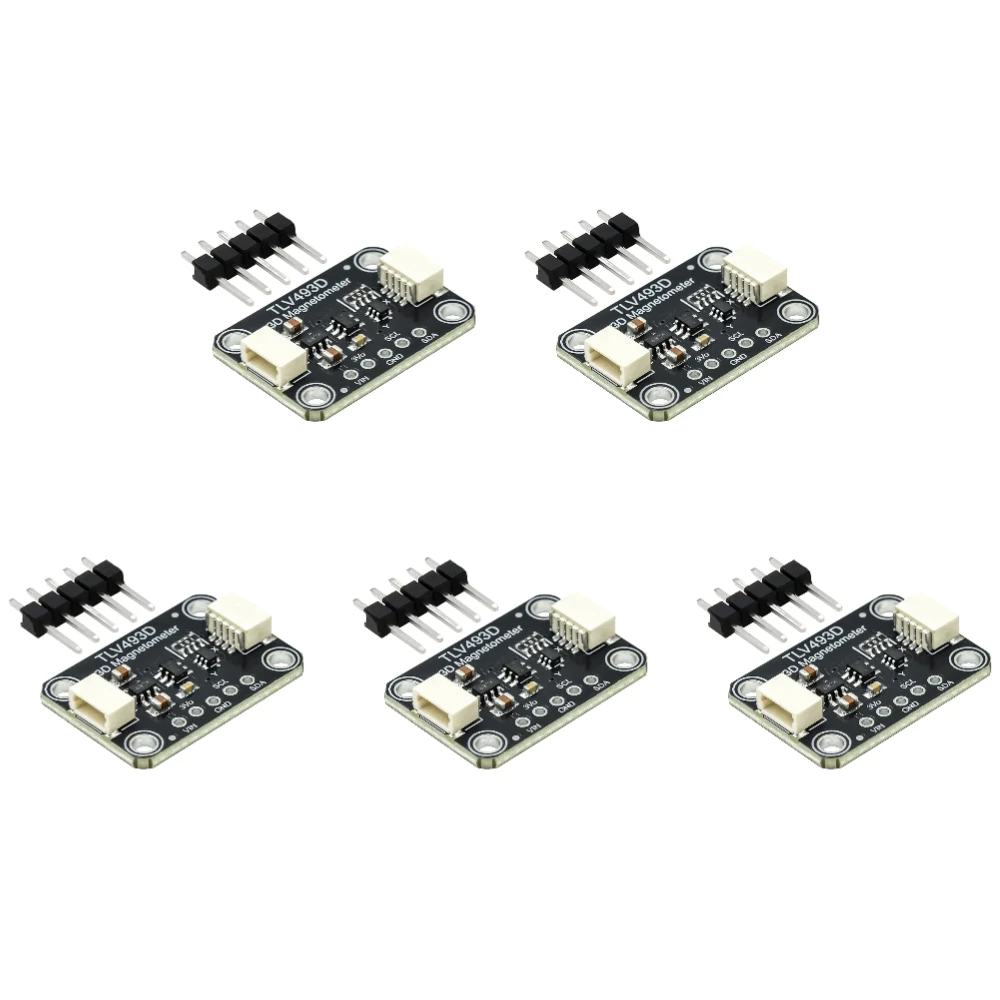

High - Precision Three - Axis Magnetometer Module with Ultra - Fast I2C Interface (10pcs)

📦 TLV493D Three-axis Magnetometer Module is a compact and powerful sensor designed for precise three-dimensional magnetic field detection. Manufactured by Infineon, this versatile module is not only suitable for various applications like tracking the movement of magnets but can also inspire innovative projects, such as building joysticks or creating magical objects that unlock hidden secrets when nearby.

🧲 While it is not intended to function as a compass due to its inability to detect the Earth’s magnetic field, the TLV493D excels at monitoring the presence and movement of magnets in its vicinity. This capability opens the door to exciting possibilities in robotics, interactive installations, and more.

🔧 Key Features:

• Utilizes a digital output via a standard 2-wire I2C interface, supporting data rates of up to 1 MBit/s.
• Delivers high-resolution measurements with a 12-bit data capture for each measurement direction.
• Capable of measuring linear magnetic fields in the X, Y, and Z axes with a range of up to +130 mT.
• Exceptional alignment of X/Y measurements enables accurate angle sensing for reliable performance.

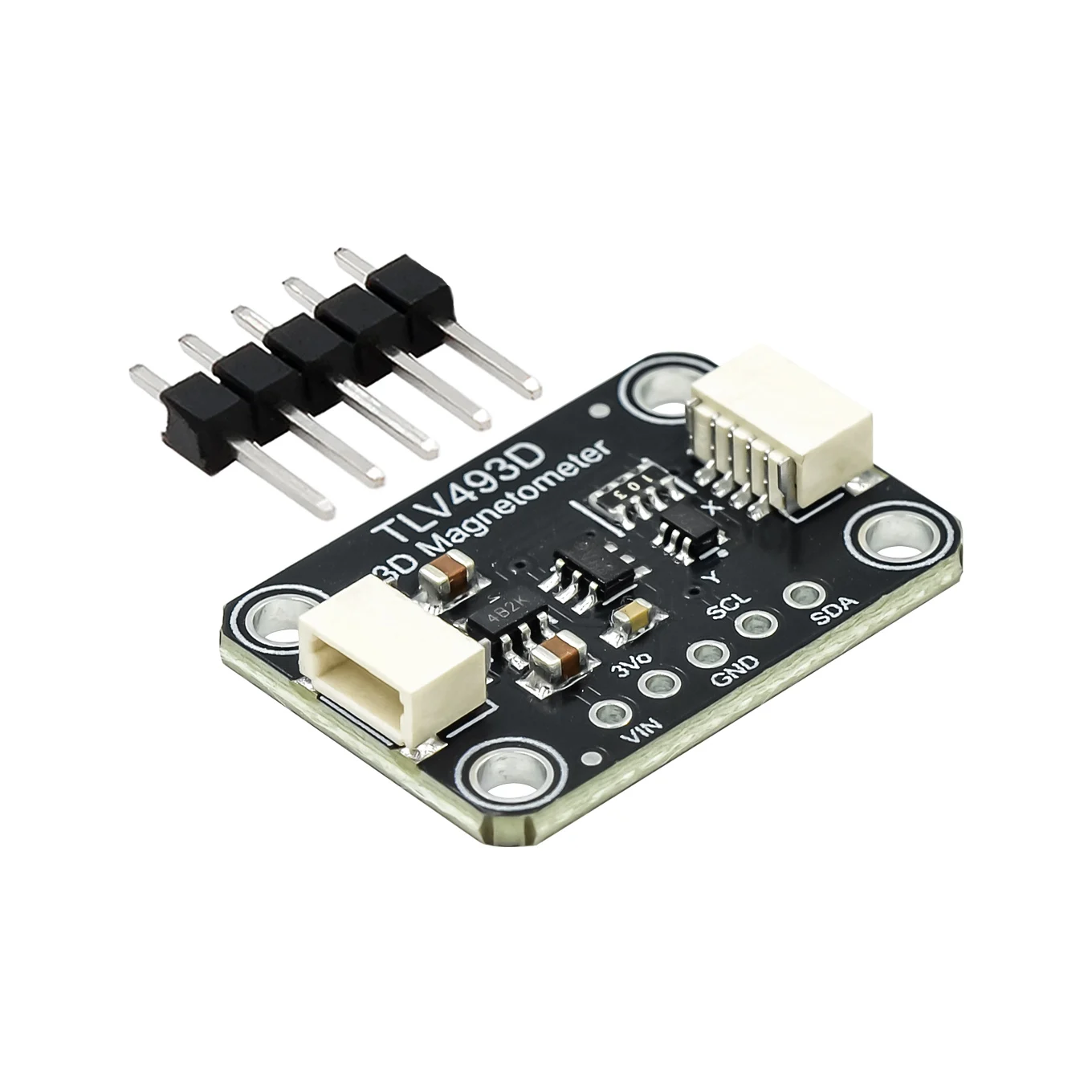

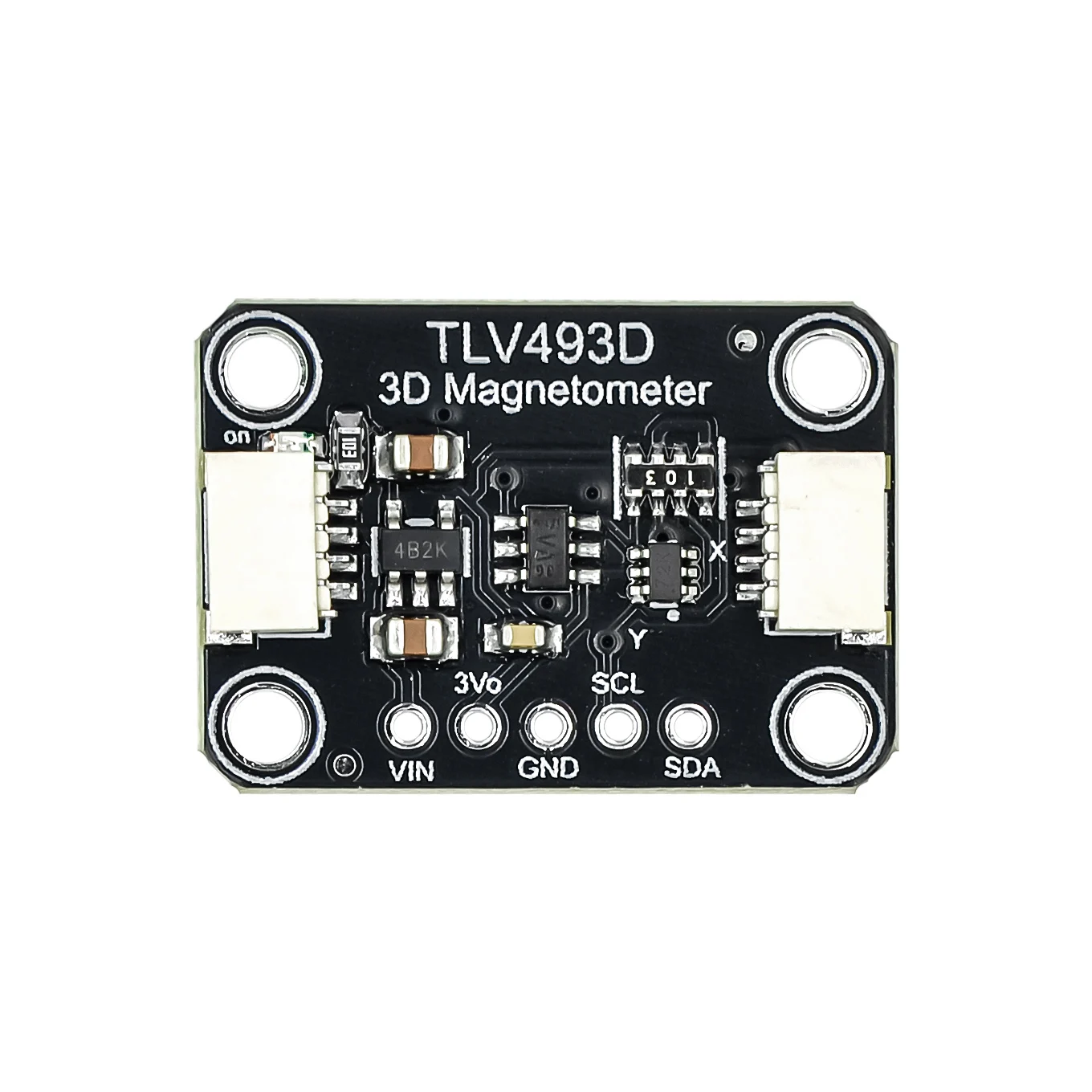

⚡ The sensor is integrated onto a split-line PCB along with necessary support circuitry, enhancing ease of use in a variety of applications. It includes a built-in voltage regulator and logic level converter, making it compatible with a range of microcontrollers operating at both 3.3V and 5V logic levels. Additionally, the module provides an extra pin to access 3.3V power, ensuring accessibility for your projects.

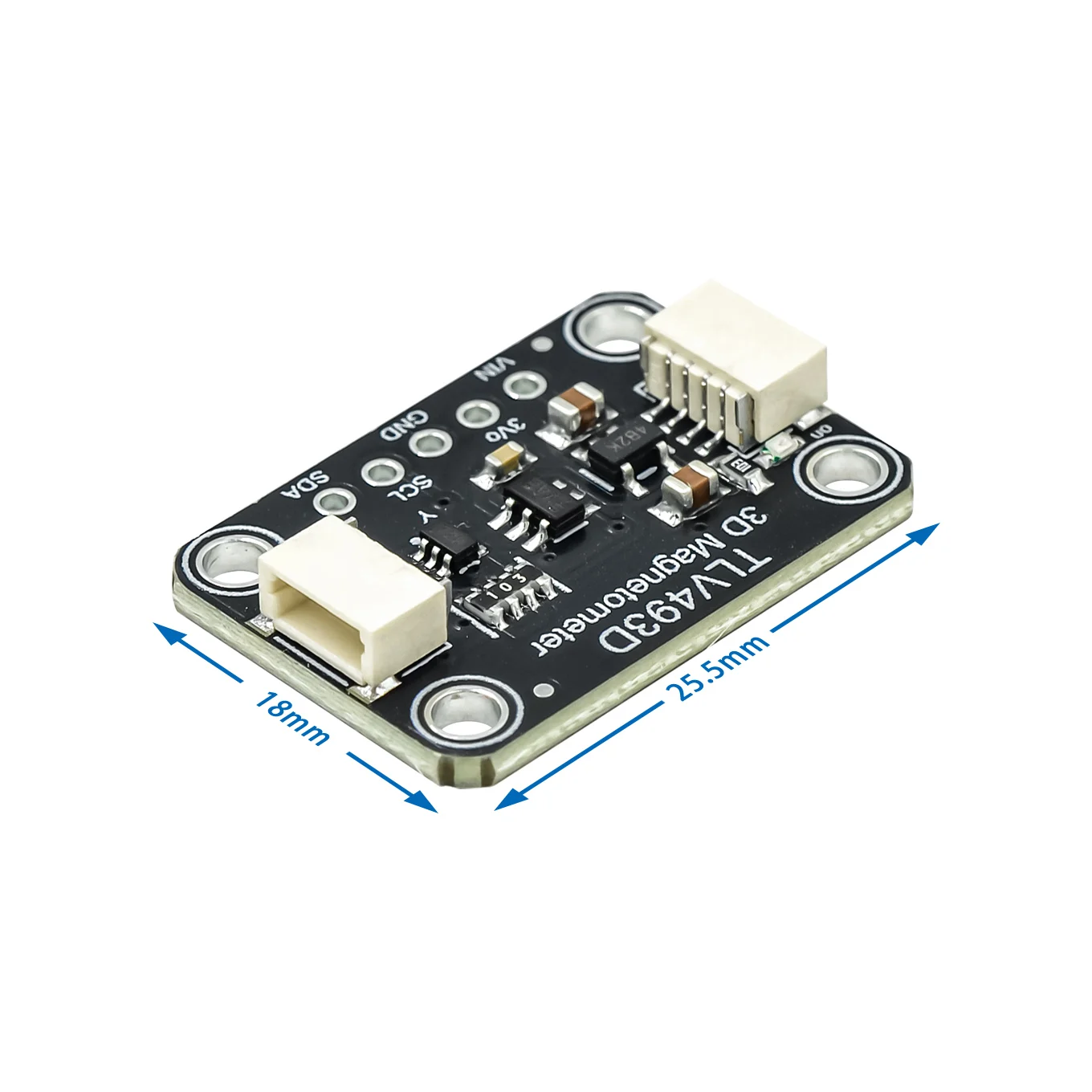

Dimensions: 25.4mm x 17.8mm x 4.6mm

Weight: 3g
