Universal DC - DC Buck Converter with Adjustable Output and Safety Features (5V)

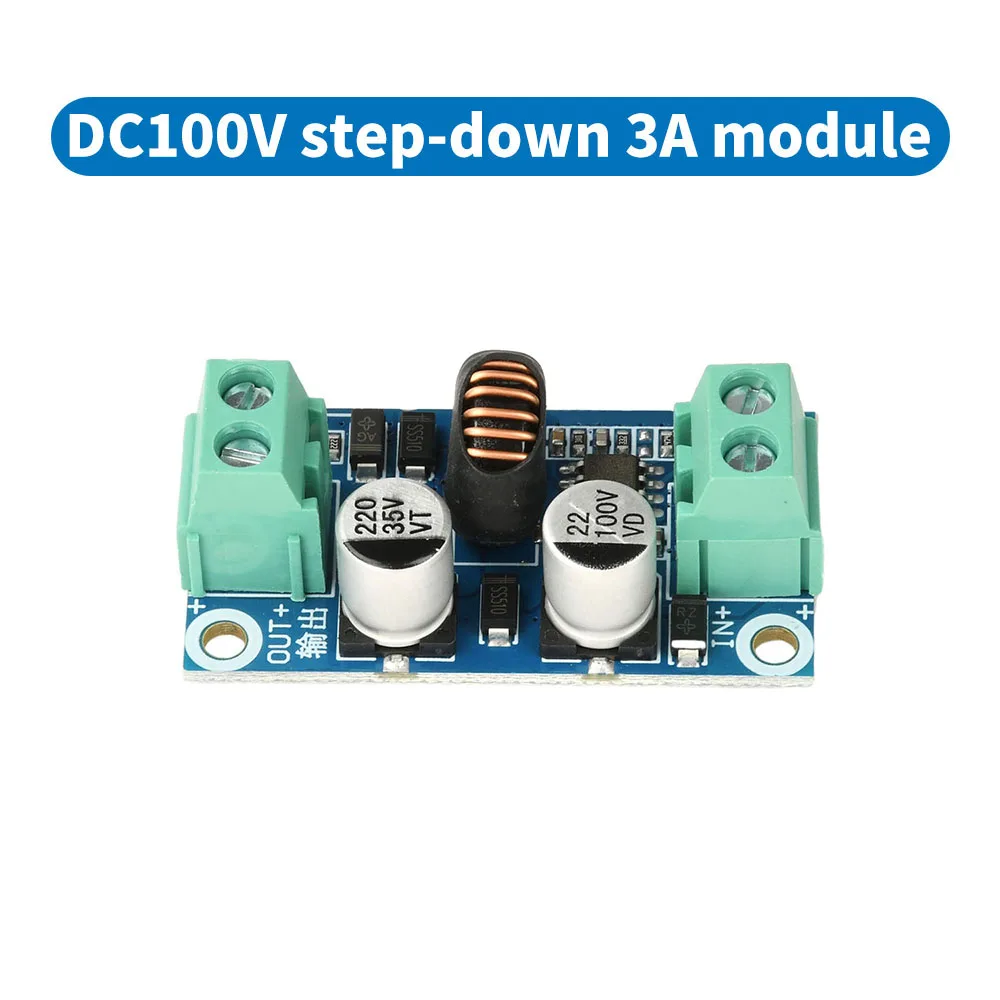

⚙️ DC-DC Buck Converter 10-100V to 5V/12V/24V 3A Output Power Regulator is an advanced step-down module designed to cater to a variety of power management needs. This converter is ideal for various applications that require stable voltage outputs and enhanced energy efficiency.

🔧 Key Features:

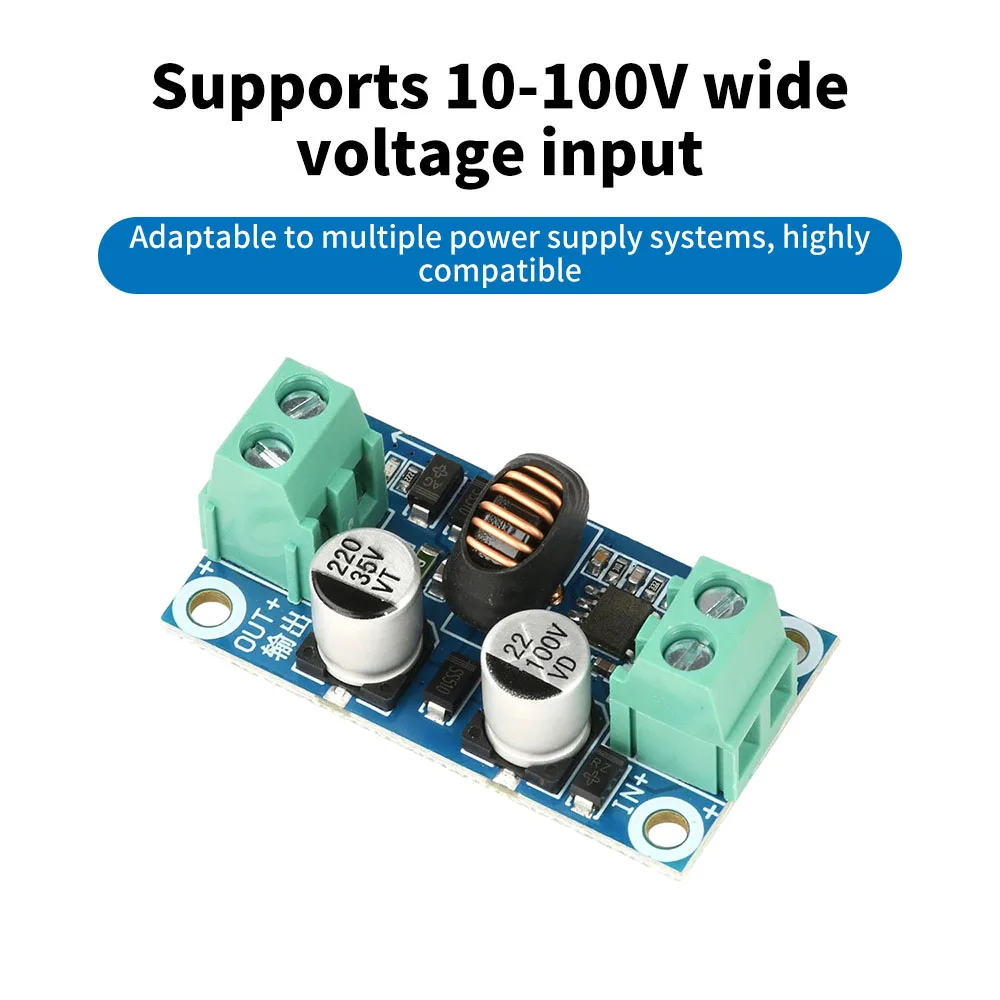

• Wide Input Voltage Range: Operates efficiently within a 10-100V input voltage range, making it adaptable to different power systems.

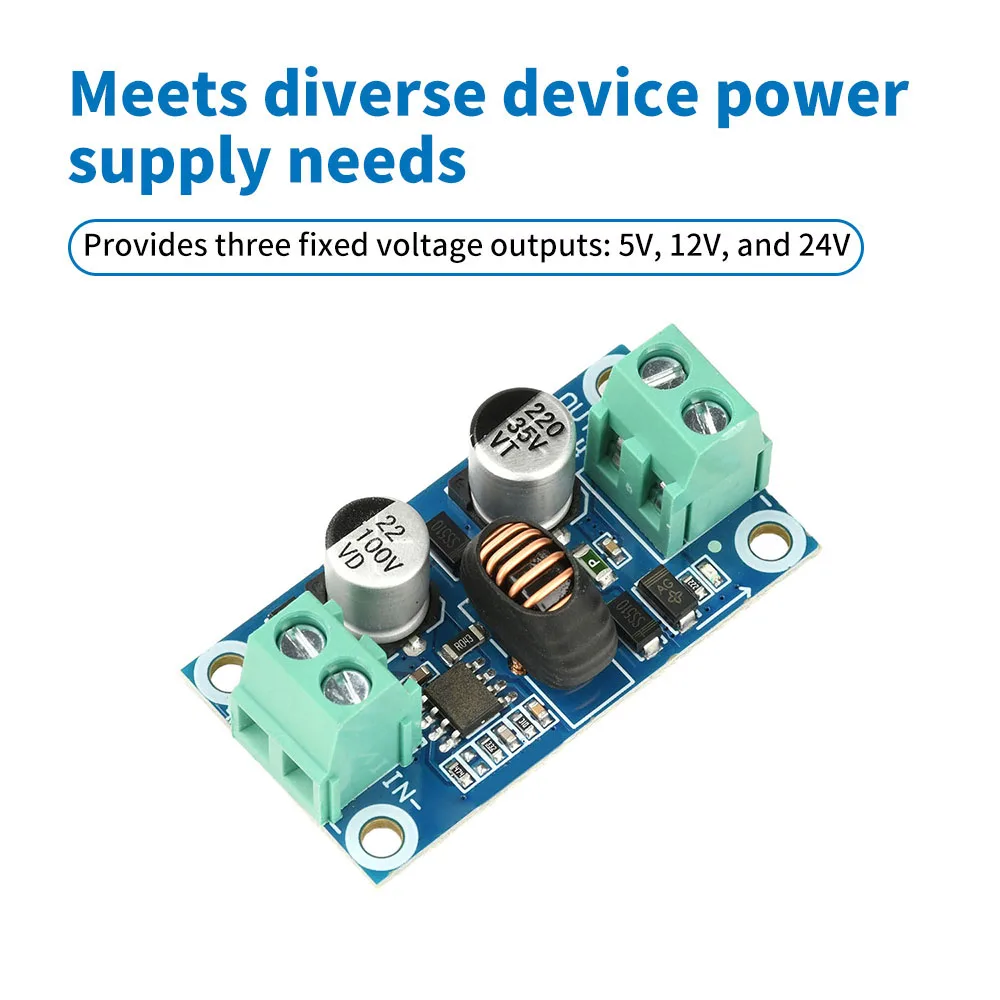

• Versatile Output Options: Comes with three selectable fixed voltage outputs: 5V, 12V, and 24V, allowing it to meet the diverse power requirements of your devices.
• High Output Current: Capable of delivering a maximum output current of 3A while achieving conversion efficiencies of up to 93%, ensuring low energy consumption and stable operation.

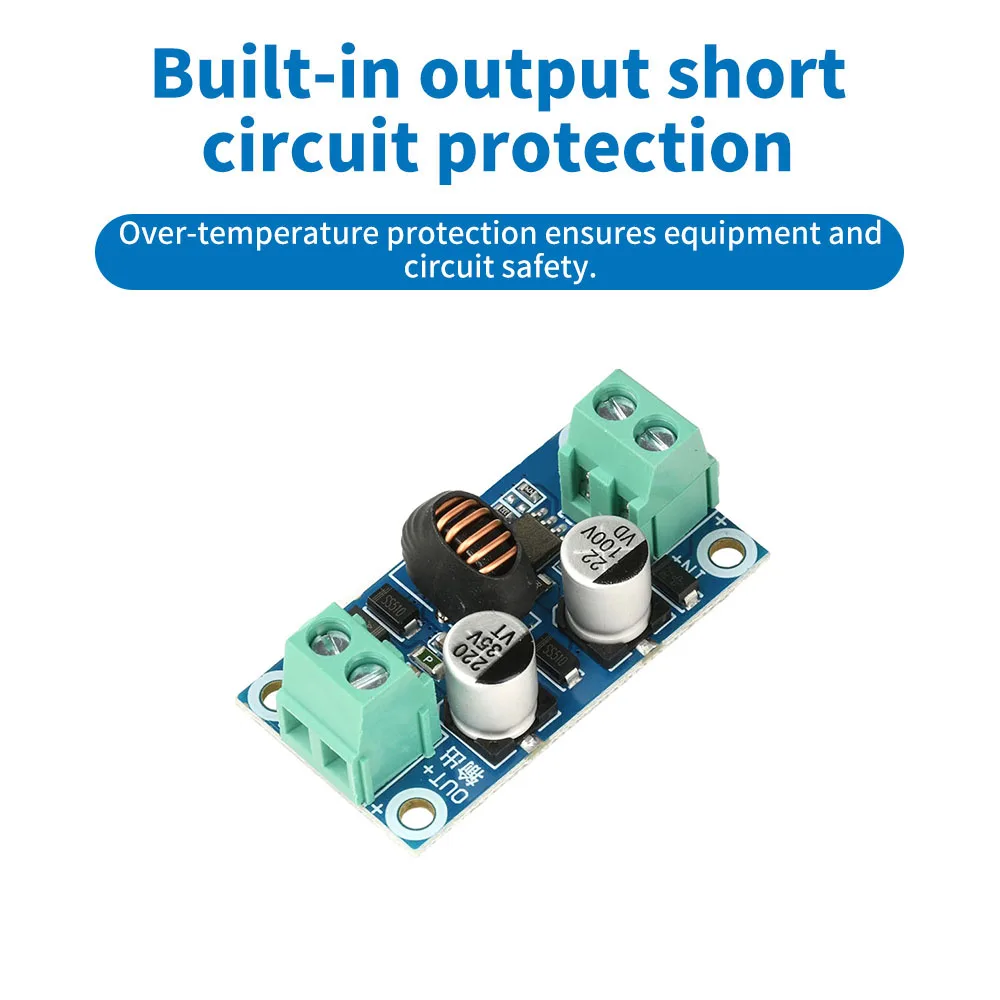

• Enhanced Safety Features: Equipped with built-in short-circuit and over-temperature protection, this module ensures the safety of connected devices and circuits.

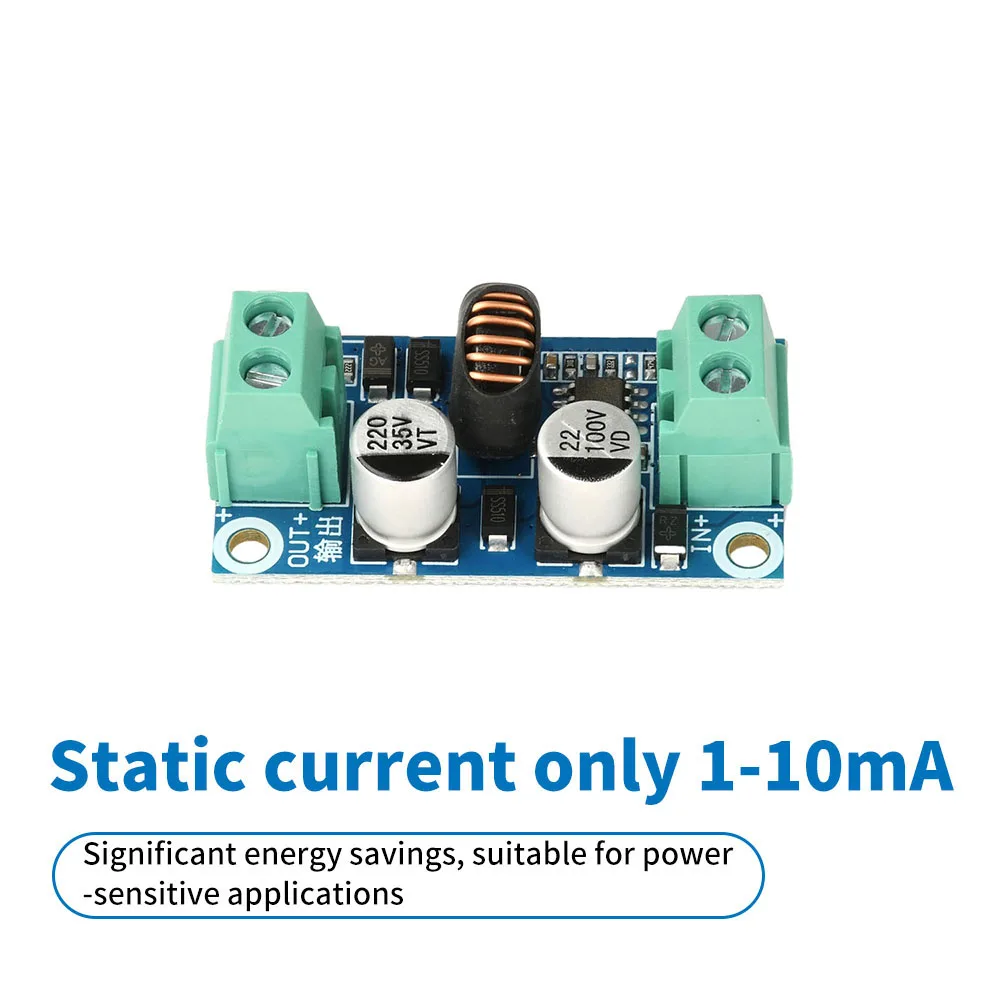

• Energy Efficient: With an ultra-low quiescent current of just 1-10mA, this converter is perfect for applications where power sensitivity is crucial.

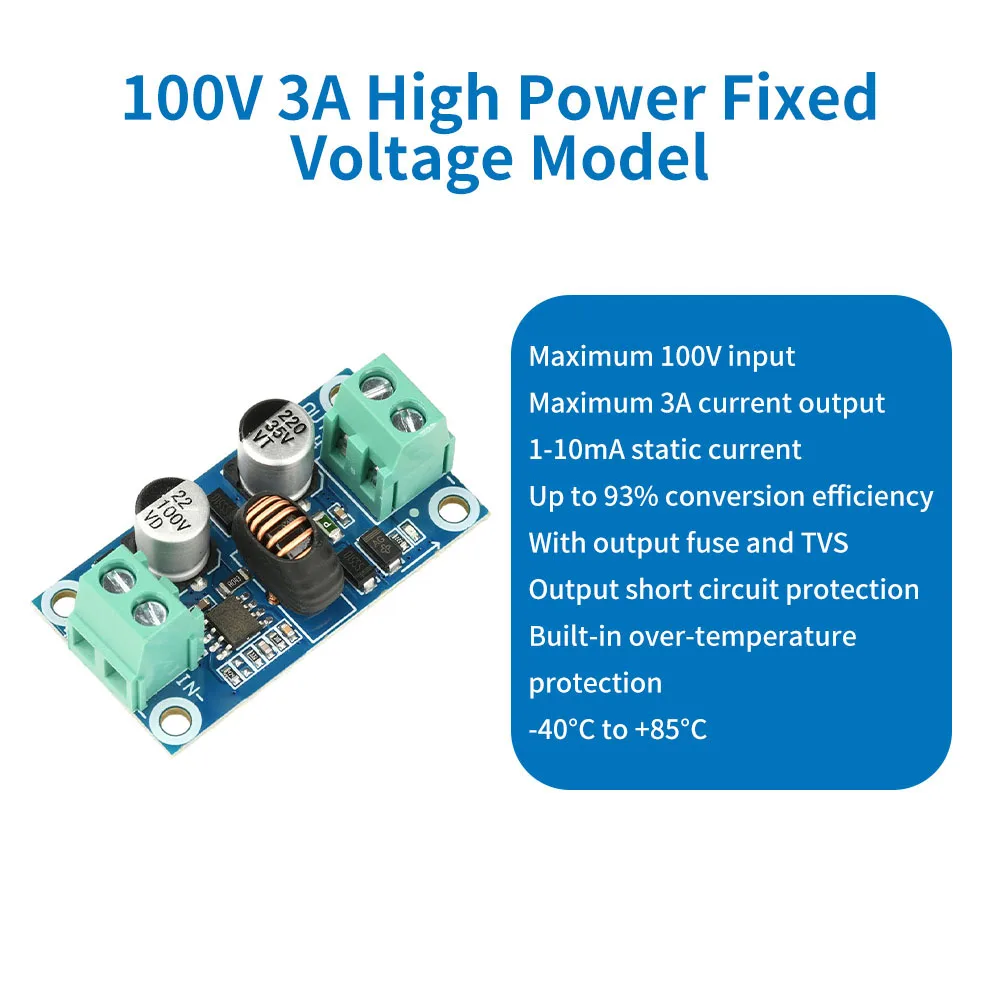

🧩 Product Specifications:

• Input Voltage: DC 10V-100V (must exceed output voltage by at least 3V)

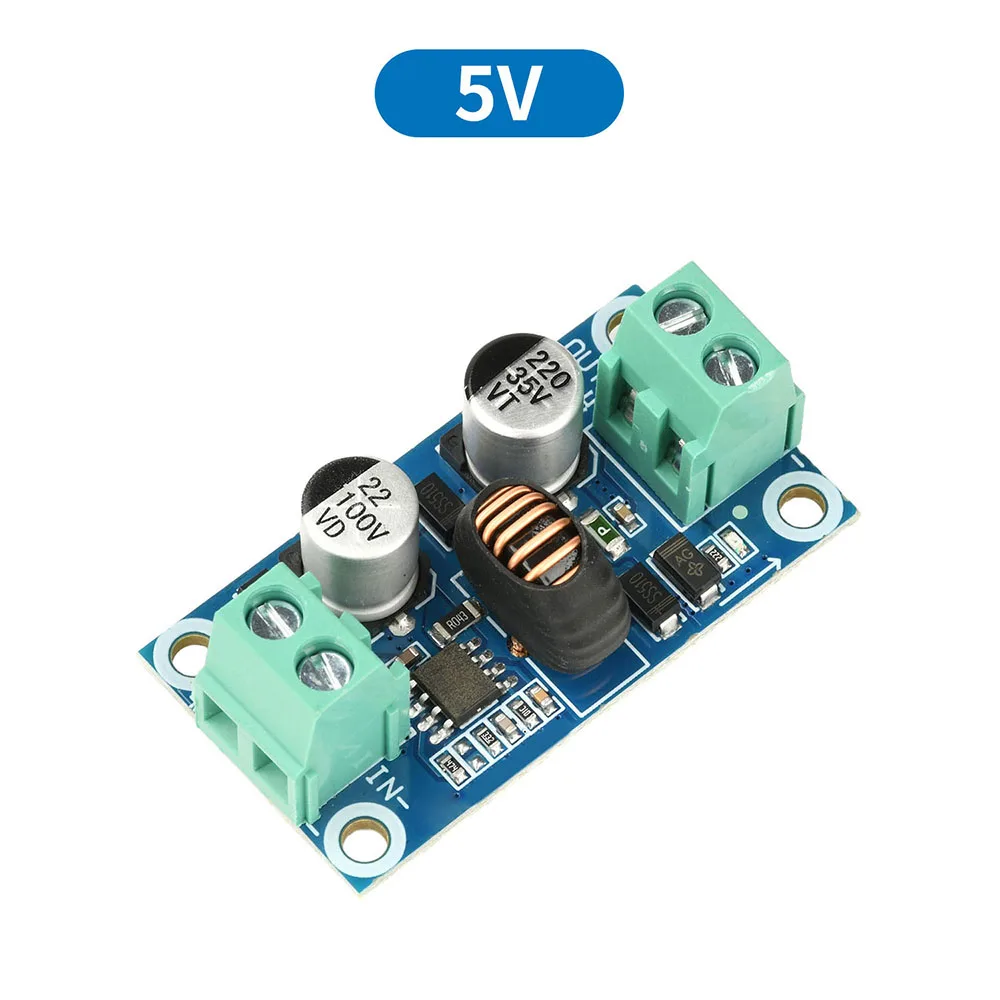

• Output Voltage: DC 5V/12V/24V (selectable)
• Maximum Operating Current: 3A
• Quiescent Current: 1-10mA
• Conversion Efficiency: Up to 93%
• Temperature Range: Operates effectively within -40°C to +85°C

🧩 Additional Features: This module incorporates TVS (Transient Voltage Suppressor) protection on both input and output, alongside an output fuse, to promote safer system power usage. High-frequency capacitors are utilized to minimize heat generation and voltage ripple, enhancing overall performance.

🌿 Usage Suggestions: While the peak current is 3A, it is recommended to operate the module at currents below 2.5A to prevent overheating and ensure optimal power management. It is advisable to maintain a sufficient margin to avoid exceeding operating limits due to voltage spikes or surges.

📦 Package Contents:

• DC-DC Buck Module x1

🏆 This versatile and robust DC-DC Buck Converter is an essential component for anyone looking to achieve efficient power conversion and reliable performance across a range of applications.
