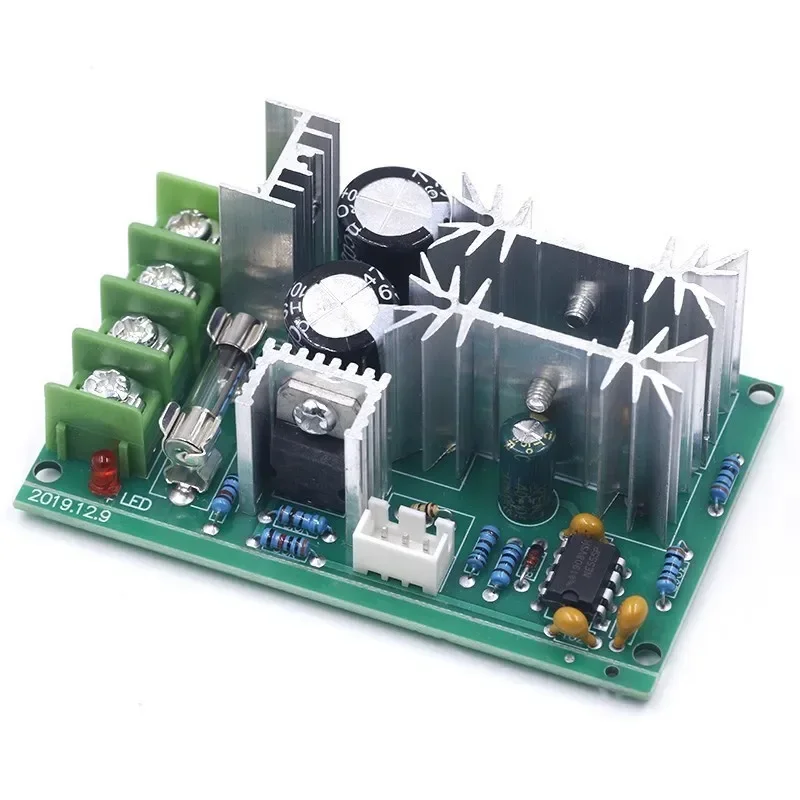

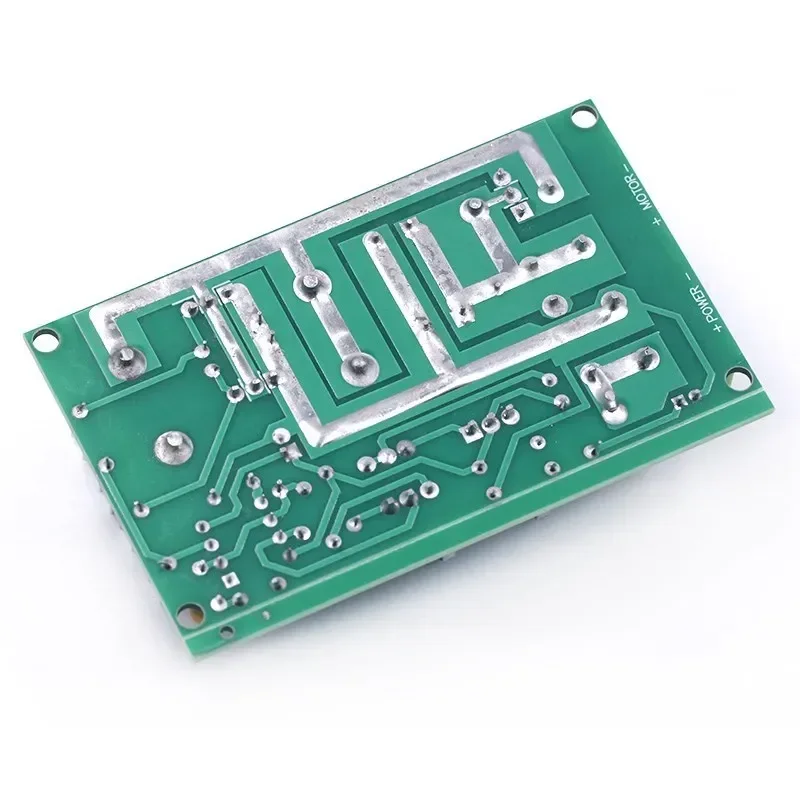

High - Power PWM Motor Speed Controller - 20A Current Regulator, DC10 - 60V (Current Regulator)

DC Motor Speed Regulator - Comprehensive Overview

🛠️ The DC10-60V DC Motor Speed Regulator is a sophisticated control module designed specifically for high-performance DC brush motors, offering an efficient solution for precise speed regulation. Supporting a wide input voltage range of DC 10V to 60V, this controller is ideal for various applications, from hobbyist projects to industrial uses.

Technical Specifications:

• Input Voltage: DC 10-60V
• Output Current Limit: 20A (recommended continuous use at 10A for long durations, accommodating up to 450W of power)
• Maximum Limiting Power: 1200W
• Speed Regulation Type: Current regulation

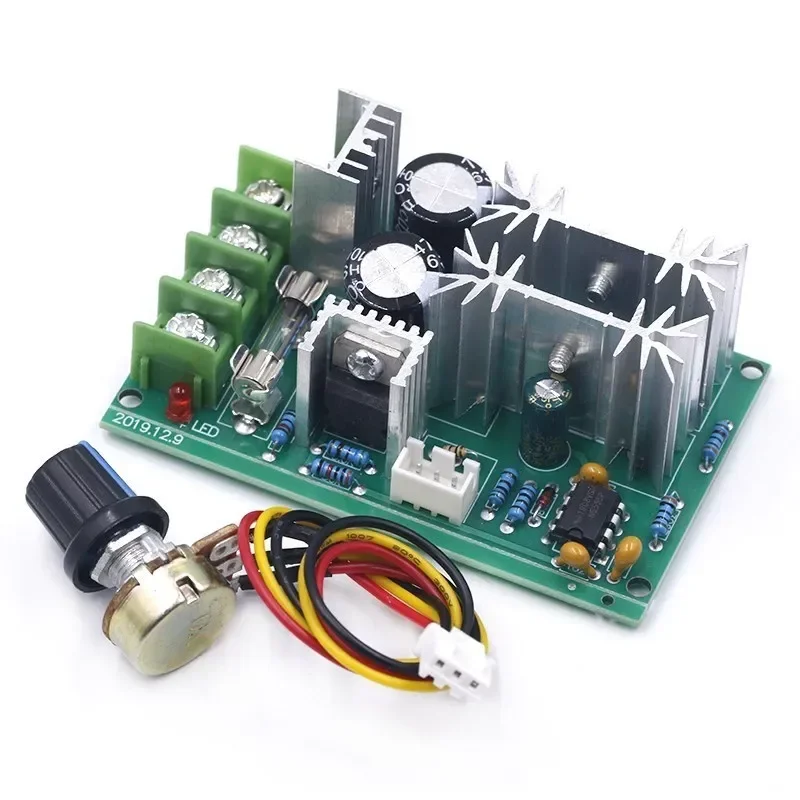

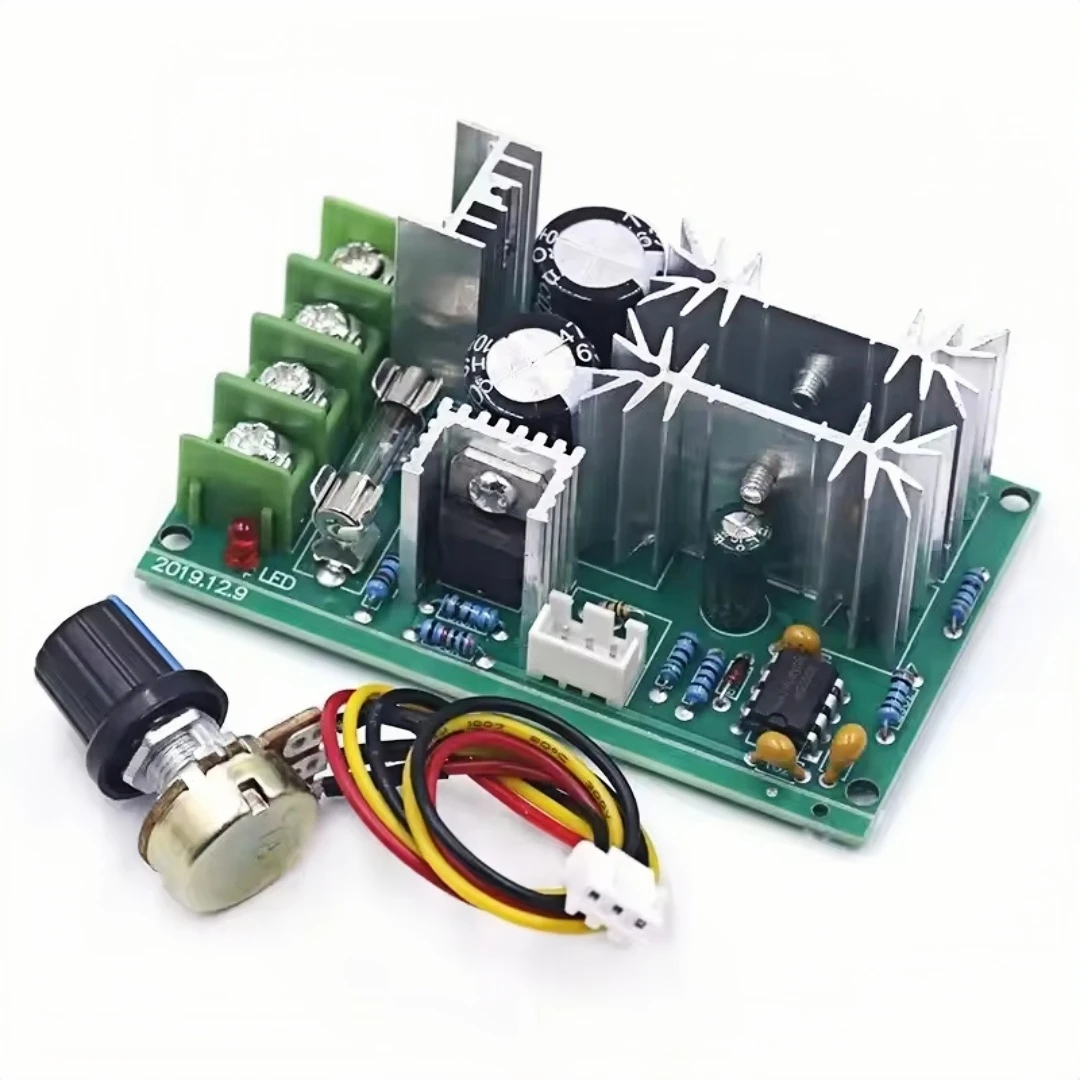

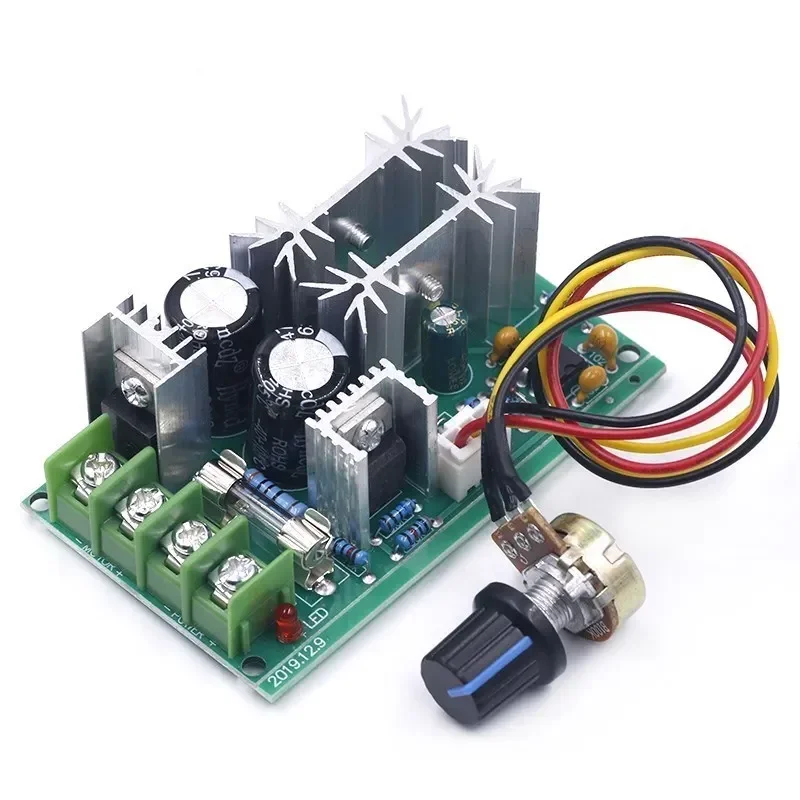

• Control Method: Potentiometer for linear speed adjustment
• Speed Control Duty Ratio Range: 0 to 100% (with a control frequency of 25kHz)
• Wiring Type: Fence-style wiring terminal for secure connections
• Wire Length: 20 cm for installation flexibility
• Module Dimensions: 77mm (L) x 45mm (W) x 28mm (H)
• Net Weight: 73 grams
• Installation Specifications: Mounting board dimensions of 73mm x 40mm with a potentiometer hole size of 7mm

🔒 This control module is particularly well-suited for scenarios where fine-tuning the speed of a DC brush motor is crucial. The user-friendly potentiometer allows for seamless manual adjustments, ensuring that operators can achieve the desired speed with precision.

⚡ Important Considerations:

• Ensure correct positive and negative connections prior to powering on.
• Exercise caution around the heat sink, as it can potentially cause damage to the circuit board.
• This unit is specifically designed for DC brush motors only; it is NOT compatible with brushless DC motors.
• This module should not be used as a general voltage regulator or controller.

💍 For successful operation, it is essential to connect the module to the motor, as the output does not change without load. Harness the potential of the DC10-60V motor speed regulator to achieve optimal performance in your DC motor applications.
