Product Description:
📦 The 2-6S PD 45W Lithium Battery Charger Discharger Module is a versatile and advanced charging solution designed for both Li-ion and LiFePO4 batteries. This compact module supports a variety of battery configurations, making it ideal for hobbyists and professionals alike who require reliable power sources for drones, power tools, and portable power banks.
🔧 Key Features:
- LED Indicator Lights: The module is equipped with LED indicator lights that provide real-time charging status and battery level information. A simple double-click allows users to initiate or terminate the discharge process, while a single click displays the current battery level.
- Flexible Battery Support: By short-circuiting the appropriate solder pads, users can seamlessly switch between charging and discharging modes for 2-6S lithium batteries. Additionally, a specific pad short-circuit enables compatibility with LiFePO4 batteries, ensuring flexibility for various applications.
- Advanced Fast Charging Protocols: Featuring integrated DRP Try.SRC protocol and PD3.1 output, this charger supports fast charging with Type C input and output, delivering up to 45W of power. It also incorporates Quick Charge 2.0, 3.0, and 3.0+ technologies for enhanced efficiency.
- Robust Protection Features: Safety is paramount with this module, which includes overvoltage and undervoltage input protection, output overcurrent and short-circuit protection, and safeguards against battery overcurrent and temperature fluctuations. This comprehensive protection system ensures safe operation across various charging scenarios.
- Multiple Application Uses: This charger is not only suitable for lithium battery and LiFePO4 charging and discharging, but it also meets the energy needs for a wide range of devices including drone batteries, power tool batteries, and portable power banks.
🧩 Technical Specifications:
- Voltage Compatibility: 2-6S lithium batteries (4.2V per cell) or lithium iron phosphate (3.6V per cell)
- Power Output: Options of 30W or 45W depending on the configuration
- Interface: Type C for both input and output, enabling integrated functionality

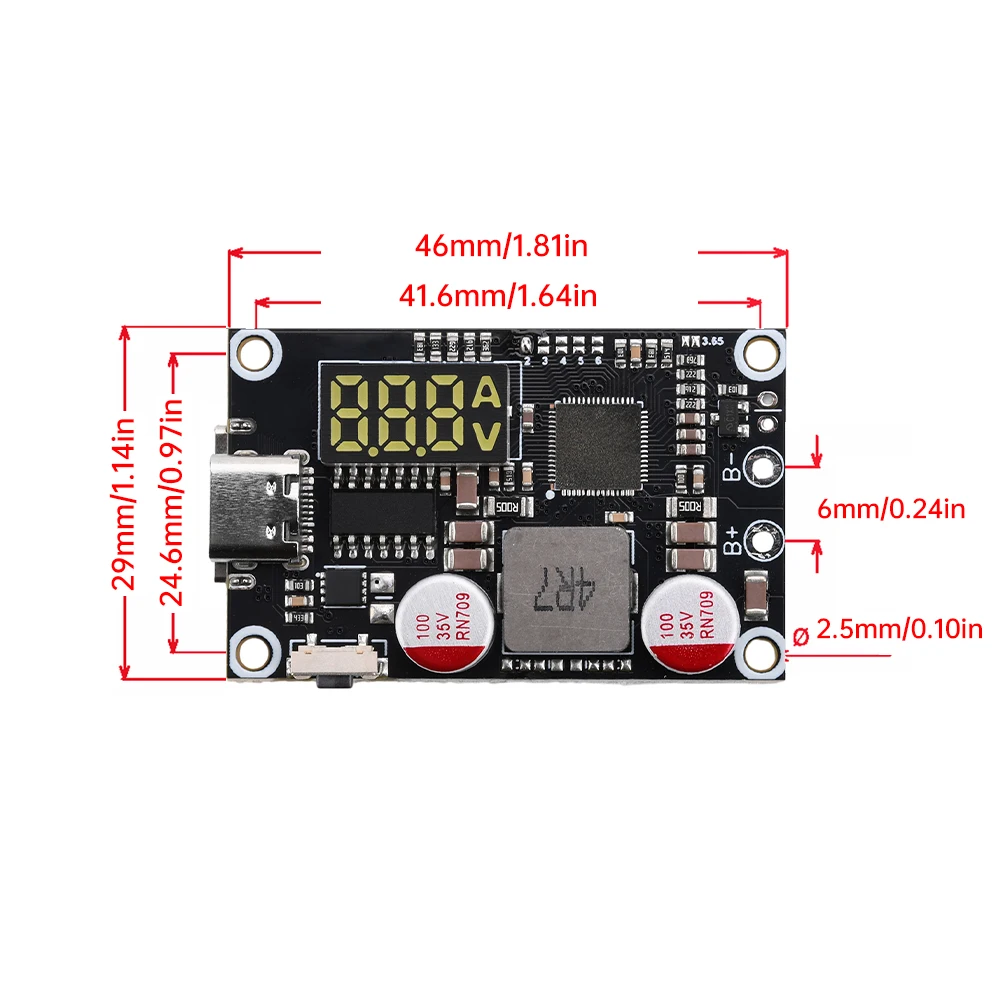

- PCB Size: Compact design measuring 49 x 23mm
- Customizable Battery Configuration: Default supports 6S lithium batteries; easily adjustable for other configurations without the need to remove components.
📦 Usage Instructions:

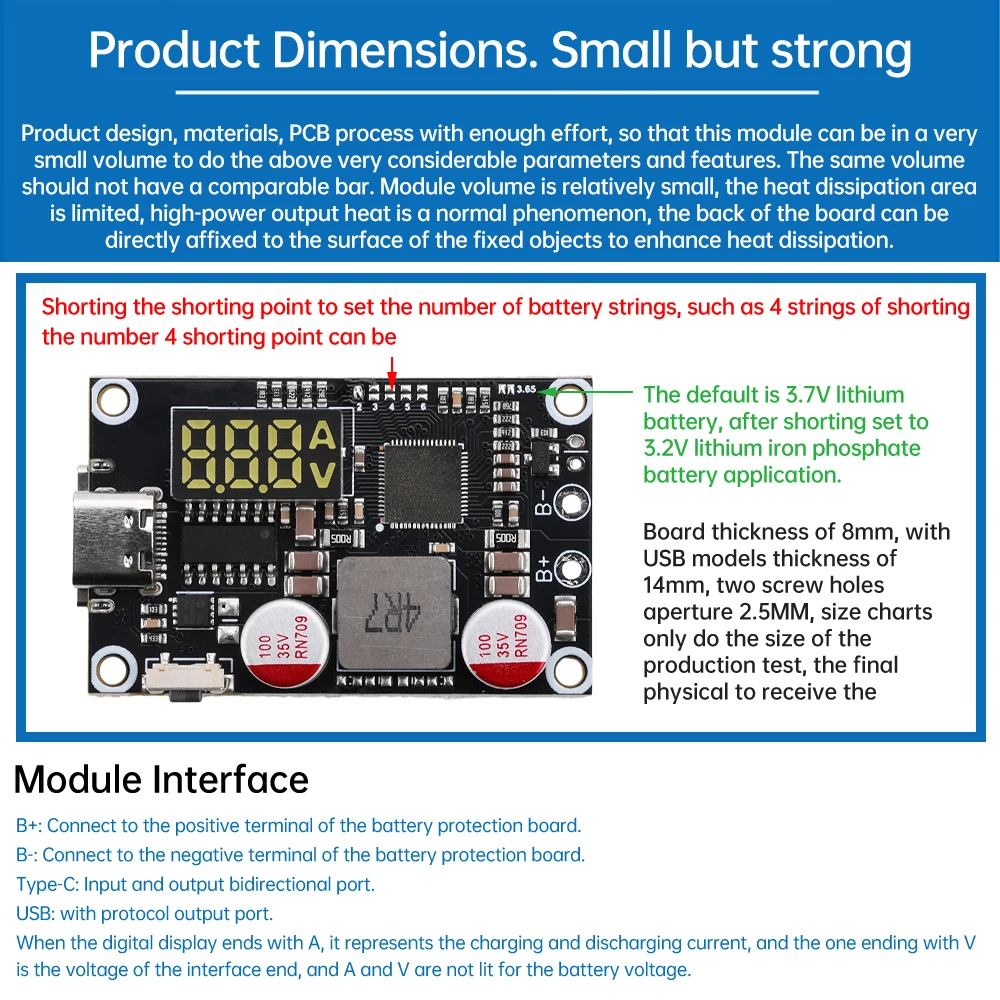

💍 To optimize the module for specific battery configurations, users need to short-circuit the corresponding solder pads based on the number of battery strings and type. The default setting allows for 6S lithium batteries at 4.2V each. For low-power requirements, the power output can be adjusted by changing the configurations appropriately. Finally, weld the battery's positive and negative terminals to the designated pads marked with "+" and "-".
Packing List:
