Energy Meter Din Rail Electricity Usage Monitor with Voltmeter, Ammeter, and Power Measurement Functions (AC 40 - 300V, 100A) - AC 40 - 300V (External CT)

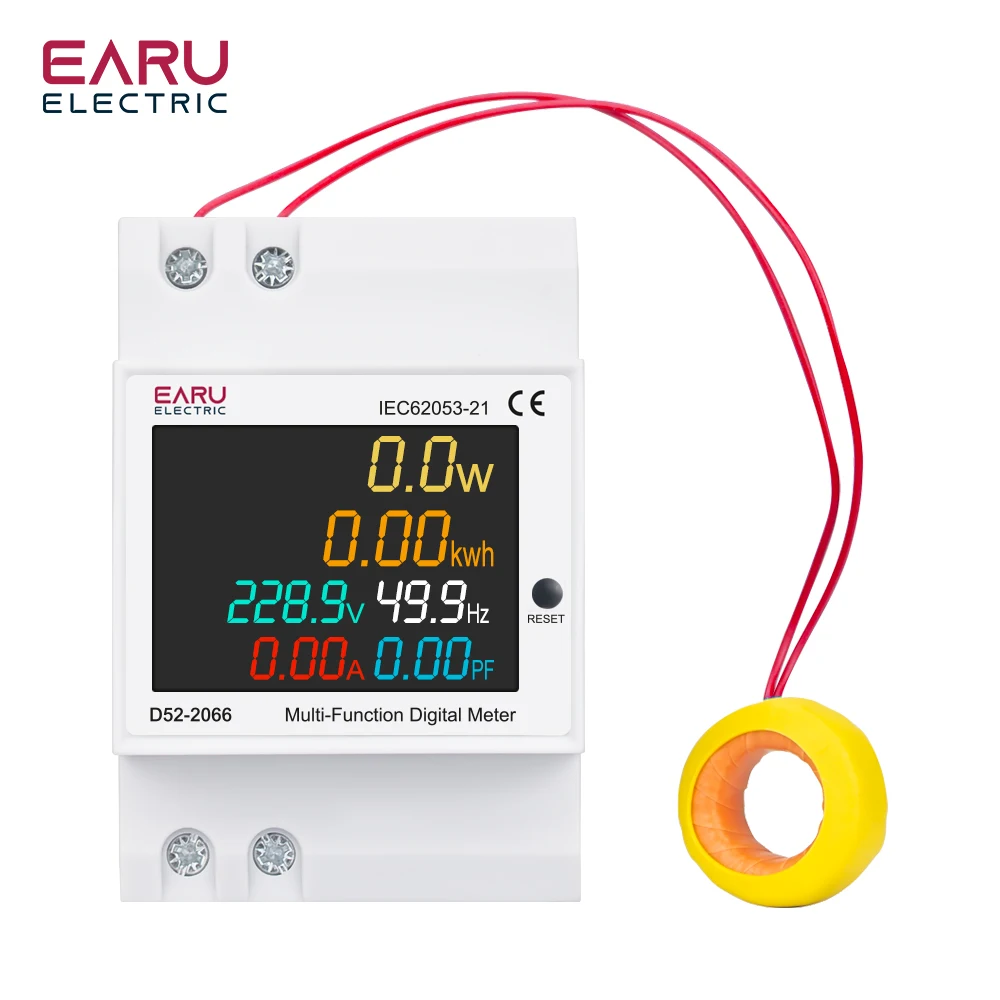

🧩 D52-2066 Energy Meter: The D52-2066 is a comprehensive DIN-rail-mounted digital multi-function energy meter designed to monitor and display a wide range of electrical parameters for efficient energy management.

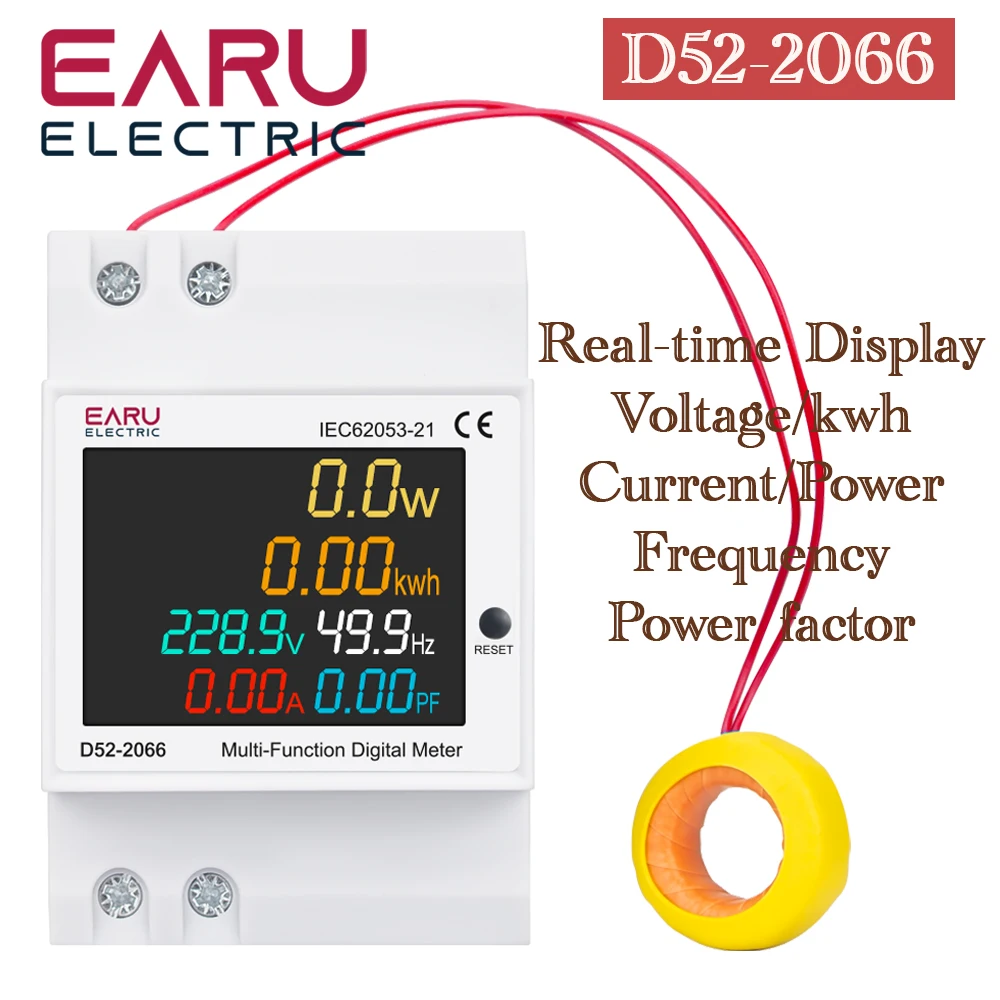

🔍 Multi-Parameter Display: This advanced energy meter can simultaneously showcase six crucial parameters including AC voltage, AC current, active power, power factor, frequency, and energy consumption. Users benefit from its high-definition color LCD screen, which provides crystal-clear readings for easy monitoring.

🪶 Measurement Specifications: With an impressive measurement accuracy of ±1%, the D52-2066 operates within a voltage range of 40-300V, making it suitable for both 110V and 220V applications, and reaches up to 200-450V for 380V and 450V systems. The AC current measurement ranges from 0-100A, and features a display resolution of 0.01A for precise tracking of current flow.

💍 Power and Energy Metrics: The meter is capable of measuring active power from 0 to 45000W, providing detailed resolution: 0.1W for readings below 9999.9W and 1W for higher readings. Energy consumption data can be tracked over a range of 0-99999kWh, with the ability to show minimum display resolution of 0.01kWh for values below 999.99kWh.

💍 Fast Measurement Speed: The D52-2066 updates its measurements approximately twice per second, ensuring real-time monitoring of electrical parameters, aiding in prompt decision-making to optimize energy usage.

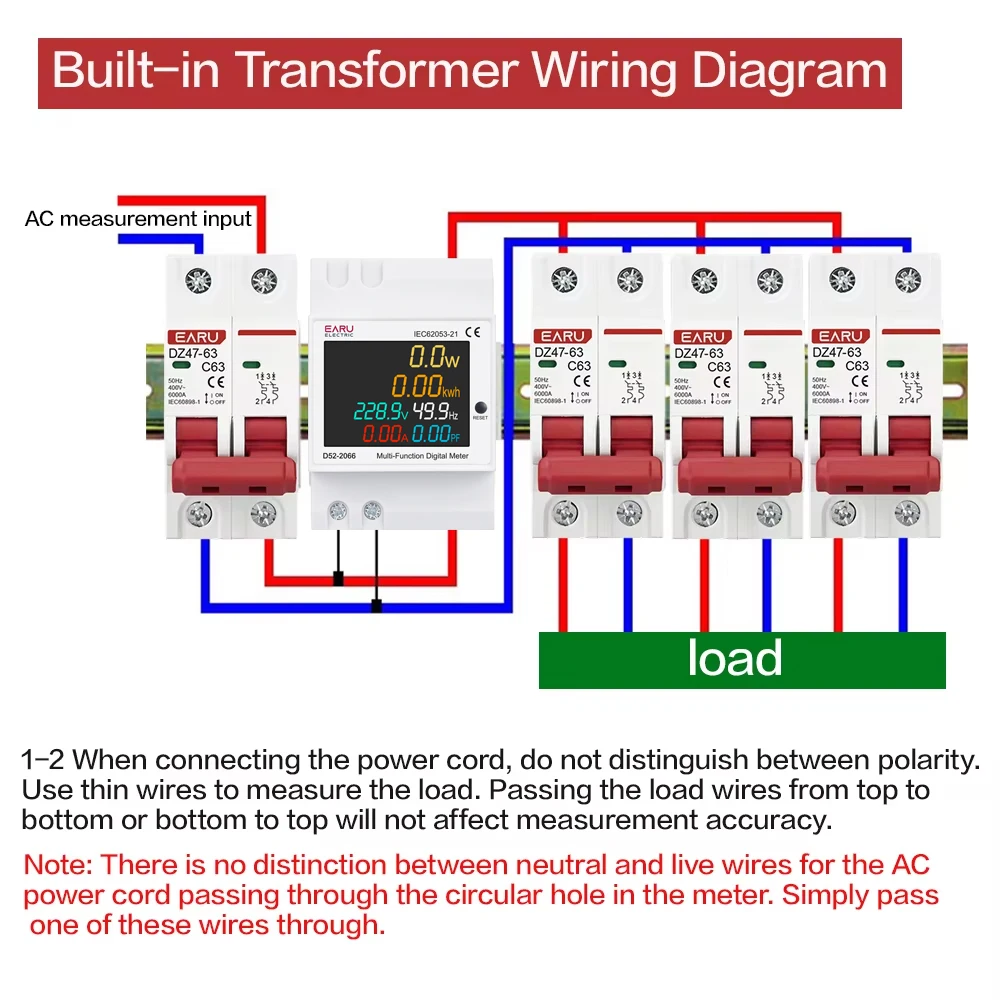

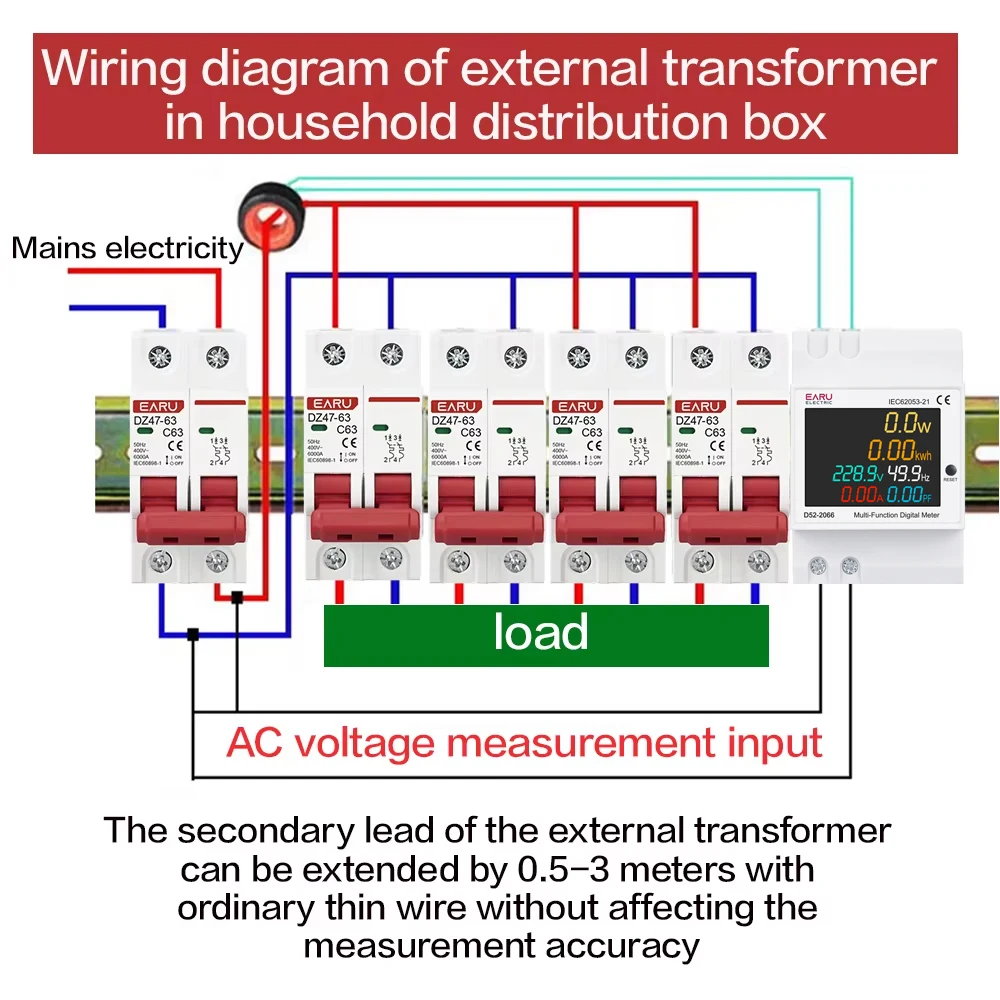

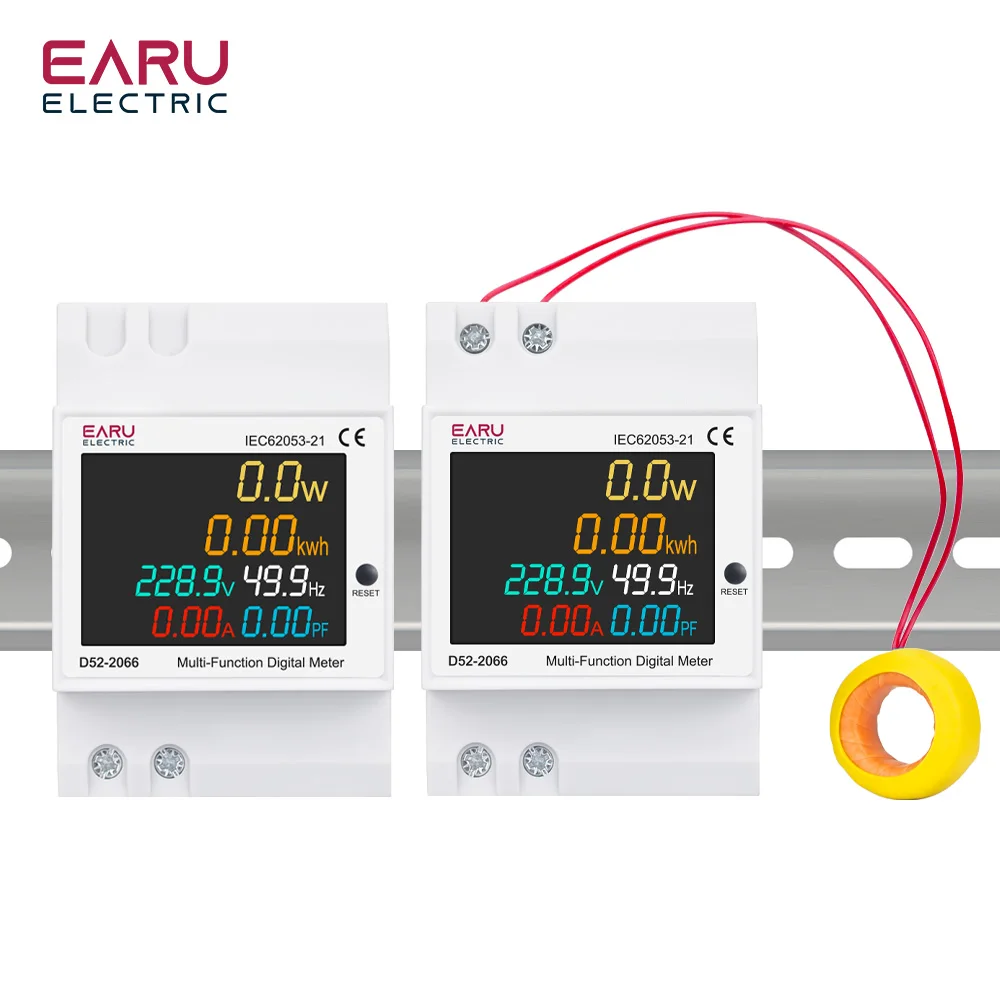

🔒 Installation and Compatibility: Designed for easy installation, the device can be mounted securely on a DIN rail. It is specifically crafted for pure AC mains power operating within a frequency range of 45-65Hz. It's important to note that the 40-300V AC range should be used when measuring three-phase systems simultaneously, requiring a neutral conductor for accurate readings.

⚡ Important Usage Note: Users are advised to adhere to the specified measurement ranges to avoid inaccuracies. For instance, utilizing the 200-450V range for 220V measurements will yield unreliable results.

⚙️ Invest in the D52-2066 Energy Meter for detailed insights into your energy consumption, allowing for improved efficiency and informed electrical management.
