🛠️ Introducing the Sinewave Controller for Electric Bikes, a high-performance solution designed to enhance your e-bike experience with precision and versatility. This controller is compatible with both 36V and 48V systems and features various configurations to meet the power needs of your electric bike, ranging from 250W to 1000W. With three output options—17A, 26A, and 30A—you can choose the ideal specification to suit your riding style and terrain.
🔧 Key Features:
- LCD V889 Display: The LCD V889 display is simple to install, offering a clear visual presentation of critical data such as speed and battery status. This user-friendly interface makes it straightforward to monitor performance while riding.
- Brushless Hub Motor Compatibility: Suitable for hub motors ranging from 350W to 1000W, this controller is tailored for both existing electric bike setups and DIY electric bike kits.
- Headlight Functionality: Designed with a built-in headlight feature, the controller ensures you have improved visibility and safety during nighttime rides, making your journeys safer and more enjoyable.
🔍 Controller Specifications:
- Type: 17A Sine Wave Controller
- Dimensions: Approximately 95 x 53 x 30 mm
- Rated Power: 250W/350W
- Speed Set: 1.1-4.2V
- Mosfet Configuration: 6 Mosfets for enhanced efficiency
- Braking System: Low-level brakes for improved control
- Compatible with motors with or without Hall sensors
- Type: 26A Sine Wave Controller
- Dimensions: Approximately 124 x 62 x 38 mm
- Rated Power: 500W/750W
- Speed Set: 1.1-4.2V
- Mosfet Configuration: 9 Mosfets for superior performance
- Braking System: Low-level brakes for optimal safety
- Compatible with motors with or without Hall sensors

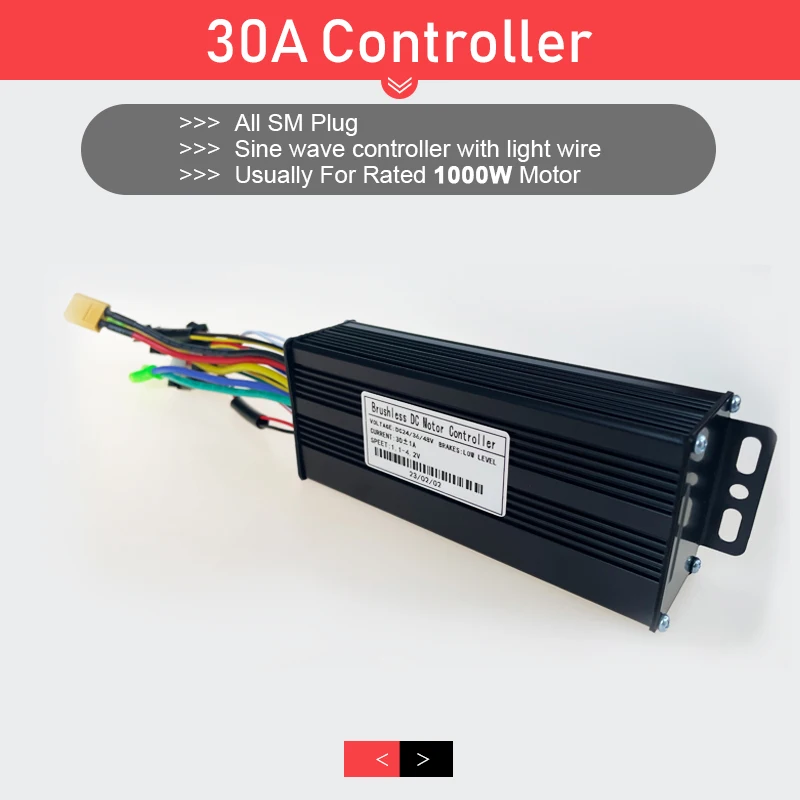

- Type: 30A Sine Wave Controller
- Dimensions: Approximately 146 x 62 x 38 mm
- Rated Power: 1000W
- Speed Set: 1.1-4.2V
- Mosfet Configuration: 12 Mosfets for maximum efficiency
- Braking System: Low-level brakes for effective stopping power
- Compatible with motors with or without Hall sensors
🏔️ Advanced Features: All controller types include a motor forward and reverse learning function, enhancing the adaptability of your electric bike configuration and ensuring seamless performance. Whether you're navigating urban streets or tackling rugged terrain, this Sinewave Controller delivers the power, control, and reliability you need.
