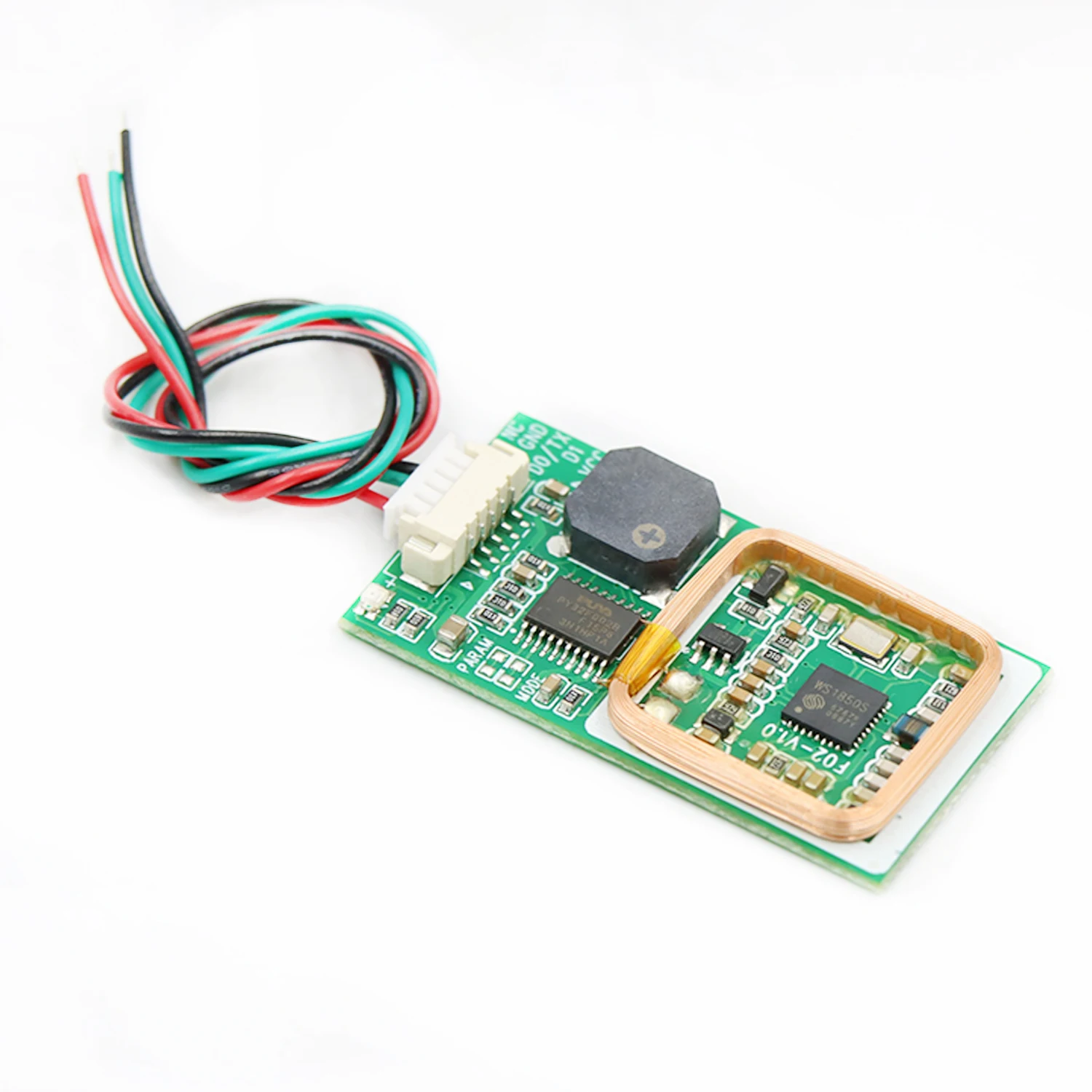

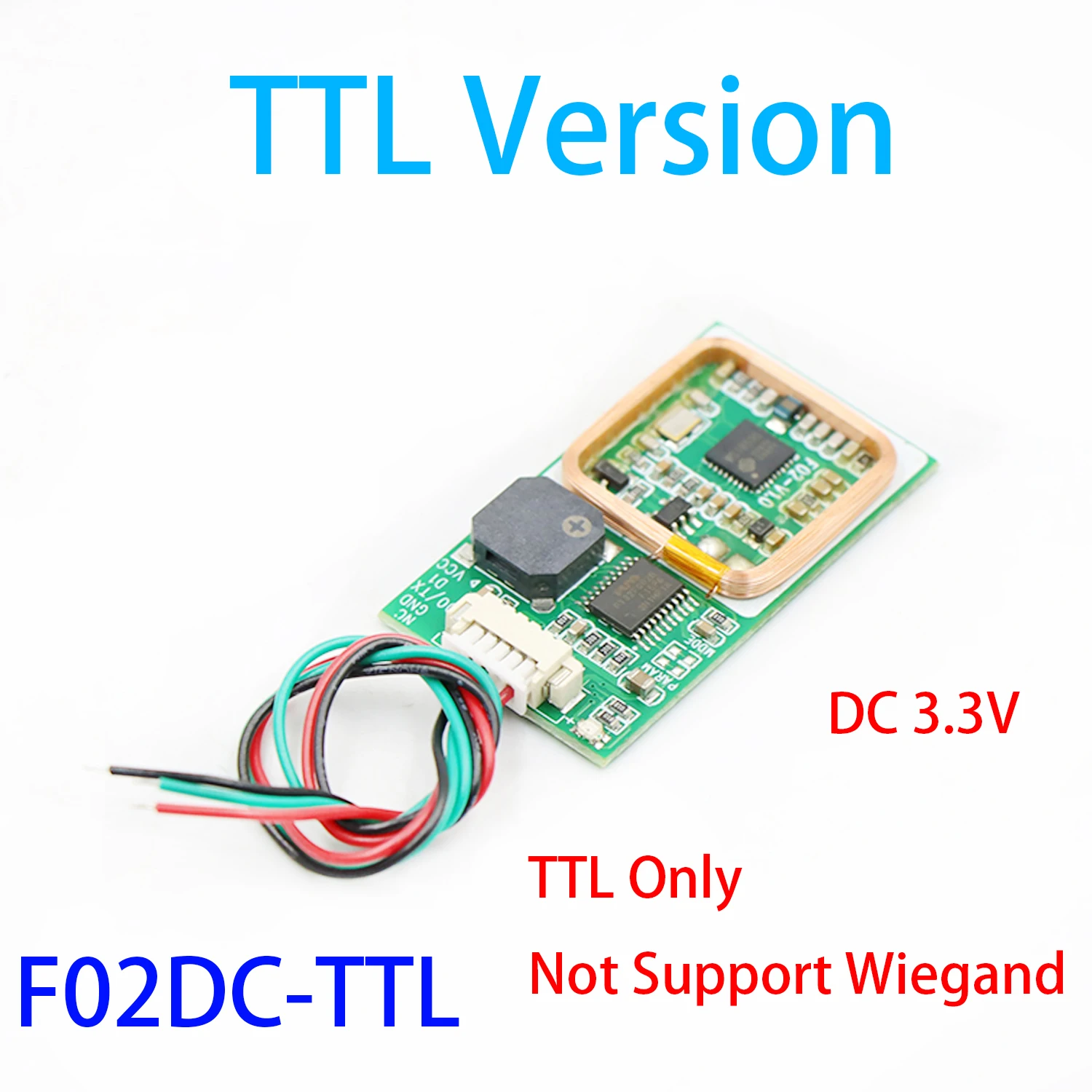

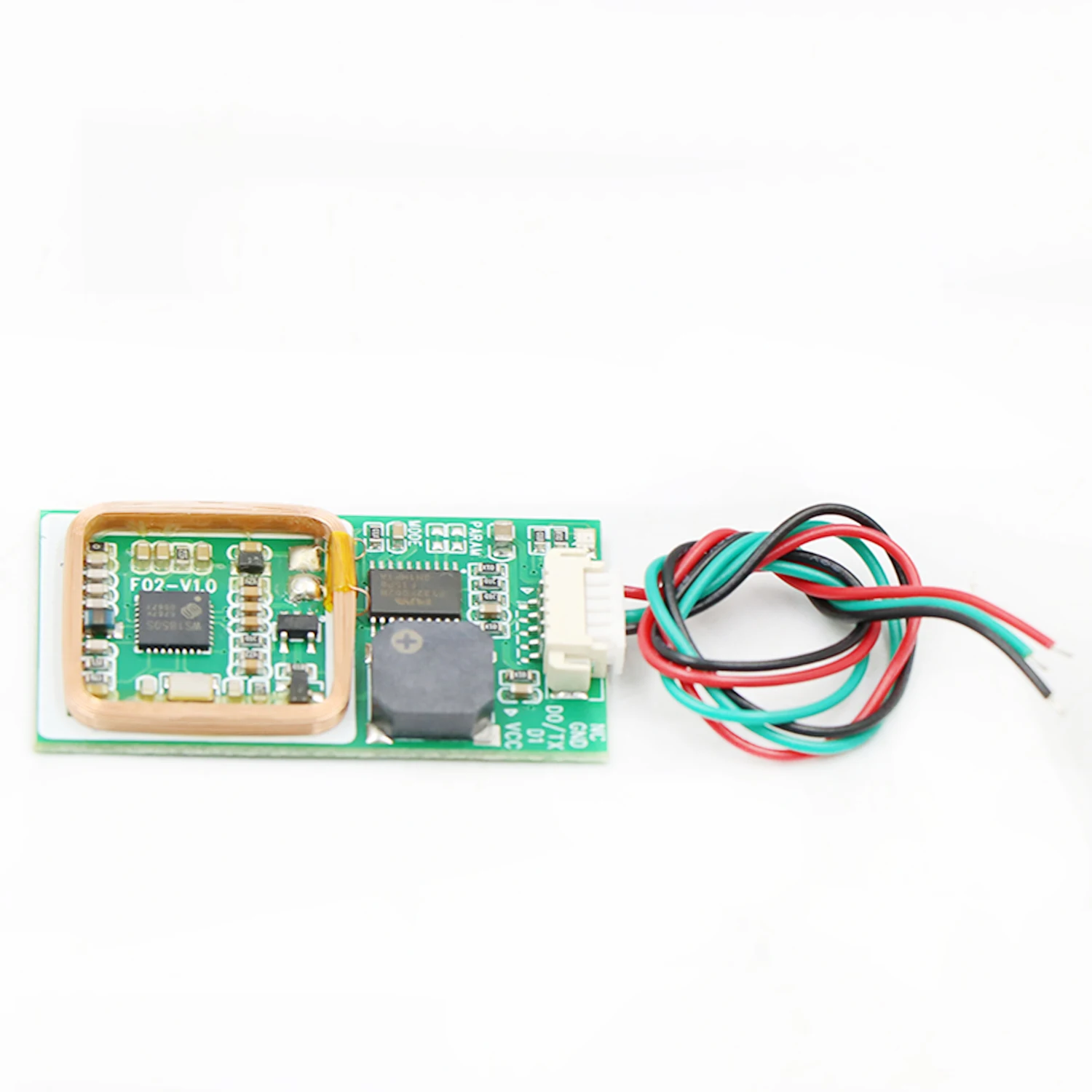

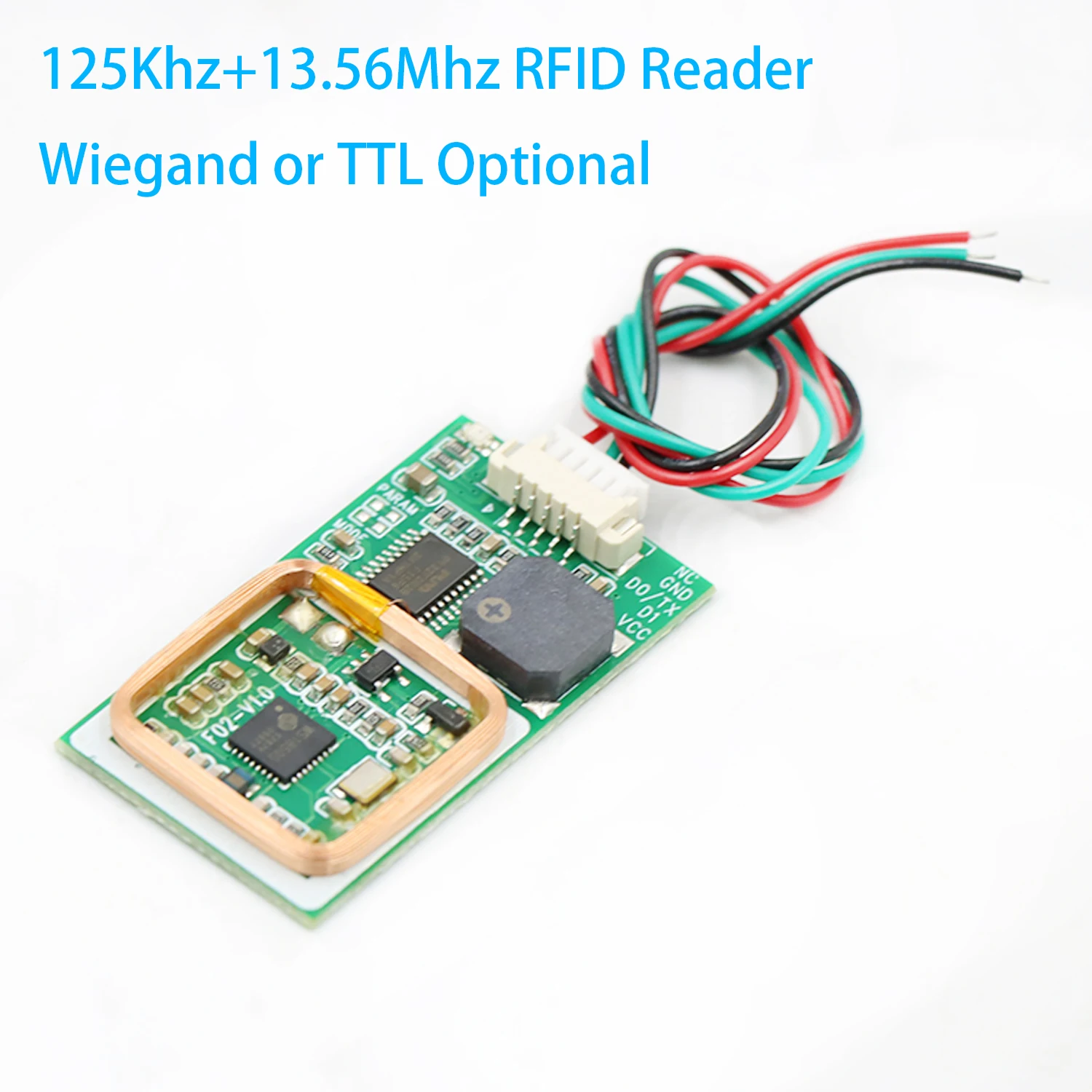

💍 F02DC RFID Reader Module is a versatile and advanced dual-frequency IC ID Card Reader designed to operate at both 13.56 MHz and 125 KHz. This module is available in two variants: the F02DC-WG operating at a DC5V power supply and the F02DC-WG for a DC3.3V power supply, catering to a variety of applications.
⚡ Functionality: The F02DC module supports multiple protocols to provide exceptional flexibility in card reading. It is compliant with the ISO14443A protocol, accommodating card serial numbers of varying lengths, including 4-byte, 7-byte, and 10-byte formats. This module is compatible with a wide range of Mifare cards, including:
🏛️ Moreover, the F02DC reader also adheres to the ISO14443B protocol, supporting TYPE B PUPI serial numbers along with second-generation certificate serial numbers.
For low-frequency card reading, the module is equipped to handle various formats, allowing for:

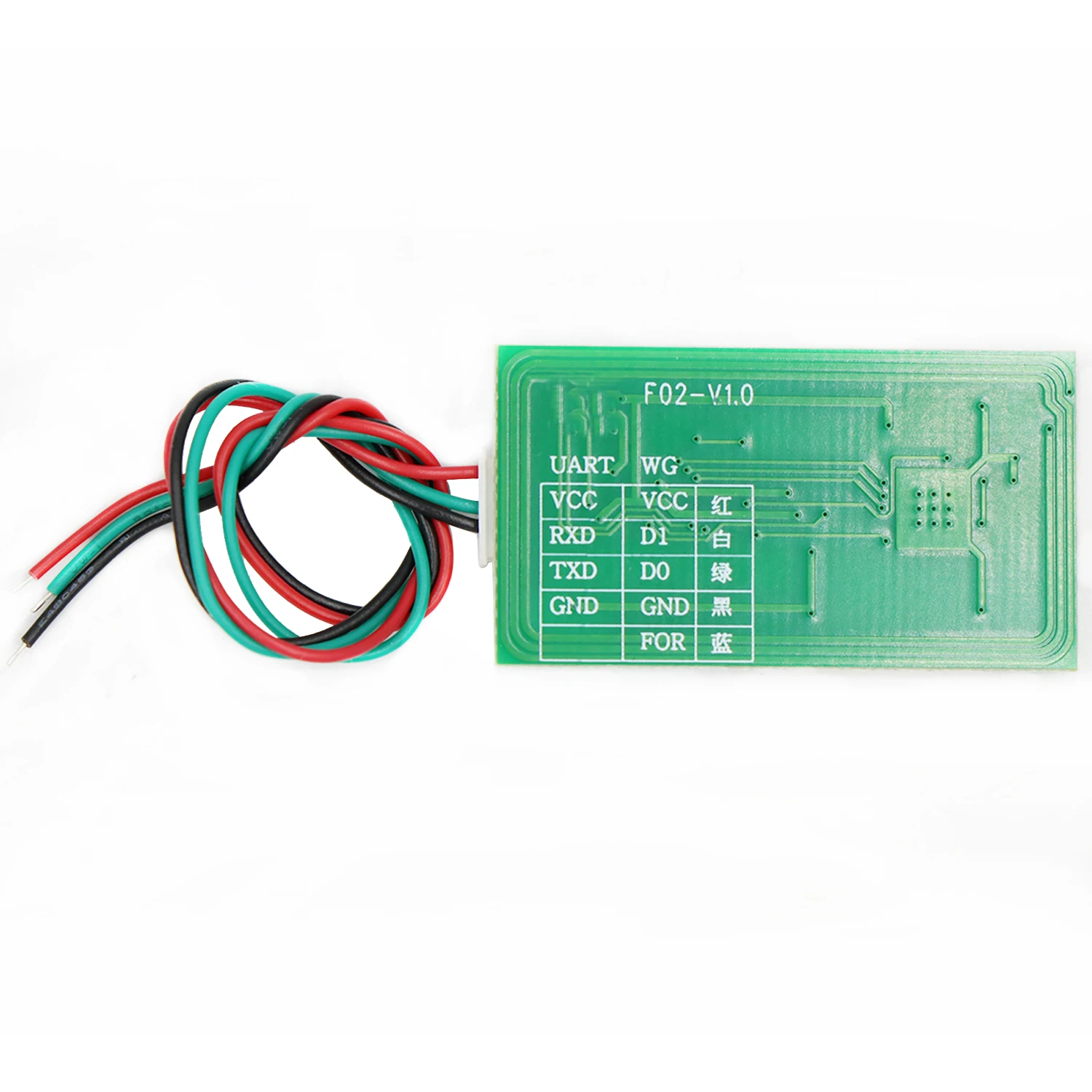

🪶 Physical Characteristics: This RFID reader is designed with practical specifications that ensure easy integration. The data interface is available via both serial port and Wiegand output, providing flexibility based on project requirements. It operates within a power supply range of 3.3V to 5V and draws a current of 30-150mA during operation. The effective reading distances are approximately 5 cm for IC cards and 4 cm for ID cards, making it suitable for close-proximity applications.
🧰 Environmental Specifications: The F02DC module is built to perform consistently across various conditions, with an operational temperature range from -30°C to 70°C. This durability ensures reliability in diverse settings.
