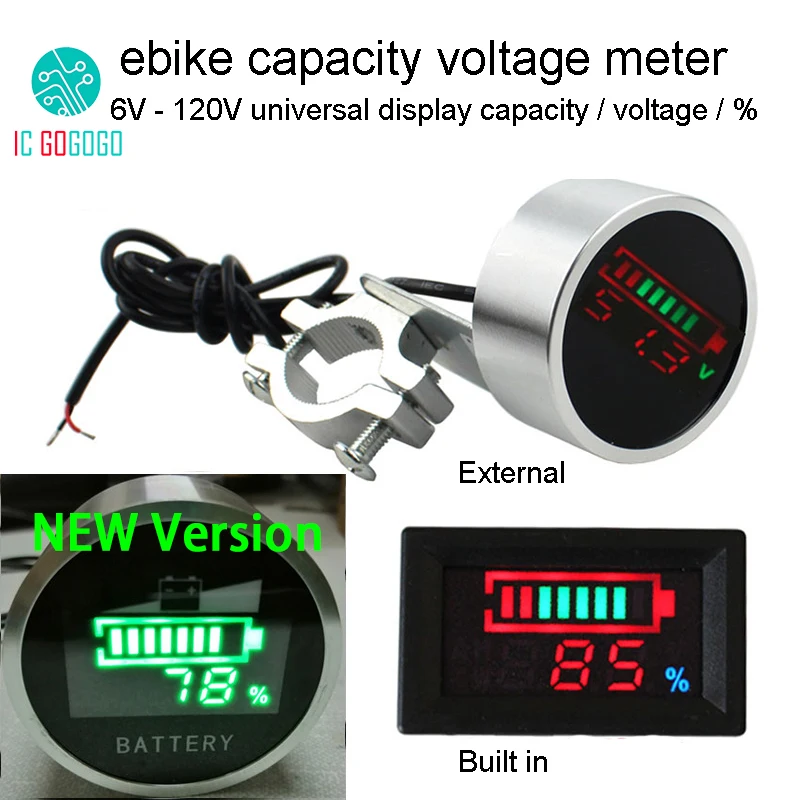

Universal eBike Battery Capacity and Voltage Display Gauge - 12V round external

🛠️ Product Overview: The eBike Battery Capacity Indicator Voltage Meter is a versatile and precise tool designed to monitor and display the voltage and remaining battery capacity of various electric vehicles, including eBikes. This user-friendly meter is compatible with a wide range of battery types, spanning voltages from 6V to 120V, integrating seamlessly with Li-ion, LiPo, LiFePO4, and lead-acid batteries.

Specifications:

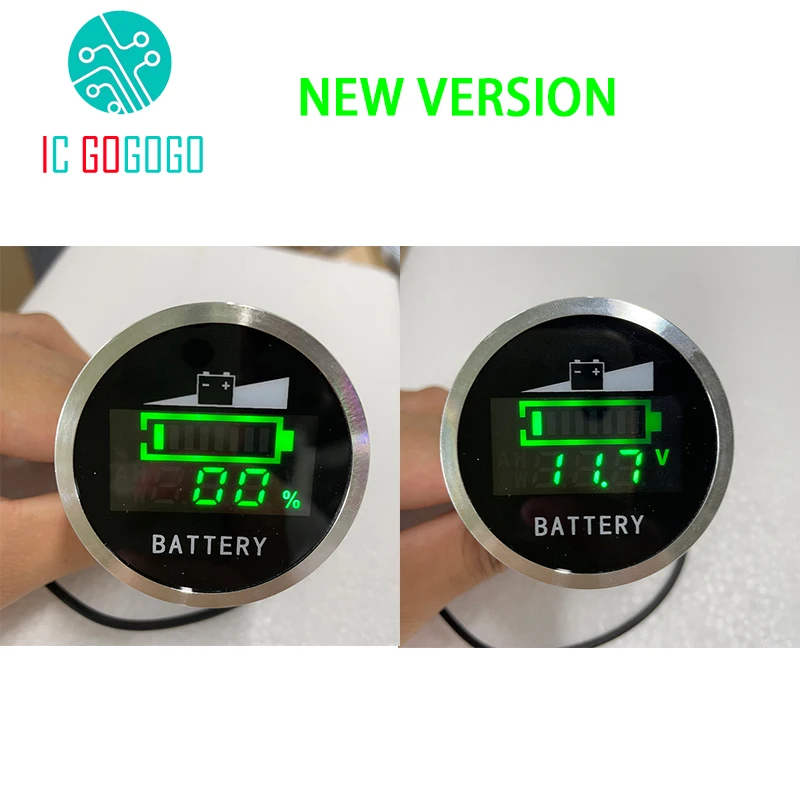

• Display Type: Universal capacity, voltage, and percentage display.
• Dimensions: Square built-in display measures 5.4cm x 3.2cm x 2cm; round external display has a diameter of 5.4mm.
• Power Consumption: Low current draw of 5-15mA, ensuring efficiency.
• Voltage Range: Accepts input voltages from 6V to 120V, making it suitable for a wide variety of battery configurations.
• Power Resolution: Accurate measurement with a resolution of up to 1%.
• Operating Temperature: Designed for functionality in extreme conditions, operating between -20°C to 70°C.
• Installation Dimensions: Requires an opening of 45.5mm x 26.5mm for seamless integration.

🧩 Default Settings: The default configuration is set for a 48V lead-acid battery with power and voltage cycling displayed. Users may customize the parameters according to their specific battery type and requirements. For those needing adjustments, guidance is available on modifying parameters.

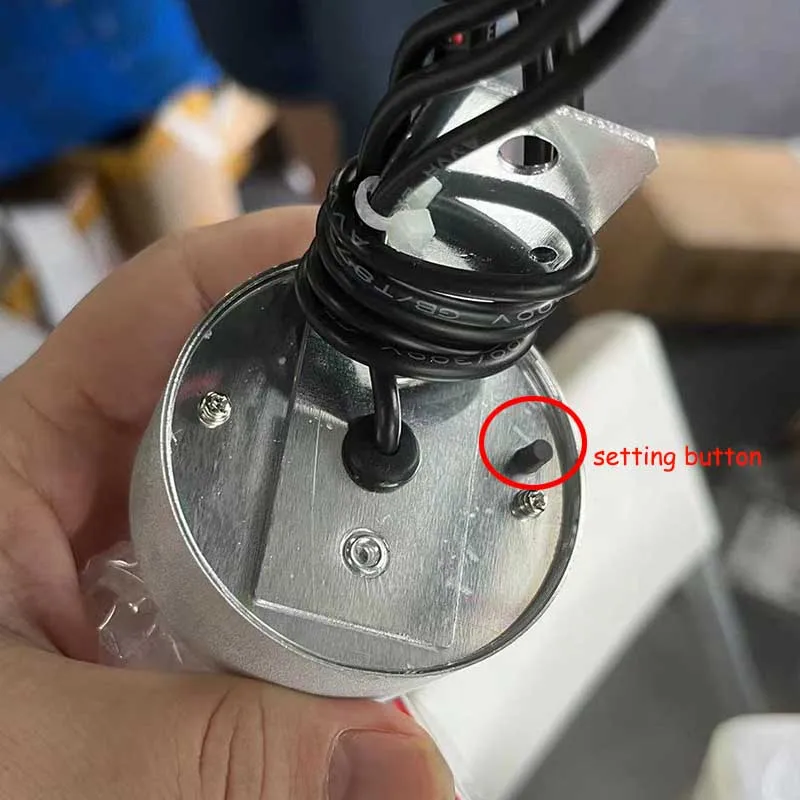

🔘 Intuitive Adjustment Method: The battery capacity indicator features a high white button on the back, allowing easy access to settings:

• Press and hold for 3 seconds to initiate parameter settings (display 1-U).
• Short presses thereafter let users toggle through display settings for voltage (2-B), battery type (3-C), cell quantity (4-B), and display mode.

🌟 Adjustment Details: When in the voltage adjustment mode (display 1-U), pressing the button allows for precise tweaks: a long press adjusts the voltage upwards, while subsequent long presses decrease the voltage, with all changes automatically saved once the screen flickers. Similarly, when adjusting battery types (display 2-B), long pressing allows users to select from various battery voltages, ensuring optimal compatibility and performance for their unique system.

💍 This comprehensive and reliable eBike Battery Capacity Indicator Voltage Meter is an essential tool for those wanting to effectively monitor their electric vehicle's battery health, providing peace of mind and ensuring readiness for every journey.
