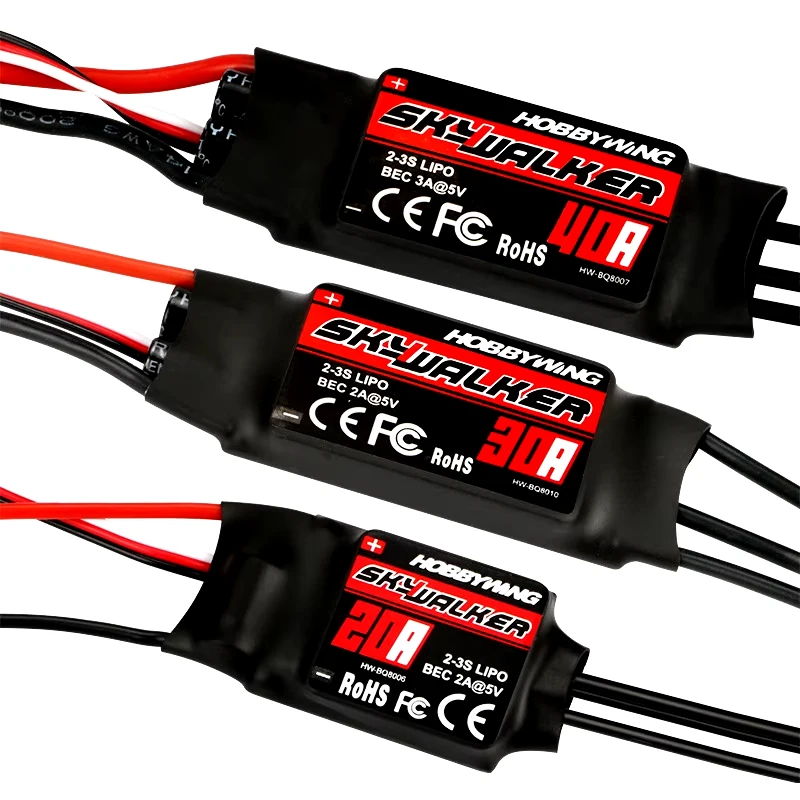

💍 Hobbywing Skywalker V2 Speed ESC Controllers are meticulously engineered electronic speed controllers designed to cater to a variety of applications in the world of remote-controlled (RC) helicopters and aircraft. Offering a robust mix of efficiency and performance, the Skywalker series provides an array of current ratings suited for different power demands and vehicle specifications.
📦 12A Model: This compact controller ensures a continuous current of 12A and can handle short bursts up to 15A for less than 10 seconds. Ideal for light setups, it supports dual lithium battery configurations or a 5-6 cell NiMH/NiCd pack. The built-in BEC outputs 5V at 1A in linear mode, delivering a throttle signal frequency that ranges from 50Hz to 432Hz, making it exceptionally versatile. With a maximum speed capability of 210,000 rpm for two-engine setups, the 12A model weighs a mere 9g and measures 38mm in length, 18mm in width, and 6mm in height.

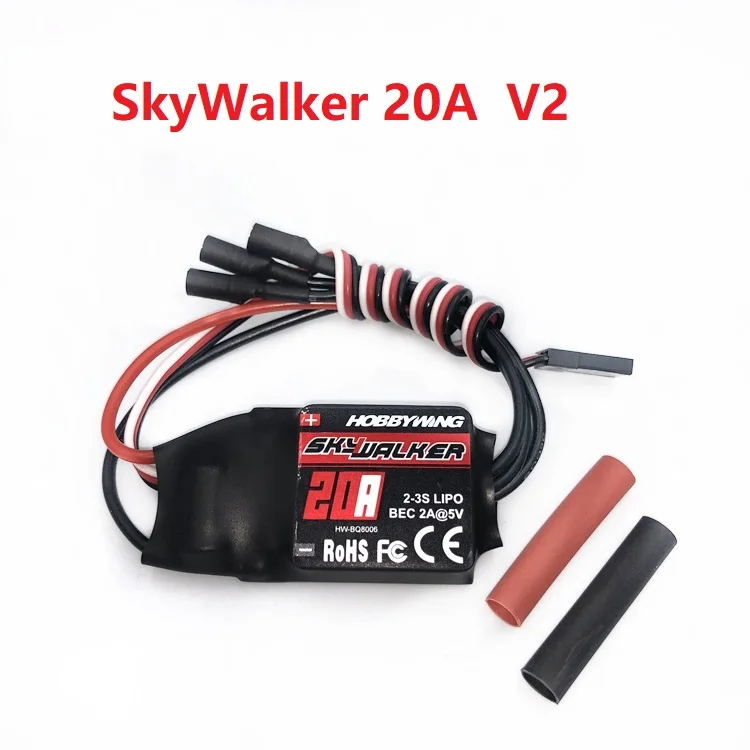

🕊️ 20A Model: This model is perfect for slightly more demanding setups, handling continuous currents of 20A and peak currents of 25A for short durations. With a 5V, 2A BEC output, it can power up to 5 servos efficiently, making it suitable for both 2-3S LiPo or 5-9 cell NiMH battery packs. The net weight is a lightweight 19g with dimensions of 42x25x8mm, and a convenient cable length of 25cm enhances flexibility during installation.
🪞 30A Model: The Skywalker 30A ESC is designed for moderate power needs, with a continuous current of 30A and an impressive peak of 40A for bursts of up to 10 seconds. It features a programmable BEC output of 5V at 2A, suitable for diverse applications. Encased in a sleek black design, the dimensions are 70x25x8mm (excluding cable length), and it weighs in at 38g, ensuring a balance of functionality and weight efficiency.
📦 40A Model: Offering robust performance, this ESC provides a continuous current of 40A with peaks of 55A for short bursts. Its 5V, 2A BEC output supports multiple servo configurations, making it an optimal choice for more demanding RC setups. Weighing 35g with a size of 68x25x8mm, this controller combines power with a compact design.
🏆 50A Model: This model stands out with a continuous output power of 50A and a peak capacity of 60A for short durations. Compatible with a range of battery configurations, including 2-4S LiPo and 5-12S NiMH, it features a powerful switching mode BEC output of 5V/3A. Its refresh rate can scale up to 432Hz, and with dimensions of 68x25x12mm and a weight of 43g, it’s designed for high-performance applications without the bulk.
⚡ 60A Model: Constructed for higher power demands, the 60A ESC provides continuous support of 60A with peaks up to 80A. It operates in a switching mode, delivering a reliable BEC output of 5V at 3A. Suitable for various configurations, this model supports 2-6 LiPo cells or 5-18 NiMH cells, with overall dimensions of 77x35x14mm and a weight of 63g, making it a solid choice for demanding RC enthusiasts.
🧩 80A Model: The Skywalker 80A ESC is a powerhouse, handling continuous currents of 80A and peaks up to 100A. Its advanced switching mode BEC output at 5V/5A ensures optimal power delivery for complex setups. Designed for versatility, it accepts inputs from 2-6S LiPo or 5-18S NiMH batteries. The sizeable ESC features robust cabling (12AWG and 14AWG) to efficiently manage output and comes packaged in dimensions of 86x38x12mm, weighing 82g. Its programmability allows for customization via transmitter or external programming tools, enhancing its adaptability for various applications.
🕊️ With the Hobbywing Skywalker V2 Speed ESC Controllers, enthusiasts gain access to a reliable, high-performance solution tailored to meet their RC aircraft needs, combining exceptional power handling with lightweight designs across various models.
