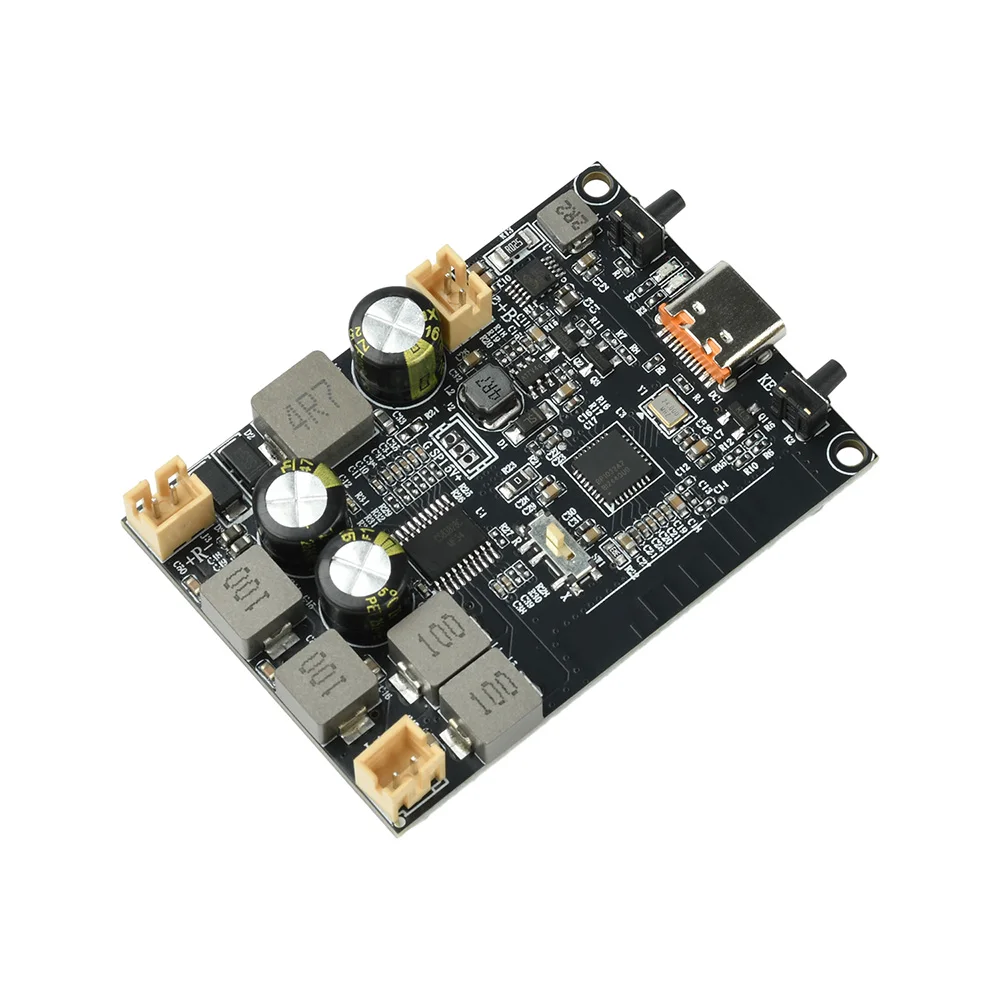

🏆 Introducing the TWS Bluetooth Amplifier Module: Experience audio like never before with our cutting-edge 2*10W Dual Channel Bluetooth Amplifier Board, specially designed for DIY audio projects. This versatile amplifier combines high performance with user-friendly features, making it a perfect choice for audio enthusiasts and hobbyists.
🔧 Features:
- Stereo Sound Experience: Enjoy a true stereo listening experience with dual channel output, providing robust audio that brings your music to life.
- Convenient Type-C Interface: The Type-C interface makes it simple to connect to your devices, allowing for seamless charging, data transmission, and sound card functionality in a single connection.
- Impressive Power Output: With a maximum power output of 2 × 10W, this amplifier is compatible with 4 Ω speakers, rendering sound that is both strong and clear, ideal for any setup.
- Bass Enhancement Algorithm: Immerse yourself in your favorite tracks with the built-in bass enhancement algorithm that significantly enriches audio depth, adding fullness and presence to every note.
- Flexible Operation: Designed with a user-friendly button switch, operation is simple and adaptable for various DIY scenarios, allowing you to control your audio experience intuitively.
🔍 Technical Parameters:
- Interface: Type-C (supports charging, data, and sound card functions)
- USB Power Supply Voltage: DC 5V
- Power Output: 2X10W
- PH2.0 Battery Socket: Compatible with 3.3V-4.2V power supply
- PH2.0 Speaker Socket: Designed for 4 Ω speakers (1.75-3 inches)
- PCB Board Size: 54mm x 38mm
🔘 Button Functions:
- Power: Click to turn on; long press to turn off
- Playback: Click to pause/play
- Track Navigation: Double click for the next track; triple click for the previous song
- Sound Card Switching: Long press to switch sound cards
- Team Formation: Four hits to cancel team formation
- Light Functions: Click on the light switch
🧩 Package Includes:
- 1x TWS Bluetooth Amplifier Module
- 3x Terminal Wires (optional with or without wires)
🏆 Note: For optimal performance when using battery power, a battery with a capacity of 3.7V, 6A continuous discharge, and 8A instantaneous discharge is recommended. Suitable battery specifications include those with above 3000mAh for 3C power and above 2000mAh for 5C power.
