Product Overview:
🪶 The WT5 Tuya Wifi LED Controller is an innovative solution for controlling LED strip lighting with advanced features designed for modern convenience. Suitable for both residential and commercial installations, this versatile controller operates within a DC voltage range of 12V to 24V and supports a variety of LED configurations, including RGB, RGBW, RGB+CCT, as well as single color options.
🔧 Key Features:
- 5-in-1 Functionality: The WT5 controller allows you to manage RGB, RGBW, RGB+CCT, color temperature, and single color LED strips, making it a one-stop solution for diverse lighting needs.

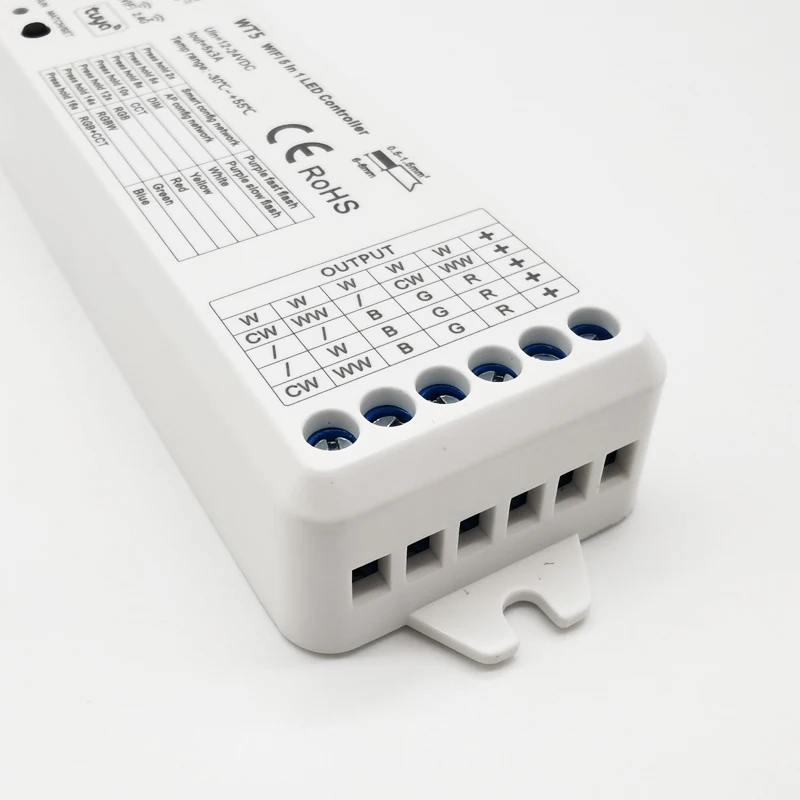

- Power Input and Output: It utilizes a DC power socket input and provides five-channel constant voltage output, ensuring reliable performance for your lighting system.
- Advanced App Control: Utilize the Tuya APP for comprehensive cloud-based control. With this app, you can turn your lights on/off, adjust RGB colors, modify color temperature, control brightness, delay lighting actions, create timers, and even integrate scene and music playback features.

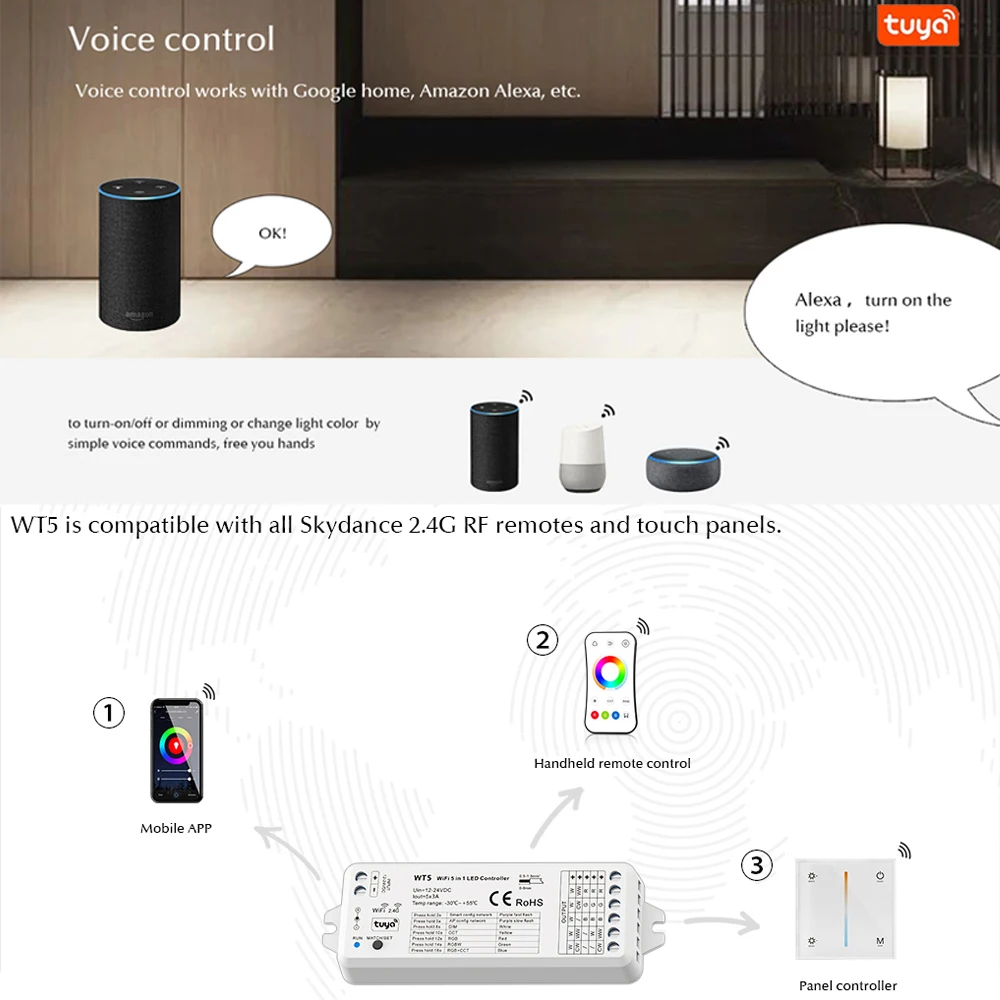

- Voice Control Integration: Seamlessly integrate with voice-activated devices, including Amazon ECHO and TmallGenie smart speakers, allowing for hands-free operation of your lighting.

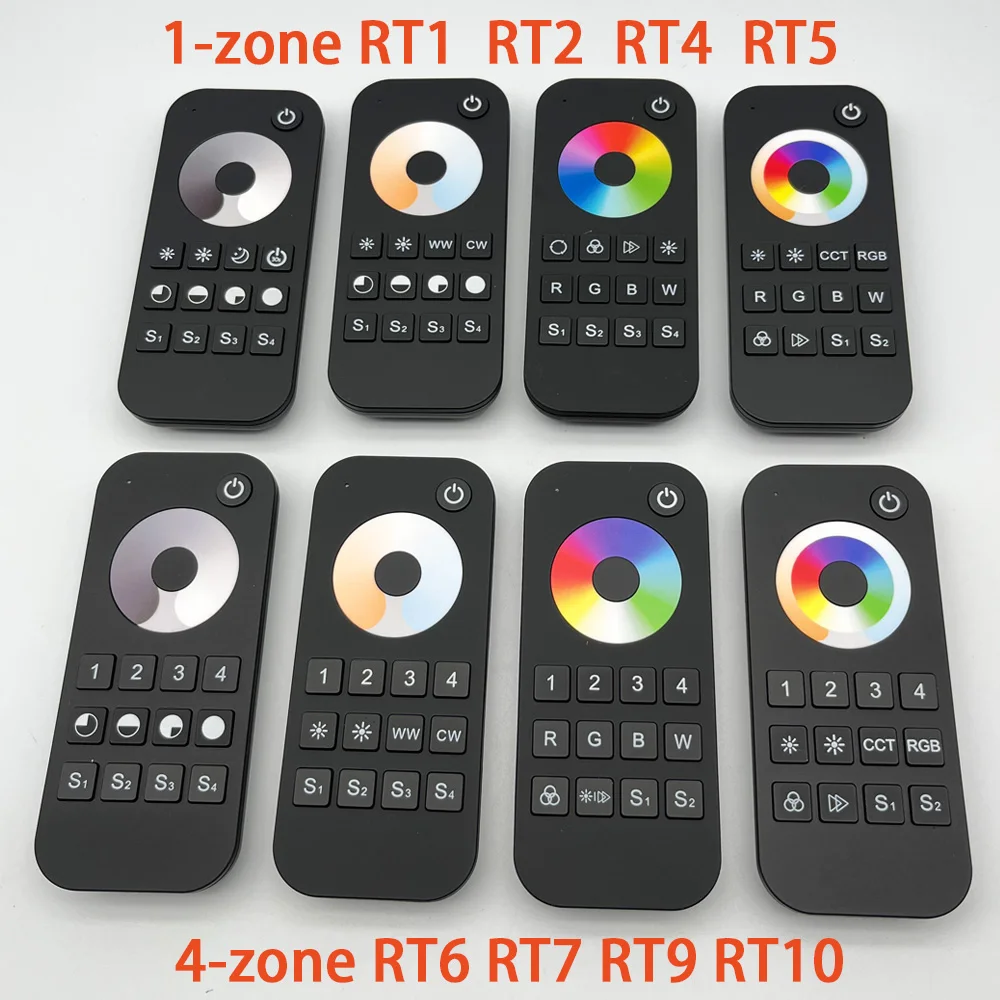

- RF Remote Control Compatibility: The WT5 can be paired with an optional 2.4G RF remote control, enhancing user experience with intuitive manual control.
- Custom Light Type Setup: Users can easily set the light type by pressing a key before establishing a connection with the Tuya APP, and can also match the RF remote to the corresponding light type for optimal functionality.
- WiFi-RF Conversion: Each WT5 controller acts as a WiFi-RF converter, enabling users to control one or more RF LED controllers or dimming drivers through the Tuya APP simultaneously, offering synchronized lighting options.
🧩 Main Technical Specifications:
- Input Voltage: 12-24V DC
- Output Voltage: 12-24V DC
- Output Current: 5 channels, 3A per channel
- Input Signal: Tuya APP + RF 2.4GHz
- Dimming Range: 0 - 100%
- Dimming Scale: 4096 levels (2^12)
- PWM Frequency: 500Hz (default)
- Protection Features: Reverse polarity and over-heat protection for safety and longevity.
🧩 Transform your lighting experience with the WT5 Tuya Wifi LED Controller, where modern technology meets user-friendly design, allowing you to create the perfect ambiance in any environment.
