Enhanced Universal Flyback Power Supply Module for LCD TVs (14 - 60 Inch) with 5V - 24V DC Output (YJ - 4)

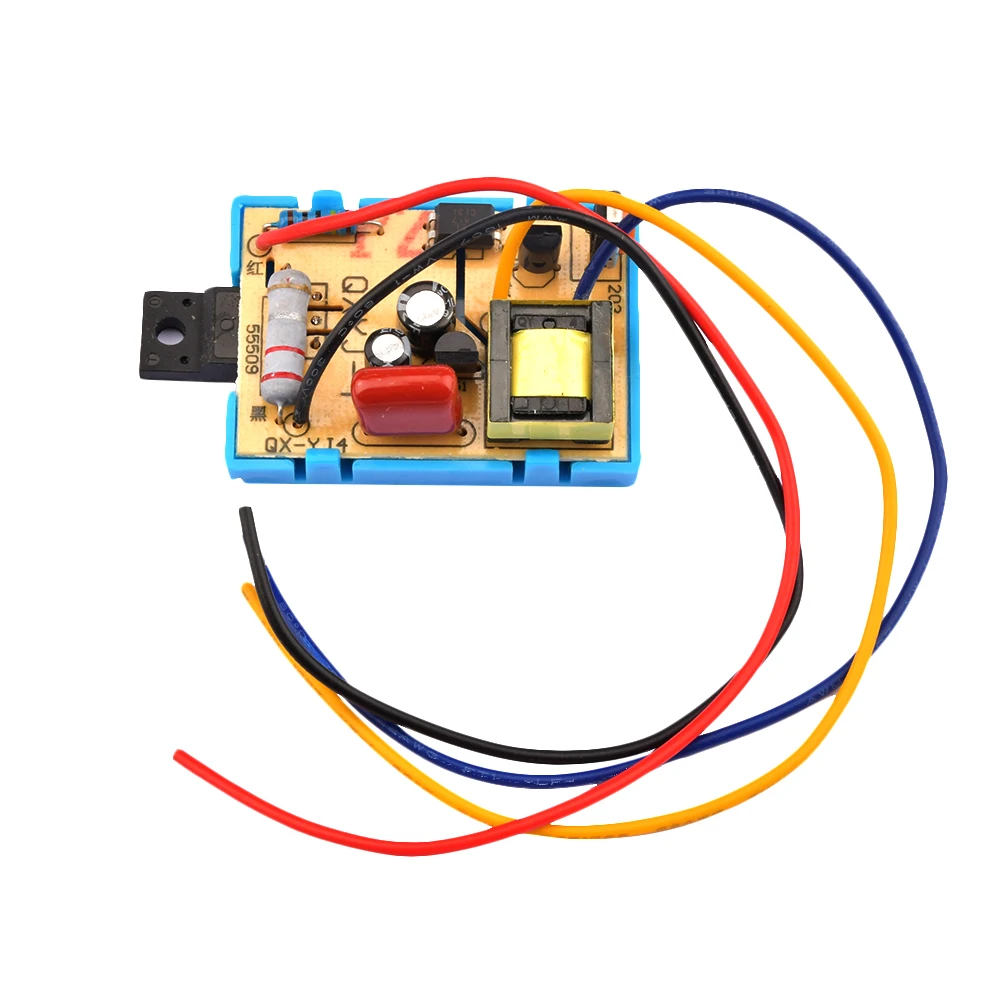

Product Name: QX YJ-4 TV Switch Flyback Power Supply Module - Universal 14-60 Inch LCD Power Supply

Description:

🪶 The QX YJ-4 is an advanced universal flyback power supply module specifically designed for seamless integration with 14-60 inch LCD TVs. Delivering a robust output power handling capabilities of up to 200W, this module operates effectively within a voltage range of 5-24V DC. It is the ideal solution for repairing or replacing malfunctioning modules in a variety of devices including LCD TV main and auxiliary power supplies, monitors, set-top boxes, satellite receivers, and DVD/EVD players.

🔧 Key Features:

• Utilizes DC sampling technology to ensure a stable and reliable voltage output.
• Features an integrated remote control function, providing enhanced usability and convenience.
• Designed with a four-wire connection system, facilitating straightforward installation and maintenance.
• Constructed with brand new, high-quality components that guarantee performance consistency and reliability.
• Compact design for easy integration into a variety of setups without consuming much space.

📦 Package Includes:

• 1 x Universal 14-60 inch LCD TV Switch Power Module

Note: Ensure that the module is compatible with your specific device before proceeding with installation. Ideal for professional technicians as well as DIY enthusiasts looking to restore or upgrade their electrical appliances efficiently.

Product Name: QX YJ-1 DC Sampling Type Power Supply Module for 46-inch LCD TVs

Description:

📦 The QX YJ-1 power supply module is optimized for 46-inch LCD TVs, delivering reliable performance at 12V or 24V without the need for cumbersome adjustments. Tailored for hassle-free installation, its compact design and versatile output make it an essential component for effective repairs of devices needing robust power support.

🔧 Key Features:

• Compact yet powerful, offering a space-efficient solution for electronic repairs.
• Easy to install, streamlining the repair process.
• Designed for stable performance to support various electronic appliances.
• Highly cost-effective, providing excellent value for repairs and replacements.

📦 Usage Tips for Successful Maintenance:

• Before conducting maintenance, check the status of the fuse and inspect for bulging capacitors to avoid further damage.
• Understand the functionality of the PFC circuits, which enhance power efficiency in LCD TVs compared to CRT models.
• Utilize dummy loads during testing to ensure the power supply operates within its expected parameters.
• Replace rectifier diodes with high-quality Schottky diodes to meet the demands of higher output currents.

🪶 Package Includes:

• 1 x 46-inch DC Sampling Type LCD TV Power Supply Module

Product Name: QX YJ-2 LCD TV Switching Power Supply Module - Suitable for TVs Below 46 Inches

Description:

⚡ The QX YJ-2 is an efficient and user-friendly LCD TV switching power supply module built for television sizes up to 46 inches. With adjustable output voltages ranging from 5V to 48V, this module ensures flexibility to match various power requirements, making it an excellent choice for quick installation and repairs.

🔧 Key Features:

• Designed for user-friendly operation, with quick setup achievable in just three minutes.
• Compact size for space-saving installation.
• Advanced circuitry provides stable and reliable performance even under varied load conditions.
• Simplified wiring process for an efficient assembly experience.

📦 Simplified Installation Instructions:

1. Connect the black wire to the hot ground.
2. Attach the red wire to the C pole of the power tube.
3. Link the blue line to the non-ground end of the optocoupler (pin 4).

⚫ Package Includes:

• 1 x 46-inch LCD TV Switching Power Supply Module

These modules are ideal for technicians and hobbyists alike, providing an effective solution for maintaining and upgrading a variety of electronic devices with ease and reliability.
