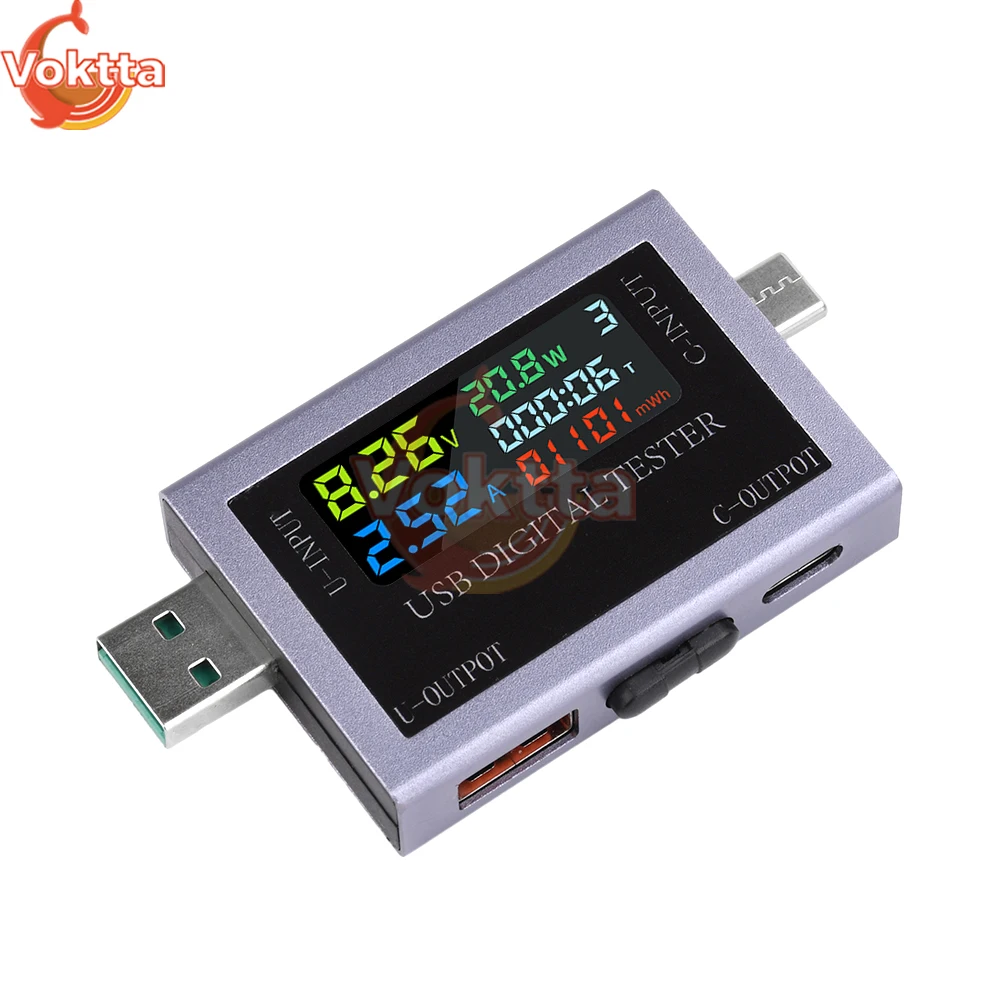

Enhanced USB Tester with Digital Voltmeter & Ammeter for Voltage, Current, Power, and Battery Capacity Analysis (USB TYPE - C)

🔋 USB Tester Voltmeter Ammeter DC4.5~50V Digital Voltage Current Power Meter TYPE-C Fast Charging Detector Battery Capacity Tester

🪶 The USB Tester Voltmeter Ammeter is an essential tool for anyone who needs to monitor and analyze power consumption and charging performance across various electronic devices. Designed to cater to a wide range of applications, this versatile tester operates within a voltage measurement range of DC 4.5~50V and features an impressive current measurement range of 0-5A/0-8A, making it suitable for everything from smartphones to notebooks.

🔧 Key Features:

• Real-time monitoring of multiple parameters, including current, voltage, power, capacity, resistance, timing, and temperature, all displayed on a high-quality IPS true color digital LCD screen.
• Monitor the charging status of connected devices effortlessly, with instantaneous updates on charging voltage and current, allowing for immediate assessment of charging efficiency.
• Convenient on/off display functionality, ensuring useful information is readily available during use, while also enabling night-time charging without screen glare.
• Capable of testing an array of devices, such as chargers, data cables, and rechargeable batteries, making it an indispensable tool for both everyday users and professionals.
• Compatible with various fast charging protocols, including PD2.0, PD3.0, PPS, QC2.0, QC3.0, AFC, and PE, automatically detecting these protocols for optimized charging efficiency and real-time performance feedback.

🔌 Technical Specifications:

• Capacity Totalization Range: 0-99999mAh
• Power Accumulation Range: 0-99999mWh
• Power Measurement Range: 0-150W
• Impedance Measurement Range: 1-999.9Ω
• Temperature Measurement Range: 0-80°C
• Timing Capability: Up to 999 hours and 59 minutes
• Input and Output Interface: Type-C
• Refresh Rate: More than 500ms per measurement
• Measurement Rate: Approximately 0.5 times per second
• Self-consumption Current: Less than 0.02A
• Operating Temperature: -10 to 60°C
• Working Humidity: 10-80% RH (non-condensing)
• Working Air Pressure: 80-106kPa
• Compact Size: Type-C version measures 74*28*13mm, while the USB+Type-C version is 77*40*13mm

📦 Enhanced User Experience:

🔘 The device incorporates a user-friendly multi-function button that allows you to:

• Quickly switch the display mode with a simple short press.
• Reset the power and timing to zero with a quick triple tap.
• Change data storage group numbers with a long press on the on/off button for two seconds.

🛠️ This USB Tester is perfect for anyone who values precise measurements and efficient power management in their electronic devices.

Packing List:

• Power Meter x 1
