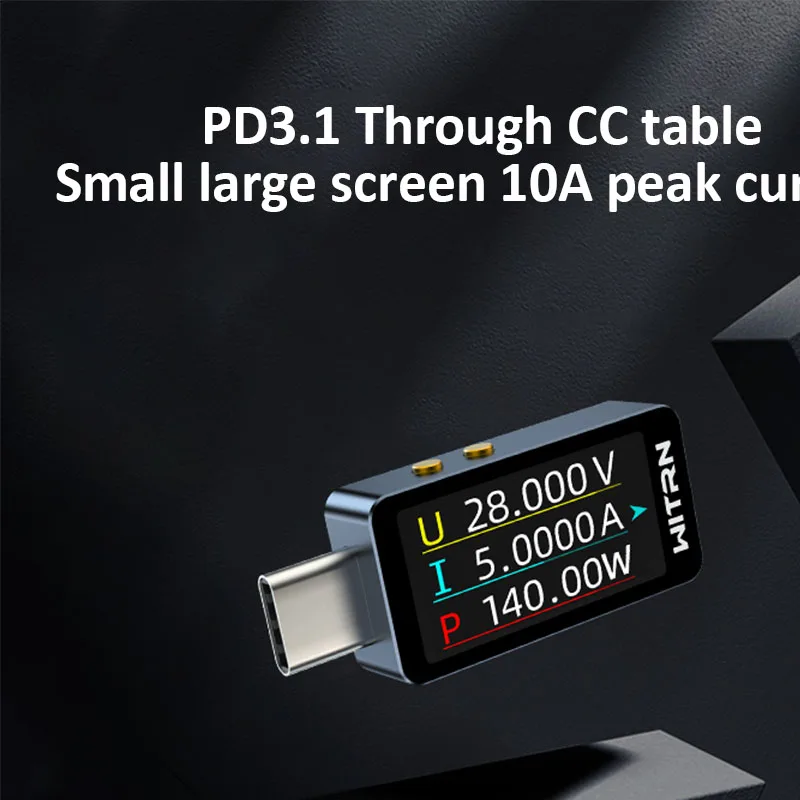

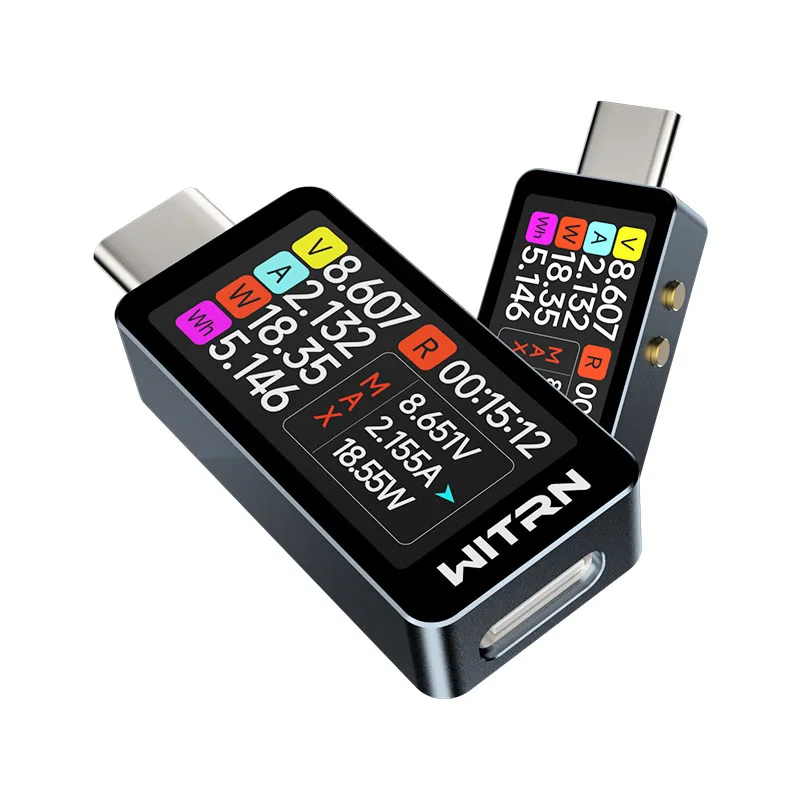

🔋 Introducing the 4-28V USB Type-C Power Meter Tester: A cutting-edge device designed for fast charging enthusiasts and professionals alike. This versatile power meter serves as both a voltmeter and ammeter, allowing users to monitor power delivery (PD) across a wide range of devices, including laptops and smartphones. Whether you are troubleshooting, evaluating performance, or simply curious about your device's power consumption, this tool is essential.
🔧 Key Features:
- Straight Through Meter: This device features a straight-through PD charging head with a sleek black screen and requires connection to an electrical device to function properly.
- Bidirectional Current Measurement: It can measure current even when inserted in reverse, providing valuable insight into its operational characteristics.
- Core Sampling ADC Chip: Equipped with the high-precision INA226 chip, this power meter guarantees reliable and accurate measurements with a resolution of 16 bits.

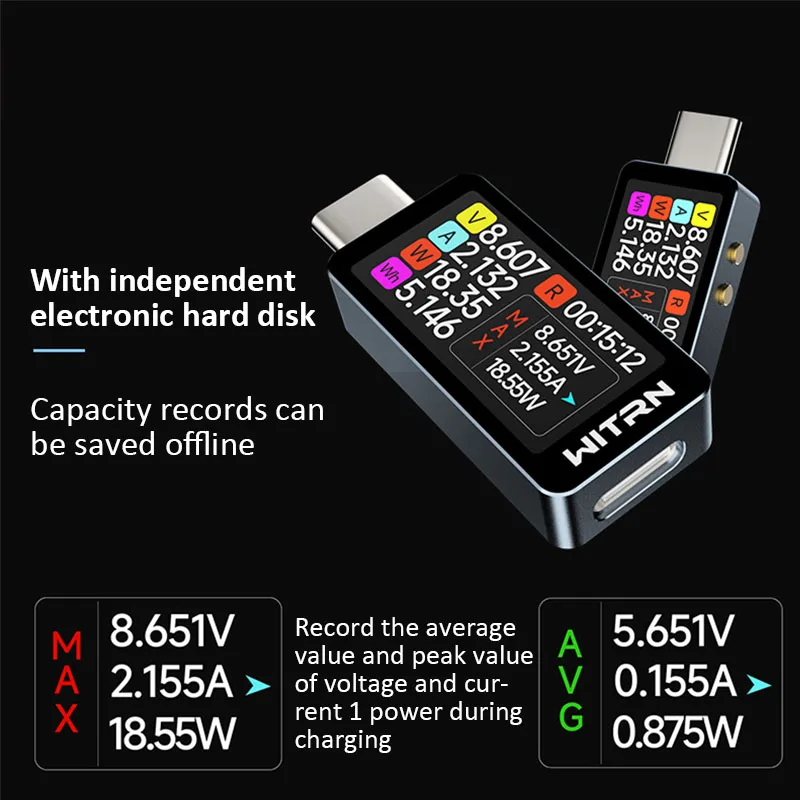

- Independent Storage Chip: The integrated EEPROM comes with a wear leveling algorithm, ensuring data is saved even during unexpected power loss.
- USB-C High Conductivity Connector: Designed for optimal performance, the custom male USB-C connector allows for connections through most phone cases.
- Low Contact Resistance Socket: The USB-C socket is specifically crafted to minimize resistance, ensuring efficient power transfer.

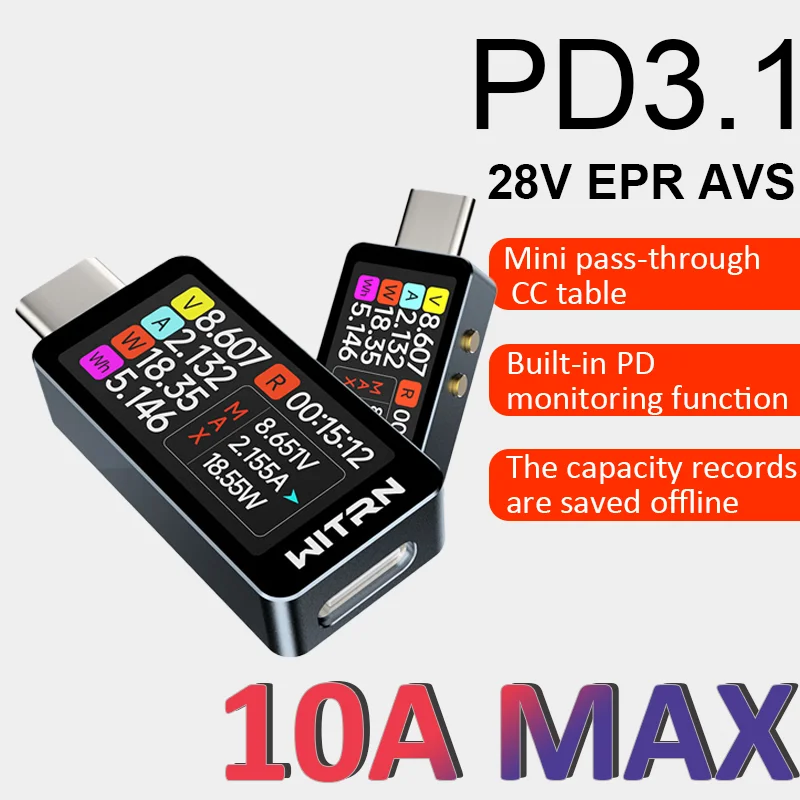

- PD Monitoring Capability: This function is enabled through software simulation, providing visibility into public version PD protocols; however, some fast broadcasting devices may not be compatible.
- Fast Charging Protocol Display: While inferred from the D+D voltage and working current, please note that the displayed values are for reference and may not be completely accurate.
- Safe Fast Charging Deception: The device does not engage in fast charging protocol deception, allowing for safe and confident use.
🧩 Basic Parameters:

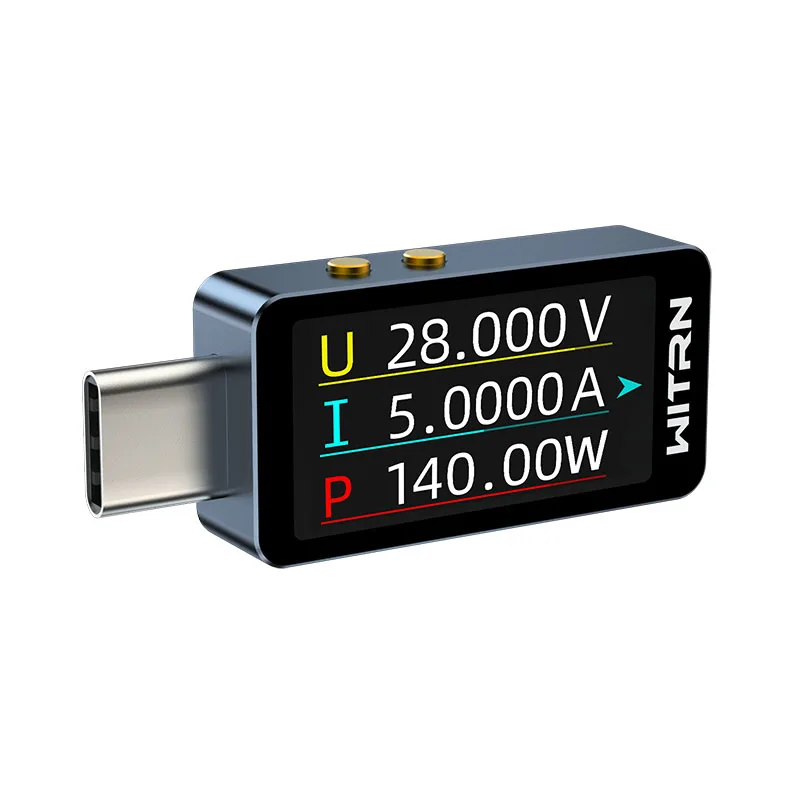

- Product Type: USB-C Voltage and Current Meter

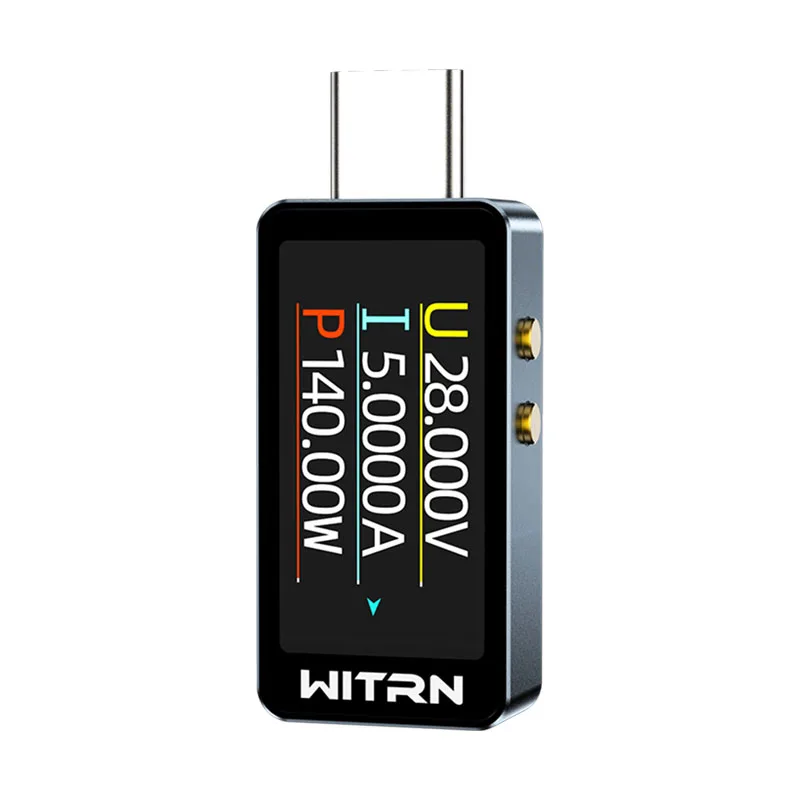

- Display: Color IPS Screen with a resolution of 160x80
- Input Interface: USB-C (TYPE-C 24P)
- Output Interface: USB-C (TYPE-C 24P)
- Working Voltage: DC 4-28V (peak 36V)
- Working Current: 0-6A (short-term peak 10A)
- Voltage Resolution: 0.001V
- Current Resolution: 0.001A
- Capacity Record: 0-9999Wh
- Measurement Accuracy: Range ± 1%
- Product Size: Approximately 31.8x16.1x8.1mm (excluding USB-C male connector)
💥 Note: Users should be aware that the integrated aluminum alloy CNC shell may heat up during operation, especially at higher currents. This is a normal characteristic of the material and design. To ensure safety and usability, do not place an order if you are sensitive to cosmetic imperfections like small edges or minor gaps due to manual assembly; they do not impact functionality. Enjoy the reliability and performance of the 4-28V USB Type-C Power Meter Tester for all your charging and monitoring needs!
