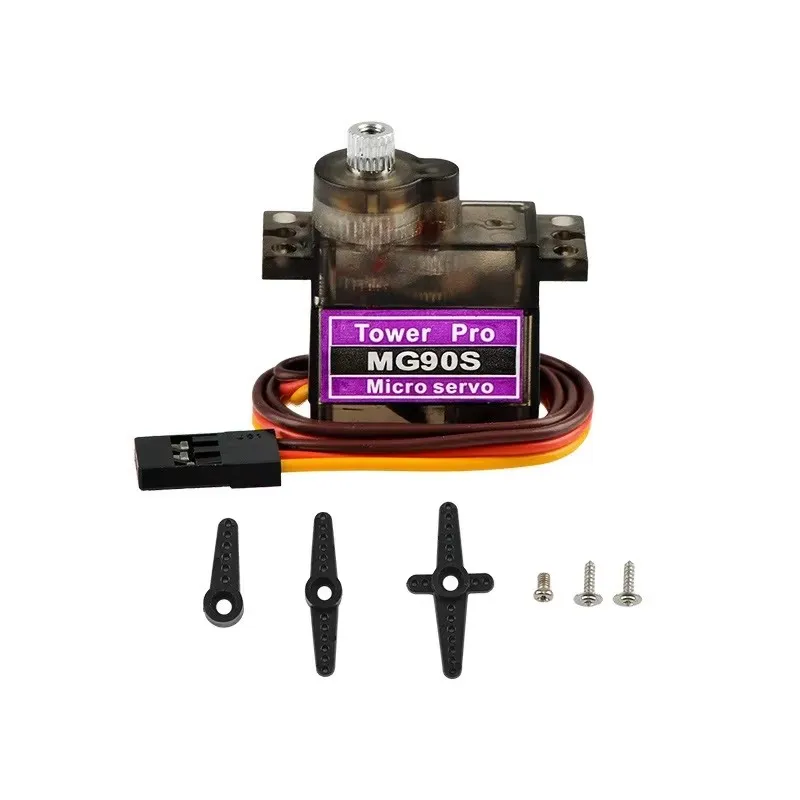

Enhanced Micro Digital Servo Motor for RC Aircraft and DIY Projects (1PC MG90S 180)

Product Overview:

📦 The MG90S and SG90 micro digital servos are designed for hobbyists and enthusiasts looking to enhance their RC (Remote Control) aircraft projects. With precision engineering and compact size, these servos are ideal for a variety of applications, including helicopters, airplanes, and other DIY models.

MG90S Specifications:

• Weight: 13.6g
• Torque: 2.0 kg (at 4.8V)
• Speed: 0.11 seconds per 60 degrees (at 4.8V)
• Rotation Angle: Adjustable between 90-180 degrees or continuous 360 degrees
• Type: Digital steering gear
• Temperature Range: Operates effectively between 0° to 55° Celsius
• Deadband Setting: 5 microseconds
• Plug Type: Compatible with JR and FUTABA universal connectors

💍 Included Accessories:

🏆 The MG90S comes with essential accessories to facilitate installation and optimal performance, including:

• Camel plate
• 30CM extension line
• Fixing screws
• Damping rubber sleeve
• Aluminum sleeve
• Other additional components (see display images for details)

SG90 Specifications:

• Dimensions: 33*30*12mm (1.29*1.18*0.47 in)
• Supply Voltage: 4.2V to 6V
• Torque: 1.6 kg/cm (at 4.8V)
• Reaction Speed: 0.3 seconds for 60 degrees
• Working Voltage: 4.2V to 6V
• Operating Temperature: 0° to 55° Celsius
• Action Deadband: 10 microseconds
• Gear Material: Durable plastic
• Working Mode: Analog

🛡️ Product Features:

🪶 The MG90S and SG90 servos are praised for their impressive cost-performance ratio within the micro servo category. While they deliver substantial pulling force, especially for smaller electric aircraft models, they are not intended for use with larger fixed-wing aircraft or electric helicopters due to their reduced pulling capacity.

Operational Modes:

• 180-Degree Servo: Capable of precise angle control (90 degrees left and right).
• 360-Degree Servo: Designed for continuous rotation, allowing control of forward and reverse speed without angle restriction.

🛠️ Driver Logic:

🧩 Understanding the operational logic of these servos ensures optimal functionality:

• For 180-Degree Control:
  • T=0.5ms → Rotate 0 degrees
  • T=1.0ms → Rotate 45 degrees
  • T=1.5ms → Rotate 90 degrees
  • T=2.0ms → Rotate 135 degrees
  • T=2.5ms → Rotate 180 degrees
• For 360-Degree Control:
  • T=0.5ms → Maximum forward rotation speed
  • T=1.5ms → No rotation
  • T=2.5ms → Maximum reverse speed

🛠️ These versatile and reliable servos are perfect for elevating your RC modeling experience, providing controllable motion and precision for a wide range of applications.
