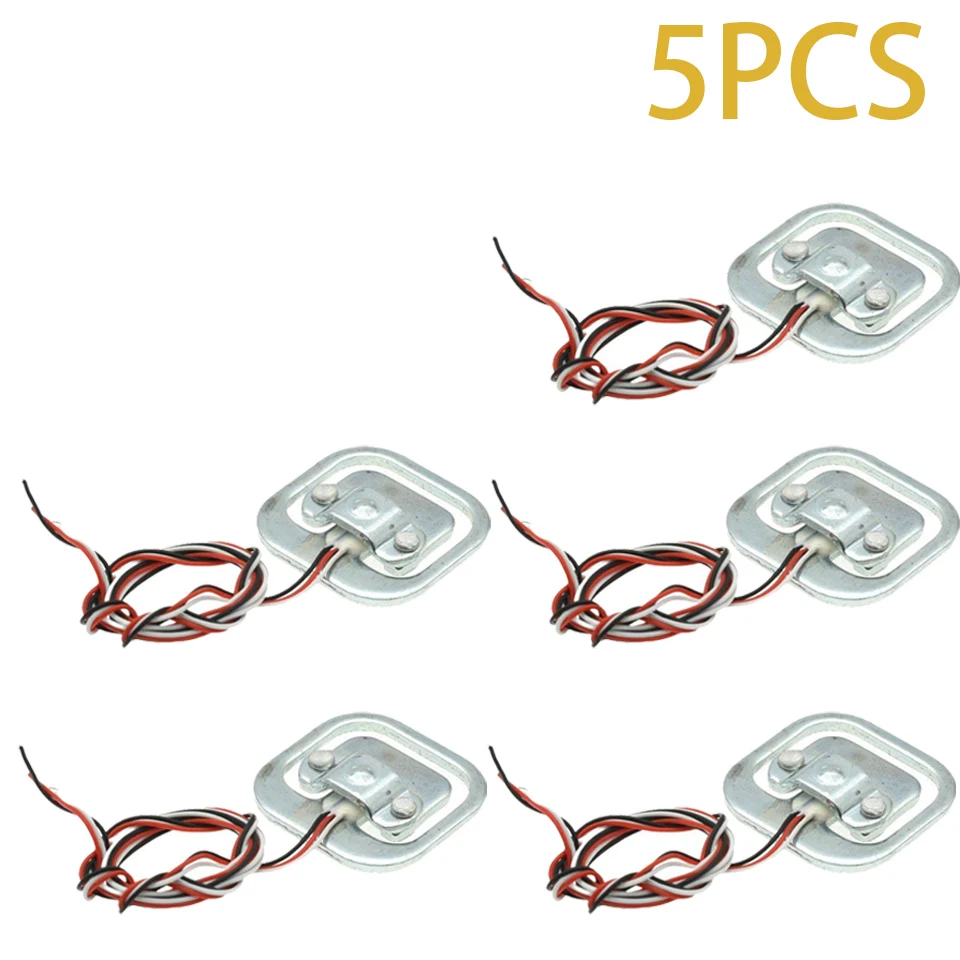

High - Precision 50KG Capacity Load Cell Weight Sensor for Accurate Body Weight Measurements (5PCS)

Product Overview:

🛠️ Introducing the innovative 50KG Human Scale Load Cell Weight Sensors, a versatile and highly accurate solution designed for a range of weighing and pressure measurement applications. Each sensor boasts a robust 1000-ohm half-bridge strain gauge configuration, tailored for precision and reliability in various conditions.

Design and Structure:

🌟 The load cell features a unique half-bridge structure that enhances its responsiveness to external forces. When weight is applied, the sensor's E-shaped strain beam efficiently converts the applied load into an electrical signal. This beam, specifically designed with a white adhesive applied strategically in the center, allows for optimal bending under stress, ensuring reliable measurements even under demanding conditions.

Operational Principles:

🧩 When utilizing this sensor, proper application of external force is paramount. The shearing force generated on either side of the strain beam must work in unison, allowing for accurate readings. The configuration must avoid blockage on either side during active measurements, thereby ensuring the sensor's performance integrity.

Versatile Measurement Configurations:

💍 The adaptability of these load cells allows for multiple configuration options, catering to various measurement needs:

• Single Sensor Setup: Utilize a single load cell for a direct measurement capacity of up to 50kg with appropriate external resistance.
• Dual Sensor Setup: Combine two sensors to achieve a cumulative measurement range of up to 100kg, effectively enhancing accuracy and reliability.
• Quad Sensor Setup: Deploy four sensors together for a powerful full-bridge system, achieving a maximum weight measurement capability of up to 200kg.

🛠️ This advanced load cell technology is ideal for applications requiring precision and durability, making it suitable for use in scales, industrial weighing solutions, and various measurement tools.
