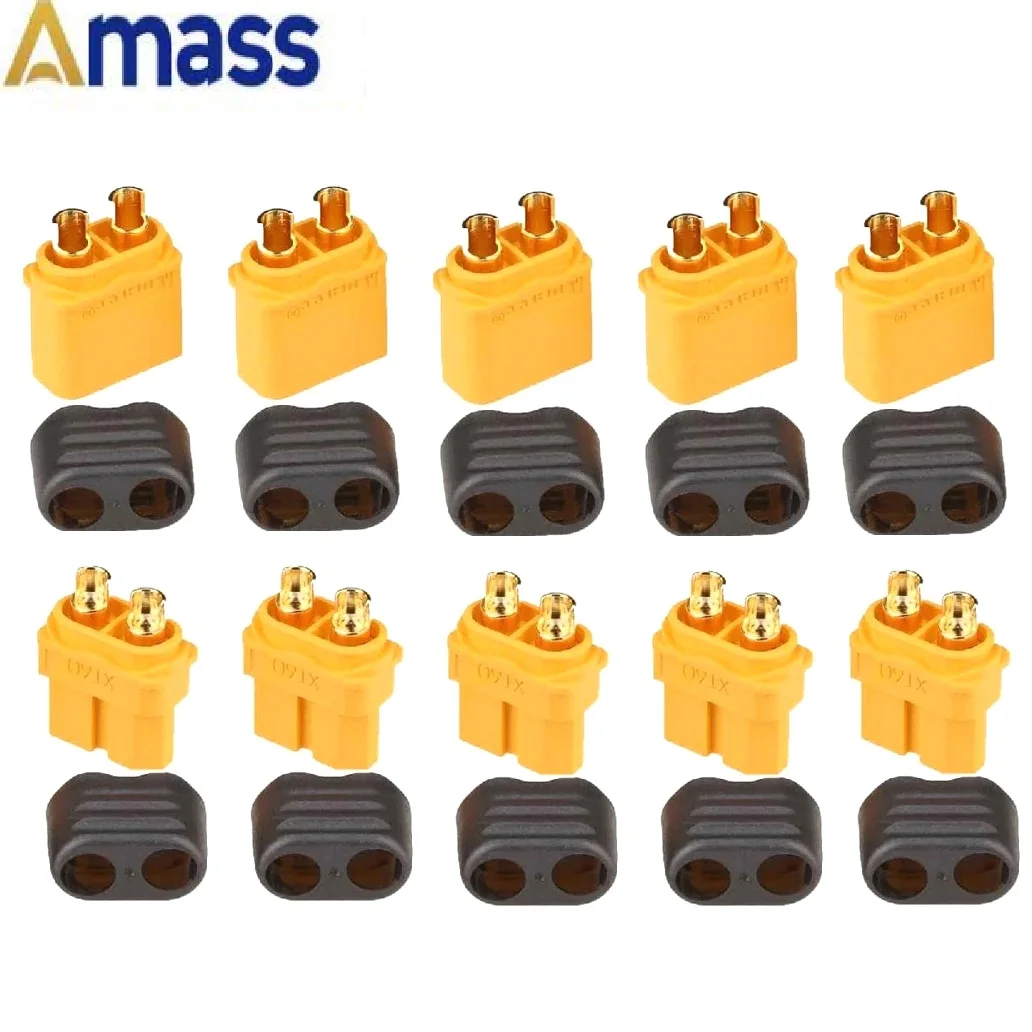

๐ Product Overview: The Amass XT Series connectors are a premium choice for hobbyists and professionals in the RC and electronics fields. This package includes 10 connectors in total, featuring a versatile combination of the XT60H, XT30U, and XT90H plug types. Each connector is designed for outstanding performance and reliability, making them suitable for a variety of applications.
๐ Components Included:
- 5 x XT60H Connectors: These connectors are engineered with gold-plated copper for low internal resistance of just 0.8mฮฉ, making them suitable for high-current applications up to 60A continuous and 100A peak. The durable nylon/PA sheath ensures longevity, with a recommended lifespan of approximately 1000 uses.
- 5 x XT30U Connectors: Weighing only 1.8g per connector, the XT30U features gold-plated 2mm banana plugs. Its compact size and finely crafted materials make it ideal for lightweight applications, accommodating wire sizes ranging from 16AWG to 20AWG silicone wire.
- 5 x XT90H Connectors: Designed for robust performance, the XT90H can handle applications requiring current ratings between 90A and 120A. Its innovative half-open end is specifically made for easier soldering. Built-in protection features safeguard against short circuits and reverse polarity for added safety during use.
๐งต Specifications:
- Weight: 7.72g for XT60H, 1.8g for XT30U, and standard weight for XT90H depending on the configuration.
- Temperature Resistance: These connectors can withstand temperatures ranging from -20ยฐC to 120ยฐC, ensuring reliability in various conditions.
- Pulling Force: The XT60H connector is capable of withstanding a pulling force of up to 3kg.
- Recommended Soldering Specification: It is advisable to use a soldering temperature of 480ยฐC over a duration of 4 seconds for optimal results.
๐ฆ Package Dimensions: The connectors come neatly packaged in a compact size of 10 x 10 x 2 cm (4 x 4 x 0.8 inches), making them easy to store and transport.
๐ Upgrade your electrical connections with these reliable and efficient connectors from Amass, designed for high performance and ease of use in your projects.
