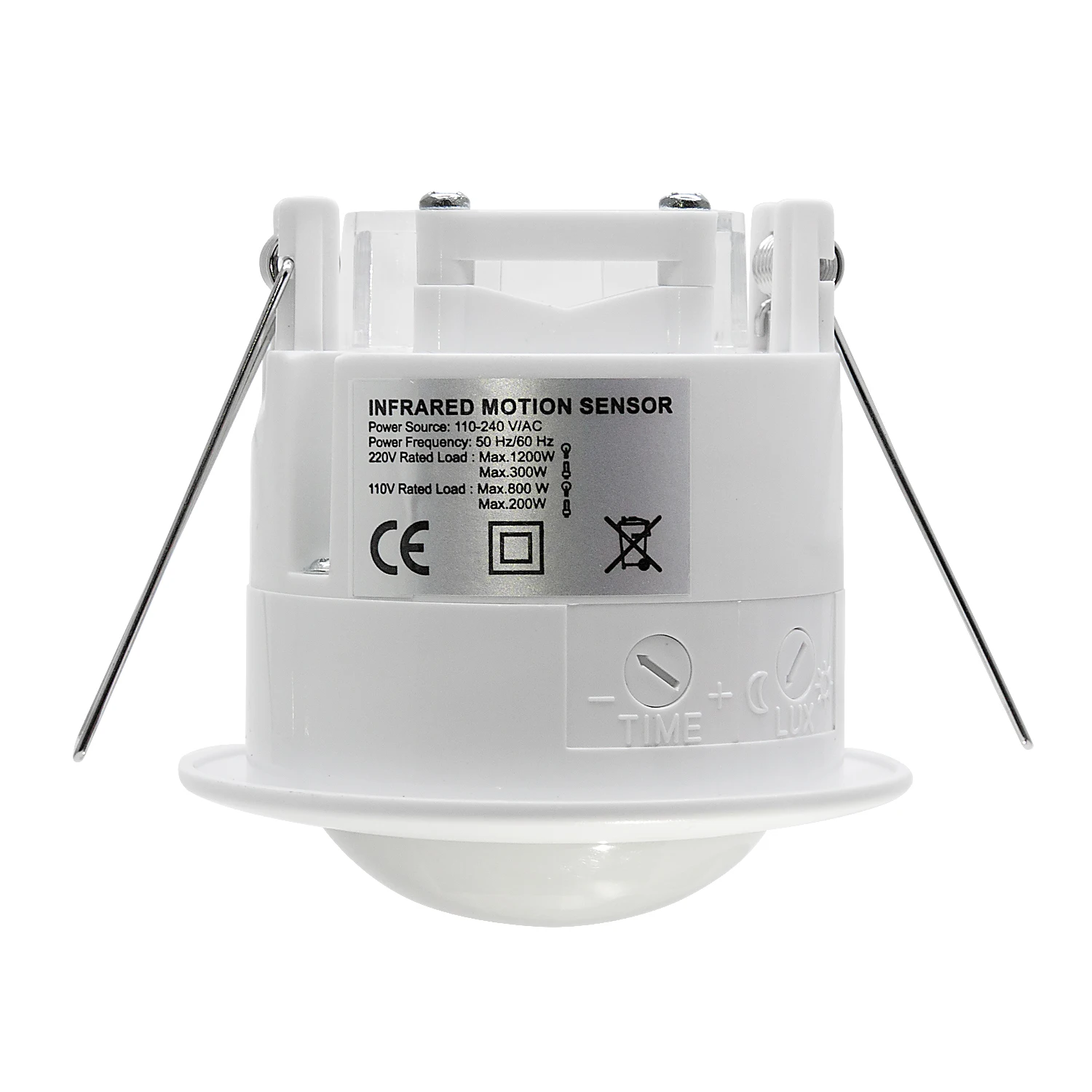

🧩 Ceiling Mount Motion Sensor - Revolutionary 360° Motion Detection for Enhanced Safety and Convenience
🧩 The Ceiling Mount Motion Sensor is engineered with advanced sensitivity technology and an integrated circuit, designed to seamlessly integrate safety, automation, and energy efficiency. This innovative motion detector captures the infrared energy emitted by the human body, activating lighting or other connected devices immediately upon detecting movement within its expansive detection field.
🏆 Designed to provide unparalleled convenience, this motion sensor is equipped with an intelligent dual-mode functionality that can differentiate between day and night conditions. It ensures optimal performance tailored to your specific needs, regardless of the time of day.
🔧 Key Features:
- Automatic Day/Night Detection: The sensor can be adjusted to operate in various lighting conditions. In the SUN mode (maximum sensitivity), the sensor will activate during both day and night. In MOON mode (minimum sensitivity), it operates only in low-light conditions, below 3 lux, ensuring that energy is conserved when light is not needed.
- Controllable Time Delay: This feature allows the sensor to reset its timing based on consecutive movements detected. If it senses movement again before the time delay expires, it will restart the countdown, ensuring that lights remain on as long as necessary for safety and convenience.
- Adjustable Time Delay Settings: Users can customize the delay time between 10±3 seconds to a maximum of 7±2 minutes, giving you complete control over the lighting experience in your space.
🧩 Easy Installation:
🧰 The installation process is straightforward and user-friendly. Simply follow these steps to set up your motion sensor:
- Ensure the power is turned off before starting the installation.
- Remove the transparent vinyl cover located at the bottom of the sensor.
- Loosen the screws at the connection terminal, and connect the power supply and rated load according to the provided connection diagram.
- Tighten the screws and reattach the transparent vinyl cover securely.
- Adjust the metal spring of the sensor upwards until aligned with the sensor in the "I" position, and then insert the sensor into an appropriate hole or installation box in the ceiling.
- Release the spring to lock the sensor into place. Once installation is complete, reconnect the power and conduct a quick functionality test.
🔩 This Ceiling Mount Motion Sensor is the perfect solution for enhancing safety and convenience in homes, offices, and other commercial spaces, providing peace of mind with its intelligent automation and energy-saving features.
