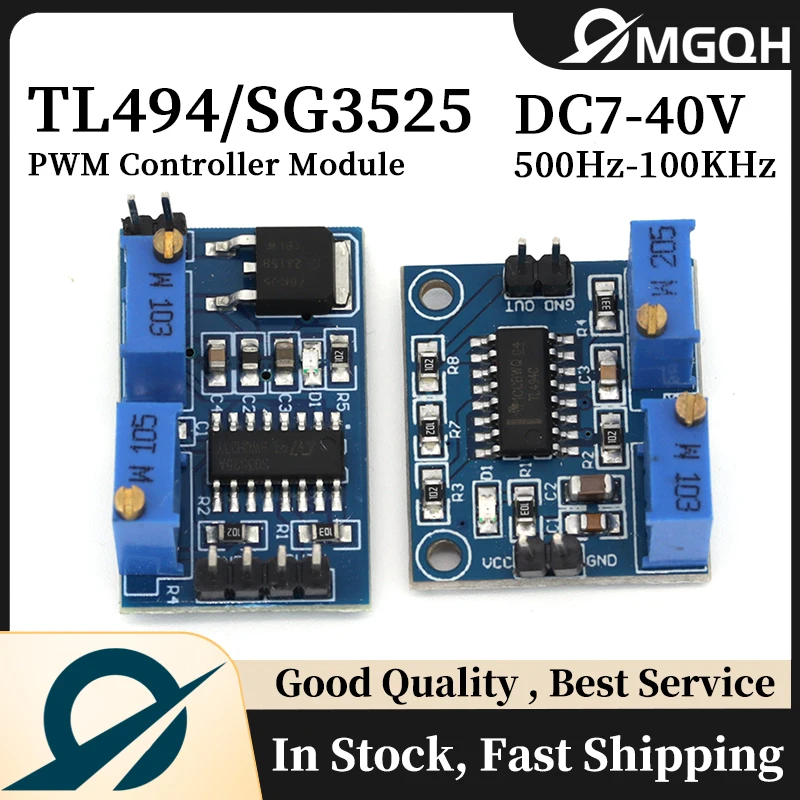

🛠️ Overview: The TL494 SG3525 PWM Controller Module is a versatile and highly adaptable circuit designed to meet the needs of various electronic applications. This module excels in providing precise control over pulse width modulation, enabling efficient power management and energy conversion.
🔧 Key Features:
- Adjustable Frequency Range: With a frequency range of 500 Hz to 100 kHz, this module allows users to customize the output according to specific operational requirements.
- Output Current Capability: Capable of delivering up to 250 mA, this module is suitable for driving a wide variety of loads, making it ideal for projects requiring reliable power supply.
- Versatile Applications: This PWM controller module is perfect for use in applications such as motor speed control, power converters, and LED dimming, showcasing its broad adaptability.
- Simple Integration: Designed with user-friendly connections, the module can be easily integrated into existing circuits or projects, facilitating quick setup and implementation.
- High Efficiency: The PWM technology utilized in this controller ensures optimal efficiency in power conversion, minimizing energy loss and enhancing overall system performance.
🧩 Specifications:
- Type: TL494 / SG3525 PWM Controller
- Frequency Range: 500 Hz - 100 kHz
- Maximum Output Current: 250 mA
🛠️ Whether you are an electronics enthusiast or a professional engineer, the TL494 SG3525 PWM Controller Module offers a robust solution for a wide range of projects that demand precise control and efficiency.
