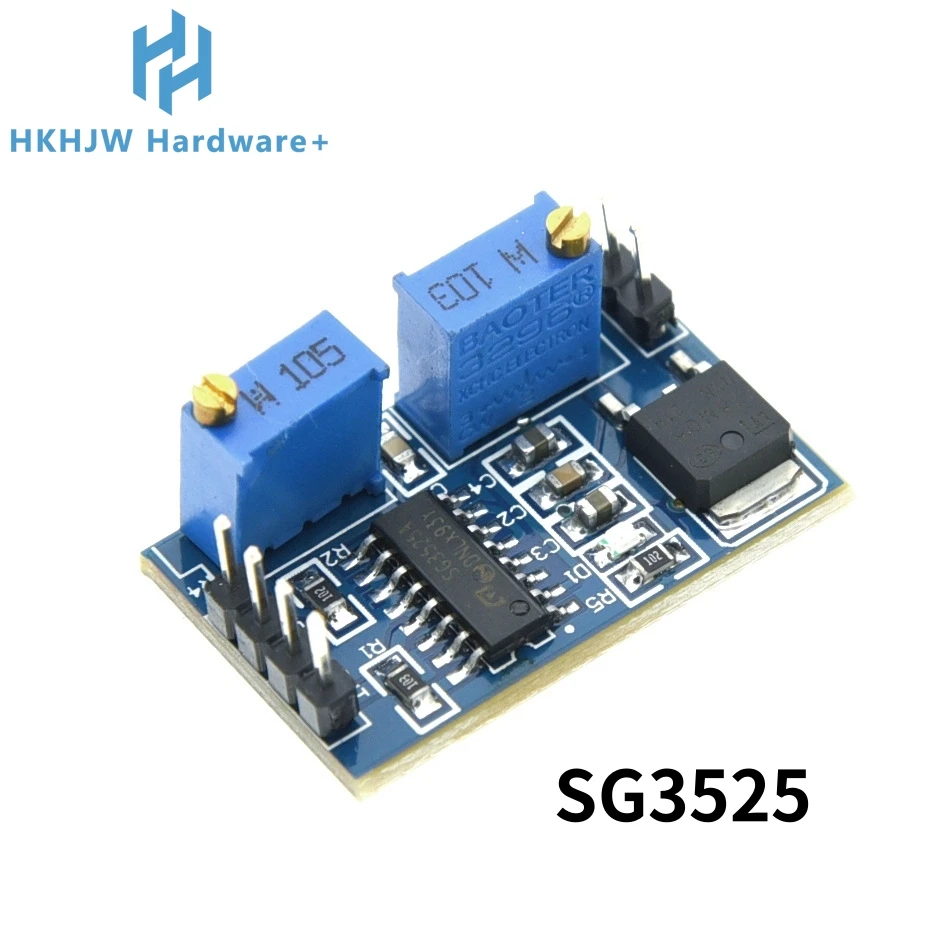

Adjustable PWM Controller Module, 5V, 500 - 100kHz, 250mA (SG3525)

TL494 SG3525 PWM Controller Module - Adjustable Frequency 5V, 500-100kHz, 250mA

🧩 The TL494 PWM Controller Module is a versatile and efficient solution for implementing pulse width modulation control in various applications. This advanced single-chip device is specifically designed to simplify the integration of power-supply control circuitry, offering a wide range of customization options to meet specific needs.

🔧 Key Features:

• Complete PWM power-control circuitry that streamlines design efforts.
• Uncommitted outputs capable of sinking or sourcing up to 200mA of current, enhancing versatility in application.
• Output control feature allowing selection between single-ended or push-pull operation for tailored performance.
• Internal circuitry designed to prevent double pulses at either output, ensuring reliable operation.
• Variable dead time adjustment for precise control over the output timing dynamics.
• Integrated regulator provides a stable 5V reference supply with a tolerance of 5%, ensuring consistent performance.
• Innovative circuit architecture allows for easy synchronization with other systems.

🛠️ Technical Specifications:

• Working Voltage: DC 7V-40V
• Adjustable Operating Frequency: 500Hz - 100kHz
• Maximum Output Current: 250mA
• Output Voltage: DC 5V
• Module Dimensions: 26 x 22.5 mm

Applications:

1. Desktop PCs
2. Microwave ovens
3. Power supplies: AC/DC, isolated, with PFC (greater than 90W)
4. Server power supply units (PSUs)
5. Solar micro-inverters
6. Washing machines (both low-end and high-end models)
7. Power supplies: AC/DC, isolated, without PFC (less than 90W)
8. Smoke detectors
9. Solar power inverters

Operating Instructions:

🪶 Connect the VCC pin to a DC supply within the range of 7V to 40V. The red indicator light will illuminate to confirm that the module is receiving power. For frequency and duty cycle adjustments:

1. Connect the OUT interface to the positive input terminal of your oscilloscope, and the GND pin to the negative terminal.
2. Use potentiometer R5 to adjust the duty cycle and R6 to modify the frequency. It is recommended to set the output frequency above 700Hz for optimal performance.
3. Once the desired frequency and duty cycle are achieved, you can connect the OUT pin directly to the positive input terminal of your driving circuit while connecting GND to its negative terminal.

🏆 This PWM Controller Module is designed for those who seek efficient and effective solutions in power management and control systems. With its extensive features and adaptability, the TL494 SG3525 module is your go-to choice for a multitude of electronic applications.
