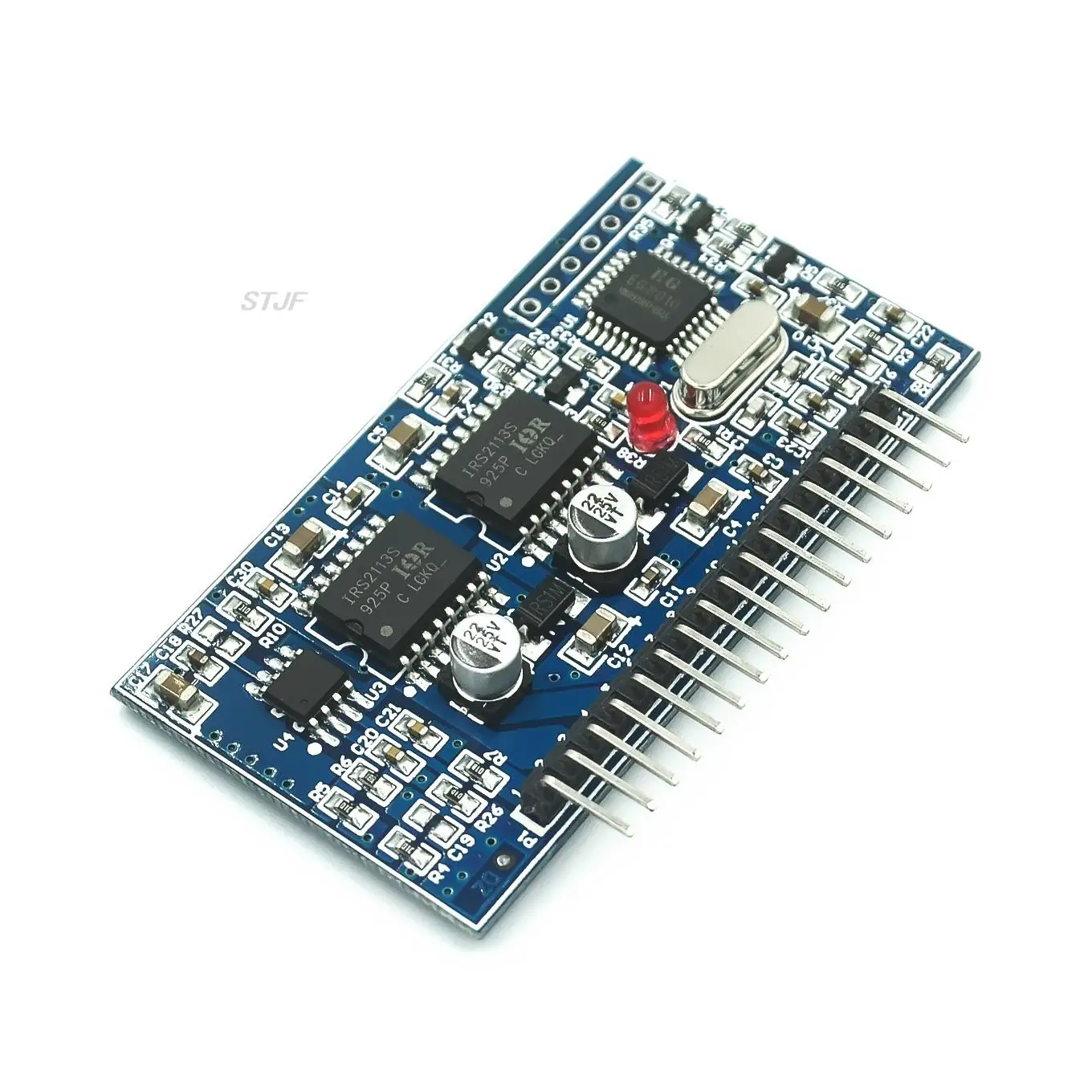

Advanced Pure Sine Wave Inverter Driver Module (Module)

💍 The EGS002 Pure Sine Wave Inverter is a sophisticated and highly versatile device, engineered to deliver reliable performance in various applications requiring high-quality power conversion. At its core is the EG8010 chip, a state-of-the-art digital controller that excels in managing pure sine wave generation. Equipped with integrated dead-time control, this chip enables seamless operation in both two-stage DC-DC-AC power transformation and single-stage DC-AC architectures using frequency transformers.

🧩 Operating at frequencies of either 50Hz or 60Hz, the inverter utilizes an external 12MHz crystal oscillator to ensure remarkable precision with minimal harmonic distortion. Designed with advanced CMOS technology, the EG8010 encompasses a range of essential features, including a SPWM sine generator, dead time control circuitry, adjustable multiplier factors, a soft start mechanism, and built-in protection features. Additionally, it supports RS232 serial communication for effortless customization and integration into larger systems.

🧩 The EGS002 boasts an array of notable specifications and functionalities:

• 5V single power supply for simplification of power input.
• Four selectable pure sine wave output frequencies: fixed frequencies of 50Hz and 60Hz, adjustable frequencies between 0-100Hz and 0-400Hz.
• Unipolar and bipolar modulation options to accommodate various application requirements.
• Extensive dead time control featuring four preset options: 300nS, 500nS, 1.0uS, and 1.5uS.
• PWM carrier frequency set at 23.4KHz for enhanced output quality.
• Real-time feedback for voltage, current, and temperature ensures operational transparency.
• Robust protection against overvoltage, undervoltage, overcurrent, and overheating enhances system reliability.
• Soft-start mode with a configurable response time of 1 second to prevent sudden load surges.
• External serial communication functionality allows for easy adjustment of output voltage, frequency, and other critical parameters.
• Compatible with a 128 x 32 LCD module (model 1602), providing visual feedback on voltage, frequency, temperature, and current.

💍 Ideal for a multitude of applications, the EGS002 can be employed in:

• Single-phase pure sine wave inverters
• Photovoltaic (PV) inverters
• Wind power inverters
• Uninterruptible Power Supply (UPS) systems
• Digital generator systems
• IF power generation
• Single-phase motor speed controllers
• Sine wave dimmers and regulators
• Sine wave generators

💍 Note: When utilizing the LCD, it is essential to connect the EGS002 driver board and the LCD via shielded cable. This precaution will help mitigate interference from the high-voltage and high-current environment surrounding the inverter, ensuring optimal operation and reliability.
