Advanced LAN Cable Continuity Tester for Twisted Pair Connections (White and Green)

LAN Network Cable Tester: The Essential Tool for Networking Professionals

🏆 Introducing the LAN Network Cable Tester, a vital instrument designed to ensure the integrity and reliability of your networking cables. This versatile tool is perfect for testing RJ45, RJ11, and RJ12 connections, making it suitable for CAT5, CAT6, and CAT7 twisted pair cables. Whether you're in a professional setting or a DIY enthusiast, this tester provides accurate continuity tests to guarantee optimal performance.

🧩 Functionality and Ease of Use

⚡ With a user-friendly interface, this cable tester allows you to quickly and efficiently check the status of your network cables. Simply power on the device and connect your cables to both the main tester and the remote tester. Once connected, the main tester's lights will sequentially illuminate from 1 to G, indicating a successful connection across all wires:

• Main Tester: 1-2-3-4-5-6-7-8-G
• Remote Tester for RJ45: 1-2-3-4-5-6-7-8-G
• Remote Tester for RJ11: 1-2-3-4-5-6

Diagnosing Connection Issues

💍 The LAN Network Cable Tester not only verifies that cables are operational but also helps diagnose potential issues effectively. Here are some scenarios you might encounter during testing:

• Open Circuit: If a cable, such as cable NO.3, is disconnected, the corresponding lights on both the main and remote testers will remain off.
• Miswiring: In the case of swapped connections (e.g., if NO.2 and NO.4 are reversed), you will see an irregular light sequence, allowing you to identify the problem.
• Short Circuit: If a short occurs, the remote tester’s corresponding lights will not illuminate, signaling a connection issue that needs immediate attention.

💍 Testing Versatility

🧩 This tester is not limited to standard cables; it is equipped to handle various networking setups. When testing patch panels or wall outlets, simply connect matching RJ45 cables for a thorough examination. Additionally, for coaxial connections, BNC cables will activate lights when functioning correctly.

⚡ Design and Portability

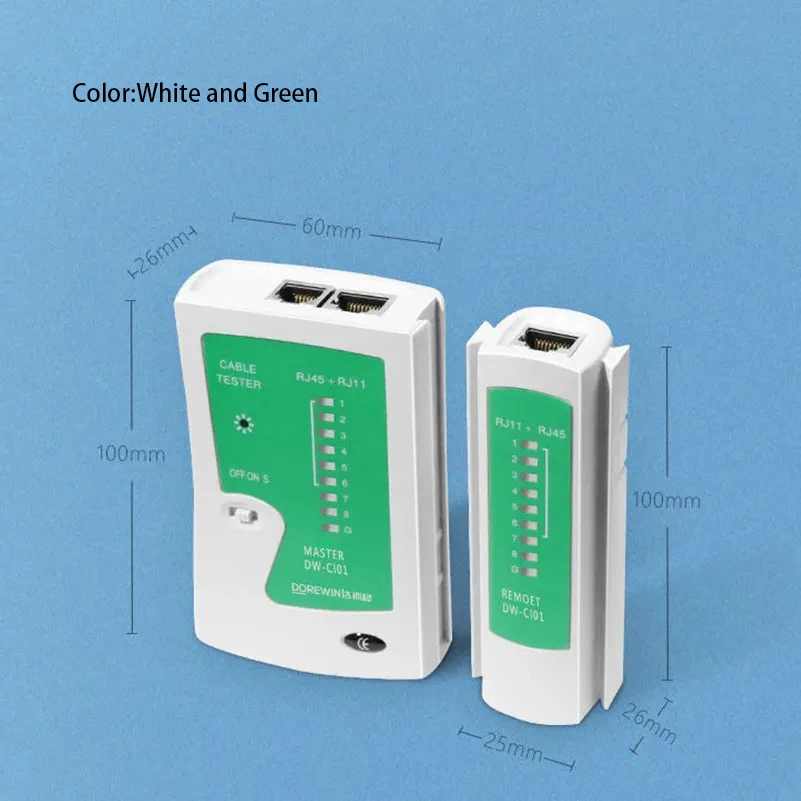

🕊️ The LAN Network Cable Tester is compact and lightweight, with the main tester measuring 105*67*28mm and weighing just 110g, while the remote tester is 105*38*28mm and weighs 47g. Its white casing adds a professional aesthetic, making it suitable for both field and office use.

Power Source

💍 This device operates on a 9V battery, which is not included. To maintain optimal performance, we recommend replacing the battery when you notice dimming lights during testing.

Includes:

• 1 x LAN Cable Tester (Battery not included)
• 1 x User Manual

📎 Upgrade your networking toolkit with the LAN Network Cable Tester and ensure your connections are always reliable and efficient!
