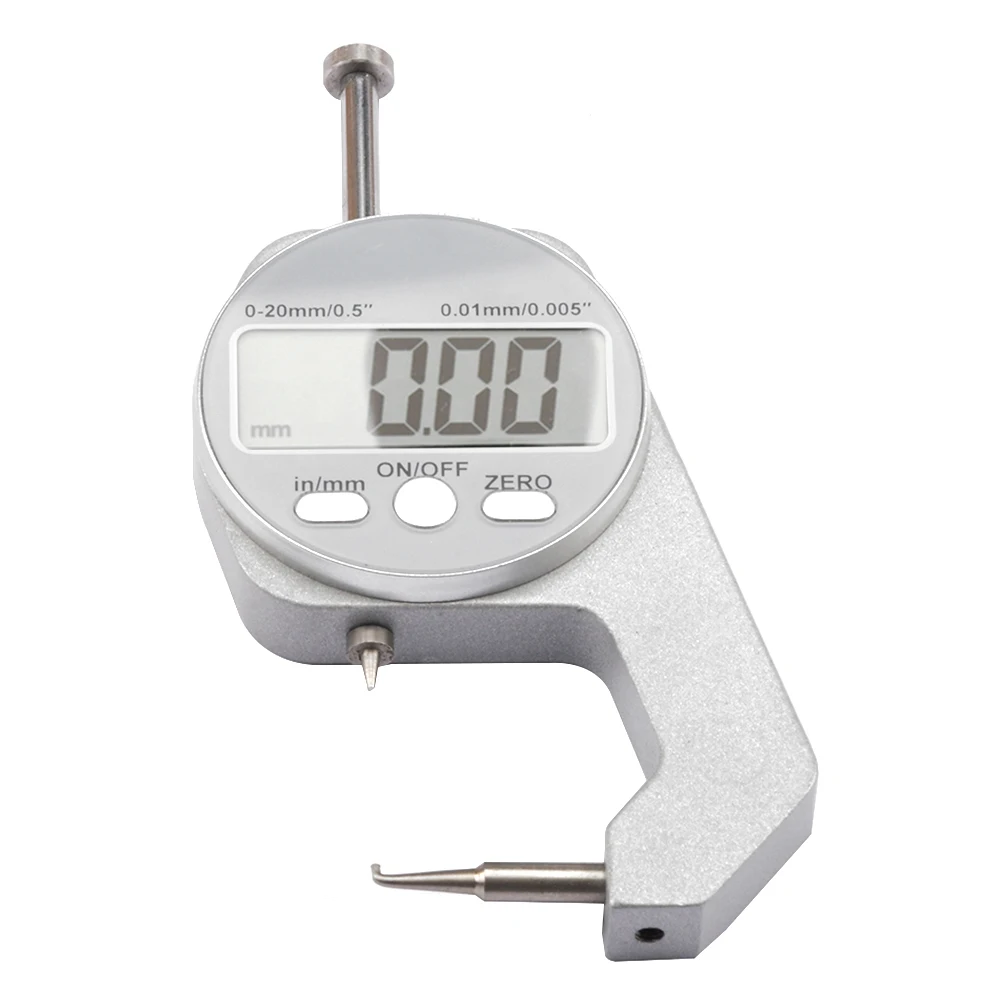

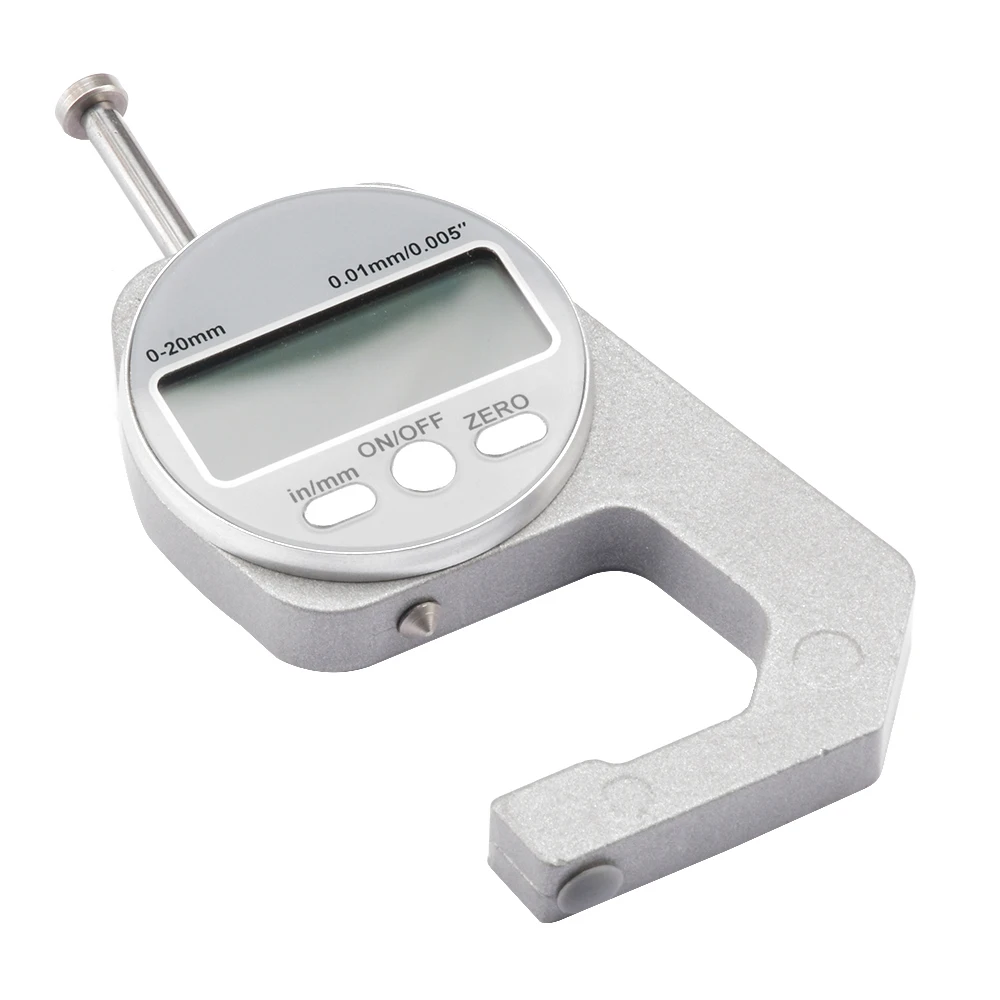

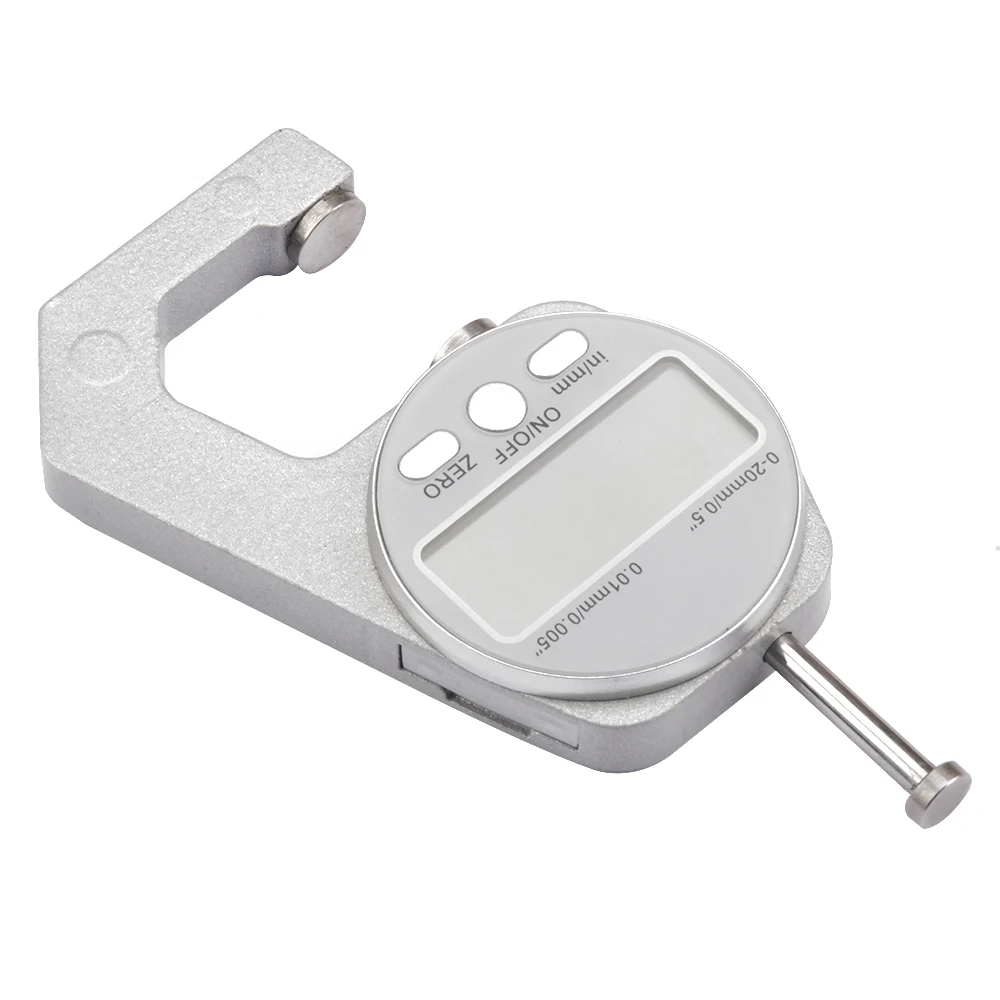

Product Overview:
🛡️ The Digital Display Thickness Gauge is a high-precision measuring instrument designed to provide accurate wall thickness measurements of various materials. Constructed from durable zinc alloy, this electronic LCD micrometer combines advanced technology with user-friendly features, making it an essential tool for professionals in multiple fields including manufacturing, construction, and quality control.
🔧 Key Features:
- Large Digital Display: The expansive screen ensures easy readability with bold numbers visible at a glance, facilitating quick data analysis.
- Sturdy Design: The gauge features an aluminum alloy fixed grid seat that includes a spring hook, providing a stable and secure base for consistent measurements.
- Precision Probes: Equipped with finely ground alloy probes, the gauge enhances measurement accuracy across a range of materials.
- Versatile Applications: This tool is suitable for measuring thickness on various surfaces, including metal, leather, paper, film, PVC pipes, and more.
- Energy Efficient: The low power consumption design ensures long-lasting performance, complemented by an automatic power-off function to conserve battery life.
- Convenient Reset Function: Easily reset the measurement to zero at any position for differential measurements.
- Measurement Conversion: Switch effortlessly between metric and imperial units with the touch of a button.
🔩 Specifications:
- Product Name: Digital Percentage Thickness Gauge
- Model Options: Available in two specifications: 10mm and 20mm
- Measurement Range: 0-10mm / 0-20mm (option based)
- Working Temperature: Operates optimally within 0 to 40℃
- Storage Temperature: Safe for storage between -20 to 70℃
- Humidity Control: Designed for environments with relative humidity up to 80%

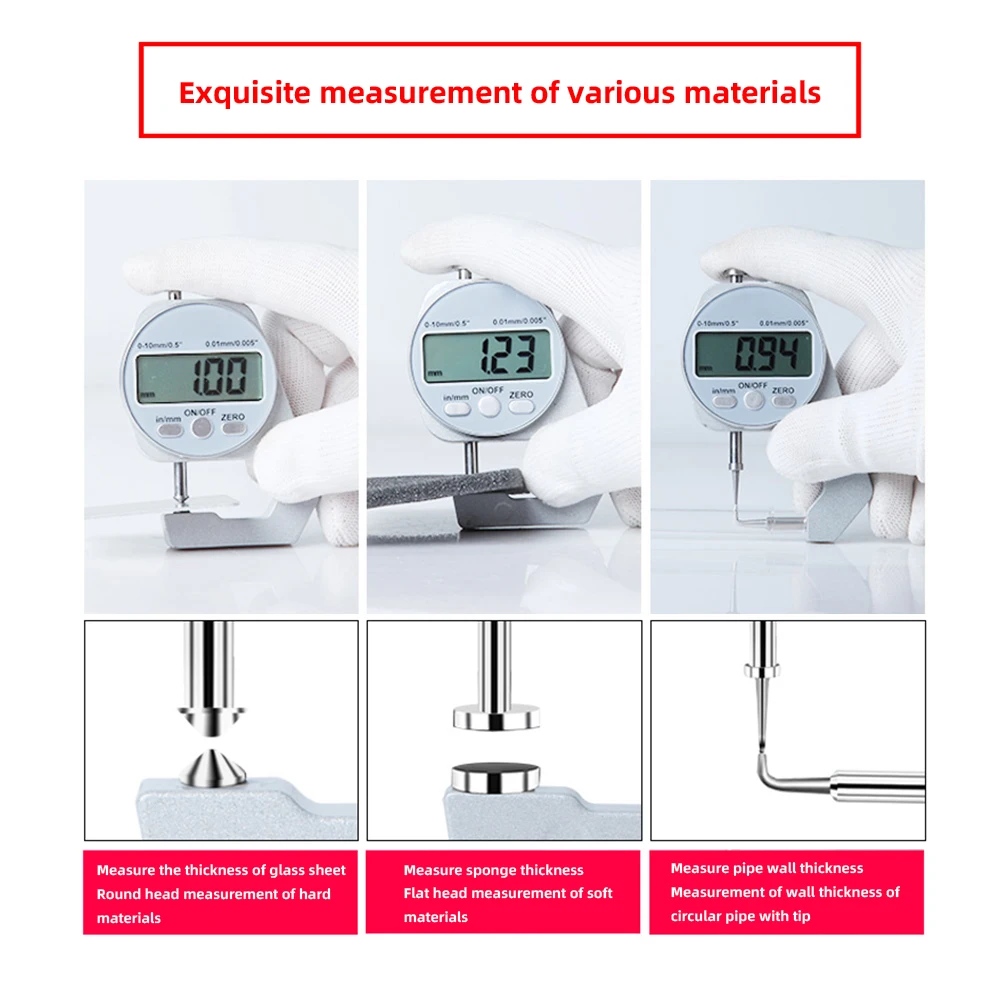

- Probe Styles: Choose from flat head, pointed, or elbow probes as per application needs
- Battery: Powered by a built-in 3V CR2032 button battery

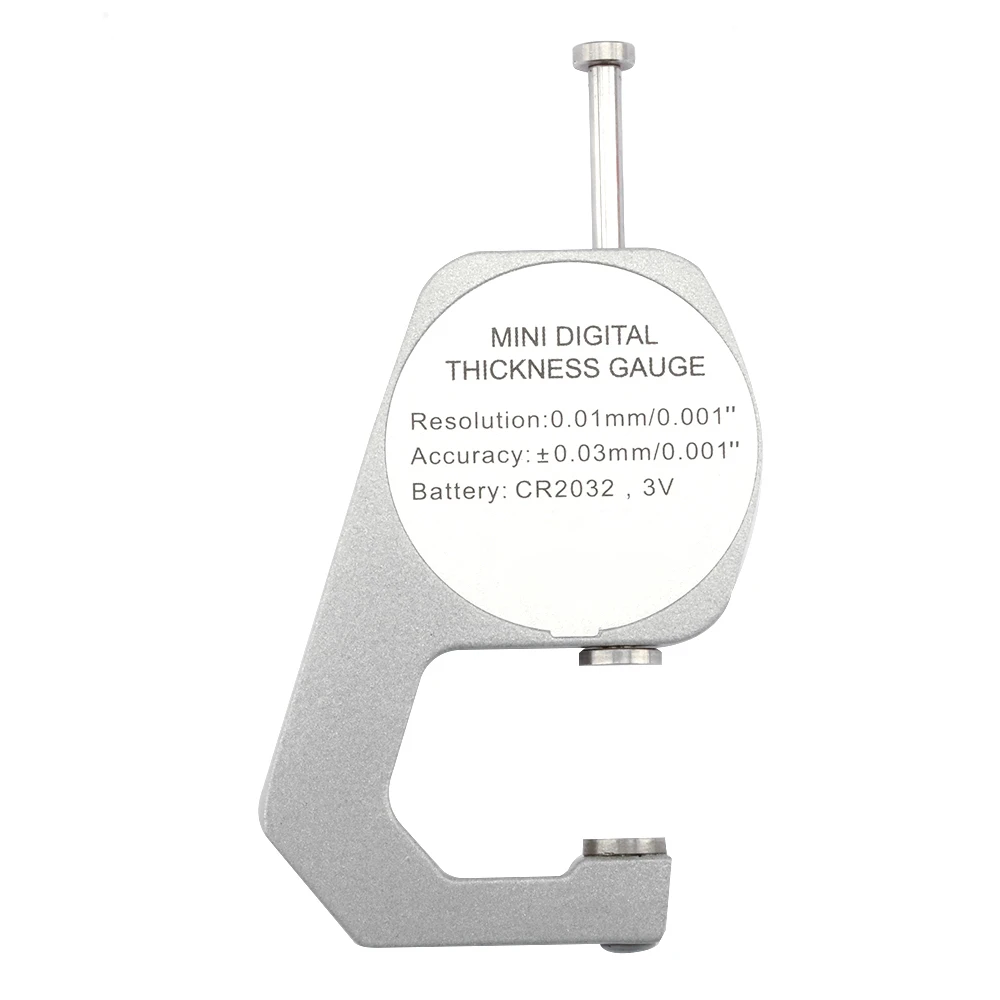

- Measurement Accuracy: Achieves a precision of ±0.03mm / 0.001
- Resolution: Provides measurements with a resolution of 0.01mm / 0.001
🧩 Usage Instructions:
- Start by pressing the measuring button to separate the measuring heads, ensuring they are clean.
- Activate the device by pressing the power button and verify that the display is functioning correctly.
- Close the measuring heads; if the display does not read zero, press the zero key to reset.
- To measure, adjust the heads appropriately, place the workpiece on the lower head, then release to let the upper head press against it and read the measurement.
- Change the display format by using the mm/in key for metric or imperial units as needed.
🔘 Important Notes:
- Handle the thickness gauge with care to maintain accuracy; avoid dropping or striking the tool.
- Keep the gauge clean and dry to prevent damage from liquids.
- Avoid applying voltage to any part of the gauge and refrain from using sharp objects to prevent circuit damage.
- Remove the battery if the device won't be used for an extended period to ensure longevity.

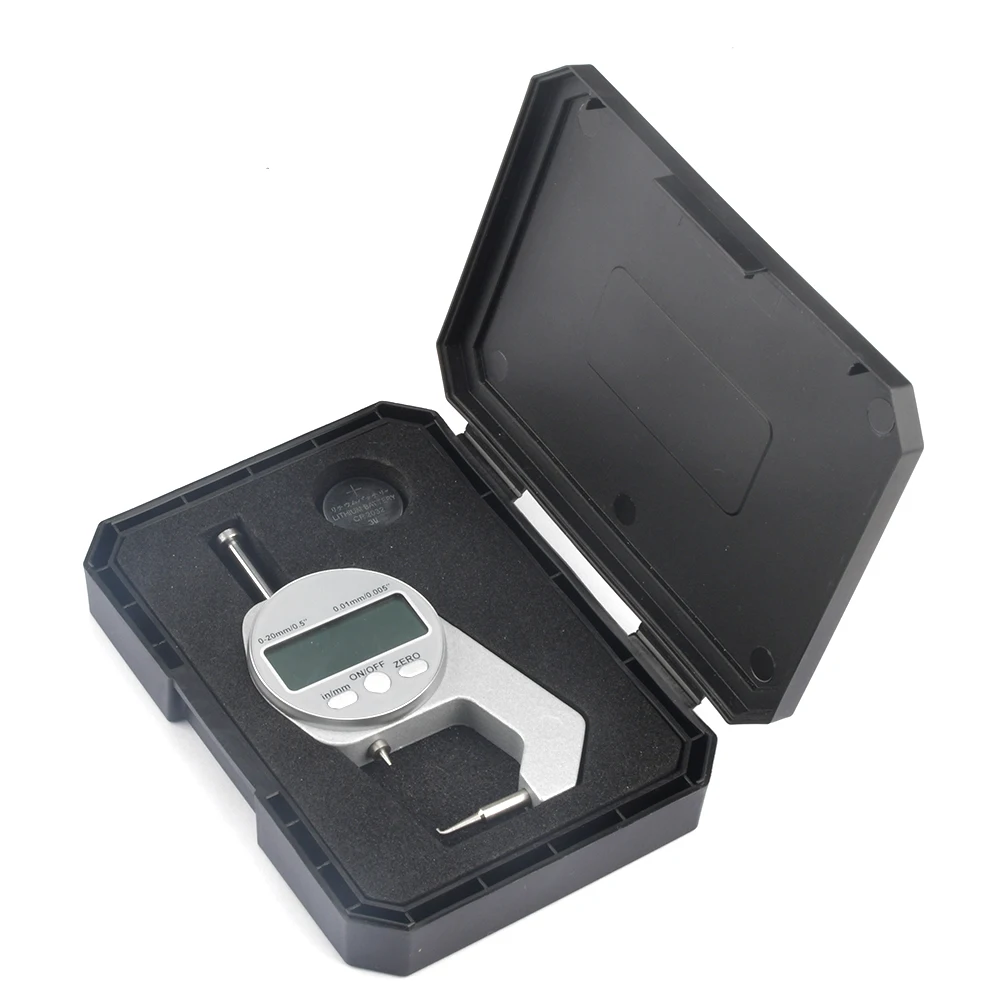

💥 Package Includes:
- Digital Percentage Thickness Gauge x1
- User Manual x1
