Enhanced 2.4GHz ExpressLRS Nano Receiver (RM ELRS RP2 - 2.4 1P)

Introducing the RadioMaster RP1 and RP2 Nano Receivers

📦 The RadioMaster RP series is meticulously engineered to provide pilots with an unparalleled flying experience through a fusion of compact design, user-friendly features, and exceptional range. Utilizing the innovative ExpressLRS 2.4GHz open-source firmware, these nano receivers embody the cutting-edge technology that today's enthusiasts demand.

🛠️ At the heart of the RP series lies the powerful ESP8285 MCU paired with the SX1280IMLTRT RF Chip, which work seamlessly together to offer both Lora and FLRC 2.4GHz RF links. This combination ensures not only remarkable range but also astonishingly low latency, enhancing the responsiveness of your controls and enabling more precise maneuvers.

🔘 One of the standout features of the RP receivers is their built-in Wi-Fi capability, allowing for effortless firmware updates directly on your craft without needing to disconnect or remove the receiver. Binding to your transmitter has been revolutionized with the introduction of a bind phrase, eliminating the hassle of binding plugs and the complexities of traditional button pressing, making setup quicker and more straightforward.

Key Enhancements in the RP2

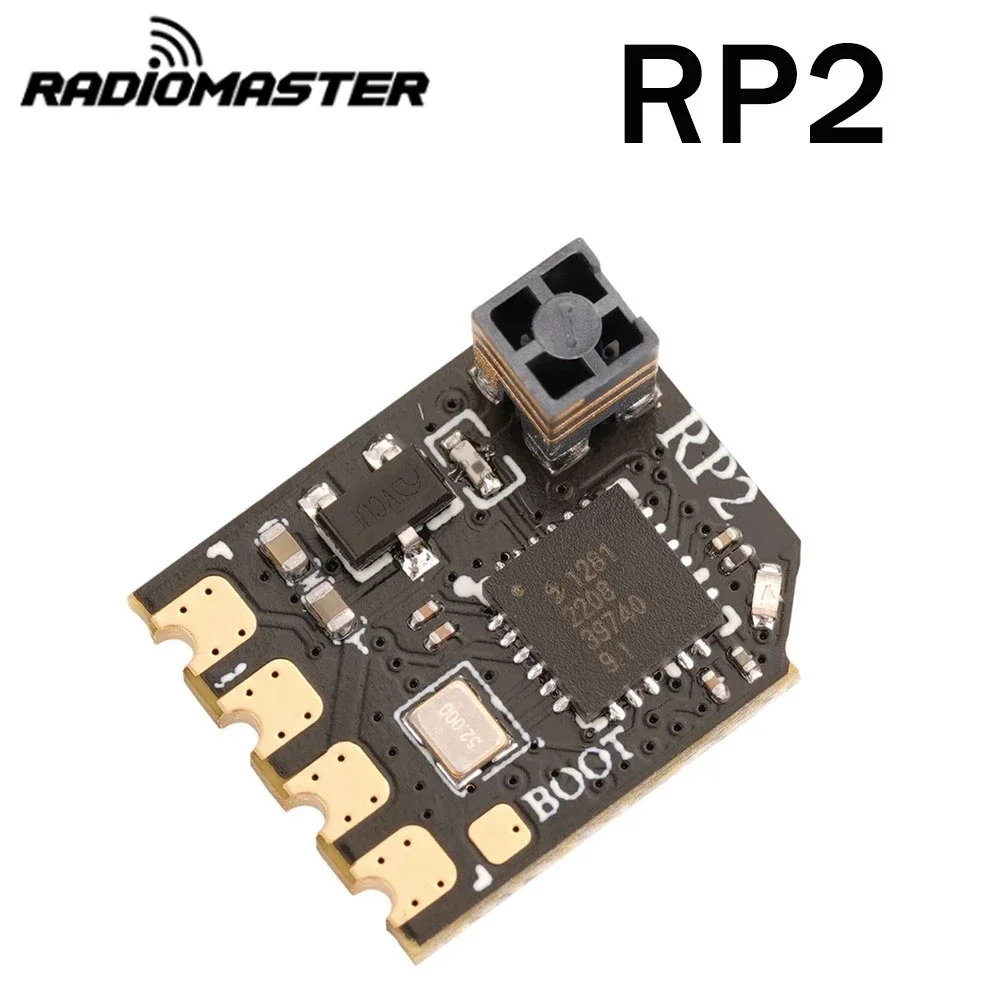

🔍 The RP2 showcases an upgraded PCB design that promotes improved heat dissipation, ensuring optimal performance under various conditions. The solder pads have been enhanced for easier connectivity, allowing for a simplified installation process. Furthermore, the addition of an LED on the top side of the PCB provides clear status indication, enhancing user experience.

Specifications Overview:

RP2 Nano Receiver:

• Type: ISM
• ESP8285 MCU
• SX1280IMLTRT RF Module
• Antenna: On Board SMT Antenna
• Frequency Range: 2400 MHz to 2480 MHz
• Max Receive Refresh Rate: 500Hz / F1000Hz
• Min Receiver Refresh Rate: 25Hz
• Working Voltage: 5V
• Weight: 0.55g
• Dimensions: 13mm x 11mm x 7mm

RP1 Nano Receiver:

• Type: ISM
• ESP8285 MCU
• SX1280IMLTRT RF Module
• Antenna: 65mm 2.4GHz T Antenna
• Frequency Range: 2400 MHz to 2480 MHz
• Max Receive Refresh Rate: 500Hz / F1000Hz
• Min Receiver Refresh Rate: 25Hz
• Working Voltage: 5V
• Weight: 0.53g (without antenna)
• Dimensions: 13mm x 11mm x 3mm

Final Thoughts:

📦 The RadioMaster RP series, with its blend of advanced technology and practical features, serves as an excellent choice for both novice and experienced pilots. Its compact size does not compromise on performance, making it a reliable companion for all your aerial adventures.
