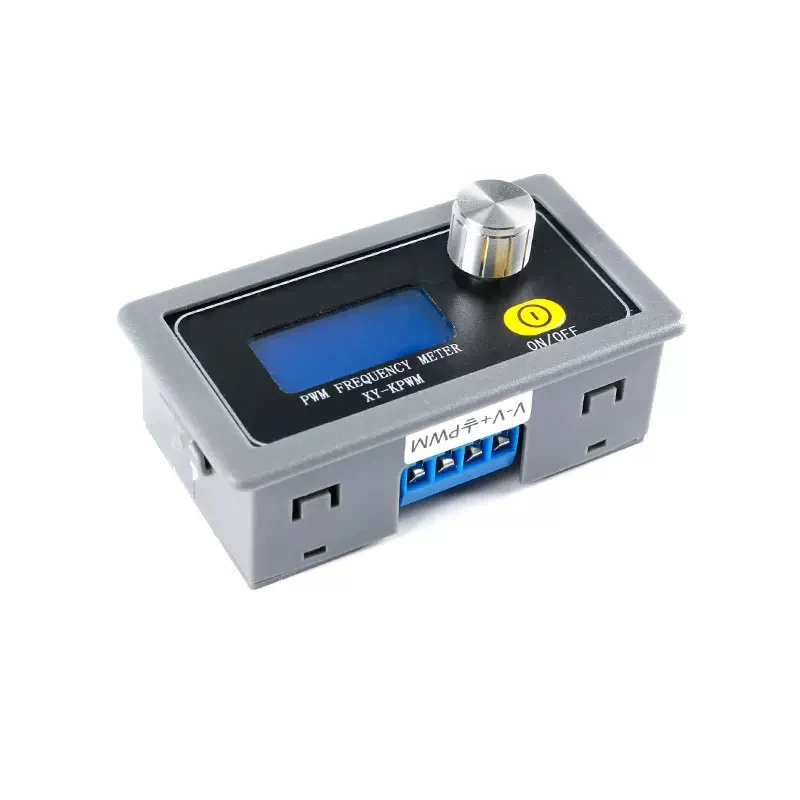

Introducing the XY-PWM1 Dual System PWM Pulse Frequency Signal Generator
🛠️ The XY-PWM1 module is an advanced pulse frequency signal generator designed for versatility and precision in various applications. With its dual operating modes, the module can effortlessly switch between normal and good modes, catering to a variety of needs. Its exceptional duty cycle adjustment ranges from a minuscule 0.1% up to a maximum of 100%, allowing for fine-tuning of signal output.
🔧 Key Features:
- Dual Operating Mode: Switch between Normal and Fine modes for flexible duty cycle control.
- Clear LCD Display: The module features a high-resolution LCD that clearly displays both frequency and duty cycle settings, making it easy to monitor and adjust.
- User-Friendly Interface: Adjustments are made effortlessly using an encoder potentiometer, ensuring intuitive operation without complicated procedures. User settings are automatically saved when the device is turned off.
- Lock Function: Designed with a locking feature to prevent accidental adjustments during operation, providing users with peace of mind.
- Configurable Duty Cycle Limits: Set custom upper and lower limits for duty cycles to fit specific project requirements.
- Wide Frequency Range: Operates within a frequency range of 1 Hz to 150 kHz, ensuring robust performance across various applications.
- High Accuracy: Maintains a frequency precision of about ±2% across all ranges, ensuring reliable output for critical tasks.
- Serial Communication: Supports TTL level communication for integration with microcontrollers, enabling advanced control capabilities.
🔍 Operational Modes:
🧩 The XY-PWM1 can function in two distinctive modes:
- Normal Mode: Frequency range from 1 Hz to 150 kHz and a duty cycle that can be set from 0% to 100%.
- Fine Mode: Specifically designed for low-frequency applications, ranging from 1 Hz to 15 kHz with a precise duty ratio of 0.0% to 0.1%.
🛠️ Specifications:
- Working Voltage: 3.3 V to 30 V.
- Output Current: 5 mA to 30 mA, accommodating various loads.
- Output Amplitude: PWM output amplitude directly corresponds to the power supply voltage.
- Operating Temperature: Suitable for environments ranging from -20°C to +70°C.
- Weight: A lightweight design at 42 grams for easy integration into projects.
🕊️ Applications:
- Development of square wave signal experiments.
- Motor drive control through square wave signal generation.
- Generating adjustable pulse signals for microcontroller operations.
- Control circuits for PWM applications like dimming and speed regulation.
🕊️ In summary, the XY-PWM1 Pulse Frequency Signal Generator is a powerful tool for engineers and hobbyists alike, providing precise control over PWM signals in a lightweight, easy-to-use package.
