🔋 15A MPPT Solar Charge Controller with Synchronous Rectification - Adjustable Boost Charging Module for Solar Power Systems
🏆 This 15A MPPT (Maximum Power Point Tracking) solar charge controller is designed to optimize the performance of solar power systems. Utilizing advanced synchronous rectification technology, it enhances efficiency and delivers robust performance for all your solar energy needs.
🔧 Key Features and Specifications:

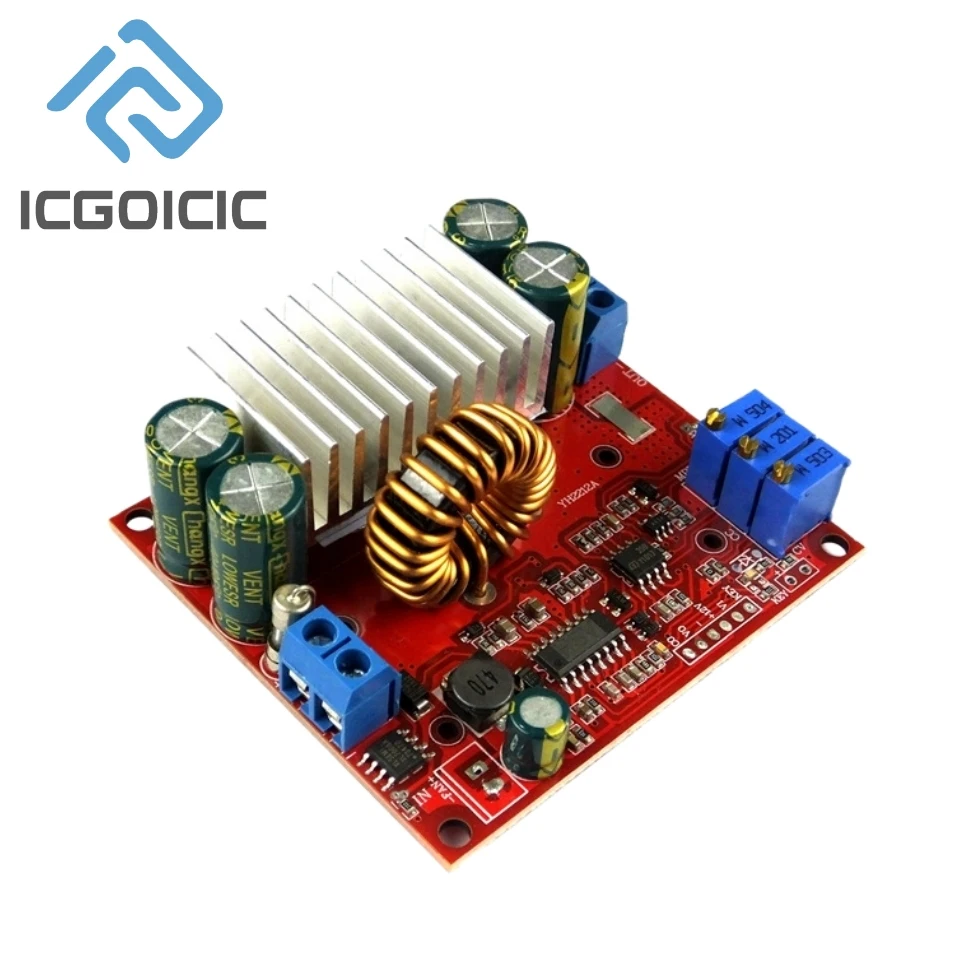

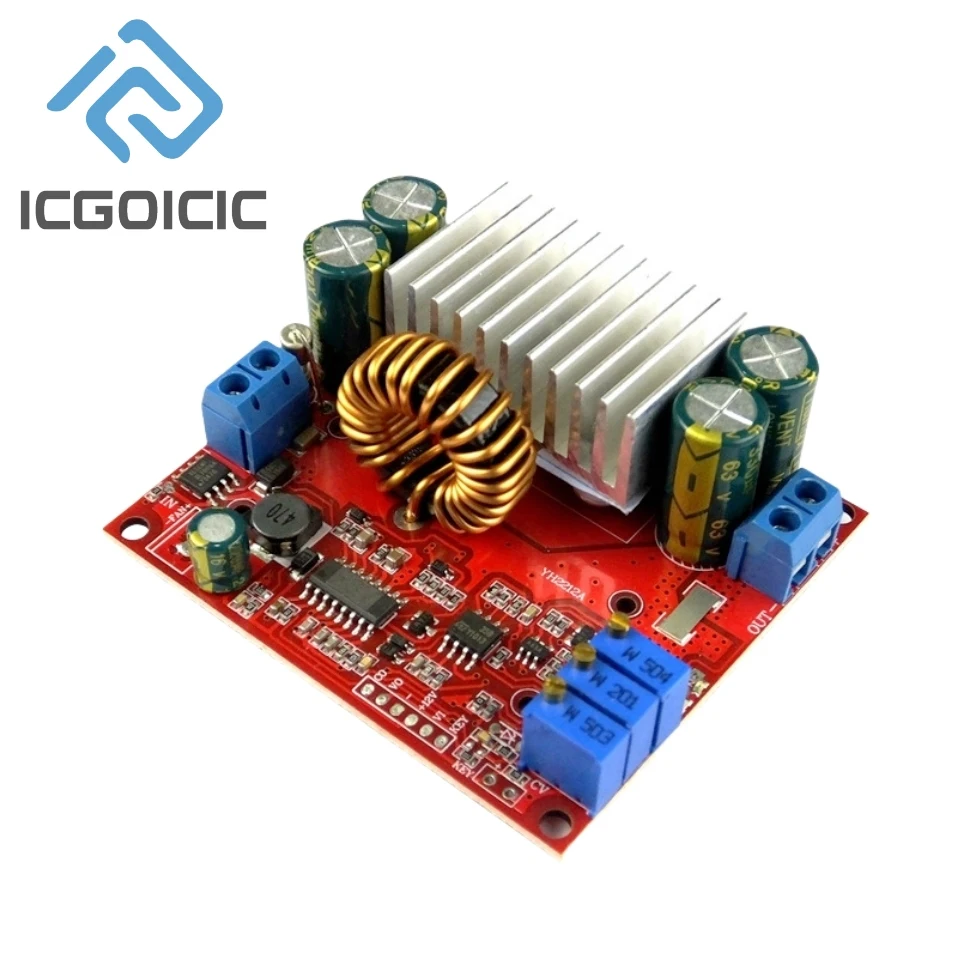

- Module Type: Non-isolated synchronous rectification boost module, enabling efficient voltage conversion.
- Input Voltage Range: Accepts DC input from 6V to 50V, making it adaptable to various solar panel outputs.
- Output Voltage Range: Produces a DC output from 6V up to 60V, providing flexibility for different applications.
- Input Current Capacity: Rated at a maximum of 15A to accommodate high-demand solar power systems.
- Adjustable Output Current: Adjustable from 0.1A to 10A, depending on the output voltage, ensuring optimal usage of electricity.
- MPPT Voltage Setting Range: Features a voltage setting range of 9V to 50V that can effectively prevent input under-voltage.
- Operating Frequency: Maintains a steady frequency of 120KHz for consistent performance.
- Protection Features: Includes a 15A fuse for overcurrent protection, although additional protective measures are recommended for more complex setups.
- Charging Indicator Lights: Equipped with LED indicators; the red light indicates charging, while the green light signals a full charge.
- Conversion Efficiency: Achieves remarkable conversion efficiency of up to 96%, heavily influenced by the input-output voltage differential and output current size.
- Operating Temperature Range: Designed to perform optimally between -20°C and 85°C, suitable for varied environmental conditions.
- Compact Design: Measures 65mm x 58mm x 25mm, making it easy to integrate into different systems without occupying excessive space.

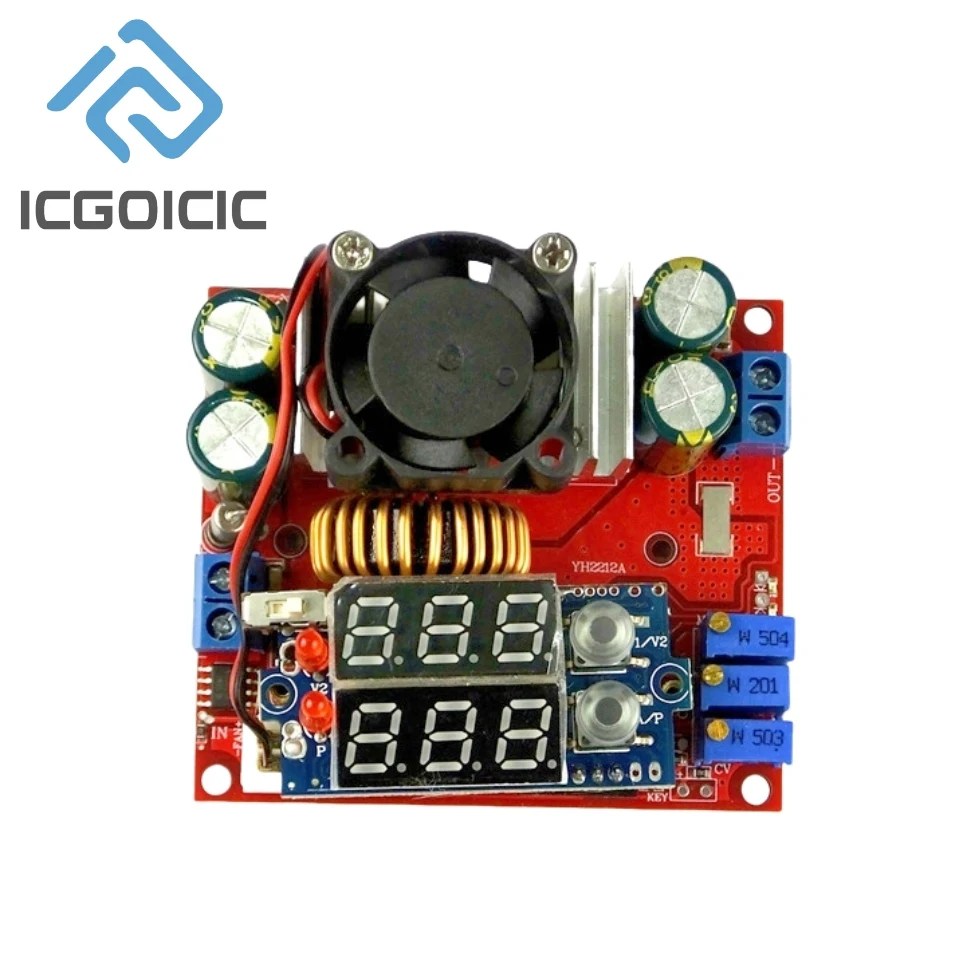

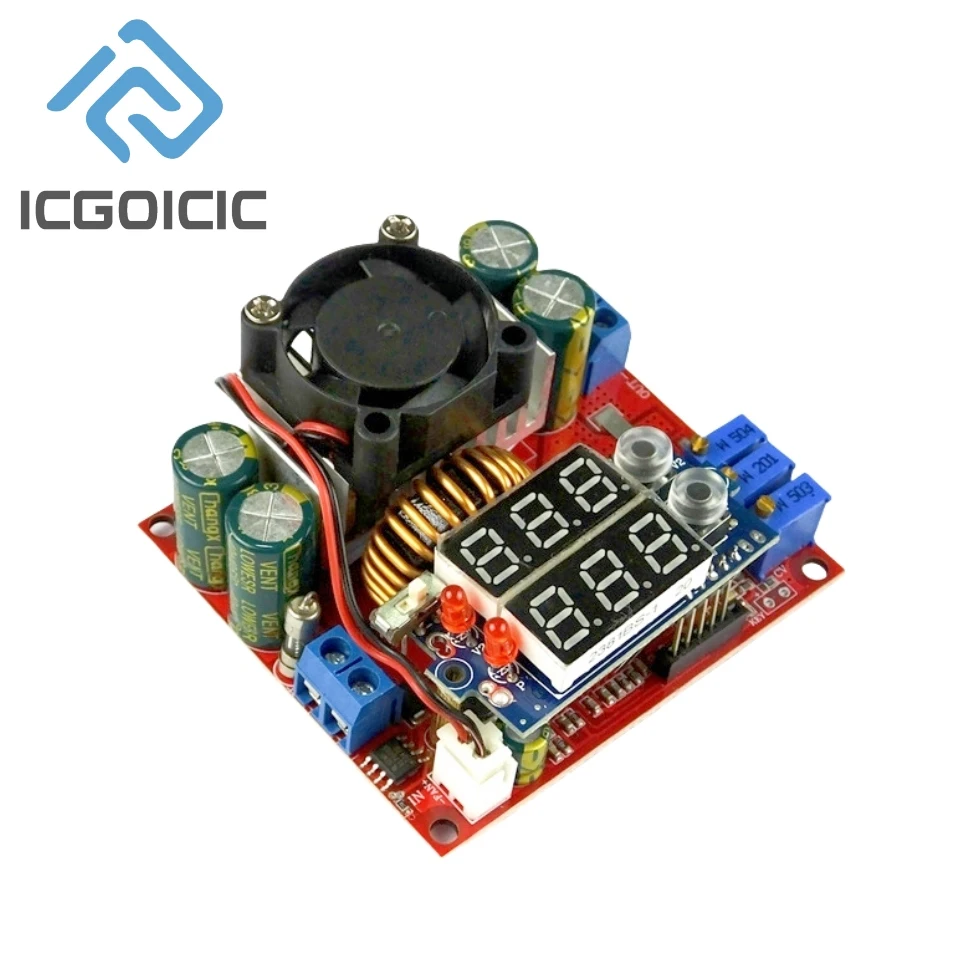

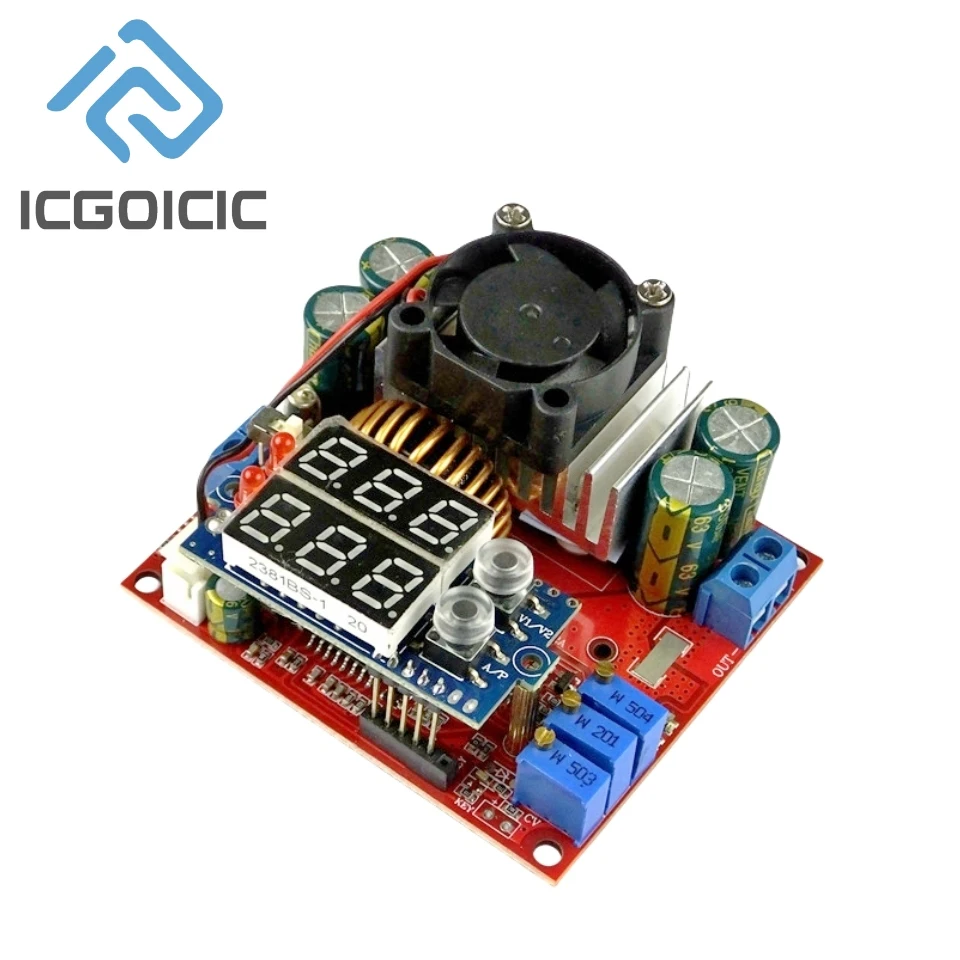

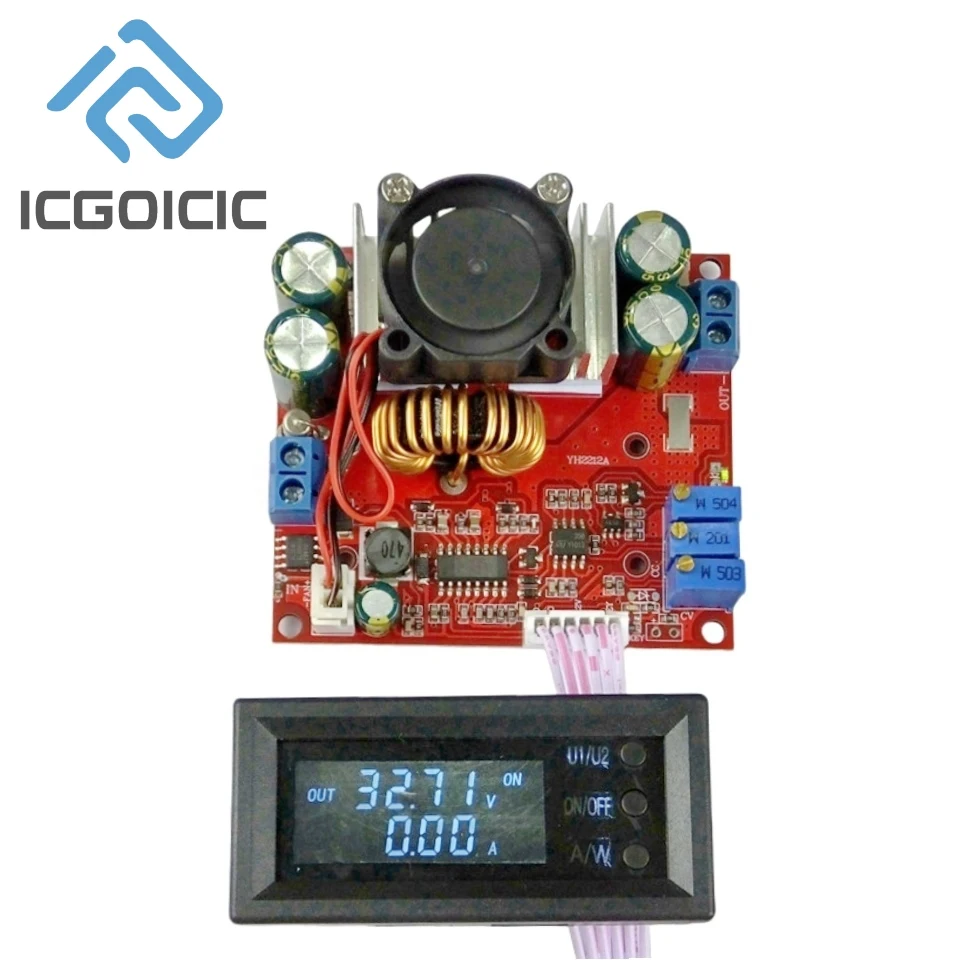

- Weight Variants: Standard version weighs 58g, with variations for fan-equipped models ranging up to 88g, depending on added features like digital or LCD displays.
📦 Important Notes:
- Ensure proper cooling measures are employed to avoid overheating, especially under high load.
- The module features a low-end current detection; for the highest safety, avoid short-circuiting input and output terminals directly.
- When powering sensitive or valuable equipment, verify voltage settings and consider incorporating an overvoltage protection module to enhance safety and prevent damage.
🧩 This MPPT solar charge controller is an essential component for any solar power enthusiast, providing the efficiency and reliability necessary to harness solar energy effectively.
