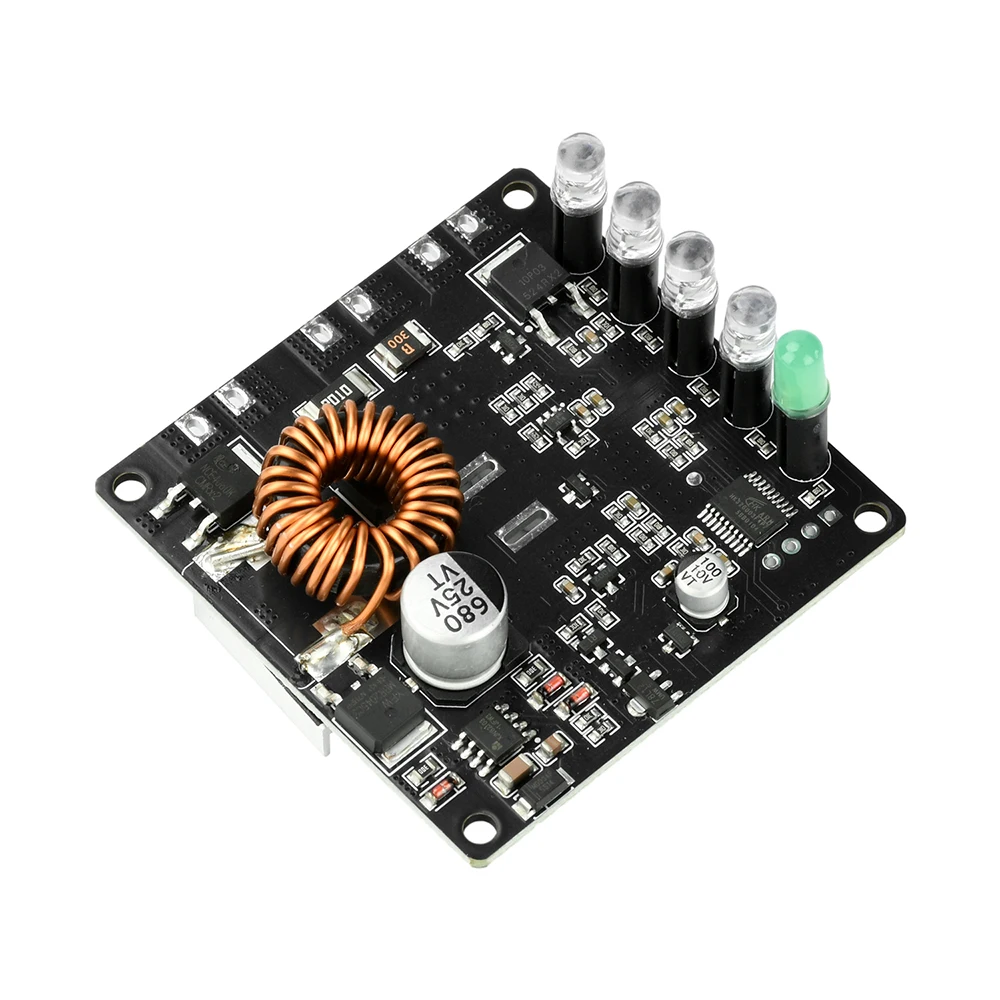

MPPT Solar Charge Control Module for Small Energy Storage Systems (80W)

💍 Introducing the 60W 80W MPPT Solar Charge Control Module, a cutting-edge solution designed for efficient energy management in small-scale solar applications. This module serves as an essential component for monitoring and controlling 3S lithium battery power supplies, ensuring optimal energy storage and performance.

🔧 Key Features:

⚙️ 1. Advanced MPPT Technology: The module intelligently identifies the maximum power point voltage from solar panels, dramatically enhancing solar energy conversion efficiency, so you get the most out of your photovoltaic setup.

🧩 2. Comprehensive Safety Mechanisms: Equipped with state-of-the-art protection features, including overcharge and overdischarge safeguards, short-circuit prevention, and overcurrent and overvoltage protection, this module ensures the safety and longevity of your equipment.

🧩 3. Reverse Current Protection: The design includes safeguards against reverse current and reverse connection, which effectively prevents the battery from discharging back into the solar panels, making your setup reliable and efficient.

💍 4. Wide Operating Temperature Range: With an operating temperature range of -40 to 85℃, this controller is built to perform under extreme conditions, while also featuring rapid cold-start capabilities to ensure immediate function in chilly environments.

🔋 5. Stable and Efficient Charging: The controller delivers a stable charging voltage with minimal ripple, which contributes to extending the lifespan of your batteries, optimizing your energy storage for the long haul.

Technical Specifications:

🔋 - Charging Voltage: 12.6V ± 0.1V

- Discharge Cut-off Voltage: 9.2V ± 0.1V

🌿 - Over-Discharge Recovery Voltage: 10.5V ± 0.1V

🔋 - Maximum Charging Current: 3.5A/5A

🛡️ - Load Overcurrent Protection: 3A

- Standby Current: <50μA

- Module Operating Current: <15mA

- Applicable PV Power: 60W/80W

- Applicable PV Voltage: 15~24V

- Input Withstand Voltage: 30V (1S)

📎 What’s Included:

📦 Your package will include the 60W 80W MPPT Solar Charge Control Module, ready for installation and energy management.

🧩 Designed for efficiency and reliability, this solar charge control module is an essential addition to your renewable energy projects, ensuring safe and optimized energy storage.
