Touch Sensor Switch Module Circuit Board for TikTok PCB Sensing Chip
🔴 Elevate your DIY projects with our innovative Touch Sensor Switch Module, specifically engineered for creating stunning epoxy river tables. This user-friendly device includes an integrated sensing chip and adaptable LED strips, allowing you to harness the magic of touch-sensitive technology.
🔧 Key Features:
- Strong Penetration: The touch sensor boasts an impressive ability to penetrate materials up to 2cm thick, making it compatible with wood and various non-metal objects.
- High Convenience: Designed for ease of use, this module eliminates the need for complex coil management, making it the perfect choice for both seasoned builders and novices alike.
- DIY Friendly: The module accommodates an external coil interface, allowing you to customize and enhance the induction surface and sensitivity for larger projects or unique designs.
- Time Efficient: Effortlessly link multiple modules in series without cumbersome set-up processes, saving time and effort on your projects.
- No Coil Required: With the sensing area conveniently located on the back of the board, there’s no need to attach a coil, streamlining the installation process.
🔩 Product Specifications:
- Item Name: Hand Sweep Sensor Switch Module for River Table
- Input Voltage: Compatible with DC5V, 12V, or 24V (Max 2A)
- Power Load: 5V (10W), 12V (24W), 24V (48W) – Output voltage equals input voltage
- Sensing Distance: 0-3cm
- Switch Type: Activate with hand touch—light gradually brightens; release to fade.
- Delay: 1 second for smooth transitions
- Material: Durable PCB

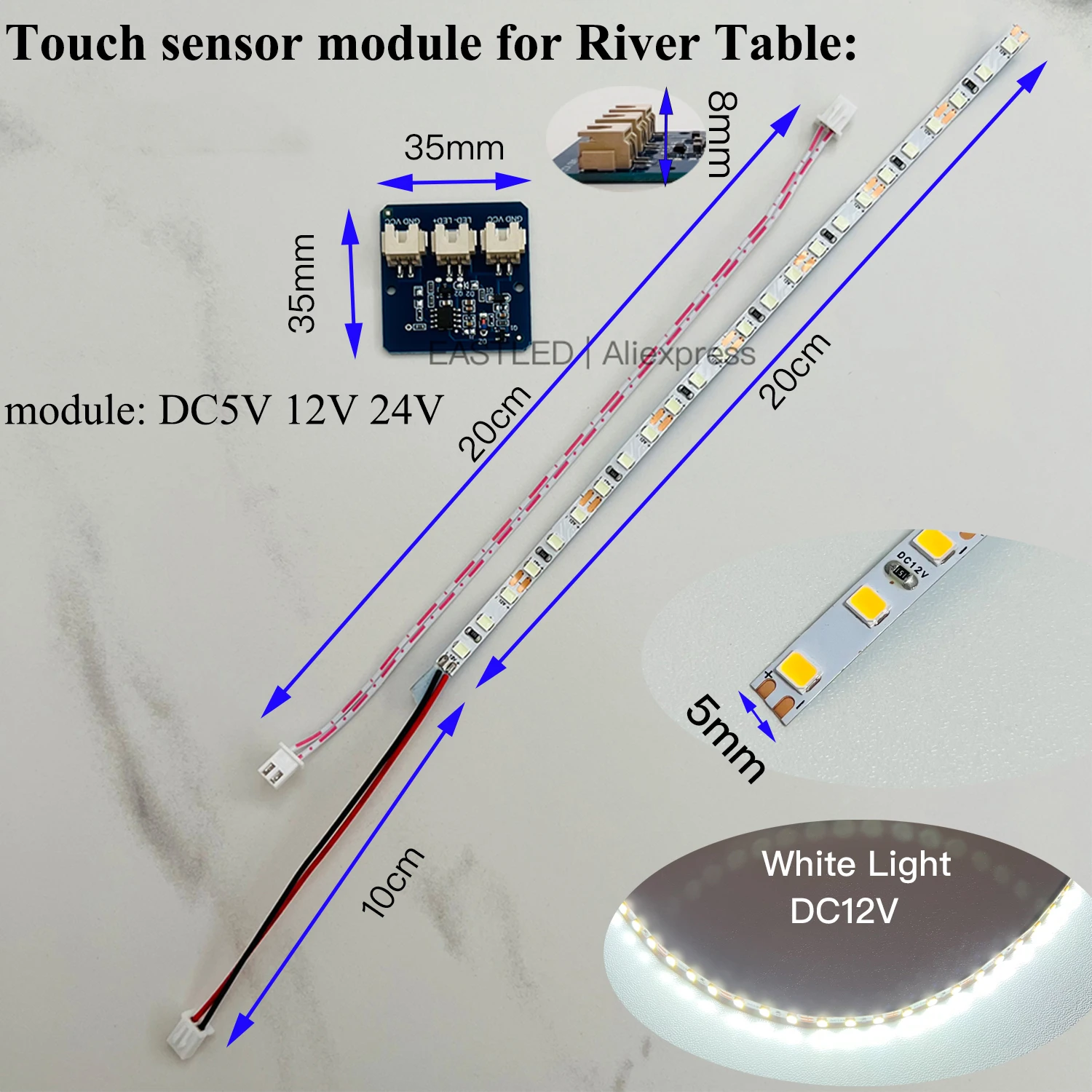

- Dimensions: 35mm x 35mm x 8mm (1.38in x 1.38in x 0.31in)
🛡️ LED Strip Lights Details:
- Specially Designed For: Enhancing river table aesthetics via the sensor.
- Operating Voltage: 12VDC
- Dimensions: 5mm width x 20cm length (0.2in x 7.87in)
- Available Colors: Ice Blue, Blue, White, Warm, Green
- Features: Back adhesive for easy sticking to surfaces.
🎨 Installation Kit Includes:
- 1 Sensor Module + connecting cables
- Options for LED strips include white, warm, ice blue, blue, or green (based on your choice)
⚡ Important Notes:
- This sensor is designed for the on/off control of LED lights only and cannot be used with inductive loads such as motors or relays.
- The induction area is located on the back of the board; ensure correct placement for optimal functionality.
- Input voltage must match the connected LED specifications (e.g., a 12V LED requires a 12V power supply).
- The module should be installed correctly before energizing to prevent the sensing area from activating prematurely.
- When using in environments apart from river tables, specific outcomes cannot be guaranteed.
- The sensing object must contain a certain weight, particularly when incorporating liquids like water or drinks.
💍 Transform Your River Table: With our touch sensor technology, creating a smart river table has never been easier. Enjoy an effortless installation experience, even as a beginner, and bring your artistic visions to life!
