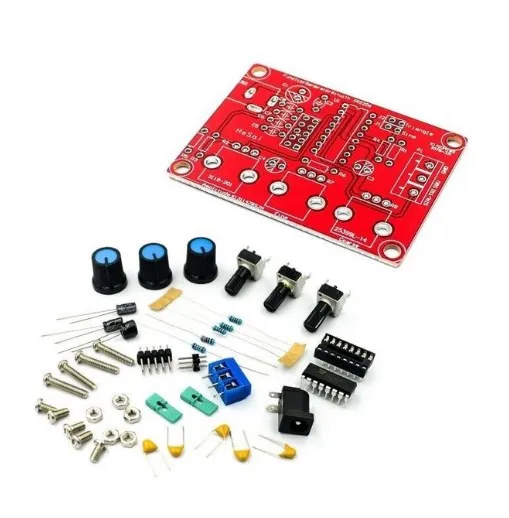

🛠️ Introducing the 1Hz - 1MHz XR2206 Function Signal Generator DIY Kit: a versatile and essential tool for electronics enthusiasts, engineers, and hobbyists alike. Designed to produce high-quality waveforms, this signal generator provides precise Sine, Triangle, and Square wave outputs, making it perfect for experimentation, testing, and various electronic applications.
🔧 Key Features:
- Voltage Supply: Operates between 9-12V DC input for optimal performance.
- Waveform Types: Capable of generating Square, Sine, and Triangle waveforms to suit a variety of needs.
- Impedance: Maintains a standard impedance of 600 Ohm ± 10% for reliable signal integrity.
- Frequency Range: Adjustable frequency from 1Hz to an impressive 1MHz, allowing for extensive experimentation across different applications.
🏆 Detailed Specifications:
- SINE WAVE:
- Amplitude: Adjustable from 0 to 3V when powered at 9V DC input.
- Distortion: Maintains less than 1% distortion at a frequency of 1kHz, ensuring clear signal output.
- Flatness: Achieves a remarkable flatness of +0.05dB over the range of 1Hz to 100kHz.
- SQUARE WAVE:
- Amplitude: Outputs 8V (no load) when supplied with 9V DC input.
- Rise Time: Quick response time with less than 50ns rise time at 1kHz.
- Fall Time: Fast fall time of less than 30ns at 1kHz.
- Symmetry: Maintains less than 5% symmetry at 1kHz for balanced waveforms.
- TRIANGLE WAVE:
- Amplitude: Adjustable from 0 to 3V using 9V DC input.
- Linearity: Exhibits high linearity with less than 1% deviation up to 100kHz at 10mA, ensuring precision in output.
🔍 This DIY kit not only enhances your understanding of electronic waveforms but also provides a practical tool for testing and development. With its comprehensive specifications and user-friendly design, the XR2206 Function Signal Generator is an invaluable addition to any electronic toolkit. Dive into the world of signal generation and unlock endless possibilities!
